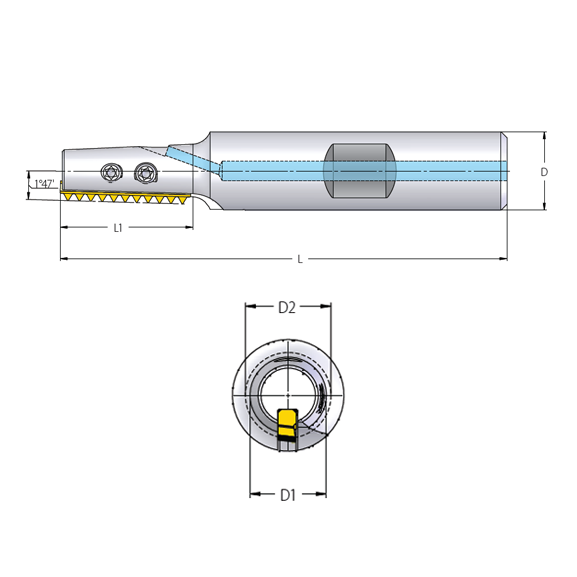

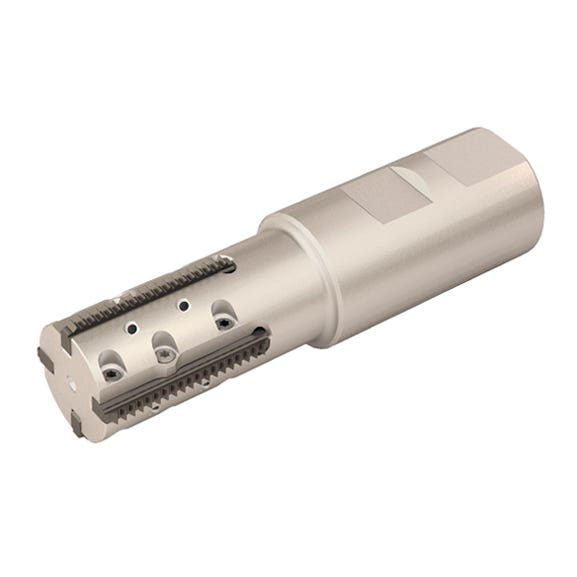

Conical MiTM Super Fast Thread Milling Holder (Vardex)
Conical MiTM Super Fast Thread Milling Holder (Vardex)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Shank (mm)
|
Overall Length (mm)
|
Reach (mm)
|
Neck Diameter (mm)
|
Teeth
|
D
|
||||
|---|---|---|---|---|---|---|---|---|---|
| Shank (mm): 8 | Overall Length (mm): 66.5 | Reach (mm): 19 | Neck Diameter (mm): 10.6 | Teeth: 1 | D: 12 |
5 days*
|
£271.55
£226.29
|
|
|
| Shank (mm): 11.5 | Overall Length (mm): 81 | Reach (mm): 26 | Neck Diameter (mm): 13.9 | Teeth: 1 | D: 20 |
5 days*
|
£225.43
£187.86
|
|
|
| Shank (mm): 14 | Overall Length (mm): 85 | Reach (mm): 26 | Neck Diameter (mm): 17.2 | Teeth: 2 | D: 25 |
5 days*
|
£295.34
£246.12
|
|
|
| Shank (mm): 18 | Overall Length (mm): 102 | Reach (mm): 43 | Neck Diameter (mm): 22.2 | Teeth: 3 | D: 25 |
5 days*
|
£299.16
£249.30
|
|
|
| Shank (mm): 25 | Overall Length (mm): 103 | Reach (mm): 43 | Neck Diameter (mm): 28.4 | Teeth: 4 | D: 25 |
5 days*
|
£318.19
£265.16
|
|
Product Information
Features & Benefits
- Conical indexable thread milling tool holder.
- Supplied with through coolant capability.
- For use with Vardex MiTM inserts.
- Through coolant is recommended, especially when D2 > 0.7 x nominal thread diameter.
- MiTM system designed for super fast machining.
- Slash cycle times when machining threads using long inserts.
- MiTM tool holders use a new nickel coating for exceptional anti-rust protection.
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Mills |
| Brand | Vargus |
