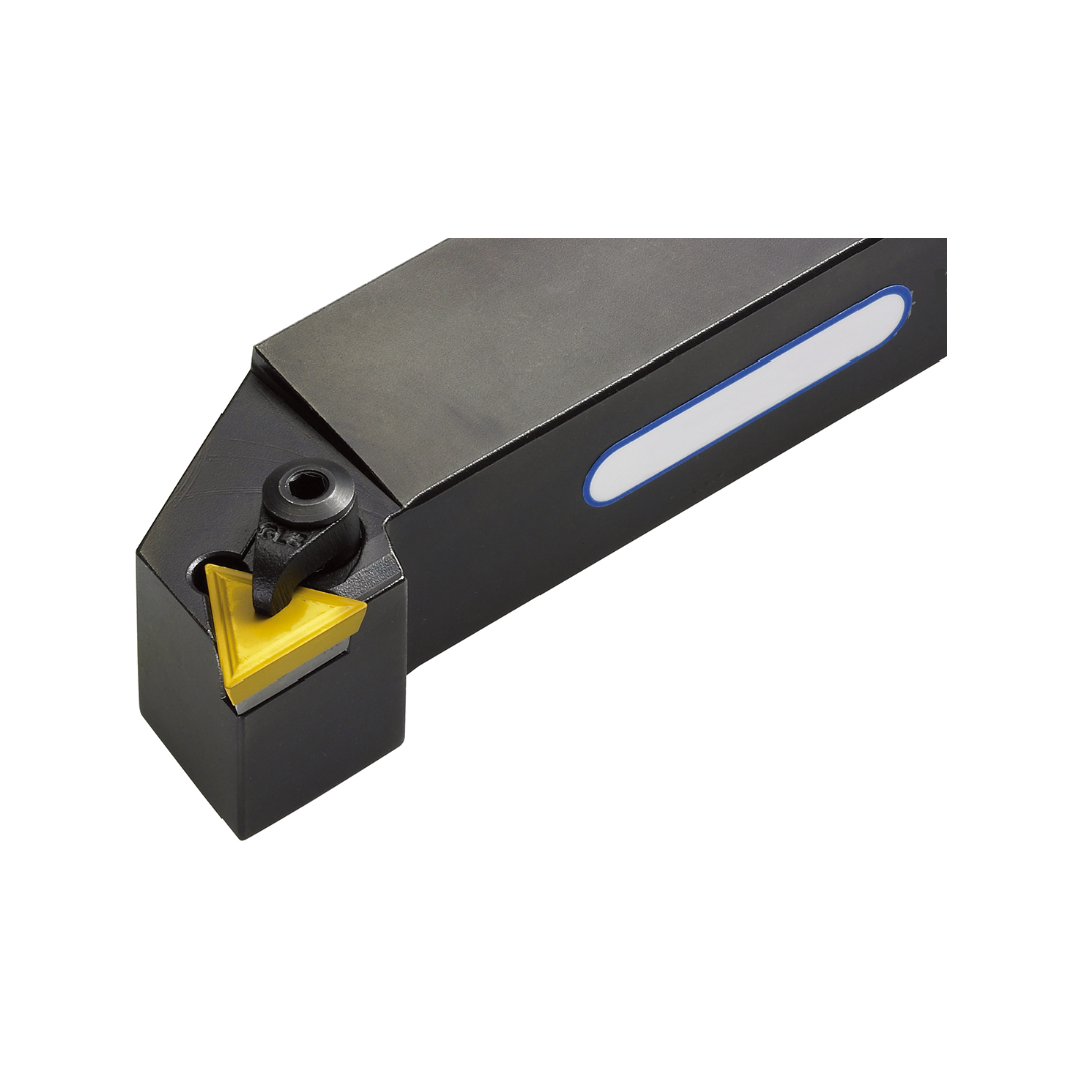

CTGPR1616-H11 Standard Turning Tool Holder, 16 x 16mm Shank, 100mm Long, Right Hand, 90 Degree Approach, Top Clamp, for TPUN11 inserts - CTGPR/L Series (Korloy)

Cutwel Sku
1-06-005534

CTGPR1616-H11 Standard Turning Tool Holder, 16 x 16mm Shank, 100mm Long, Right Hand, 90 Degree Approach, Top Clamp, for TPUN11 inserts - CTGPR/L Series (Korloy)

Cutwel Sku
1-06-005534
High quality solid steel shank turning tool holder suitable for use with TPUN style turning inserts. The CTGPR/L...
Read more
Overall Length (mm)100
Shank (mm)16
minus plus

*Estimated lead time, subject to availability

View Full Range
unavailable 21 days*

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

High quality solid steel shank turning tool holder suitable for use with TPUN style turning inserts. The CTGPR/L series have a Top clamp style clamping system with a 90° degree approach angle. Available in Right hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.
  • Suitable for use with TPUN style turning inserts
  • High quality solid steel shank turning tool holder with 90° degree approach angle
  • Top clamp style clamping system
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools

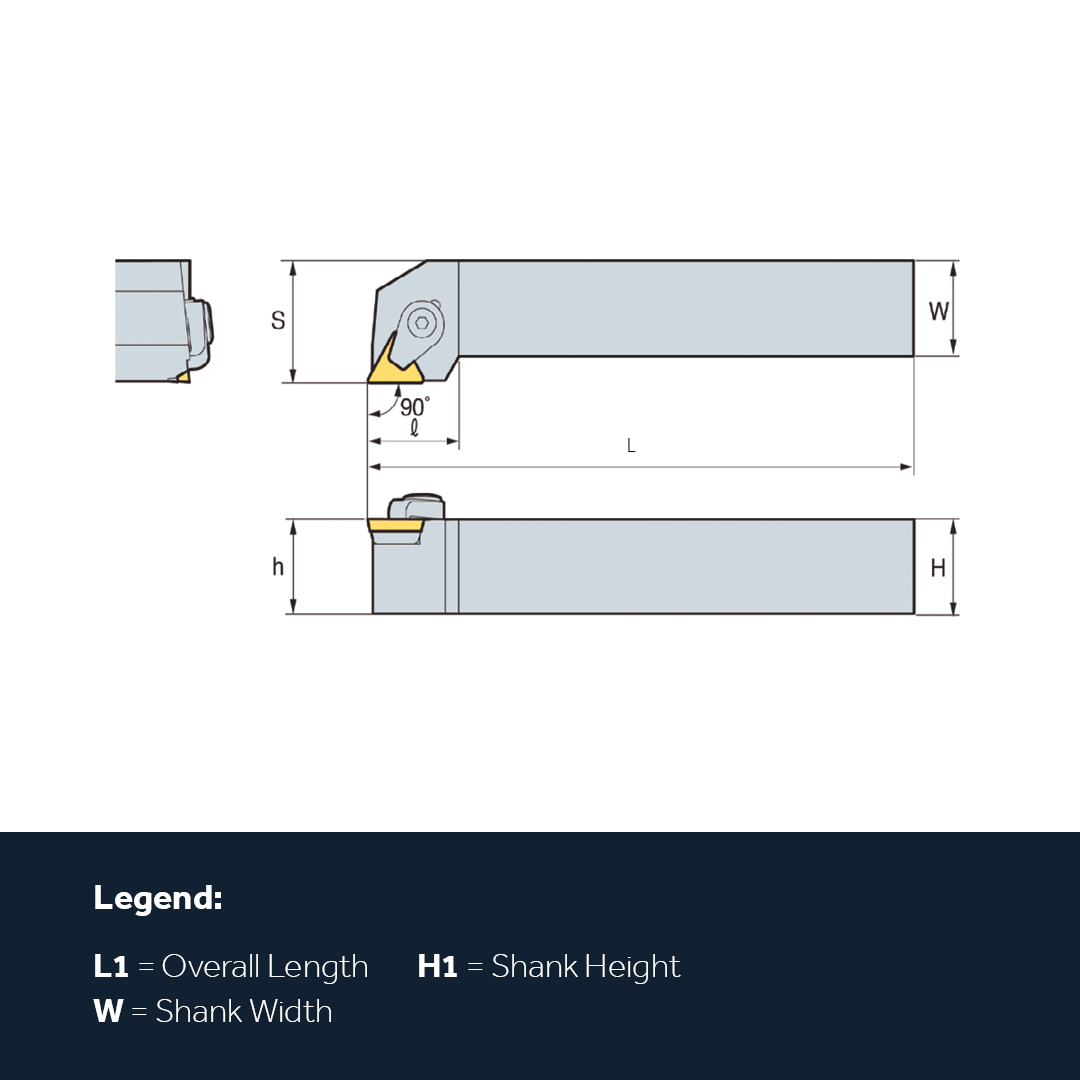

Shank (mm) 16
Overall Length (mm) 100
ISO Code CTGPR1616-H11
Shank 16mm x 16mm
Hand Right
Insert Size TP**1103
Alternative Part Number CTGPR1616-H11
Screw VHX0821
Clamp Screw CHX0515C
Clamp CH53R1

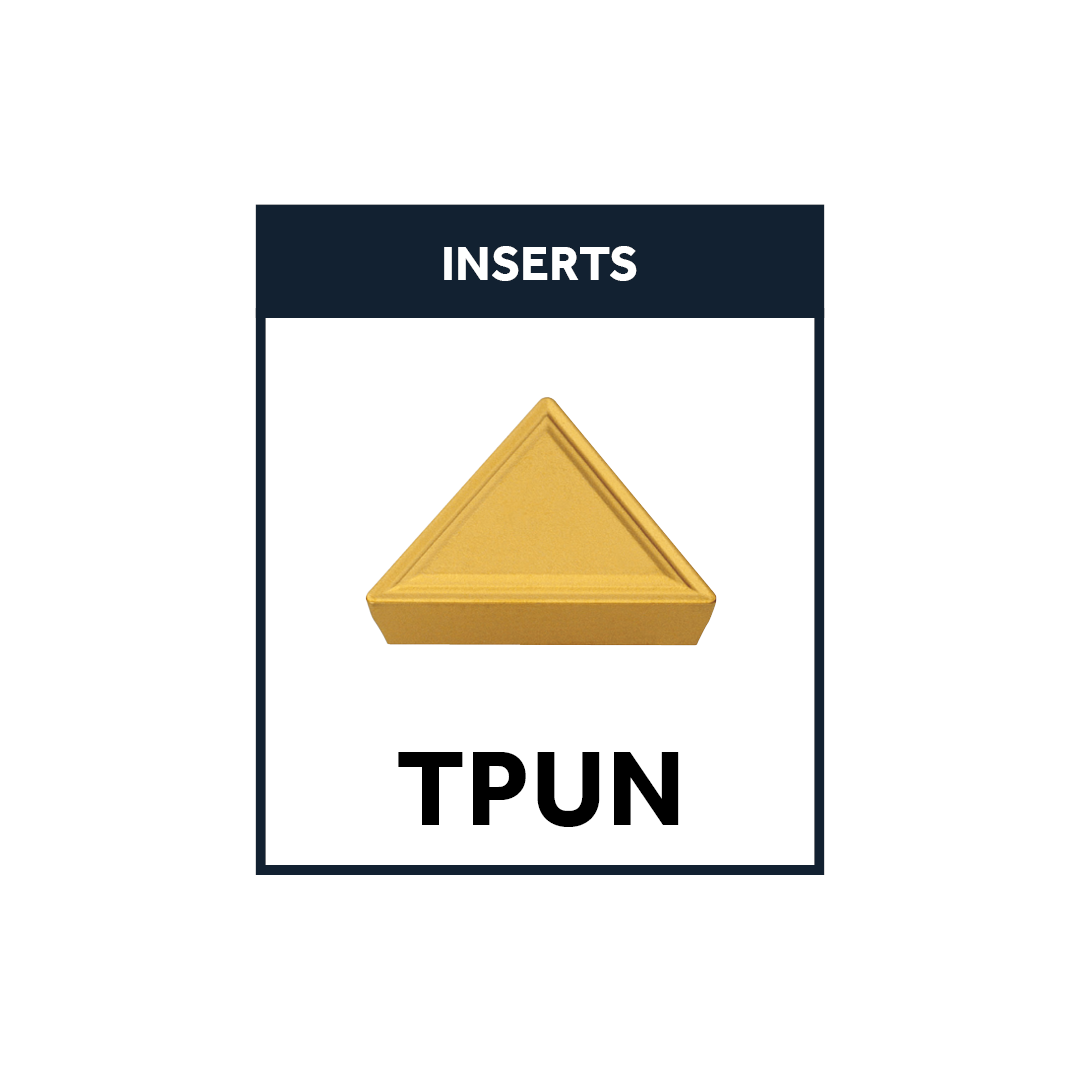

Insert Series TPUN
Through Coolant No

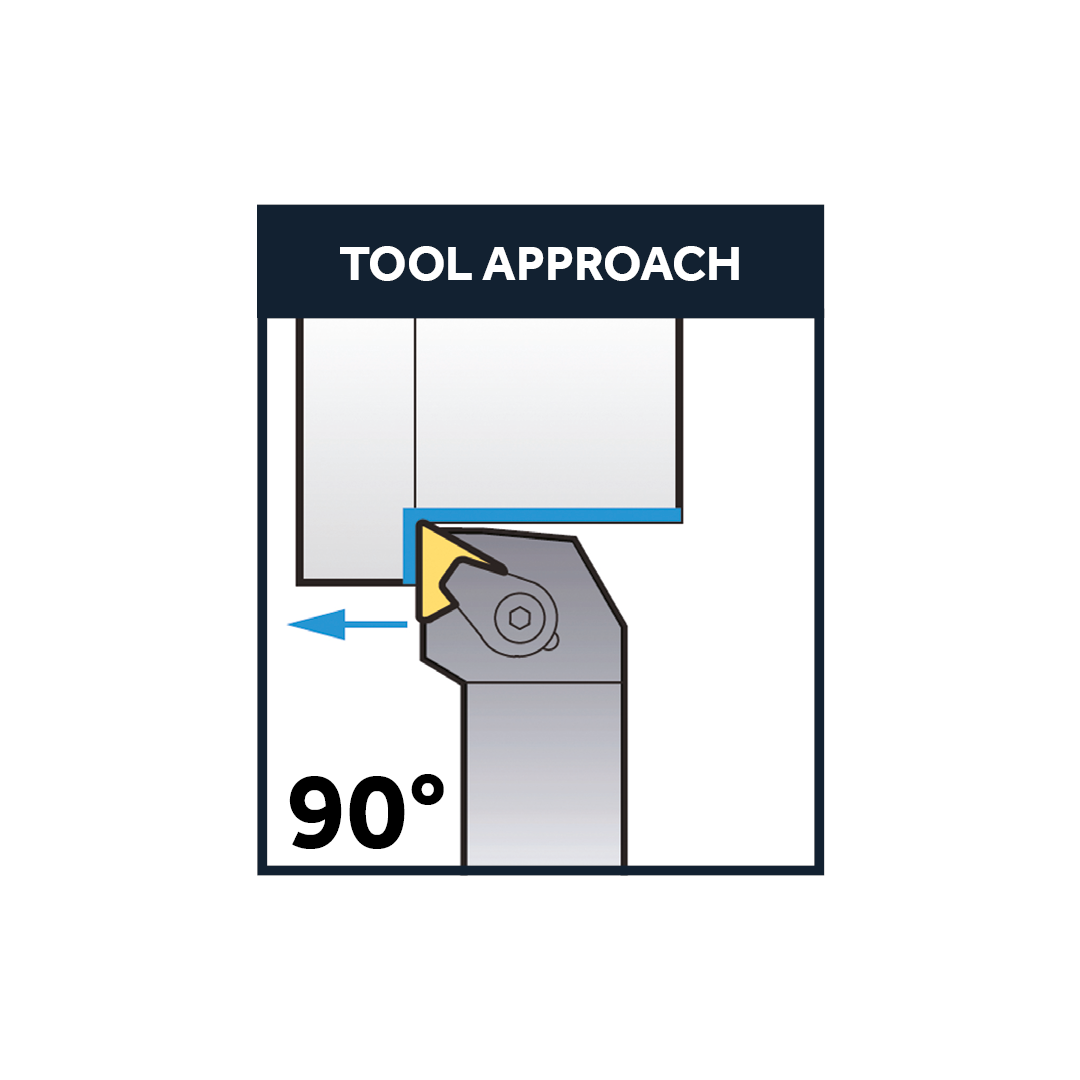

Angle 90°
Holder Style CTGPR/L
Clamp Type Top Clamp
Brand Korloy
