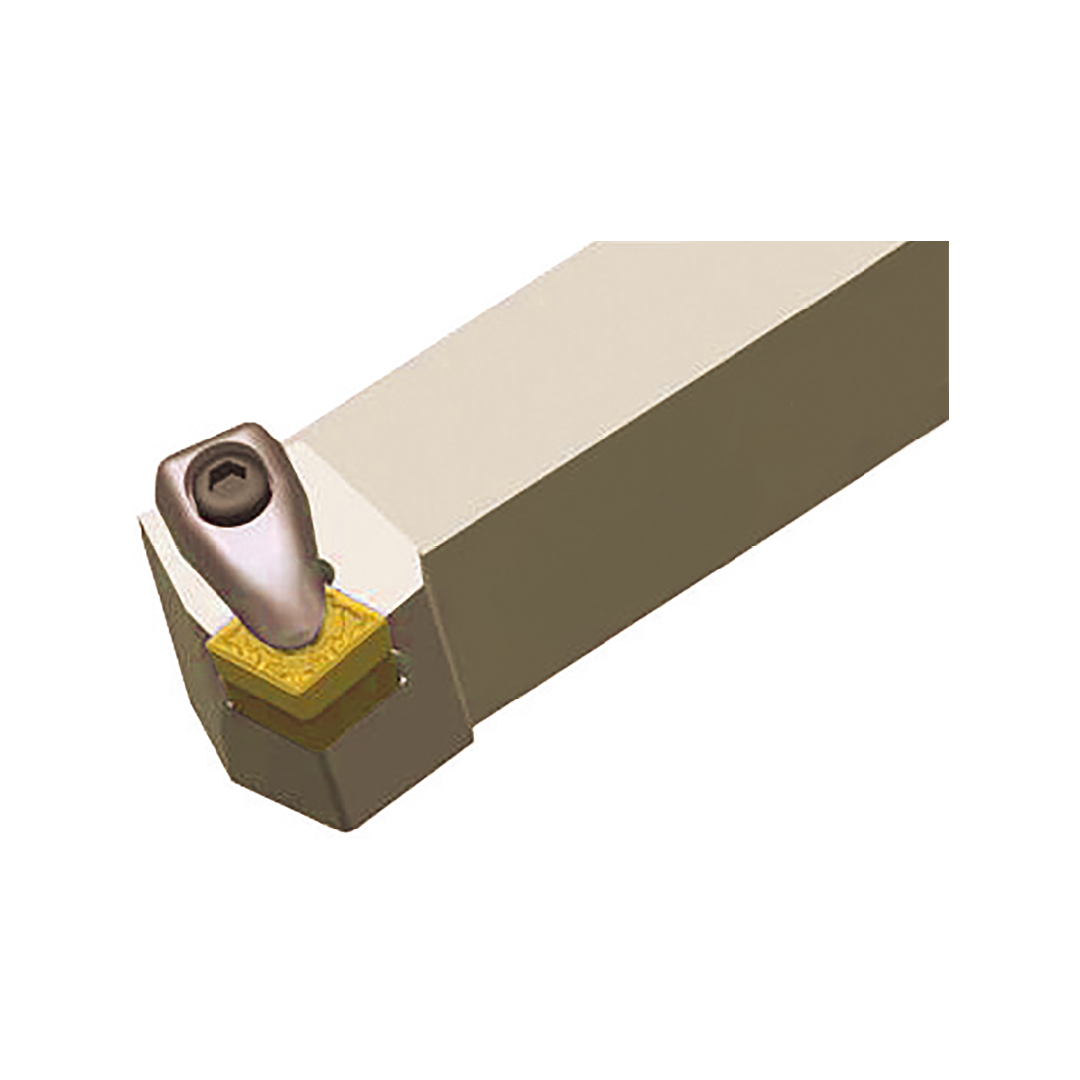

DCKNR2020-K12 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 75 Degree Approach, Double Clamp, for CNMG12 inserts - DCKNR/L Series (Korloy)

Cutwel Sku
1-06-039828

DCKNR2020-K12 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 75 Degree Approach, Double Clamp, for CNMG12 inserts - DCKNR/L Series (Korloy)

Cutwel Sku
1-06-039828
High quality solid steel shank turning tool holder suitable for use with CNMG style turning inserts (also suitable...
Read more
Overall Length (mm)125
Shank (mm)20
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

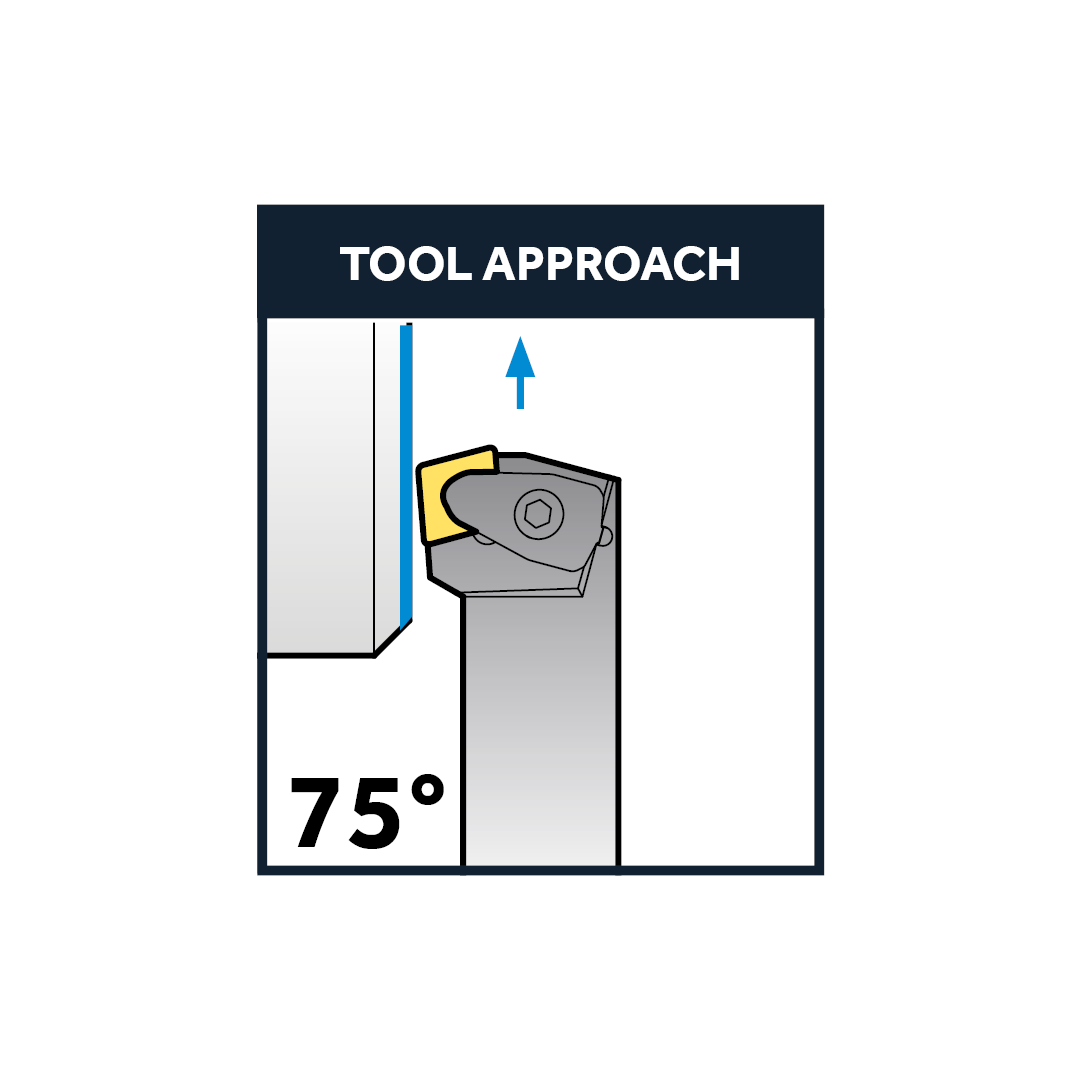

High quality solid steel shank turning tool holder suitable for use with CNMG style turning inserts (also suitable for CNMA, CNMM, CNGA, CNGG etc). The DCKNR/L series have a Ultra powerful double clamp style clamping system - high precision clamping system for longer tool life and excellent surface finish with a 75° degree approach angle. Available in Right hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

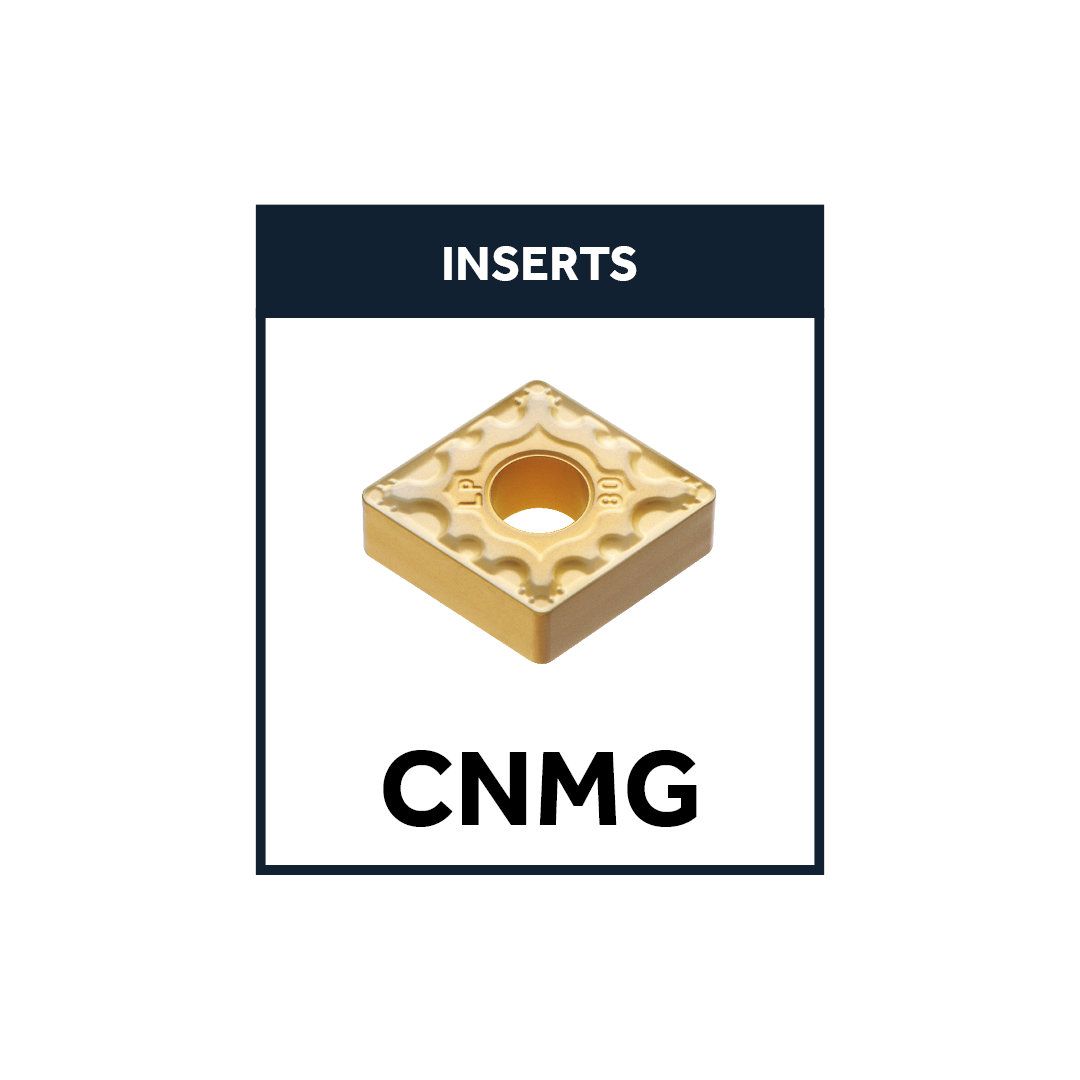

  • Suitable for use with CNMG style turning inserts (also suitable for CNMA, CNMM, CNGA, CNGG etc)
  • High quality solid steel shank turning tool holder with 75° degree approach angle
  • Ultra powerful double clamp style clamping system - high precision clamping system for longer tool life and excellent surface finish
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

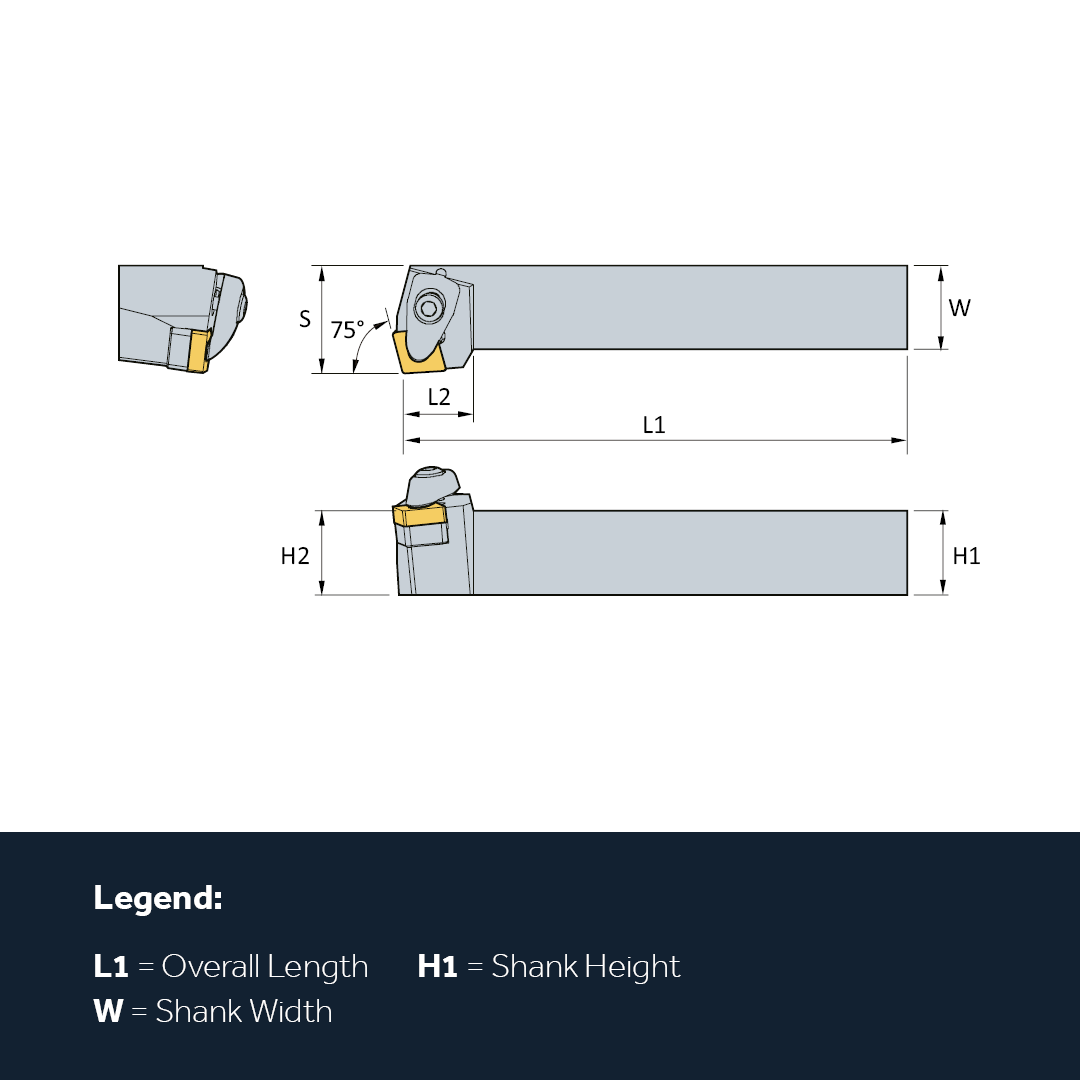

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 20
Overall Length (mm) 125
Inserts CN**1204
ISO Code DCKNR2020-K12
Shank 20mm x 20mm
Hand Right
Insert Size CN**1204
Alternative Part Number DCKNR2020-K12
Screw VHX0821
Shim SC44V
Shim Screw FTKA0410
Clamp Screw CHX0518
Clamp CVH4
Insert Series CNMG
Through Coolant No
Angle 75°
Holder Style DCKNR/L
Clamp Type Double Clamp
Brand Korloy
