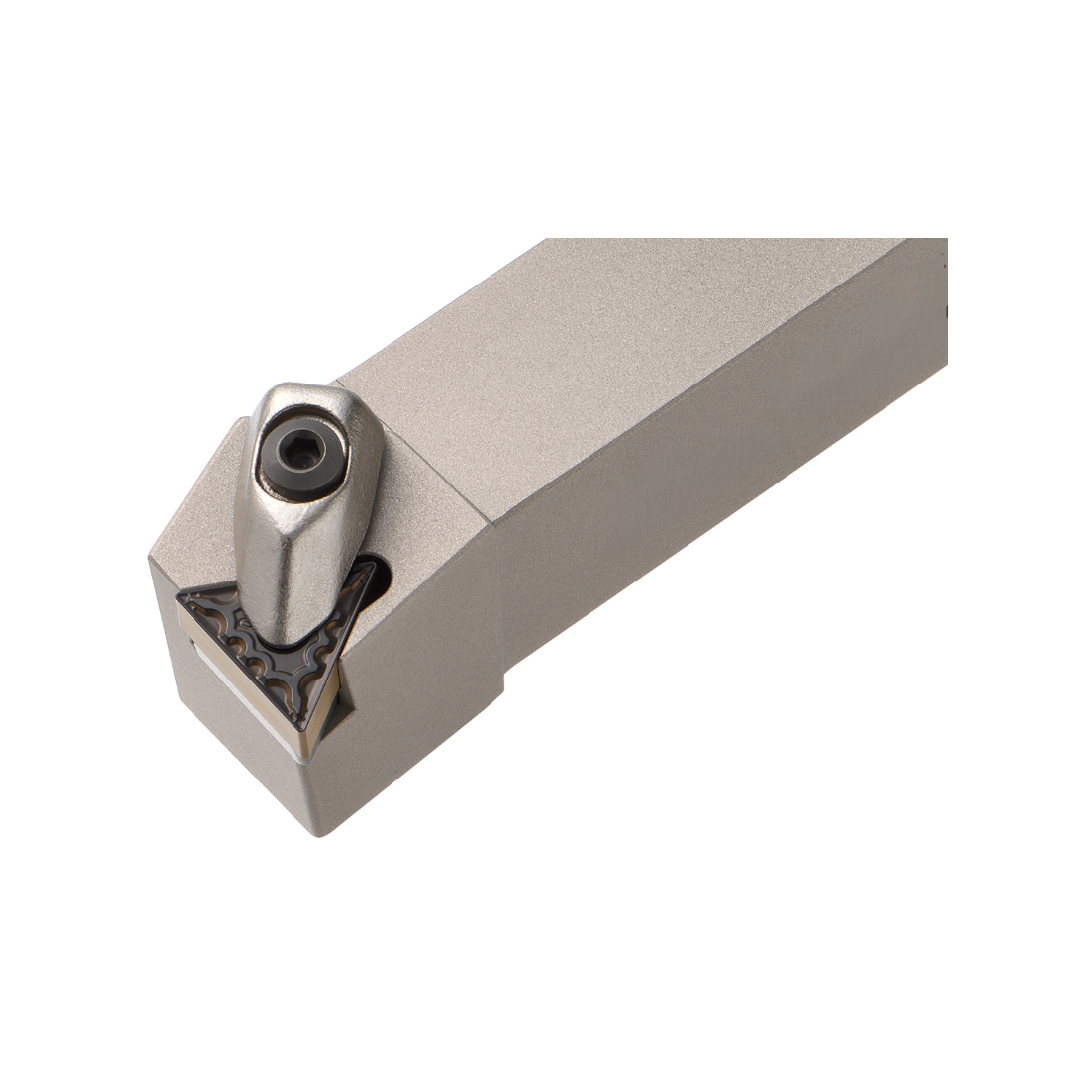

DTFNR2020-K16 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 90 Degree Approach, Double Clamp, for TNMG16 inserts - DTFNR/L Series (Korloy)
DTFNR2020-K16 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 90 Degree Approach, Double Clamp, for TNMG16 inserts - DTFNR/L Series (Korloy)

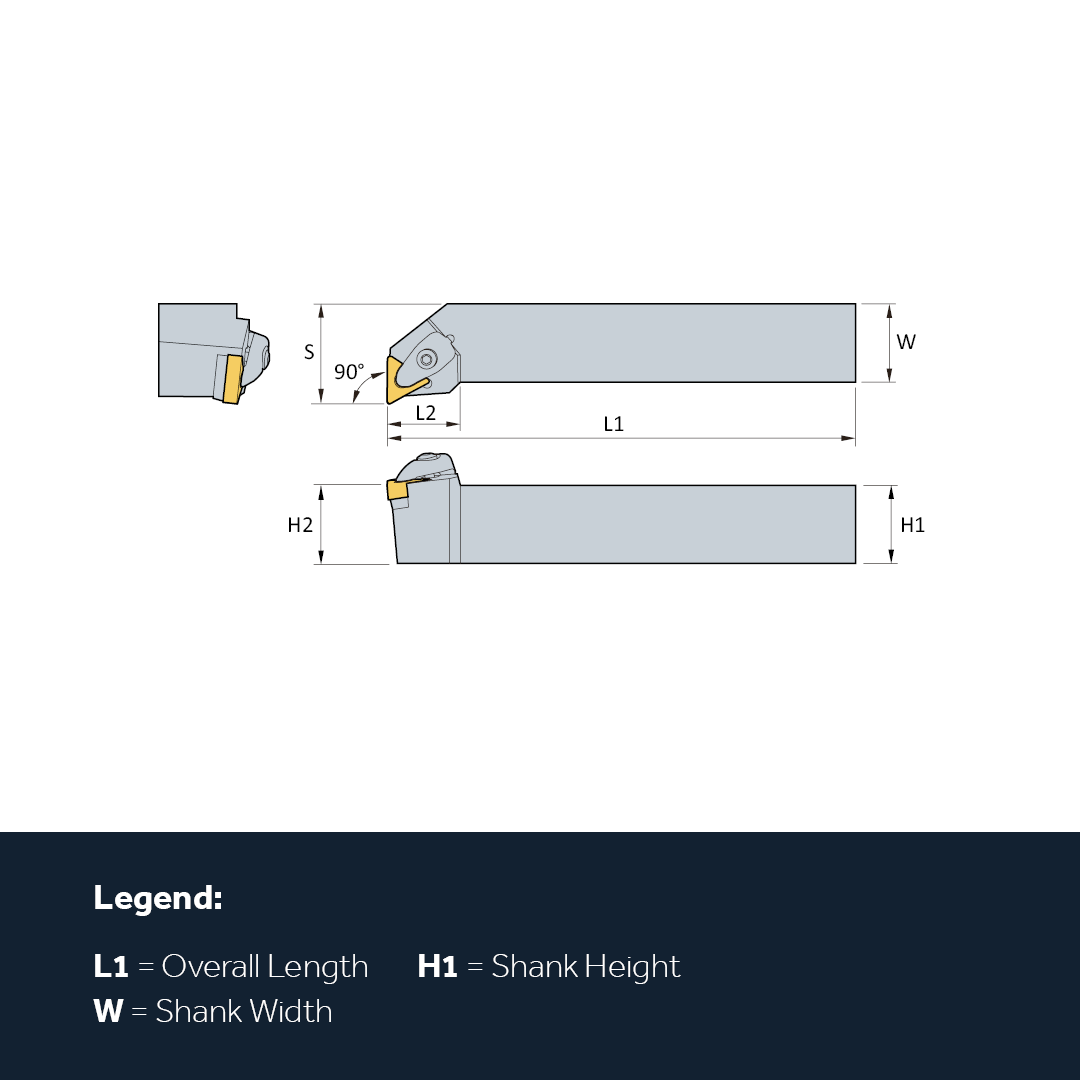

| Overall Length (mm) | 125 |
|---|---|
| Shank (mm) | 20 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

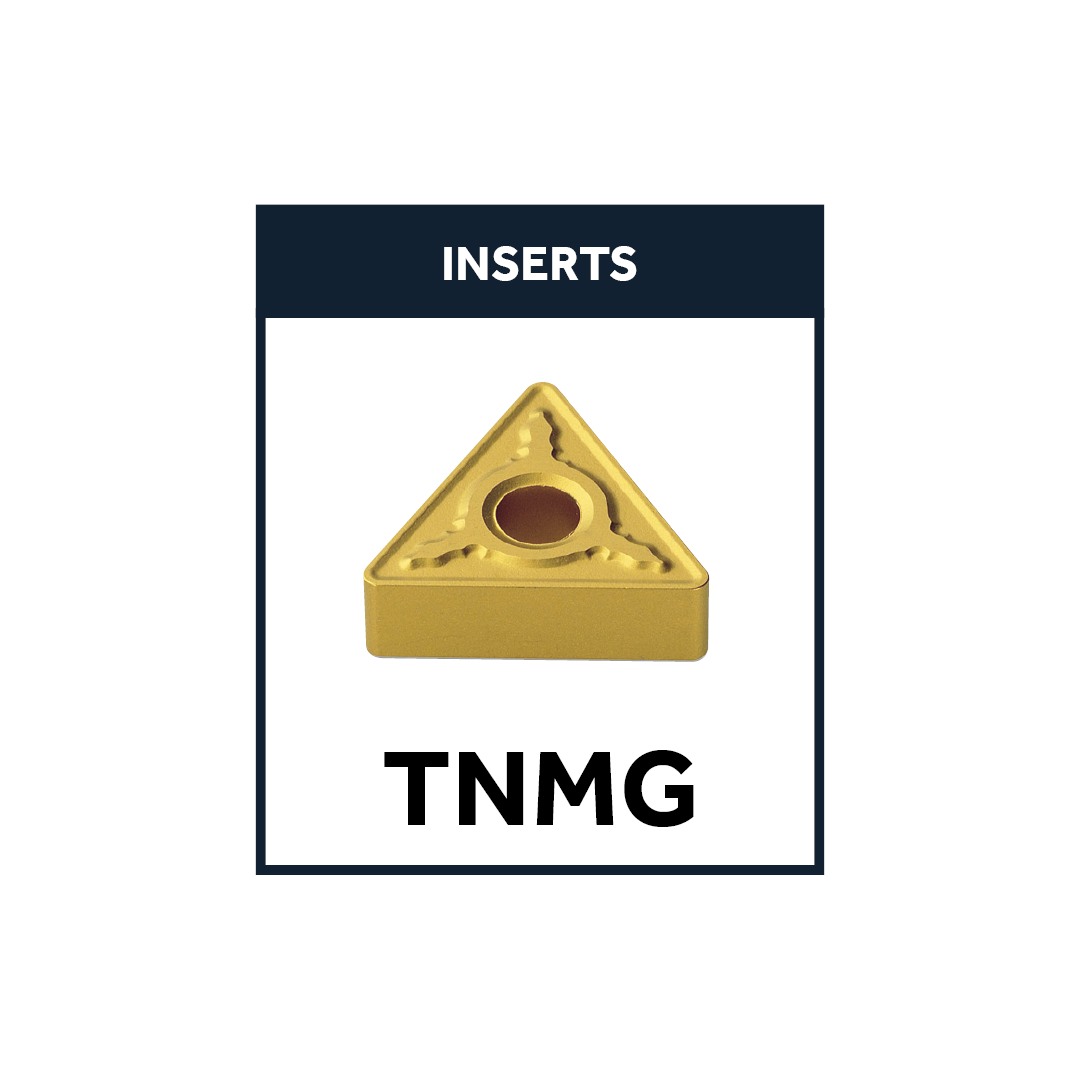

- Suitable for use with TNMG style turning inserts (also suitable for TNMA, TNMM, TNGA, TNGG etc)

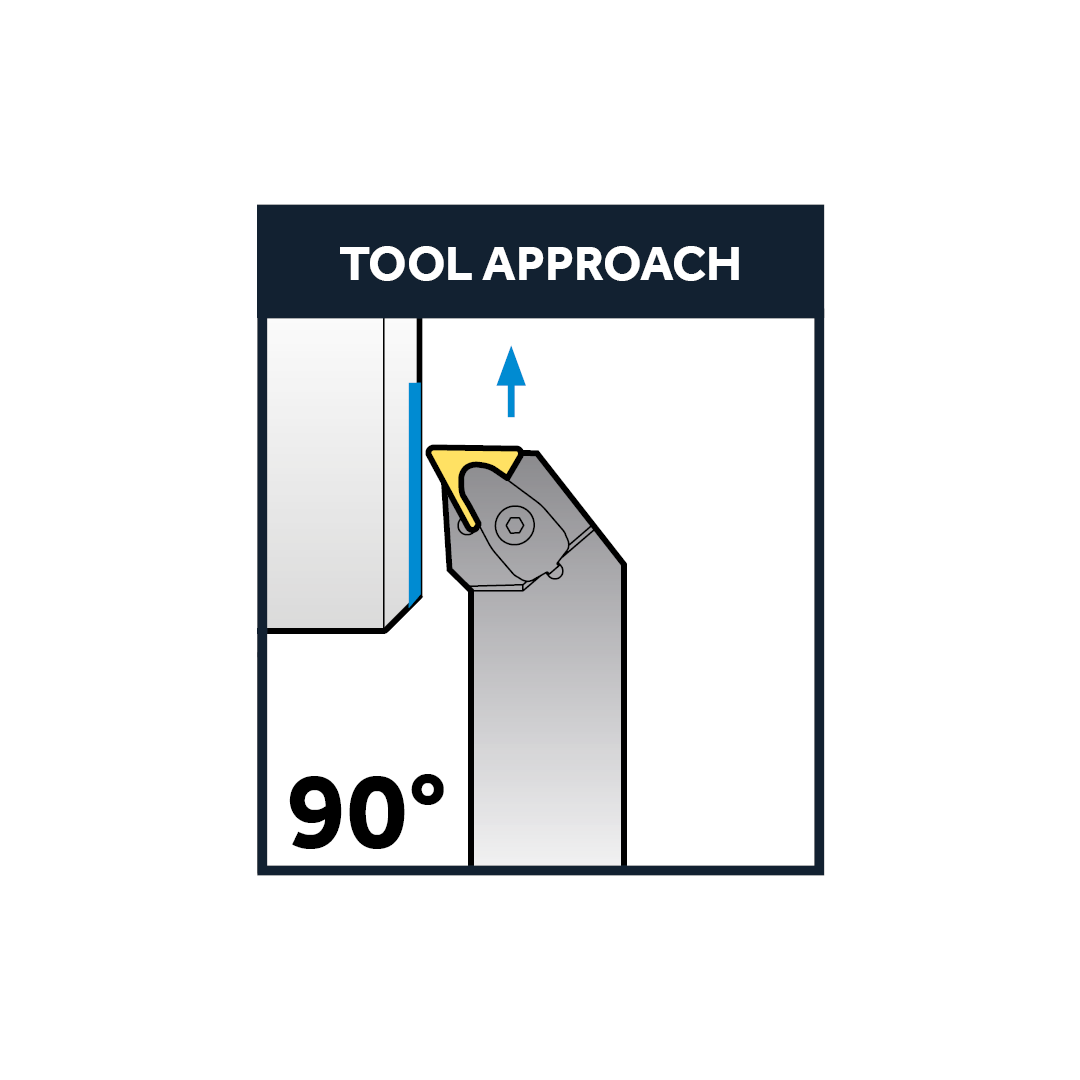

- High quality solid steel shank turning tool holder with 90° degree approach angle
- Ultra powerful double clamp style clamping system - high precision clamping system for longer tool life and excellent surface finish
- Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Turning Tools |
| Sub Category 2 | Standard Turning Tools |
| Shank (mm) | 20 |
| Overall Length (mm) | 125 |
| ISO Code | DTFNR2020-K16 |
| Shank | 20mm x 20mm |
| Hand | Right |
| Insert Size | TN**1604 |
| Alternative Part Number | DTFNR2020-K16 |
| Screw | VHX0821 |
| Shim | ST32V |
| Shim Screw | FTKA0307 |
| Clamp Screw | CHX0415 |
| Clamp | CVH3 |
| Insert Series | TNMG |
| Through Coolant | No |
| Angle | 90° |
| Holder Style | DTFNR/L |
| Clamp Type | Double Clamp |
| Brand | Korloy |
