DWLNR2525-M08 Standard Turning Tool Holder, 25 x 25mm Shank, 150mm Long, Right Hand, 95 Degree Approach, Double Clamp, for WNMG08 inserts - DWLNR/L Series (Korloy)

Cutwel Sku
1-06-013242

DWLNR2525-M08 Standard Turning Tool Holder, 25 x 25mm Shank, 150mm Long, Right Hand, 95 Degree Approach, Double Clamp, for WNMG08 inserts - DWLNR/L Series (Korloy)

Cutwel Sku
1-06-013242
High quality solid steel shank turning tool holder suitable for use with WNMG style turning inserts (also suitable...
Read more
Overall Length (mm)150
Shank (mm)25
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

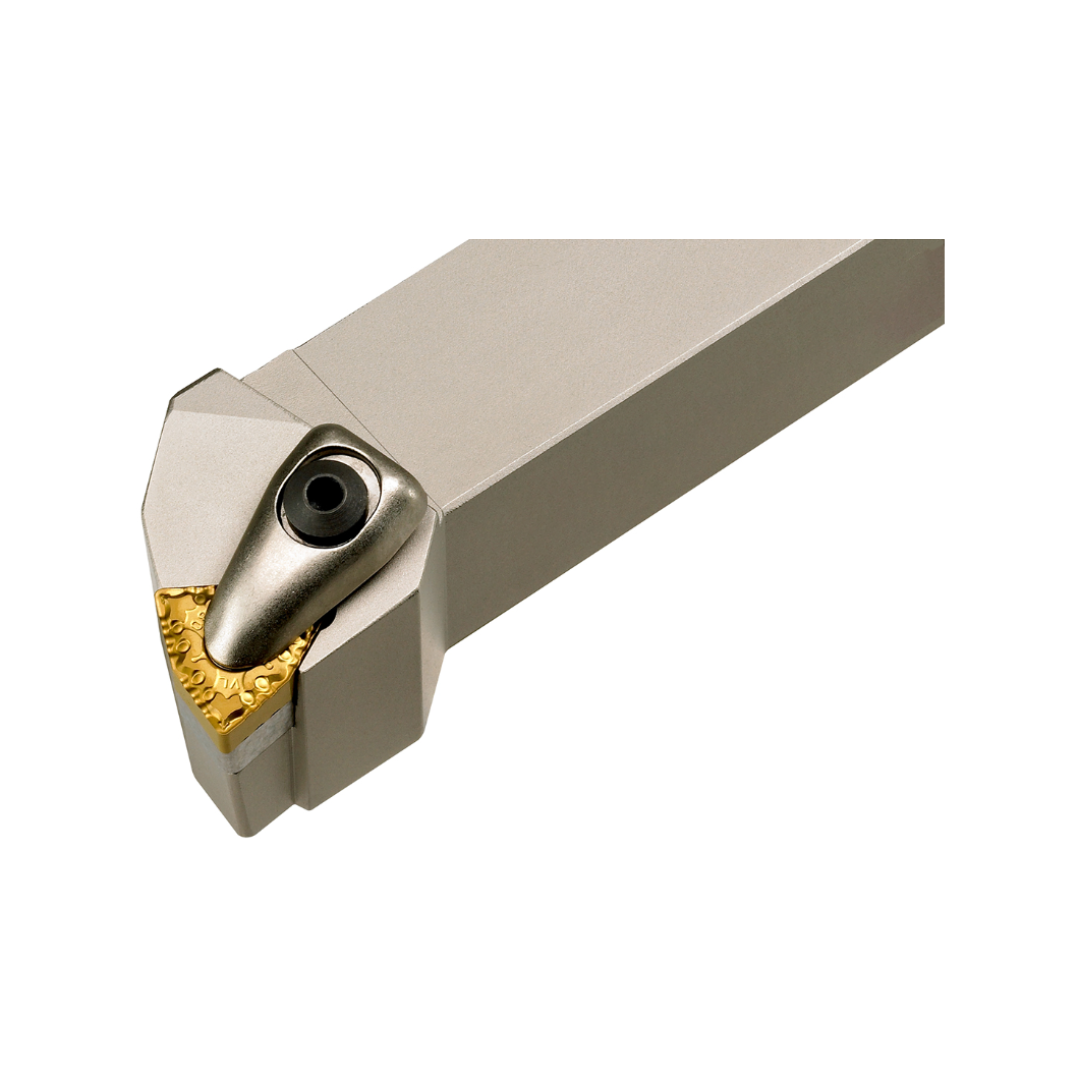

High quality solid steel shank turning tool holder suitable for use with WNMG style turning inserts (also suitable for WNMA, WNMM, WNGA, WNGG etc). The DWLNR/L series have a Ultra powerful double clamp style clamping system - high precision clamping system for longer tool life and excellent surface finish with a 95° degree approach angle. Available in Right hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

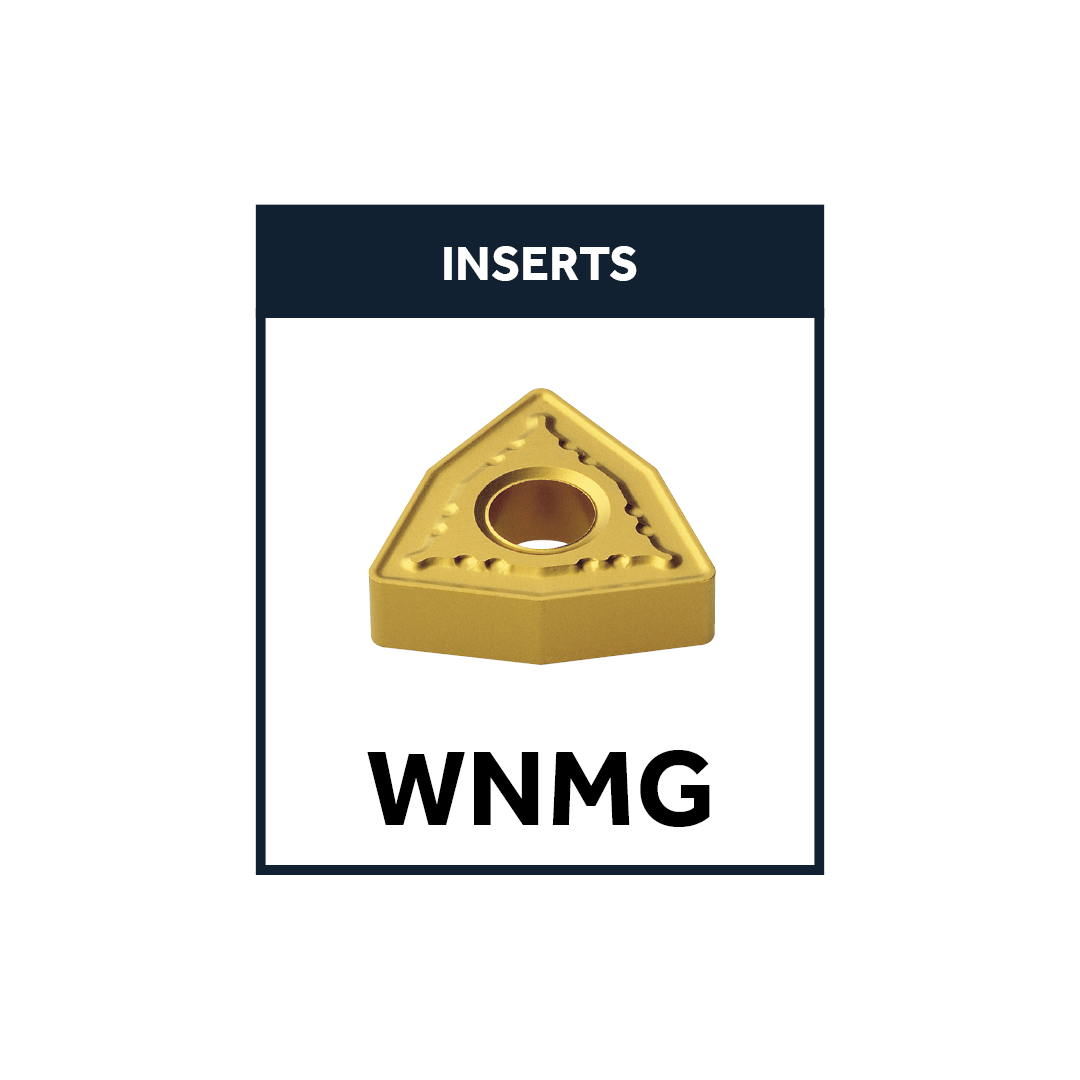

  • Suitable for use with WNMG style turning inserts (also suitable for WNMA, WNMM, WNGA, WNGG etc)

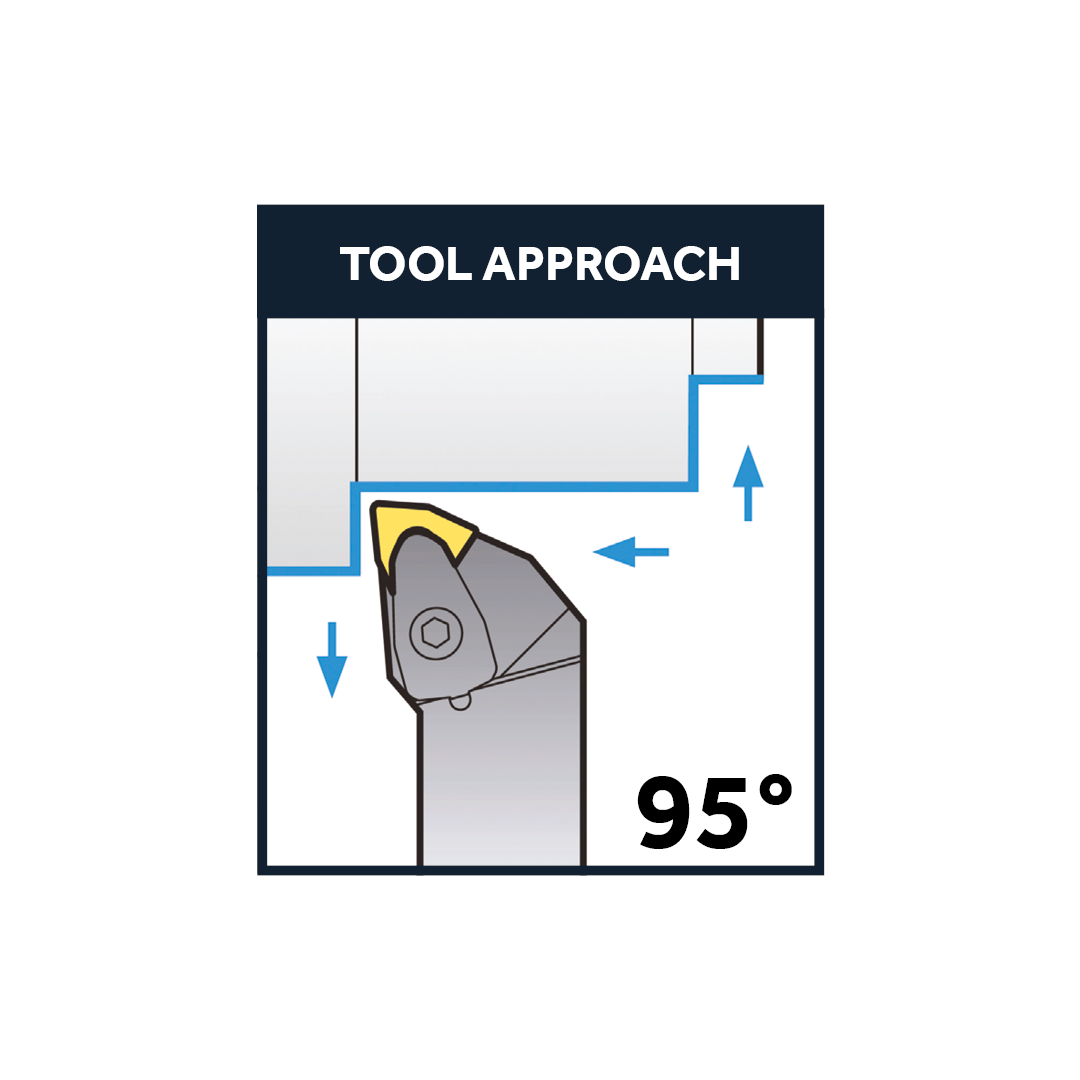

  • High quality solid steel shank turning tool holder with 95° degree approach angle
  • Ultra powerful double clamp style clamping system - high precision clamping system for longer tool life and excellent surface finish
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools

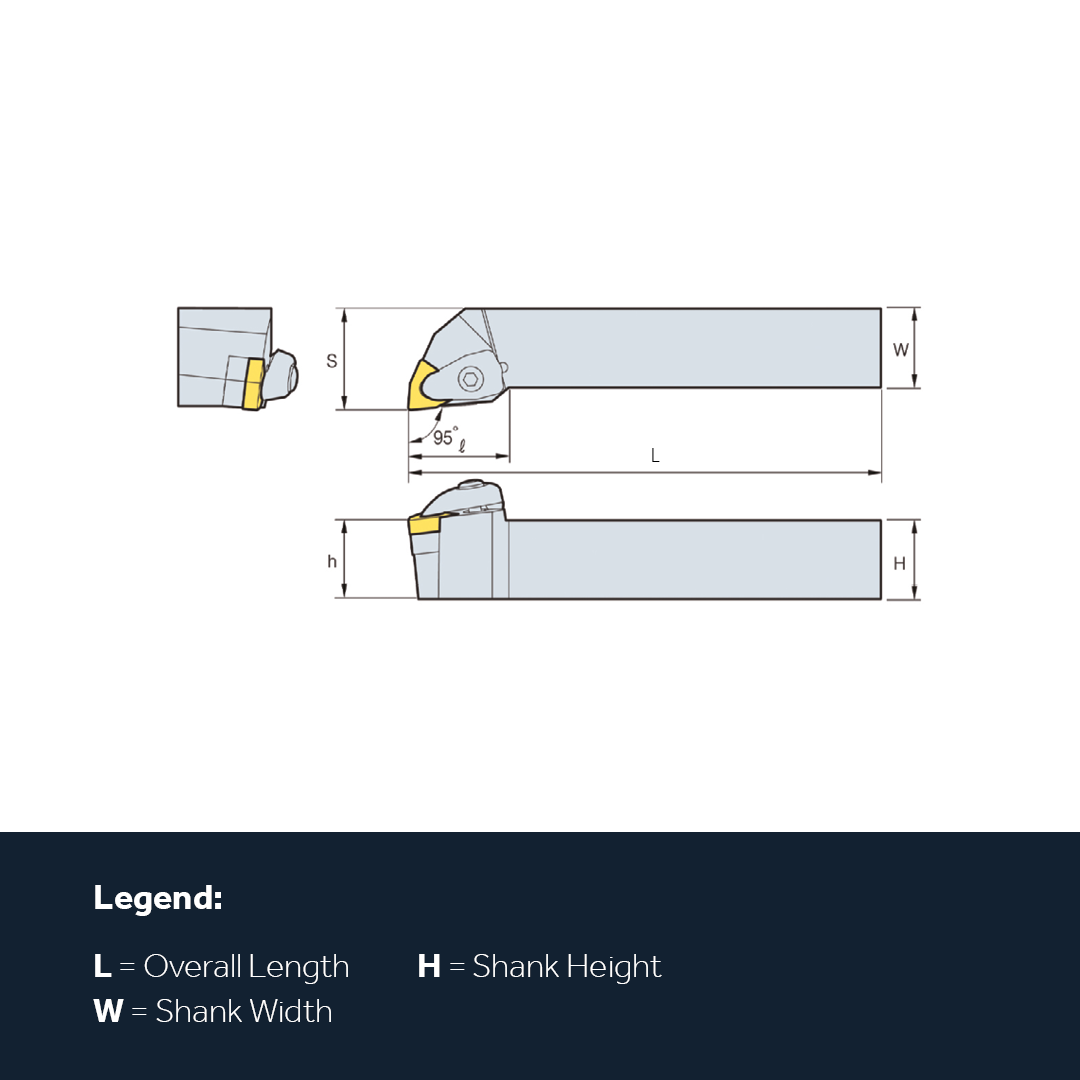

Shank (mm) 25
Overall Length (mm) 150
ISO Code DWLNR2525-M08
Shank 25mm x 25mm
Hand Right
Insert Size WN**0804
Alternative Part Number DWLNR2525-M08
Screw VHX0821
Shim SW44V
Shim Screw FTKA0410
Clamp Screw CHX0518
Clamp CVH4
Insert Series WNMG
Through Coolant No
Angle 95°
Holder Style DWLNR/L
Clamp Type Double Clamp
Brand Korloy
