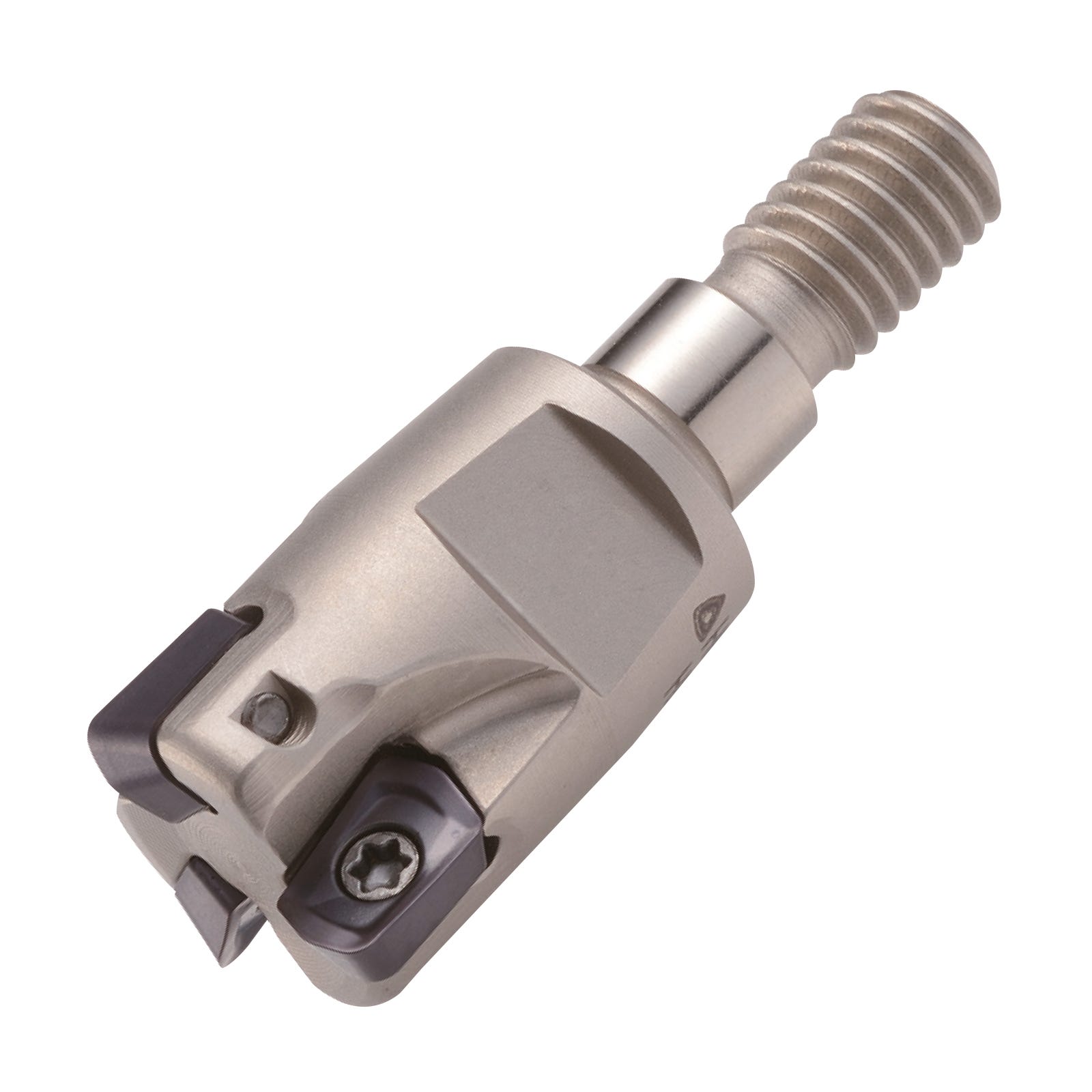

HFM Mill 90 degree Screwed Shank End Mill for LPMT/LPMW/LPEW04 Inserts - HFMS (Korloy)
HFM Mill 90 degree Screwed Shank End Mill for LPMT/LPMW/LPEW04 Inserts - HFMS (Korloy)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Overall Length (mm)
|
Reach (mm)
|
Depth of Cut
|
Teeth
|
Inserts
|
||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 8 | Overall Length (mm): 32 | Reach (mm): 17 | Depth of Cut: 0.4-0.5 | Teeth: 1 | Inserts: LPMT04, LPMW04, LPEW04 |
5 days*
|
£91.14
£75.95
|
|
|
| Diameter (mm): 10 | Overall Length (mm): 32 | Reach (mm): 17 | Depth of Cut: 0.4-0.5 | Teeth: 2 | Inserts: LPMT04, LPMW04, LPEW04 |
5 days*
|
£94.78
£78.98
|
|
|
| Diameter (mm): 11 | Overall Length (mm): 32 | Reach (mm): 17 | Depth of Cut: 0.4-0.5 | Teeth: 2 | Inserts: LPMT04, LPMW04, LPEW04 |
In stock
|
£94.78
£78.98
|
|
|
| Diameter (mm): 12 | Overall Length (mm): 34 | Reach (mm): 19 | Depth of Cut: 0.4-0.5 | Teeth: 3 | Inserts: LPMT04, LPMW04, LPEW04 |
5 days*
|
£108.42
£90.35
|
|
|
| Diameter (mm): 13 | Overall Length (mm): 34 | Reach (mm): 19 | Depth of Cut: 0.4-0.5 | Teeth: 3 | Inserts: LPMT04, LPMW04, LPEW04 |
5 days*
|
£108.42
£90.35
|
|
|
| Diameter (mm): 16 | Overall Length (mm): 39 | Reach (mm): 22 | Depth of Cut: 0.4-0.5 | Teeth: 4 | Inserts: LPMT04, LPMW04, LPEW04 |
5 days*
|
£124.04
£103.37
|
|
|
| Diameter (mm): 17 | Overall Length (mm): 39 | Reach (mm): 22 | Depth of Cut: 0.4-0.5 | Teeth: 4 | Inserts: LPMT04, LPMW04, LPEW04 |
5 days*
|
£136.43
£113.69
|
|
|
| Diameter (mm): 20 | Overall Length (mm): 46 | Reach (mm): 25 | Depth of Cut: 0.4-0.5 | Teeth: 5 | Inserts: LPMT04, LPMW04, LPEW04 |
5 days*
|
£156.08
£130.07
|
|
|
| Diameter (mm): 25 | Overall Length (mm): 51 | Reach (mm): 27 | Depth of Cut: 0.4-0.5 | Teeth: 6 | Inserts: LPMT04, LPMW04, LPEW04 |
5 days*
|
£178.56
£148.80
|
|
|
| Diameter (mm): 26 | Overall Length (mm): 51 | Reach (mm): 27 | Depth of Cut: 0.4-0.5 | Teeth: 6 | Inserts: LPMT04, LPMW04, LPEW04 |
13 days*
|
£178.56
£148.80
|
|
|
| Diameter (mm): 32 | Overall Length (mm): 60 | Reach (mm): 30 | Depth of Cut: 0.4-0.5 | Teeth: 8 | Inserts: LPMT04, LPMW04, LPEW04 |
In stock
|
£212.45
£177.04
|
|
|
| Diameter (mm): 33 | Overall Length (mm): 60 | Reach (mm): 30 | Depth of Cut: 0.4-0.5 | Teeth: 8 | Inserts: LPMT04, LPMW04, LPEW04 |
5 days*
|
£212.45
£177.04
|
|
Product Information
Features & Benefits
Specification
| Category | Milling |
|---|---|
| Sub Category | Indexable Milling |
| Sub Category 2 | HFM Indexable Milling System |
| Performance | 5 |
| Holder Type | Modular End Mill |
| Insert Angle | 90° |
| Holder Material | Steel |
| Brand | Korloy |
