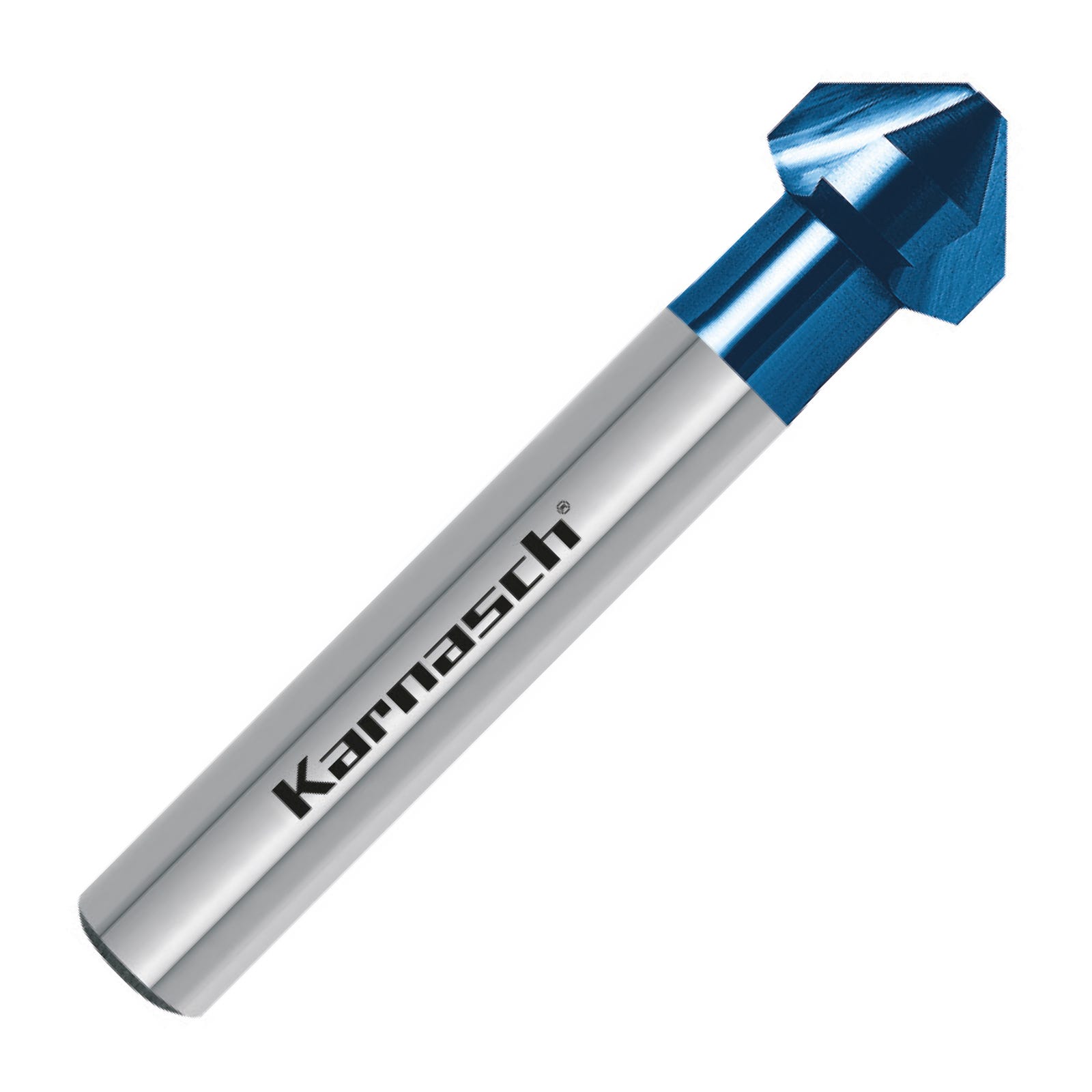

90 Degree Coated Carbide High Precision Countersink - 20.1755 Series (Karnasch)
90 Degree Coated Carbide High Precision Countersink - 20.1755 Series (Karnasch)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

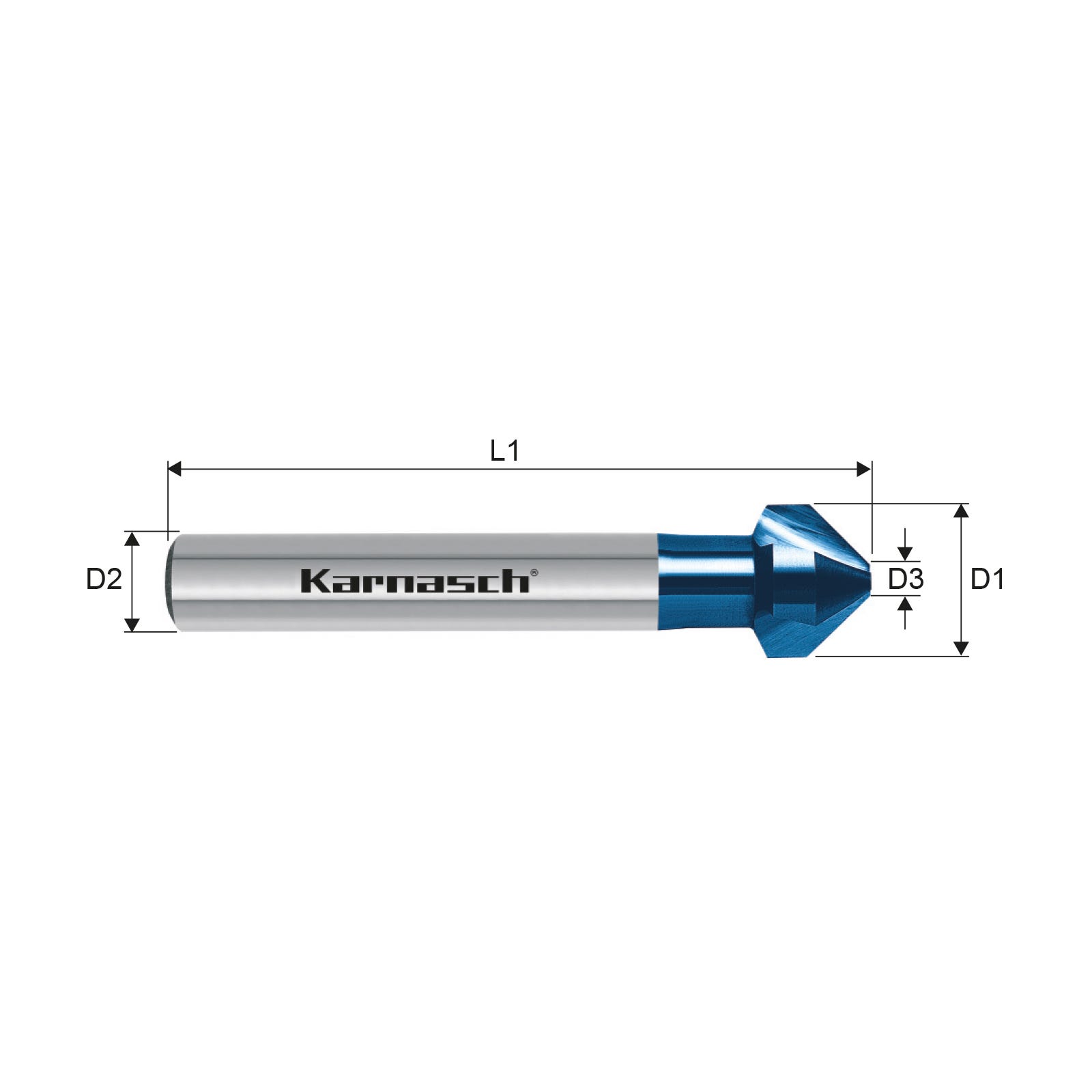

Diameter (mm)
|
Shank (mm)
|
Diameter Range (mm)
|
Overall Length (mm)
|
||||
|---|---|---|---|---|---|---|---|
| Diameter (mm): 6.3 | Shank (mm): 5 | Diameter Range (mm): 1.5-6.3 | Overall Length (mm): 45 |
15 days*
|
£68.35
£56.96
|
|
|
| Diameter (mm): 8.3 | Shank (mm): 6 | Diameter Range (mm): 2.8-8.3 | Overall Length (mm): 50 |
In stock
|
£75.59
£62.99
|
|
|
| Diameter (mm): 10.4 | Shank (mm): 8 | Diameter Range (mm): 4-10.4 | Overall Length (mm): 50 |
11 days*
|
£83.50
£69.58
|
|
|
| Diameter (mm): 12.4 | Shank (mm): 8 | Diameter Range (mm): 4-12.4 | Overall Length (mm): 57 |
In stock
|
£98.66
£82.22
|
|
|
| Diameter (mm): 16.5 | Shank (mm): 10 | Diameter Range (mm): 4.5-16.5 | Overall Length (mm): 60 |
10 days*
|
£130.63
£108.86
|
|
|
| Diameter (mm): 20.5 | Shank (mm): 10 | Diameter Range (mm): 5-20.5 | Overall Length (mm): 64 |
9 days*
|
£150.61
£125.51
|
|
|
| Diameter (mm): 25 | Shank (mm): 10 | Diameter Range (mm): 5.5-25 | Overall Length (mm): 68 |
In stock
|
£205.46
£171.22
|
|
|
| Diameter (mm): 31 | Shank (mm): 12 | Diameter Range (mm): 6-31 | Overall Length (mm): 72 |
9 days*
|
£262.74
£218.95
|
|
Product Information
Features & Benefits
- Micrograin Carbide Substrate
- Blue Tec Coating for Excellent Performance
- 3 Flute High Precision
- For Stainless Steel, HRSA's, Hardened Steel up to 60HRc & Cast Iron
- Plain Shank
- 90 degree Angle
- Right Hand Cut
- CBN Ground with Axial and Radial Relief for Chatter Free Machining
- For best performance use in Hydraulic or Shrink Chuck
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Countersinks |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Shank Type | Plain |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous |
| Performance | 5 |
| Coating Description | BLUE Coated |
| Self Centring | No |
| Type | High Precision Countersink |
| Brand | Karnasch |
