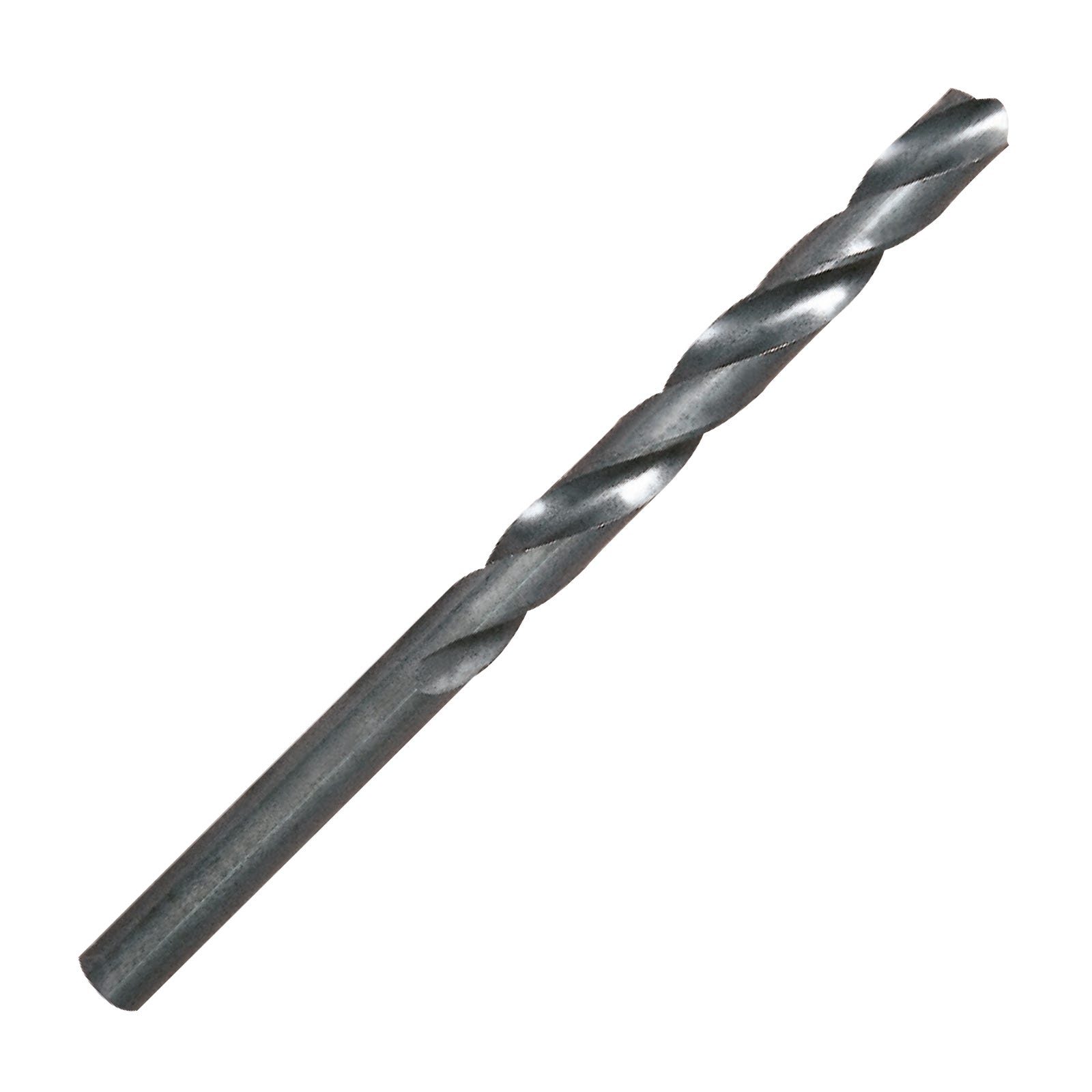

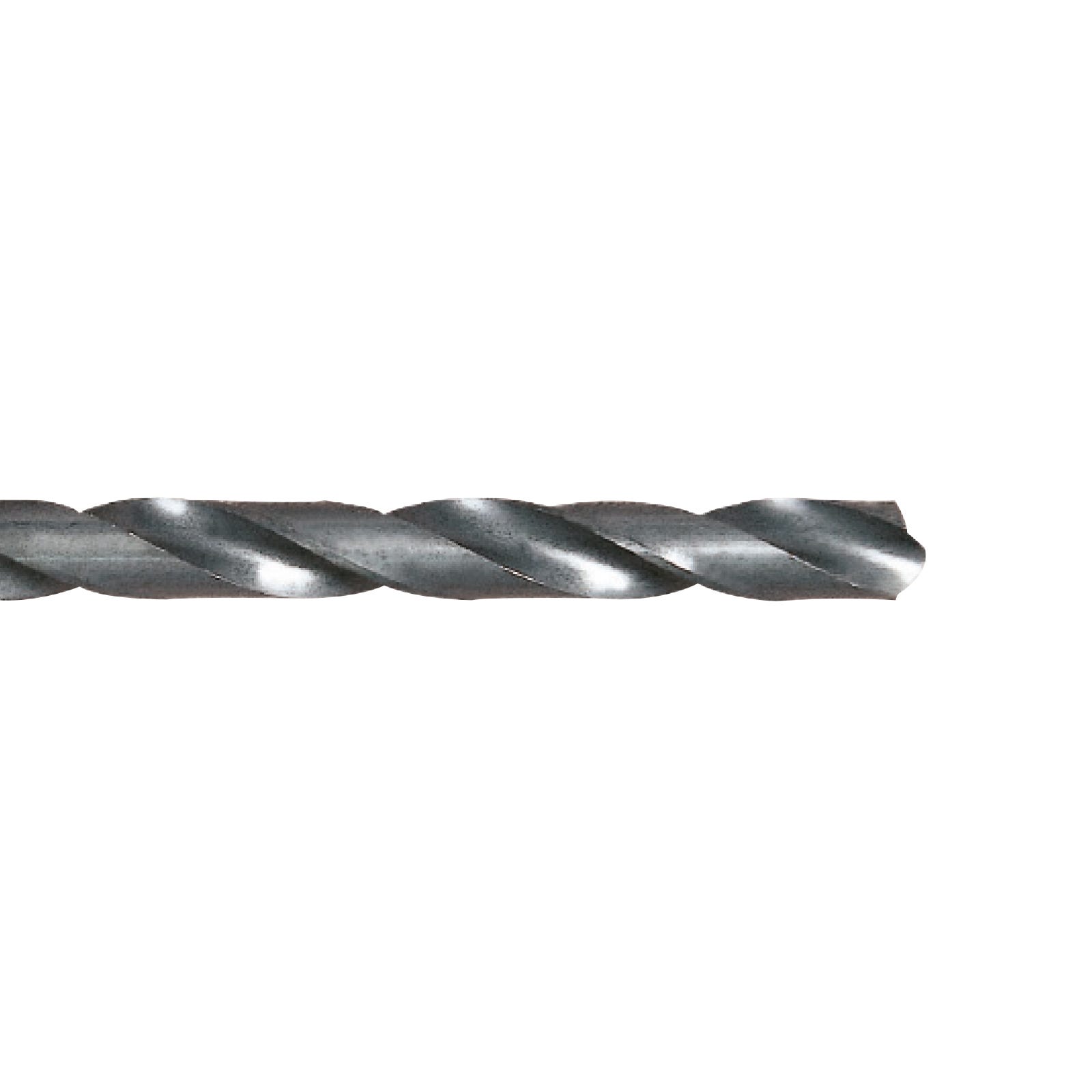

13mm Super-GP HSS Jobber Steam Tempered Drill - DSH105 (YG-1)
13mm Super-GP HSS Jobber Steam Tempered Drill - DSH105 (YG-1)

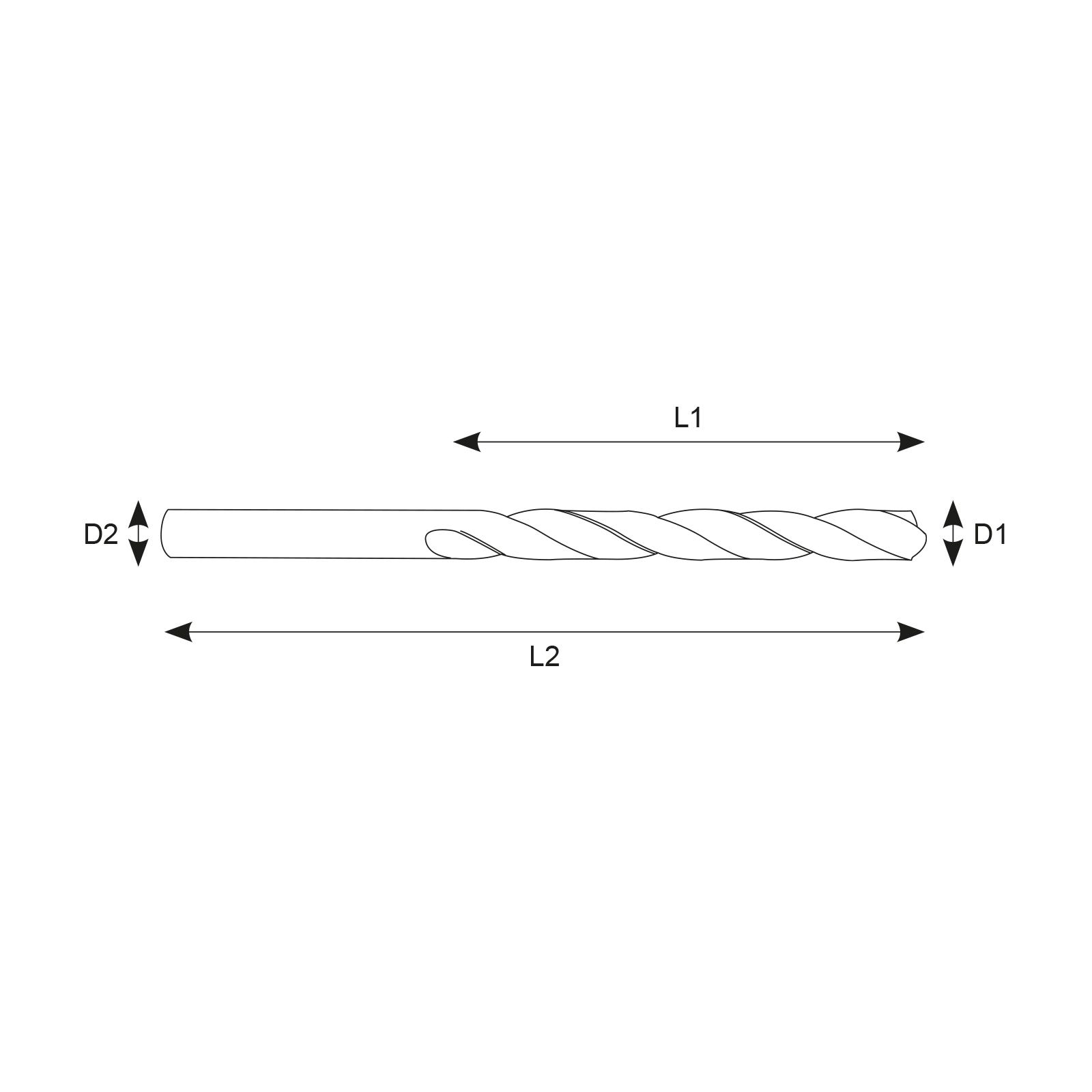

| Diameter (mm) | 13 |
|---|---|
| Overall Length (mm) | 151 |
| Flute Length (mm) | 101 |
| Shank (mm) | 13 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- 5xD Jobber Drill.
- Made from a super HSS substrate.
- Steam Tempered (Black Oxide Finish).
- Suitable for machining Steel
- Cobalt tool life, HSS price.
- Special HSS improves toughness and wear resistance as well as dramatically extending tool life.
- Can work well in good or bad machining conditions.
Specification
| Category | Hole Making |
|---|---|
| Sub Category | HSS & PM Drills |
| Sub Category 2 | Economy HSS Drills |
| Diameter (mm) | 13 |
| Shank (mm) | 13 |
| Flute Length (mm) | 101 |
| Overall Length (mm) | 151 |
| Tolerance | h8 |
| Point Angle | 118° |
| Shank Type | Plain |
| Substrate | HSS |
| Surface Treatment | Uncoated |
| Drill Type | Jobber |
| Depth | 5xD |
| Performance | 2 |
| Coating Description | Black Oxide Finish |
| Through Coolant | No |
| Substrate Description | Super HSS |
| Self Centring | No |
| Helix Angle | 30° |
| Brand Range | Steam Tempered Drills |
| Brand | YG-1 |
