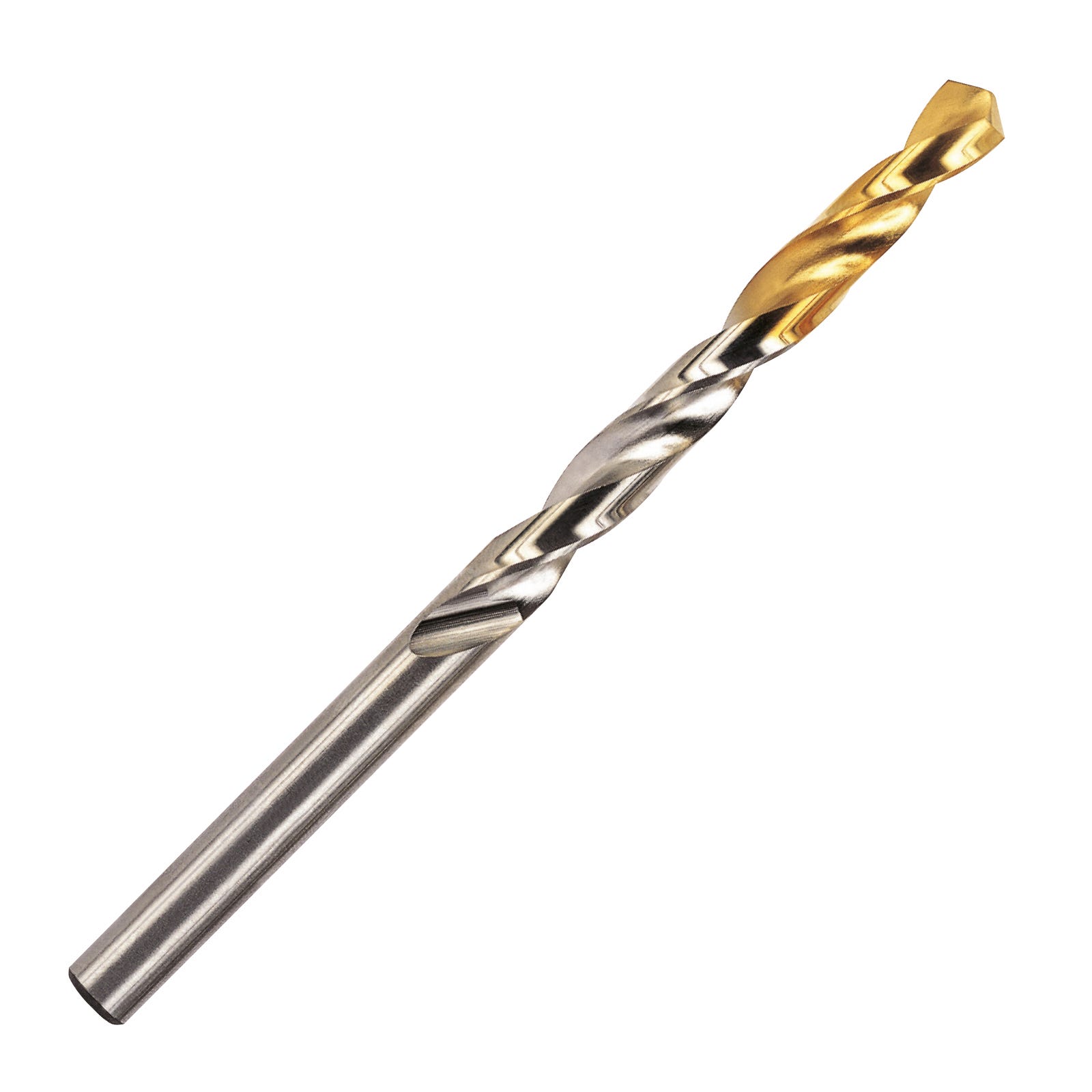

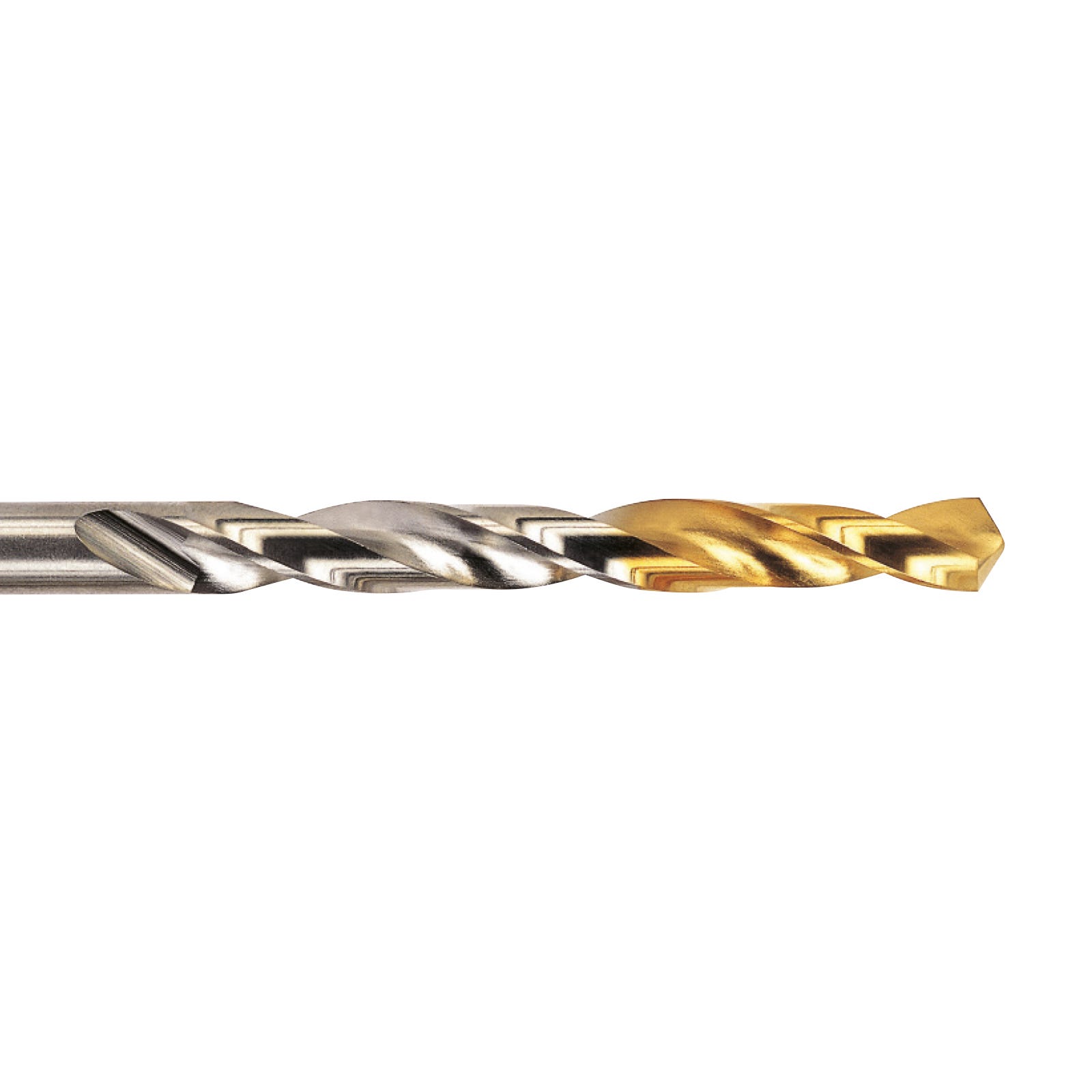

10.4mm Gold-P TiN Coated HSS 5 Percent Cobalt Jobber Drill - DLGP195 (YG-1)
10.4mm Gold-P TiN Coated HSS 5 Percent Cobalt Jobber Drill - DLGP195 (YG-1)

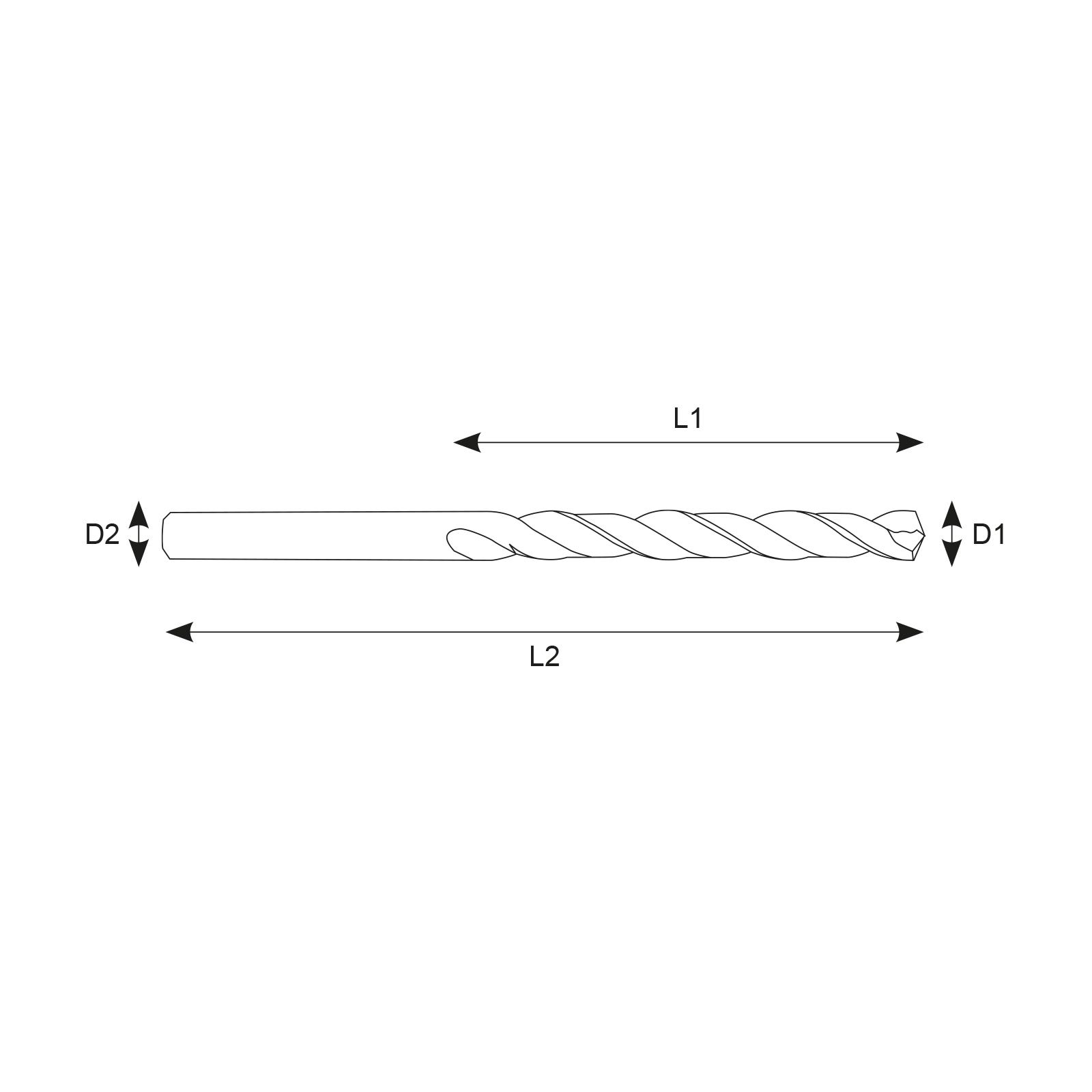

| Diameter (mm) | 10.4 |
|---|---|
| Overall Length (mm) | 133 |
| Flute Length (mm) | 87 |
| Shank (mm) | 10.4 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- TiN Coating on working area with 5% Cobalt content reduces cost and increases tool life compared to standard HSS drill
- Normal point up to 1.6mm, split point over 1.6mm for��higher��accuracy drilling
- General purpose drill for Steel, Stainless Steel, Titanium and Inconel
- Cutwel's BEST SELLING Drill
- The most economic coated drill in our range
Specification
| Category | Hole Making |
|---|---|
| Sub Category | HSS & PM Drills |
| Sub Category 2 | Economy HSS Drills |
| Diameter (mm) | 10.4 |
| Shank (mm) | 10.4 |
| Flute Length (mm) | 87 |
| Overall Length (mm) | 133 |
| Tolerance | h8 |
| Point Angle | 135° |
| Shank Type | Plain |
| Substrate | HSS |
| Surface Treatment | Coated (PVD/CVD) |
| Drill Type | Jobber |
| Depth | 5xD |
| Performance | 2 |
| Coating Description | TiN Coated |
| Through Coolant | No |
| Substrate Description | HSS 5% Cobalt |
| Self Centring | No |
| Helix Angle | 33° |
| Brand Range | Gold-P Drills |
| Brand | YG-1 |
