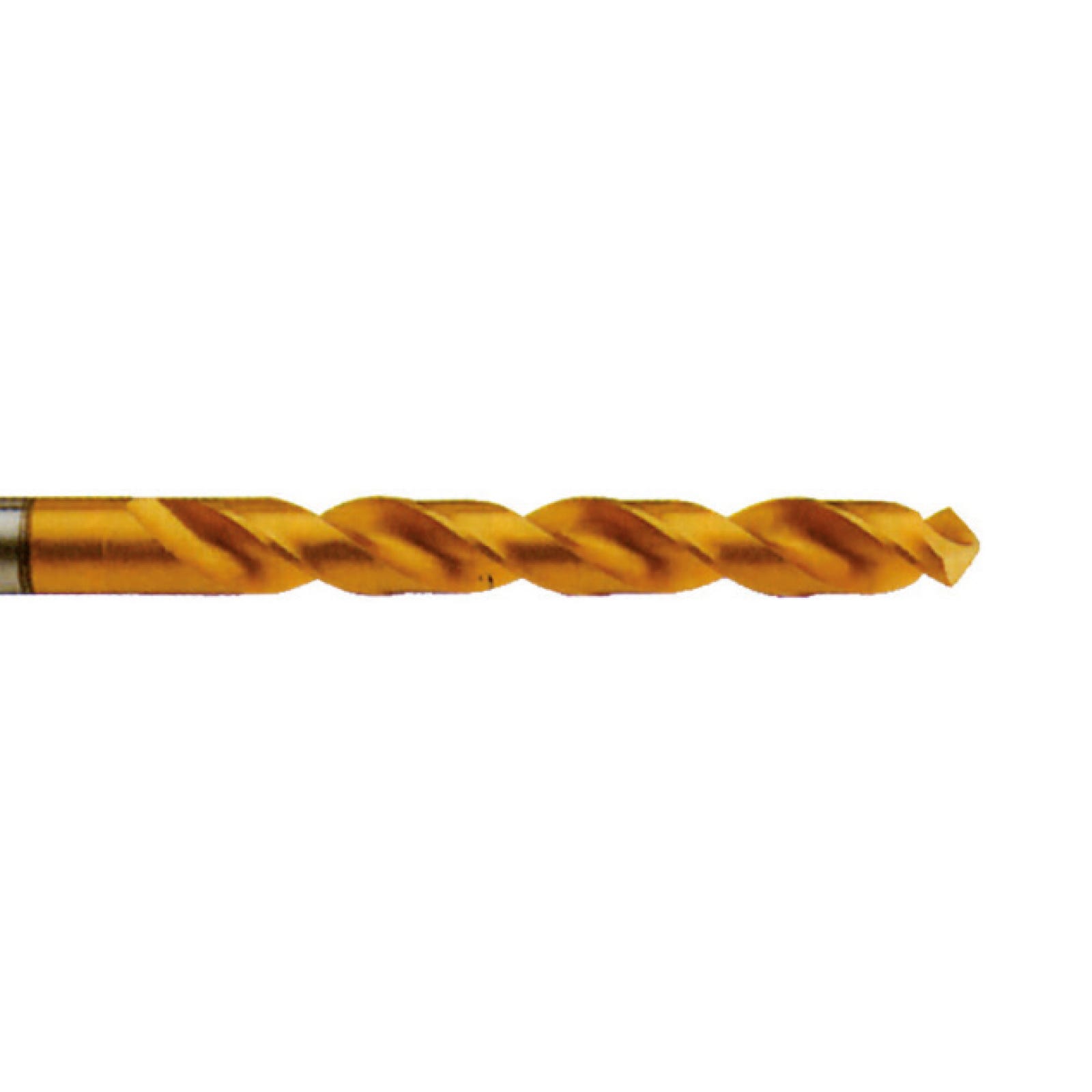

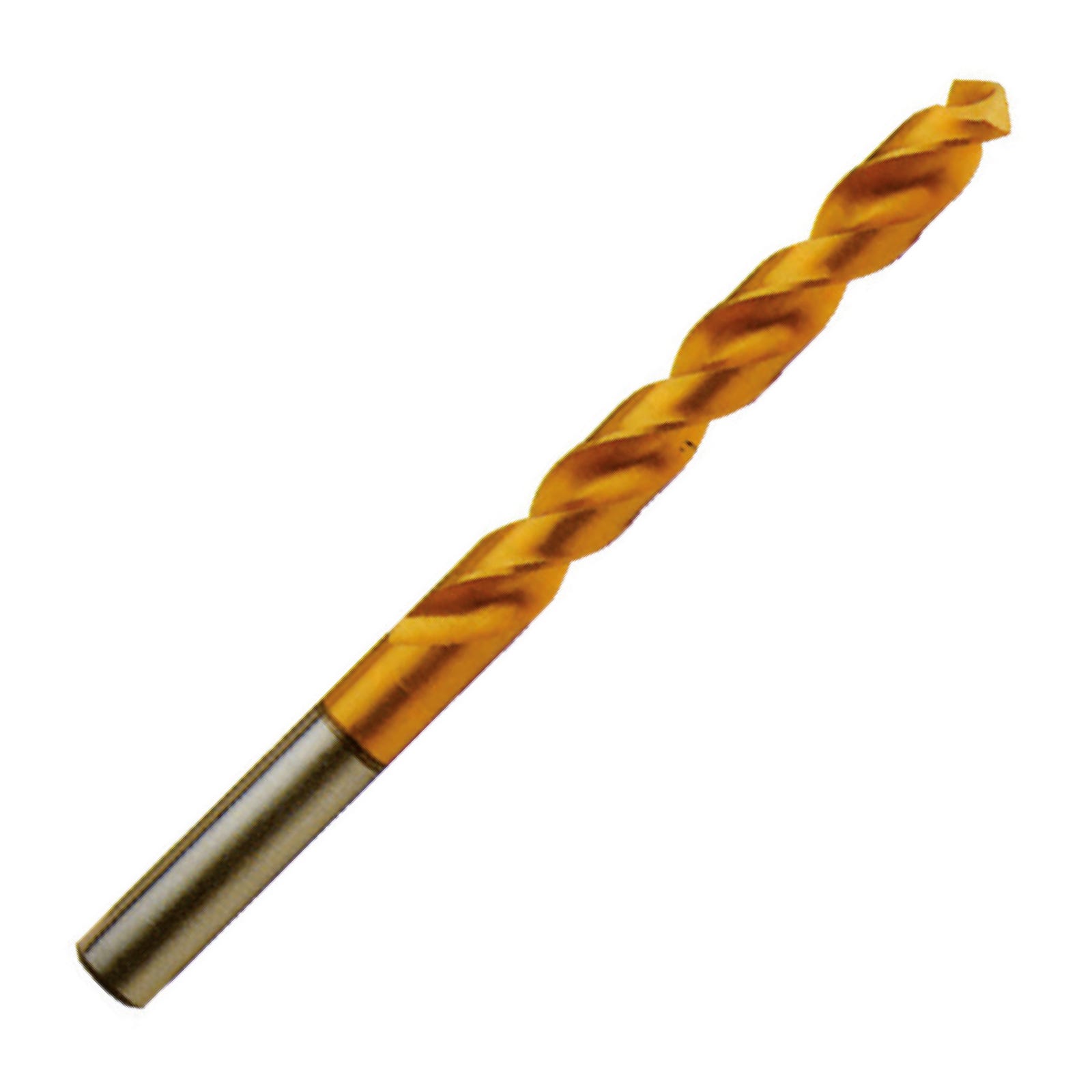

9.3mm TiN Coated HSS 8 Percent Cobalt Jobber Drill - D4105 (YG-1)
9.3mm TiN Coated HSS 8 Percent Cobalt Jobber Drill - D4105 (YG-1)

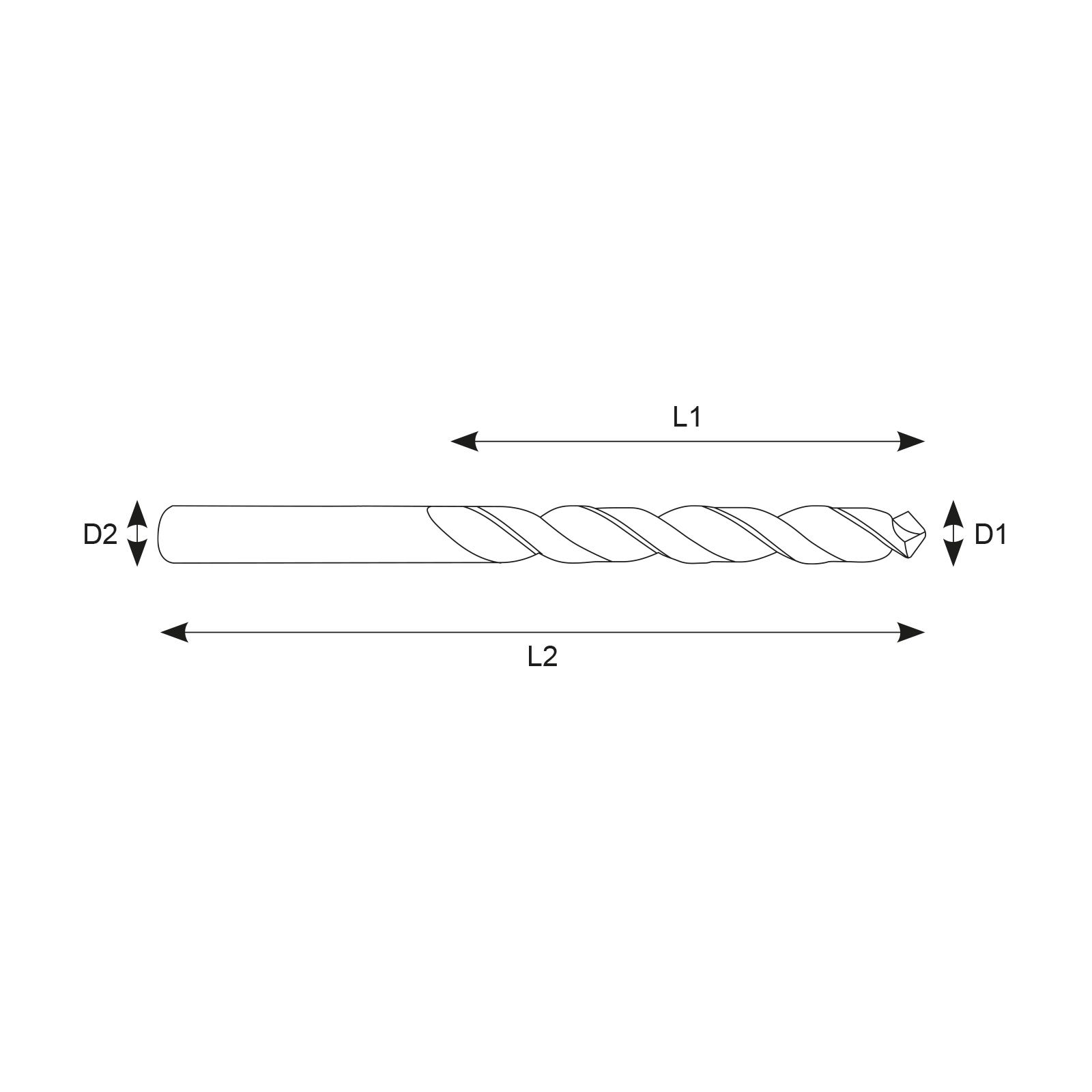

| Diameter (mm) | 9.3 |
|---|---|
| Overall Length (mm) | 125 |
| Flute Length (mm) | 81 |
| Shank (mm) | 9.3 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- 5xD Stub Drill.
- Made from a HSS substrate with an 8% cobalt content.
- TiN coated.
- Suitable for machining Steels
- Great tool life and performance with low hardness steels, cast iron & aluminium compared to standard HSS drills due to 8% Cobalt content.
- Also suitable for stainless steel, inconel and titanium.
- TiN coating on the full length of the flutes.
- Normal point up to 1.6mm, split point over 1.6mm for higher accuracy drilling.
Specification
| Category | Hole Making |
|---|---|
| Sub Category | HSS & PM Drills |
| Sub Category 2 | Economy HSS Drills |
| Diameter (mm) | 9.3 |
| Shank (mm) | 9.3 |
| Flute Length (mm) | 81 |
| Overall Length (mm) | 125 |
| Tolerance | h8 |
| Point Angle | 135° |
| Shank Type | Plain |
| Substrate | HSS |
| Surface Treatment | Coated (PVD/CVD) |
| Drill Type | Jobber |
| Depth | 5xD |
| Performance | 3 |
| Coating Description | TiN Coated |
| Through Coolant | No |
| Substrate Description | HSS 8% Cobalt |
| Self Centring | No |
| Helix Angle | 33° |
| Brand | YG-1 |
