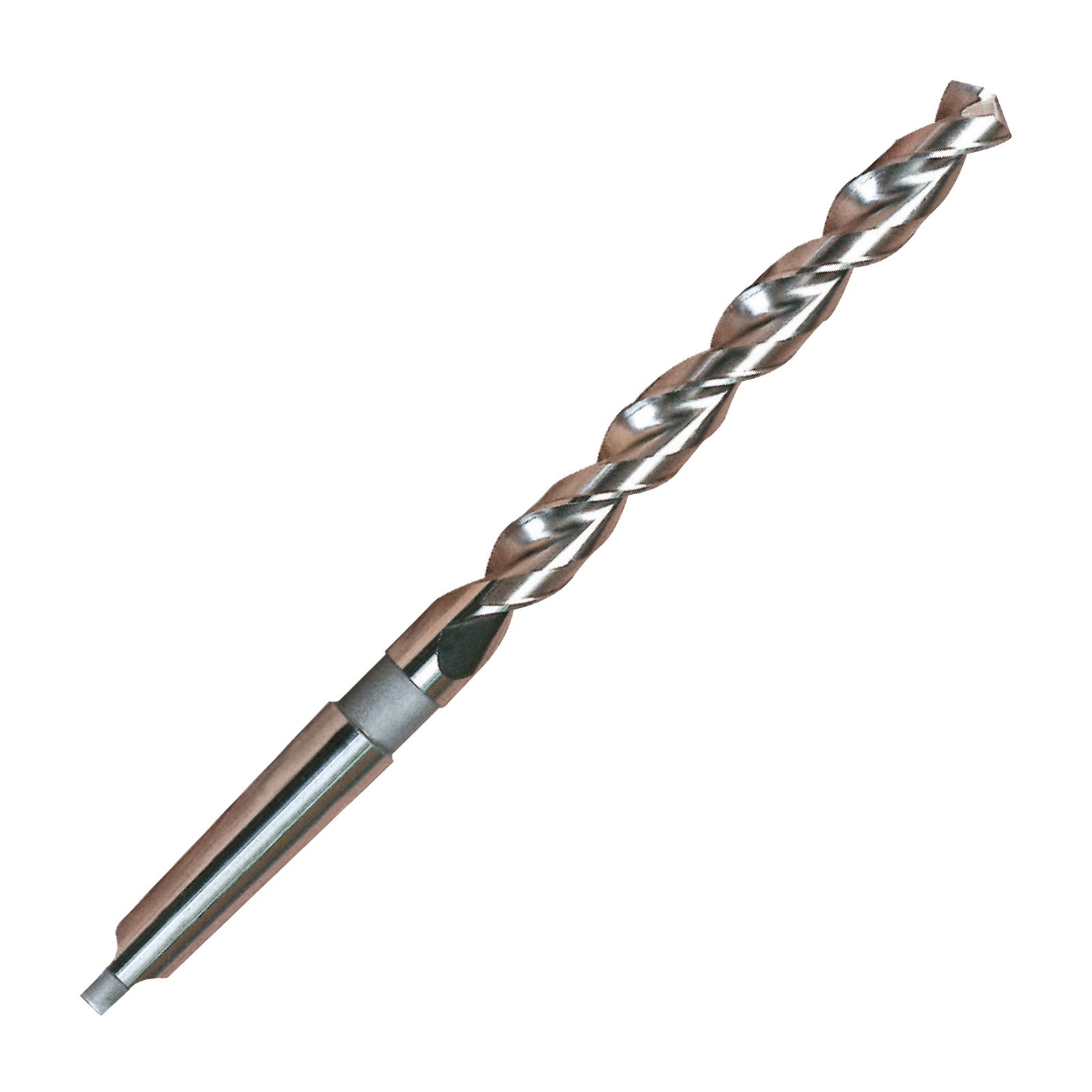

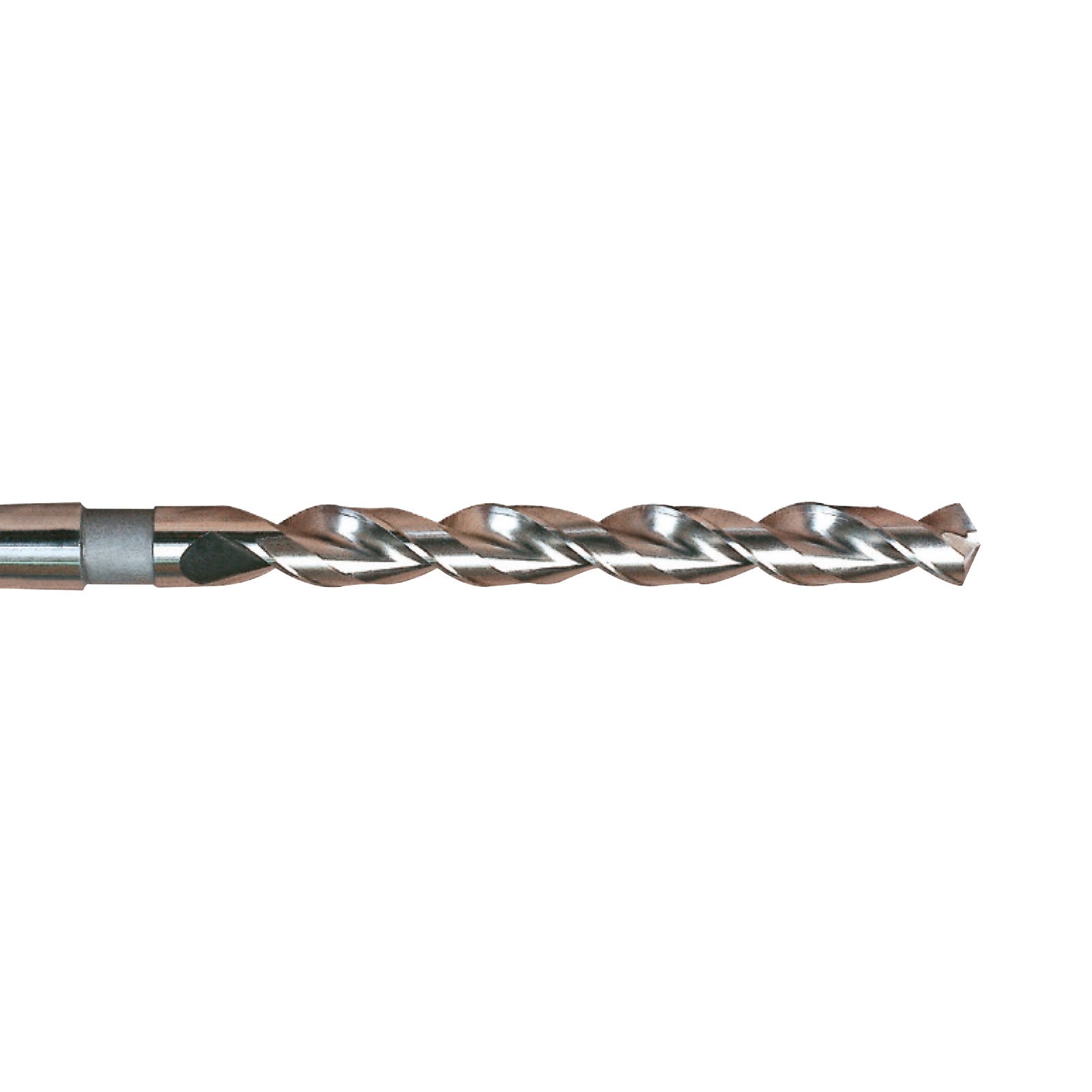

Morse Taper Worm Pattern HSS 5 Percent Cobalt Long Length Drill - DL608 (YG-1)
Scroll back
Scroll back
Morse Taper Worm Pattern HSS 5 Percent Cobalt Long Length Drill - DL608 (YG-1)
The DL608 series HSS 5 Percent cobalt long length morse taper drills have a worm pattern design that feature a...
Read more
View Products
Related Products

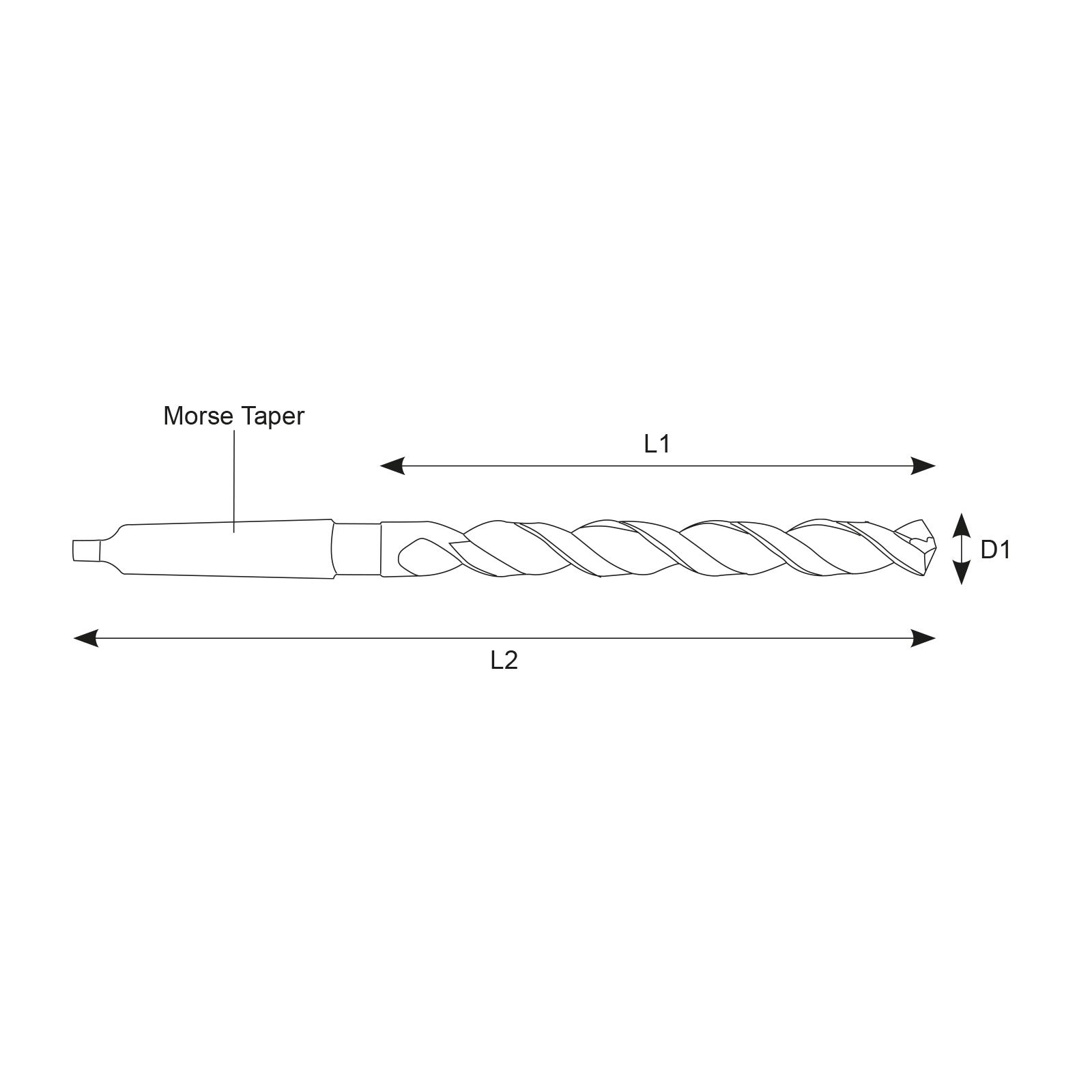

| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Morse Taper
|
Point Angle
|
||||
|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 13 | Flute Length (mm): 134 | Overall Length (mm): 215 | Morse Taper: MT1 | Point Angle: 130° |
5 days*
|
£74.14
£61.78
|
|
|
| Diameter (mm): 13.5 | Flute Length (mm): 142 | Overall Length (mm): 223 | Morse Taper: MT1 | Point Angle: 130° |
5 days*
|
£84.88
£70.73
|
|
|
| Diameter (mm): 14 | Flute Length (mm): 142 | Overall Length (mm): 223 | Morse Taper: MT1 | Point Angle: 130° |
5 days*
|
£89.12
£74.27
|
|
|
| Diameter (mm): 14.5 | Flute Length (mm): 147 | Overall Length (mm): 245 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£103.86
£86.55
|
|
|
| Diameter (mm): 15 | Flute Length (mm): 147 | Overall Length (mm): 245 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£106.80
£89.00
|
|
|
| Diameter (mm): 15.5 | Flute Length (mm): 153 | Overall Length (mm): 251 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£111.85
£93.21
|
|
|
| Diameter (mm): 16 | Flute Length (mm): 153 | Overall Length (mm): 251 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£116.80
£97.33
|
|
|
| Diameter (mm): 16.5 | Flute Length (mm): 159 | Overall Length (mm): 257 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£125.63
£104.69
|
|
|
| Diameter (mm): 17 | Flute Length (mm): 159 | Overall Length (mm): 257 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£132.66
£110.55
|
|
|
| Diameter (mm): 17.5 | Flute Length (mm): 165 | Overall Length (mm): 263 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£138.60
£115.50
|
|
|
| Diameter (mm): 18 | Flute Length (mm): 165 | Overall Length (mm): 263 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£146.71
£122.26
|
|
|
| Diameter (mm): 18.5 | Flute Length (mm): 171 | Overall Length (mm): 269 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£150.46
£125.38
|
|
|
| Diameter (mm): 19 | Flute Length (mm): 171 | Overall Length (mm): 269 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£158.53
£132.11
|
|
|
| Diameter (mm): 19.5 | Flute Length (mm): 177 | Overall Length (mm): 275 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£167.11
£139.26
|
|
|
| Diameter (mm): 20 | Flute Length (mm): 177 | Overall Length (mm): 275 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£173.29
£144.41
|
|
|
| Diameter (mm): 21 | Flute Length (mm): 184 | Overall Length (mm): 282 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£181.21
£151.01
|
|
|
| Diameter (mm): 22 | Flute Length (mm): 191 | Overall Length (mm): 289 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£191.22
£159.35
|
|
|
| Diameter (mm): 23 | Flute Length (mm): 198 | Overall Length (mm): 296 | Morse Taper: MT2 | Point Angle: 130° |
5 days*
|
£206.40
£172.00
|
|
|
| Diameter (mm): 24 | Flute Length (mm): 206 | Overall Length (mm): 327 | Morse Taper: MT3 | Point Angle: 130° |
In stock
|
£228.32
£190.27
|
|
|
| Diameter (mm): 25 | Flute Length (mm): 206 | Overall Length (mm): 327 | Morse Taper: MT3 | Point Angle: 130° |
5 days*
|
£247.38
£206.15
|
|
|
| Diameter (mm): 26 | Flute Length (mm): 214 | Overall Length (mm): 335 | Morse Taper: MT3 | Point Angle: 130° |
5 days*
|
£252.53
£210.44
|
|
|
| Diameter (mm): 27 | Flute Length (mm): 222 | Overall Length (mm): 343 | Morse Taper: MT3 | Point Angle: 130° |
5 days*
|
£292.74
£243.95
|
|
|
| Diameter (mm): 28 | Flute Length (mm): 222 | Overall Length (mm): 343 | Morse Taper: MT3 | Point Angle: 130° |
In stock
|
£296.59
£247.16
|
|
|
| Diameter (mm): 29 | Flute Length (mm): 230 | Overall Length (mm): 351 | Morse Taper: MT3 | Point Angle: 130° |
5 days*
|
£349.84
£291.53
|
|
|
| Diameter (mm): 30 | Flute Length (mm): 230 | Overall Length (mm): 351 | Morse Taper: MT3 | Point Angle: 130° |
5 days*
|
£373.75
£311.46
|
|
Product Information
Features & Benefits
The DL608 series HSS 5 Percent cobalt long length morse taper drills have a worm pattern design that feature a prabolic u-shaped flute for efficient chip evacuation. Ideal for deep hole drilling of Non-alloy steel, alloy steel, grey cast iron, malleable cast iron, special aluminium and magnesium alloys. Diameters range from 13-30mm.
- 8xD Long Length Drill.
- Morse Taper shank.
- Made from a HSS substrate with a 5% cobalt content.
- Bright Finish.
- Suitable for machining Non Alloy Steels, Alloy Steels, Grey Cast Iron, Malleable Cast Iron, Special Aluminum or Magnesium Alloys.
- Special design for deep hole aluminium drilling.
- Worm pattern drills feature a parabolic u-shaped flute for efficient chip evacuation.
- Bright finish prevents built up edge and deep flute pockets prevent chip clogging.
- Sold in single pack sizes.
Specification
| Category | Hole Making |
|---|---|
| Sub Category | HSS & PM Drills |
| Sub Category 2 | Economy HSS Drills |
| Tolerance | h8 |
| Substrate | HSS |
| Surface Treatment | Uncoated |
| Drill Type | Long |
| Depth | 8xD |
| Performance | 2 |
| Through Coolant | No |
| Substrate Description | HSS 5% Cobalt |
| Self Centring | No |
| Helix Angle | 38° |
| Brand Range | Gold-P Drills |
| Brand | YG-1 |
