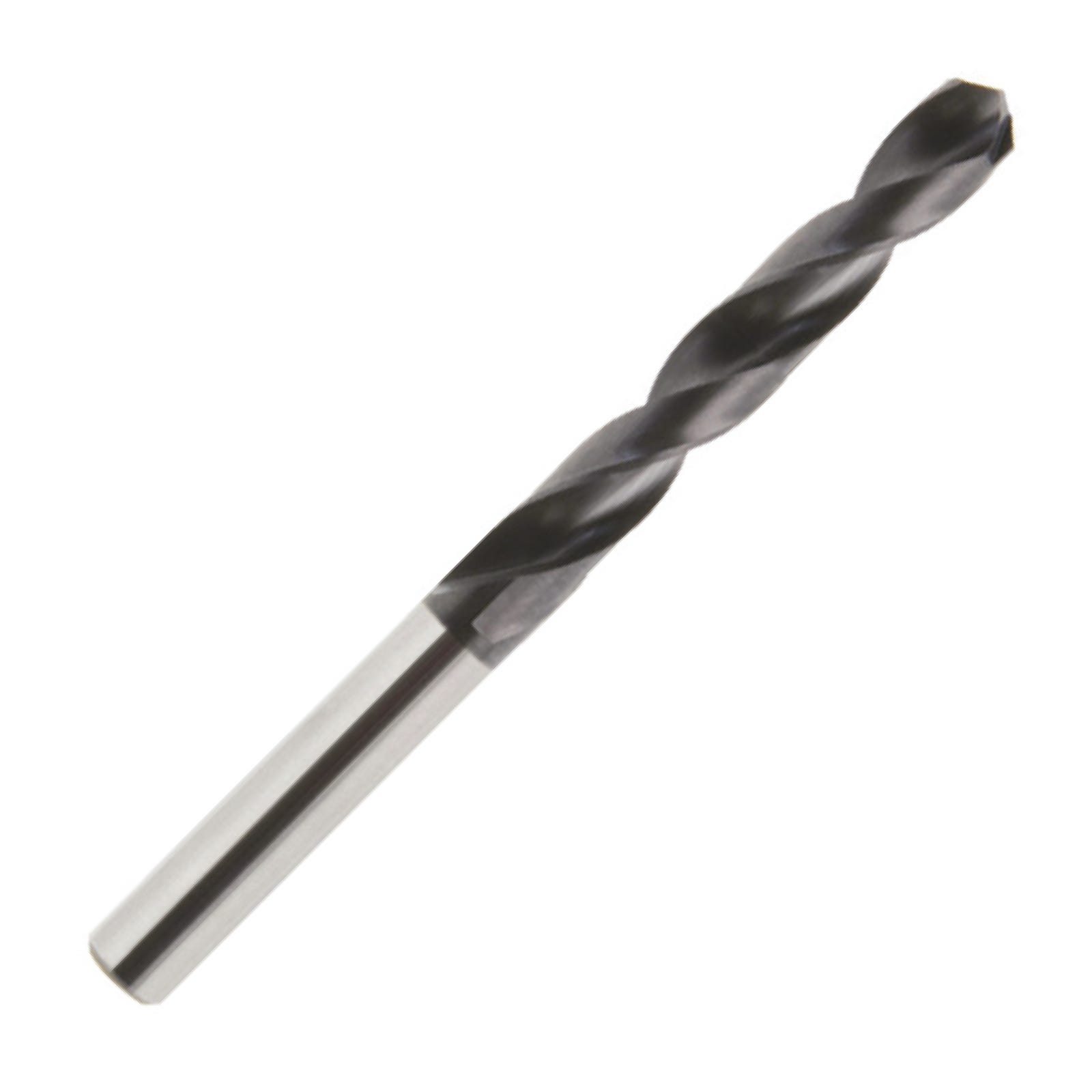

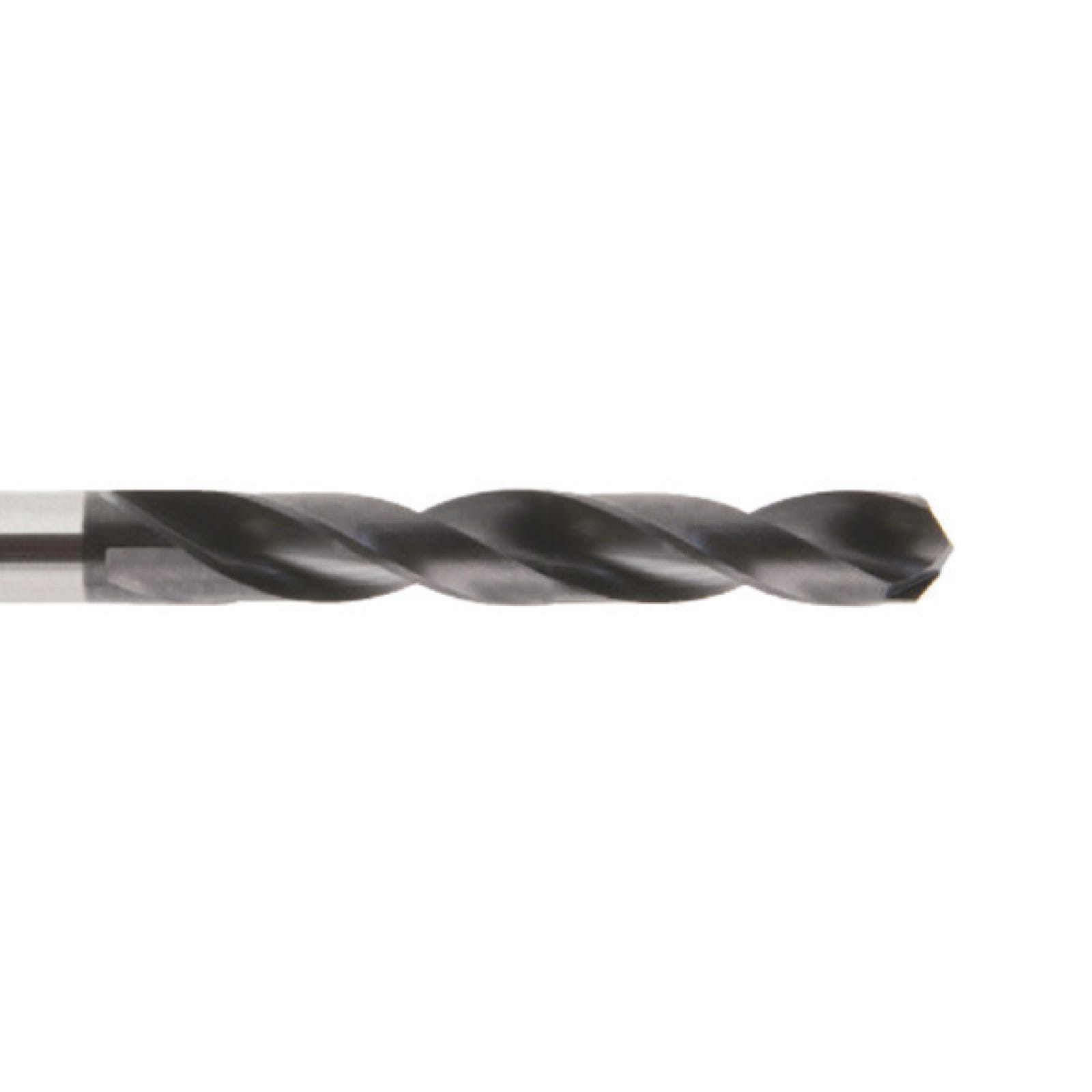

11.1mm Multi-1 TiAlN Coated HSS-Powder Metal Jobber Drill - CDRA04 (YG-1)
11.1mm Multi-1 TiAlN Coated HSS-Powder Metal Jobber Drill - CDRA04 (YG-1)

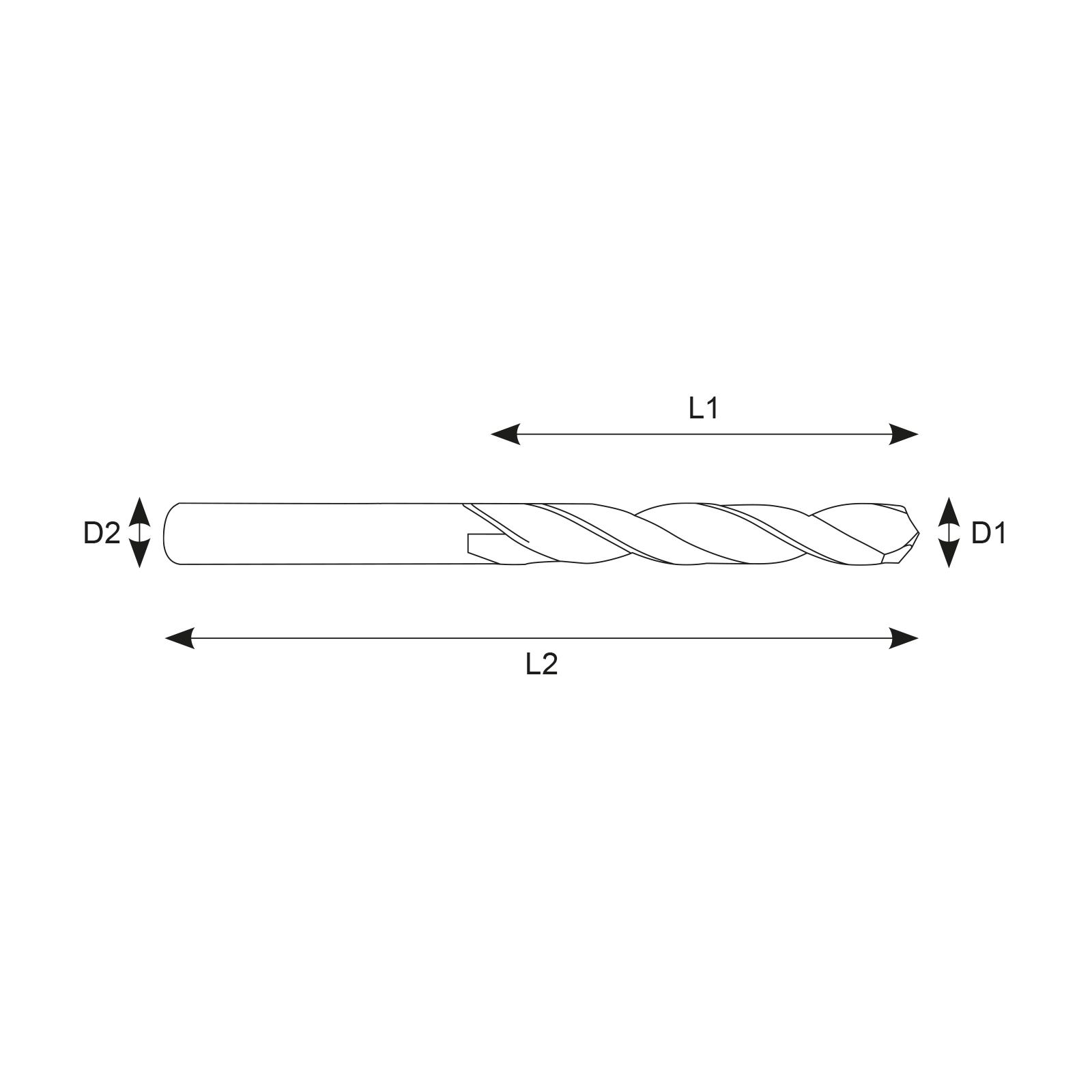

| Diameter (mm) | 11.1 |
|---|---|
| Overall Length (mm) | 151 |
| Flute Length (mm) | 94 |
| Shank (mm) | 12 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- 5xD Jobber Drill.
- Made from a high quality powder metal substrate.
- TiALN coated.
- Suitable for machining Steels
- First choice for applications where carbide drills are not suitable (e.g. due to vibration or lack of through coolant).
- The tough powder metal substrate prevents drill chipping and gives excellent tool life and performance.
- Self centering with a sharp drill point.
Specification
| Category | Hole Making |
|---|---|
| Sub Category | HSS & PM Drills |
| Sub Category 2 | Multi-1 HSS-PM Drills |
| Diameter (mm) | 11.1 |
| Shank (mm) | 12 |
| Flute Length (mm) | 94 |
| Overall Length (mm) | 151 |
| Tolerance | h7 |
| Point Angle | 135° |
| Shank Type | Plain |
| Shank Tolerance | h6 |
| Substrate | HSS-PM |
| Surface Treatment | Coated (PVD/CVD) |
| Drill Type | Jobber |
| Depth | 5xD |
| Performance | 4 |
| Coating Description | TiAlN Coated |
| Through Coolant | No |
| Substrate Description | HSS-Powder Metal |
| Self Centring | Yes |
| Helix Angle | 30° |
| Brand | YG-1 |
