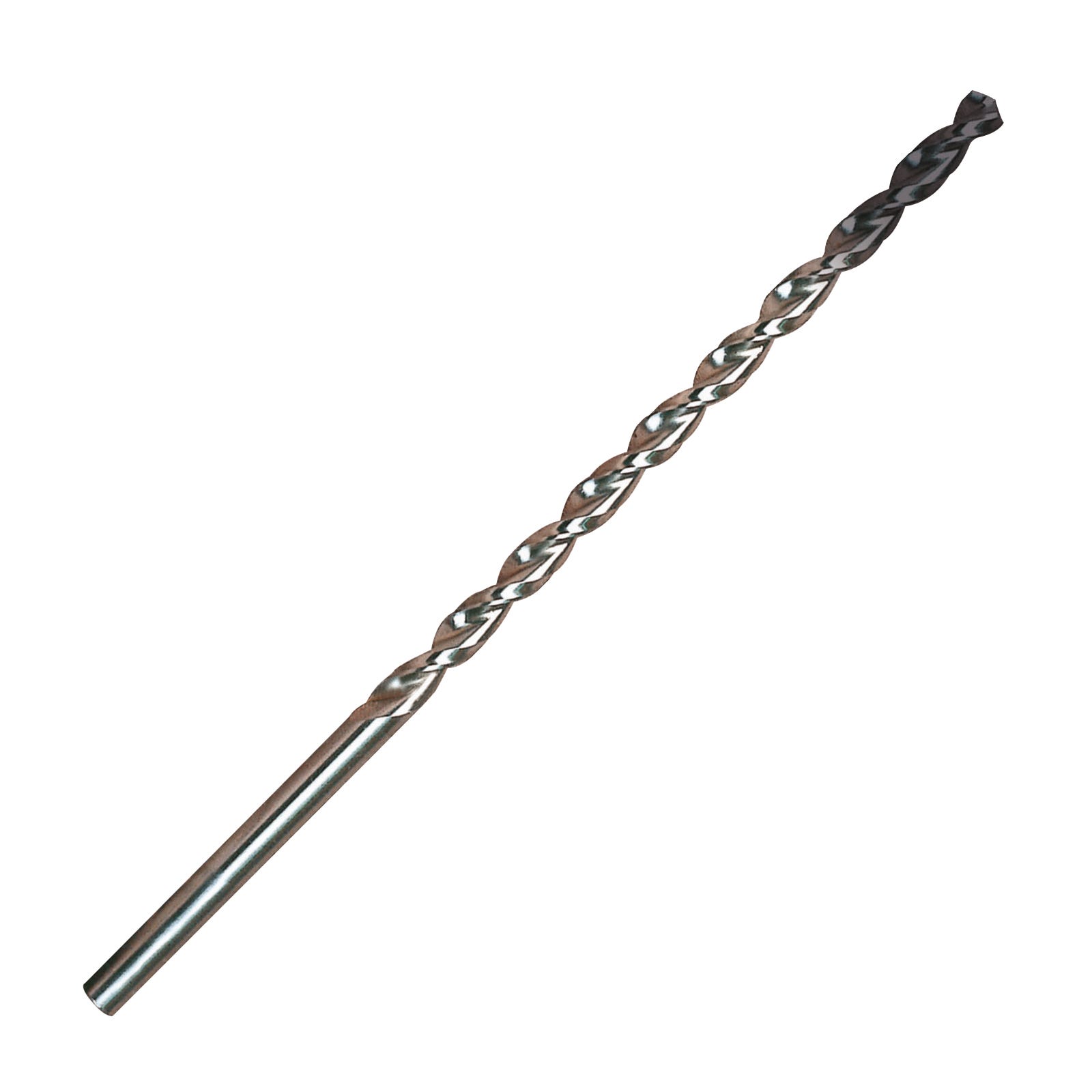

Worm Pattern HSS 5 Percent Cobalt Extra Long Length 25xD Drill - DT693 (YG-1)
Worm Pattern HSS 5 Percent Cobalt Extra Long Length 25xD Drill - DT693 (YG-1)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

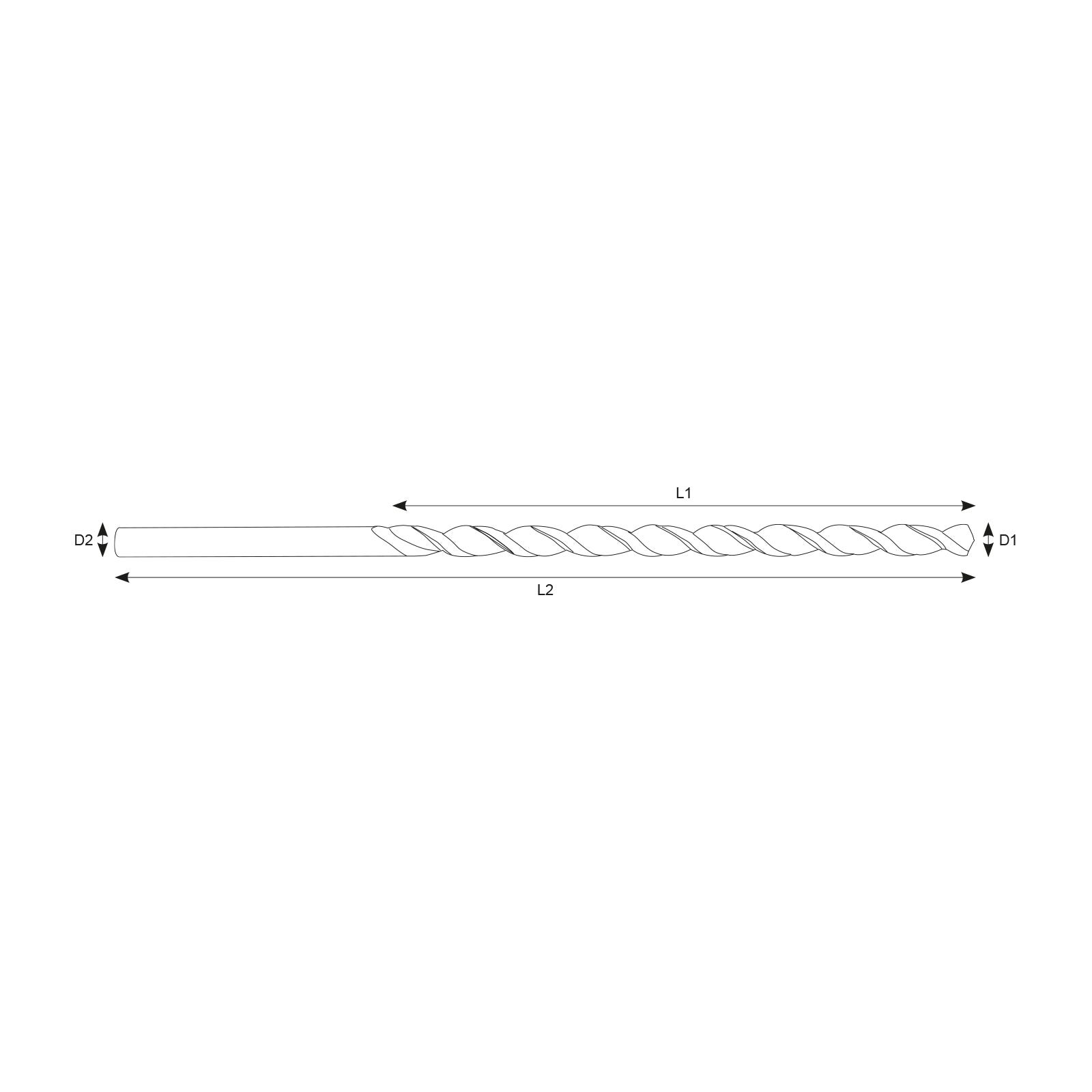

Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Point Angle
|
||||
|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 4 | Shank (mm): 4 | Flute Length (mm): 190 | Overall Length (mm): 280 | Point Angle: 130° |
In stock
|
£33.54
£27.95
|
|
|
| Diameter (mm): 5 | Shank (mm): 5 | Flute Length (mm): 210 | Overall Length (mm): 315 | Point Angle: 130° |
In stock
|
£56.99
£47.49
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 225 | Overall Length (mm): 330 | Point Angle: 130° |
In stock
|
£66.20
£55.17
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 265 | Overall Length (mm): 390 | Point Angle: 130° |
In stock
|
£81.90
£68.25
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 295 | Overall Length (mm): 430 | Point Angle: 130° |
In stock
|
£88.25
£73.54
|
|
Product Information
Features & Benefits
- 25xD Extra Long Length Drill for Deep Hole Drilling.
- Made from a HSS substrate with a 5% cobalt content.
- Bright Finish.
- Suitable for machining Non Alloy Steels, Alloy Steels, Grey Cast Iron, Malleable Cast Iron, Special Aluminum or Magnesium Alloys.

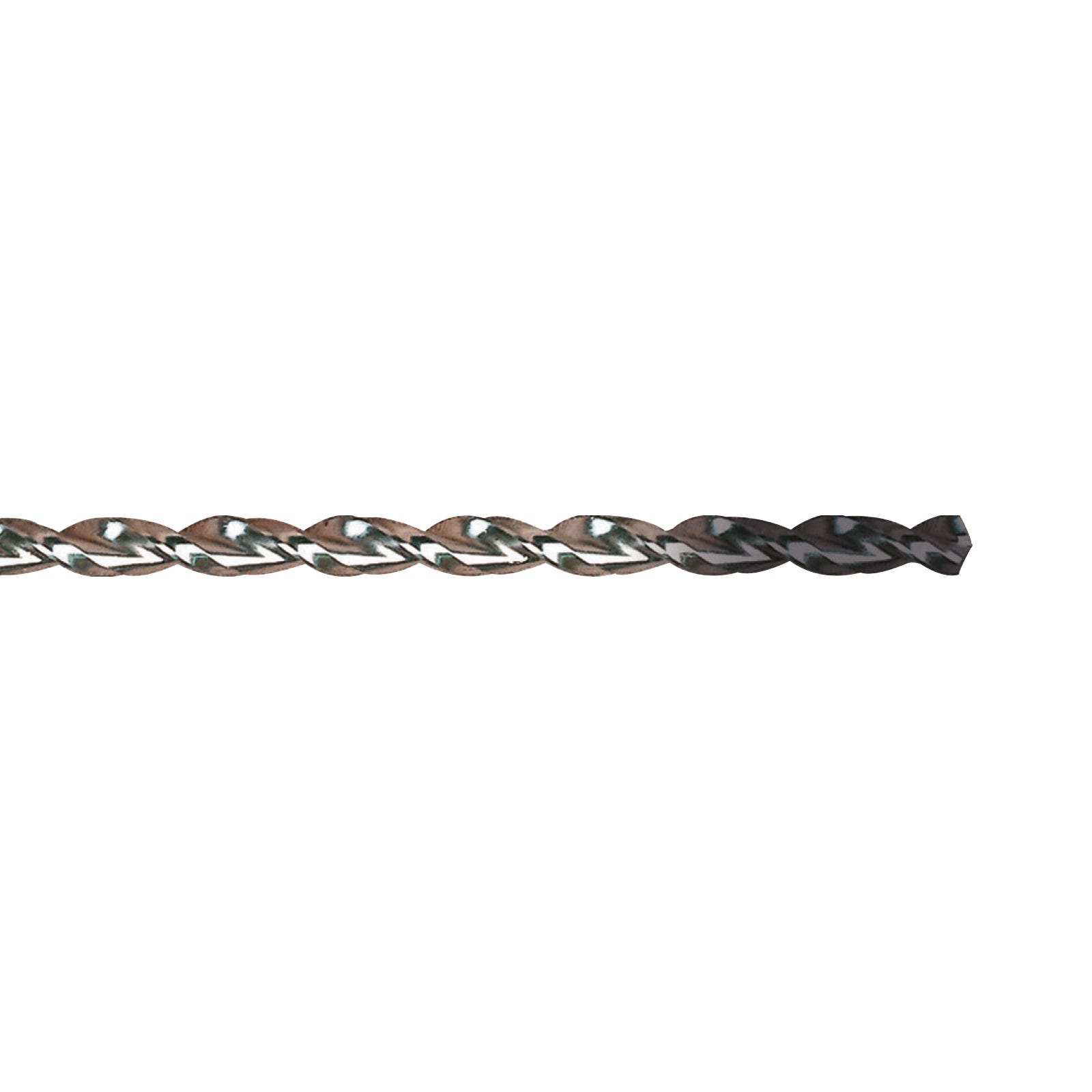

- Worm pattern drills feature a parabolic u-shaped flute for efficient chip evacuation.
- Bright finish prevents built up edge and deep flute pockets prevent chip clogging.
- Excellent for soft or long chipping materials.
Specification
| Category | Hole Making |
|---|---|
| Sub Category | HSS & PM Drills |
| Sub Category 2 | Economy HSS Drills |
| Tolerance | h8 |
| Substrate | HSS |
| Surface Treatment | Uncoated |
| Drill Type | Extra Long |
| Depth | 20xD |
| Performance | 2 |
| Coating Description | Bright Finish |
| Through Coolant | No |
| Substrate Description | HSS 5% Cobalt |
| Self Centring | No |
| Helix Angle | 38° |
| Brand Range | Worm Pattern |
| Brand | YG-1 |
