Worm Pattern HSS 5 Percent Cobalt Long Length Drill - DL509 (YG-1)
Scroll back
Scroll back

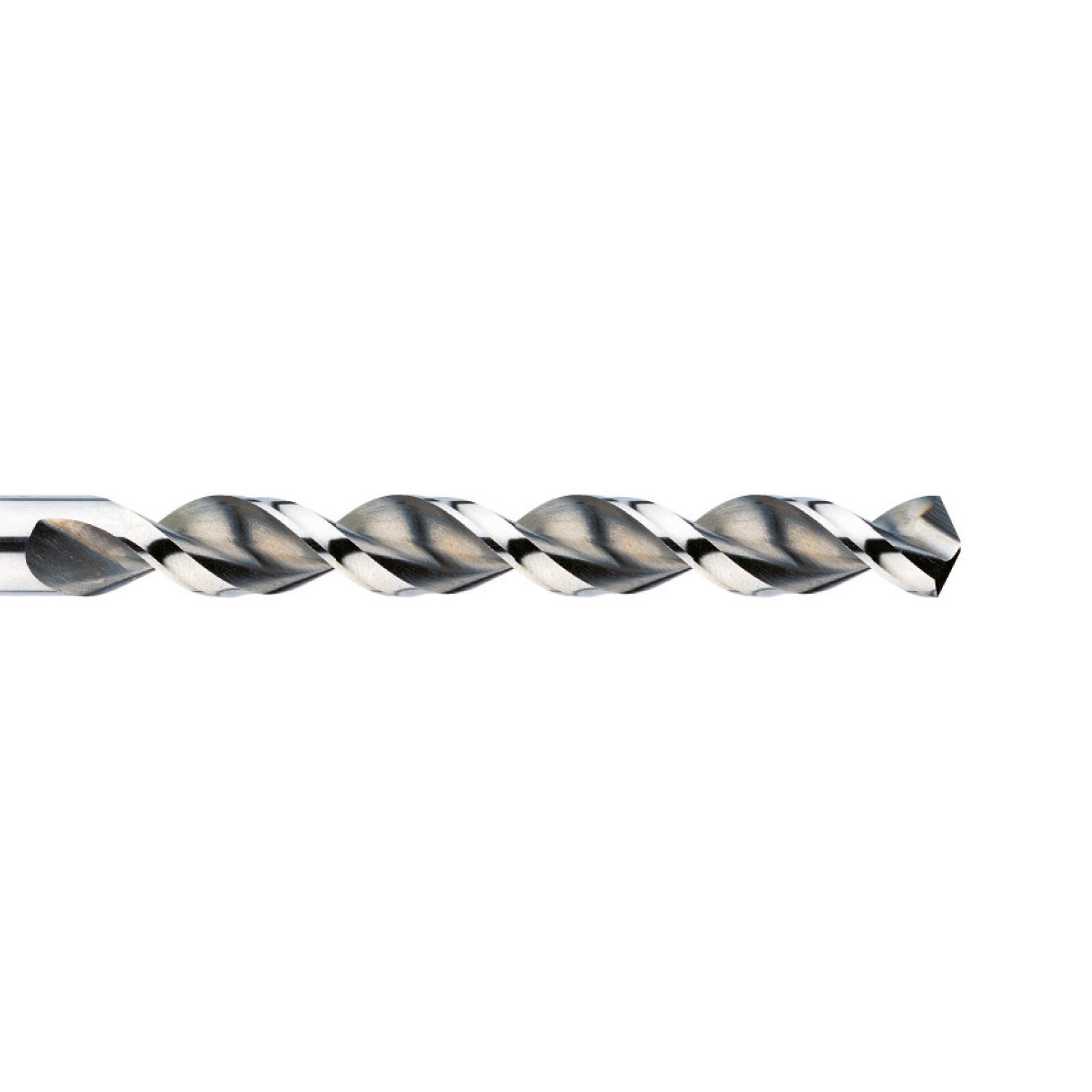

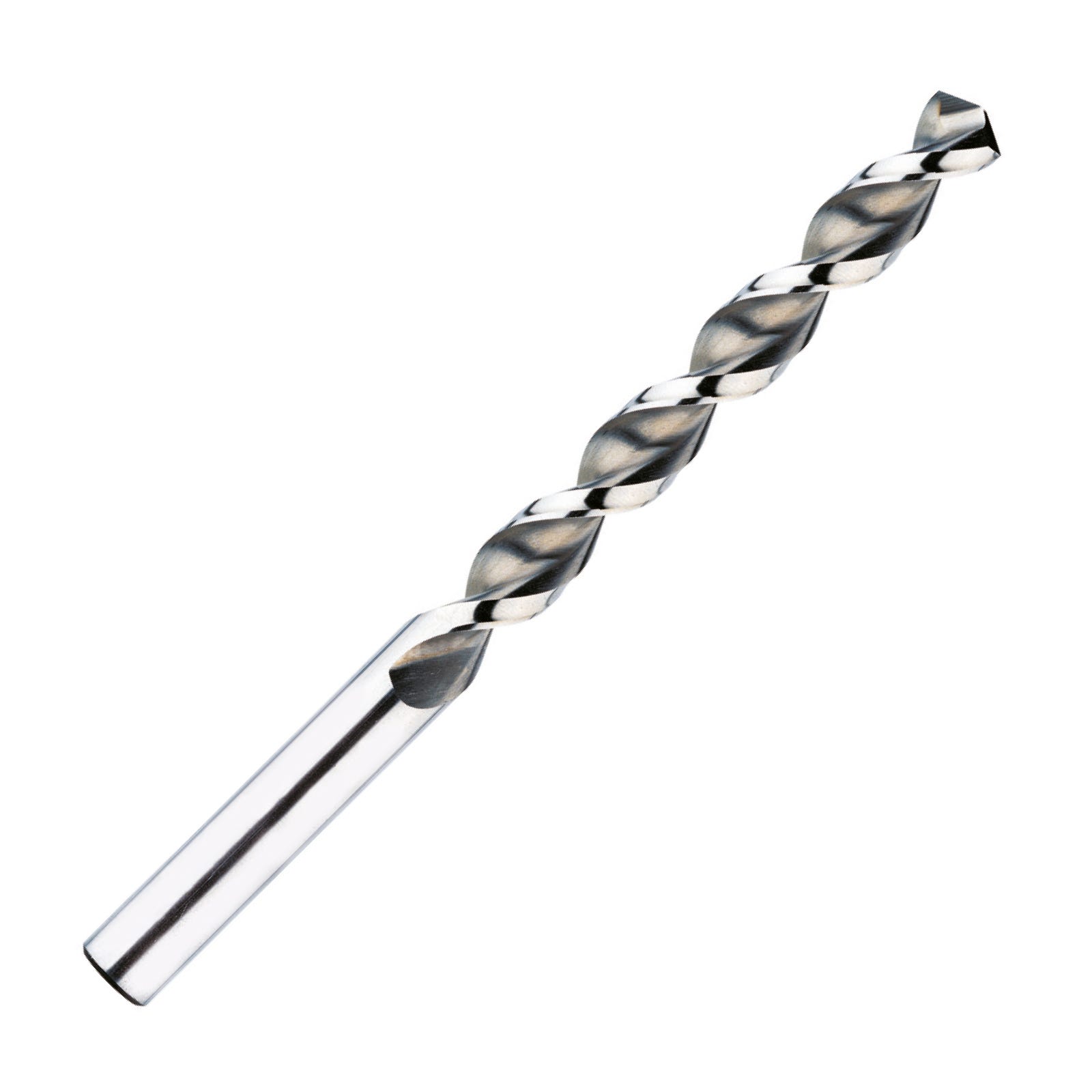

Worm Pattern HSS 5 Percent Cobalt Long Length Drill - DL509 (YG-1)
The DL509 series YG-1 HSS 5 Percent cobalt jobber drills have a worm pattern geometry which feature a parabolic...
Read more
View Products
Related Products

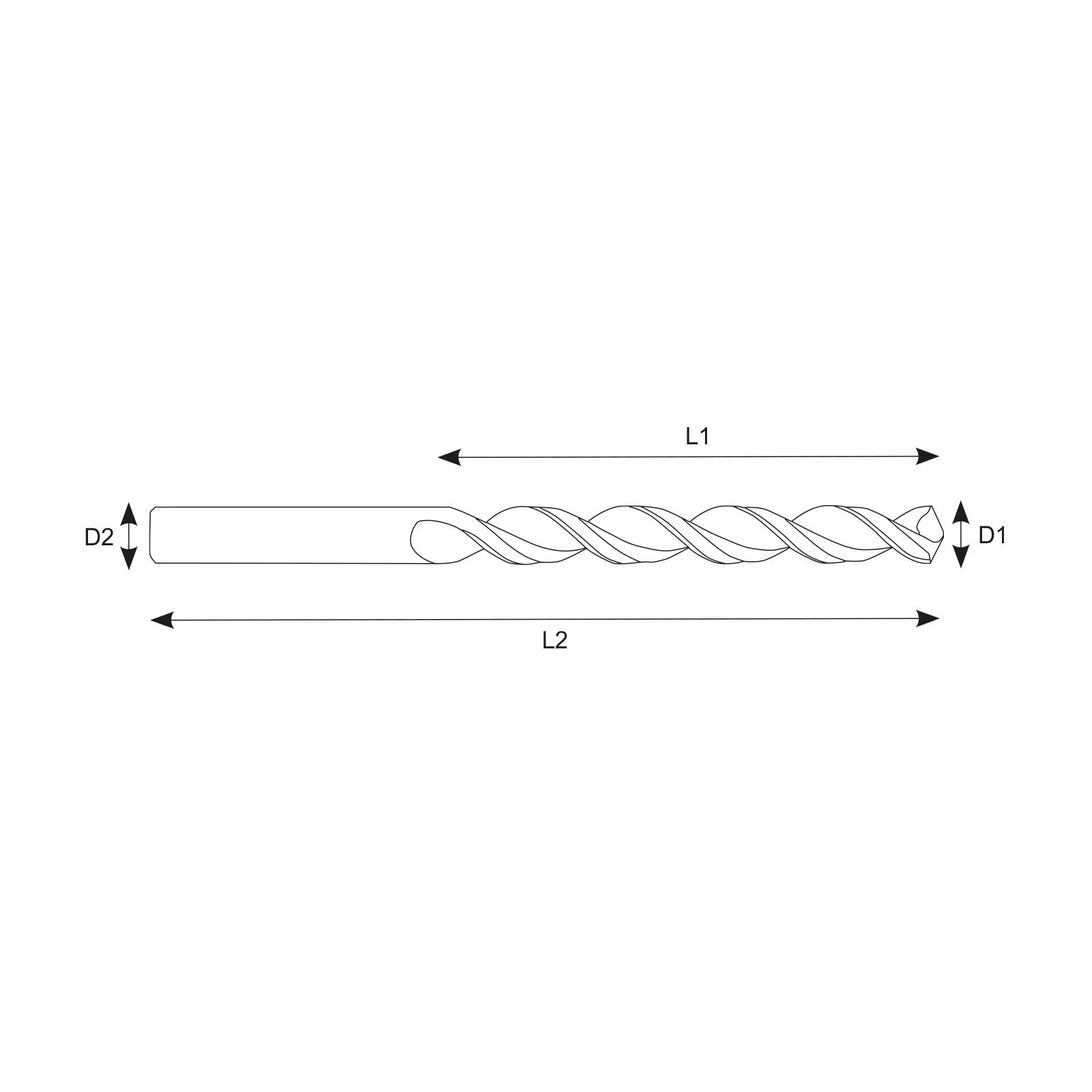

| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Point Angle
|
||||
|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 2 | Shank (mm): 2 | Flute Length (mm): 56 | Overall Length (mm): 85 | Point Angle: 130° |
In stock
|
10+
£2.12
£1.77
£3.55
£2.96
|
|
|
| Diameter (mm): 2.1 | Shank (mm): 2.1 | Flute Length (mm): 56 | Overall Length (mm): 85 | Point Angle: 130° |
In stock
|
10+
£2.27
£1.89
£3.78
£3.15
|
|
|
| Diameter (mm): 2.2 | Shank (mm): 2.2 | Flute Length (mm): 59 | Overall Length (mm): 90 | Point Angle: 130° |
In stock
|
10+
£2.27
£1.89
£3.78
£3.15
|
|
|
| Diameter (mm): 2.3 | Shank (mm): 2.3 | Flute Length (mm): 59 | Overall Length (mm): 90 | Point Angle: 130° |
5 days*
|
10+
£2.27
£1.89
£3.78
£3.15
|
|
|
| Diameter (mm): 2.4 | Shank (mm): 2.4 | Flute Length (mm): 62 | Overall Length (mm): 95 | Point Angle: 130° |
In stock
|
10+
£2.27
£1.89
£3.78
£3.15
|
|
|
| Diameter (mm): 2.5 | Shank (mm): 2.5 | Flute Length (mm): 62 | Overall Length (mm): 95 | Point Angle: 130° |
5 days*
|
10+
£2.27
£1.89
£3.78
£3.15
|
|
|
| Diameter (mm): 2.6 | Shank (mm): 2.6 | Flute Length (mm): 62 | Overall Length (mm): 95 | Point Angle: 130° |
In stock
|
10+
£2.62
£2.18
£4.37
£3.64
|
|
|
| Diameter (mm): 2.7 | Shank (mm): 2.7 | Flute Length (mm): 66 | Overall Length (mm): 100 | Point Angle: 130° |
In stock
|
10+
£2.62
£2.18
£4.37
£3.64
|
|
|
| Diameter (mm): 2.8 | Shank (mm): 2.8 | Flute Length (mm): 66 | Overall Length (mm): 100 | Point Angle: 130° |
In stock
|
10+
£2.62
£2.18
£4.37
£3.64
|
|
|
| Diameter (mm): 2.9 | Shank (mm): 2.9 | Flute Length (mm): 66 | Overall Length (mm): 100 | Point Angle: 130° |
In stock
|
10+
£2.62
£2.18
£4.37
£3.64
|
|
|
| Diameter (mm): 3 | Shank (mm): 3 | Flute Length (mm): 66 | Overall Length (mm): 100 | Point Angle: 130° |
In stock
|
10+
£2.62
£2.18
£4.37
£3.64
|
|
|
| Diameter (mm): 3.1 | Shank (mm): 3.1 | Flute Length (mm): 69 | Overall Length (mm): 106 | Point Angle: 130° |
In stock
|
10+
£2.98
£2.48
£4.97
£4.14
|
|
|
| Diameter (mm): 3.2 | Shank (mm): 3.2 | Flute Length (mm): 69 | Overall Length (mm): 106 | Point Angle: 130° |
In stock
|
10+
£2.98
£2.48
£4.97
£4.14
|
|
|
| Diameter (mm): 3.3 | Shank (mm): 3.3 | Flute Length (mm): 69 | Overall Length (mm): 106 | Point Angle: 130° |
In stock
|
10+
£2.98
£2.48
£4.97
£4.14
|
|
|
| Diameter (mm): 3.4 | Shank (mm): 3.4 | Flute Length (mm): 73 | Overall Length (mm): 112 | Point Angle: 130° |
In stock
|
10+
£2.98
£2.48
£4.97
£4.14
|
|
|
| Diameter (mm): 3.5 | Shank (mm): 3.5 | Flute Length (mm): 73 | Overall Length (mm): 112 | Point Angle: 130° |
In stock
|
10+
£2.98
£2.48
£4.97
£4.14
|
|
|
| Diameter (mm): 3.6 | Shank (mm): 3.6 | Flute Length (mm): 73 | Overall Length (mm): 112 | Point Angle: 130° |
5 days*
|
10+
£3.70
£3.08
£6.14
£5.12
|
|
|
| Diameter (mm): 3.7 | Shank (mm): 3.7 | Flute Length (mm): 73 | Overall Length (mm): 112 | Point Angle: 130° |
In stock
|
10+
£3.70
£3.08
£6.14
£5.12
|
|
|
| Diameter (mm): 3.8 | Shank (mm): 3.8 | Flute Length (mm): 78 | Overall Length (mm): 119 | Point Angle: 130° |
In stock
|
10+
£3.70
£3.08
£6.14
£5.12
|
|
|
| Diameter (mm): 3.9 | Shank (mm): 3.9 | Flute Length (mm): 78 | Overall Length (mm): 119 | Point Angle: 130° |
10 days*
|
10+
£3.70
£3.08
£6.14
£5.12
|
|
|
| Diameter (mm): 4 | Shank (mm): 4 | Flute Length (mm): 78 | Overall Length (mm): 119 | Point Angle: 130° |
In stock
|
10+
£3.70
£3.08
£6.14
£5.12
|
|
|
| Diameter (mm): 4.1 | Shank (mm): 4.1 | Flute Length (mm): 78 | Overall Length (mm): 119 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 4.2 | Shank (mm): 4.2 | Flute Length (mm): 78 | Overall Length (mm): 119 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 4.3 | Shank (mm): 4.3 | Flute Length (mm): 82 | Overall Length (mm): 126 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 4.4 | Shank (mm): 4.4 | Flute Length (mm): 82 | Overall Length (mm): 126 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 4.5 | Shank (mm): 4.5 | Flute Length (mm): 82 | Overall Length (mm): 126 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 4.6 | Shank (mm): 4.6 | Flute Length (mm): 82 | Overall Length (mm): 126 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 4.7 | Shank (mm): 4.7 | Flute Length (mm): 82 | Overall Length (mm): 126 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 4.8 | Shank (mm): 4.8 | Flute Length (mm): 87 | Overall Length (mm): 132 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 4.9 | Shank (mm): 4.9 | Flute Length (mm): 87 | Overall Length (mm): 132 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 5 | Shank (mm): 5 | Flute Length (mm): 87 | Overall Length (mm): 132 | Point Angle: 130° |
In stock
|
10+
£4.24
£3.53
£7.07
£5.89
|
|
|
| Diameter (mm): 5.1 | Shank (mm): 5.1 | Flute Length (mm): 87 | Overall Length (mm): 132 | Point Angle: 130° |
In stock
|
10+
£5.22
£4.35
£8.71
£7.26
|
|
|
| Diameter (mm): 5.2 | Shank (mm): 5.2 | Flute Length (mm): 87 | Overall Length (mm): 132 | Point Angle: 130° |
In stock
|
10+
£5.22
£4.35
£8.71
£7.26
|
|
|
| Diameter (mm): 5.3 | Shank (mm): 5.3 | Flute Length (mm): 87 | Overall Length (mm): 132 | Point Angle: 130° |
In stock
|
10+
£5.22
£4.35
£8.71
£7.26
|
|
|
| Diameter (mm): 5.4 | Shank (mm): 5.4 | Flute Length (mm): 91 | Overall Length (mm): 139 | Point Angle: 130° |
In stock
|
10+
£5.22
£4.35
£8.71
£7.26
|
|
|
| Diameter (mm): 5.5 | Shank (mm): 5.5 | Flute Length (mm): 91 | Overall Length (mm): 139 | Point Angle: 130° |
In stock
|
10+
£5.22
£4.35
£8.71
£7.26
|
|
|
| Diameter (mm): 5.6 | Shank (mm): 5.6 | Flute Length (mm): 91 | Overall Length (mm): 139 | Point Angle: 130° |
5 days*
|
10+
£5.52
£4.60
£9.20
£7.67
|
|
|
| Diameter (mm): 5.7 | Shank (mm): 5.7 | Flute Length (mm): 91 | Overall Length (mm): 139 | Point Angle: 130° |
In stock
|
10+
£5.52
£4.60
£9.20
£7.67
|
|
|
| Diameter (mm): 5.8 | Shank (mm): 5.8 | Flute Length (mm): 91 | Overall Length (mm): 139 | Point Angle: 130° |
In stock
|
10+
£5.52
£4.60
£9.20
£7.67
|
|
|
| Diameter (mm): 5.9 | Shank (mm): 5.9 | Flute Length (mm): 91 | Overall Length (mm): 139 | Point Angle: 130° |
In stock
|
10+
£5.52
£4.60
£9.20
£7.67
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 91 | Overall Length (mm): 139 | Point Angle: 130° |
In stock
|
10+
£5.52
£4.60
£9.20
£7.67
|
|
|
| Diameter (mm): 6.1 | Shank (mm): 6.1 | Flute Length (mm): 97 | Overall Length (mm): 148 | Point Angle: 130° |
In stock
|
5+
£6.43
£5.36
£10.72
£8.93
|
|
|
| Diameter (mm): 6.2 | Shank (mm): 6.2 | Flute Length (mm): 97 | Overall Length (mm): 148 | Point Angle: 130° |
In stock
|
5+
£6.43
£5.36
£10.72
£8.93
|
|
|
| Diameter (mm): 6.3 | Shank (mm): 6.3 | Flute Length (mm): 97 | Overall Length (mm): 148 | Point Angle: 130° |
In stock
|
5+
£6.43
£5.36
£10.72
£8.93
|
|
|
| Diameter (mm): 6.4 | Shank (mm): 6.4 | Flute Length (mm): 97 | Overall Length (mm): 148 | Point Angle: 130° |
In stock
|
5+
£6.43
£5.36
£10.72
£8.93
|
|
|
| Diameter (mm): 6.5 | Shank (mm): 6.5 | Flute Length (mm): 97 | Overall Length (mm): 148 | Point Angle: 130° |
In stock
|
5+
£6.43
£5.36
£10.72
£8.93
|
|
|
| Diameter (mm): 6.6 | Shank (mm): 6.6 | Flute Length (mm): 97 | Overall Length (mm): 148 | Point Angle: 130° |
5 days*
|
5+
£7.00
£5.83
£11.66
£9.72
|
|
|
| Diameter (mm): 6.7 | Shank (mm): 6.7 | Flute Length (mm): 97 | Overall Length (mm): 148 | Point Angle: 130° |
In stock
|
5+
£7.00
£5.83
£11.66
£9.72
|
|
|
| Diameter (mm): 6.8 | Shank (mm): 6.8 | Flute Length (mm): 102 | Overall Length (mm): 156 | Point Angle: 130° |
5 days*
|
5+
£7.00
£5.83
£11.66
£9.72
|
|
|
| Diameter (mm): 6.9 | Shank (mm): 6.9 | Flute Length (mm): 102 | Overall Length (mm): 156 | Point Angle: 130° |
5 days*
|
5+
£7.00
£5.83
£11.66
£9.72
|
|
|
| Diameter (mm): 7 | Shank (mm): 7 | Flute Length (mm): 102 | Overall Length (mm): 156 | Point Angle: 130° |
In stock
|
5+
£7.00
£5.83
£11.66
£9.72
|
|
|
| Diameter (mm): 7.1 | Shank (mm): 7.1 | Flute Length (mm): 102 | Overall Length (mm): 156 | Point Angle: 130° |
In stock
|
5+
£8.47
£7.06
£14.11
£11.76
|
|
|
| Diameter (mm): 7.2 | Shank (mm): 7.2 | Flute Length (mm): 102 | Overall Length (mm): 156 | Point Angle: 130° |
In stock
|
5+
£8.47
£7.06
£14.11
£11.76
|
|
|
| Diameter (mm): 7.3 | Shank (mm): 7.3 | Flute Length (mm): 102 | Overall Length (mm): 156 | Point Angle: 130° |
5 days*
|
5+
£8.47
£7.06
£14.11
£11.76
|
|
|
| Diameter (mm): 7.4 | Shank (mm): 7.4 | Flute Length (mm): 102 | Overall Length (mm): 156 | Point Angle: 130° |
In stock
|
5+
£8.47
£7.06
£14.11
£11.76
|
|
|
| Diameter (mm): 7.5 | Shank (mm): 7.5 | Flute Length (mm): 102 | Overall Length (mm): 156 | Point Angle: 130° |
In stock
|
5+
£8.47
£7.06
£14.11
£11.76
|
|
|
| Diameter (mm): 7.6 | Shank (mm): 7.6 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
In stock
|
5+
£9.12
£7.60
£15.20
£12.67
|
|
|
| Diameter (mm): 7.7 | Shank (mm): 7.7 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
In stock
|
5+
£9.12
£7.60
£15.20
£12.67
|
|
|
| Diameter (mm): 7.8 | Shank (mm): 7.8 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
In stock
|
5+
£9.12
£7.60
£15.20
£12.67
|
|
|
| Diameter (mm): 7.9 | Shank (mm): 7.9 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
In stock
|
5+
£9.12
£7.60
£15.20
£12.67
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
In stock
|
5+
£9.12
£7.60
£15.20
£12.67
|
|
|
| Diameter (mm): 8.1 | Shank (mm): 8.1 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
5 days*
|
5+
£10.16
£8.47
£16.94
£14.12
|
|
|
| Diameter (mm): 8.2 | Shank (mm): 8.2 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
In stock
|
5+
£10.16
£8.47
£16.94
£14.12
|
|
|
| Diameter (mm): 8.3 | Shank (mm): 8.3 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
In stock
|
5+
£10.16
£8.47
£16.94
£14.12
|
|
|
| Diameter (mm): 8.4 | Shank (mm): 8.4 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
5 days*
|
5+
£10.16
£8.47
£16.94
£14.12
|
|
|
| Diameter (mm): 8.5 | Shank (mm): 8.5 | Flute Length (mm): 109 | Overall Length (mm): 165 | Point Angle: 130° |
In stock
|
5+
£10.16
£8.47
£16.94
£14.12
|
|
|
| Diameter (mm): 8.6 | Shank (mm): 8.6 | Flute Length (mm): 115 | Overall Length (mm): 175 | Point Angle: 130° |
In stock
|
5+
£11.56
£9.63
£19.26
£16.05
|
|
|
| Diameter (mm): 8.7 | Shank (mm): 8.7 | Flute Length (mm): 115 | Overall Length (mm): 175 | Point Angle: 130° |
5 days*
|
5+
£11.56
£9.63
£19.26
£16.05
|
|
|
| Diameter (mm): 8.8 | Shank (mm): 8.8 | Flute Length (mm): 115 | Overall Length (mm): 175 | Point Angle: 130° |
5 days*
|
5+
£11.56
£9.63
£19.26
£16.05
|
|
|
| Diameter (mm): 9 | Shank (mm): 9 | Flute Length (mm): 115 | Overall Length (mm): 175 | Point Angle: 130° |
In stock
|
5+
£11.56
£9.63
£19.26
£16.05
|
|
|
| Diameter (mm): 9.2 | Shank (mm): 9.2 | Flute Length (mm): 115 | Overall Length (mm): 175 | Point Angle: 130° |
In stock
|
5+
£14.96
£12.47
£24.95
£20.79
|
|
|
| Diameter (mm): 9.3 | Shank (mm): 9.3 | Flute Length (mm): 115 | Overall Length (mm): 175 | Point Angle: 130° |
In stock
|
5+
£14.96
£12.47
£24.95
£20.79
|
|
|
| Diameter (mm): 9.4 | Shank (mm): 9.4 | Flute Length (mm): 115 | Overall Length (mm): 175 | Point Angle: 130° |
In stock
|
5+
£14.96
£12.47
£24.95
£20.79
|
|
|
| Diameter (mm): 9.5 | Shank (mm): 9.5 | Flute Length (mm): 115 | Overall Length (mm): 175 | Point Angle: 130° |
5 days*
|
5+
£14.96
£12.47
£24.95
£20.79
|
|
|
| Diameter (mm): 9.6 | Shank (mm): 9.6 | Flute Length (mm): 121 | Overall Length (mm): 184 | Point Angle: 130° |
5 days*
|
5+
£14.96
£12.47
£24.95
£20.79
|
|
|
| Diameter (mm): 9.7 | Shank (mm): 9.7 | Flute Length (mm): 121 | Overall Length (mm): 184 | Point Angle: 130° |
In stock
|
5+
£14.96
£12.47
£24.95
£20.79
|
|
|
| Diameter (mm): 9.8 | Shank (mm): 9.8 | Flute Length (mm): 121 | Overall Length (mm): 184 | Point Angle: 130° |
In stock
|
5+
£14.96
£12.47
£24.95
£20.79
|
|
|
| Diameter (mm): 9.9 | Shank (mm): 9.9 | Flute Length (mm): 121 | Overall Length (mm): 184 | Point Angle: 130° |
5 days*
|
5+
£14.96
£12.47
£24.95
£20.79
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 121 | Overall Length (mm): 184 | Point Angle: 130° |
In stock
|
5+
£14.96
£12.47
£24.95
£20.79
|
|
|
| Diameter (mm): 10.2 | Shank (mm): 10.2 | Flute Length (mm): 121 | Overall Length (mm): 184 | Point Angle: 130° |
In stock
|
5+
£16.98
£14.15
£28.31
£23.59
|
|
|
| Diameter (mm): 10.5 | Shank (mm): 10.5 | Flute Length (mm): 121 | Overall Length (mm): 184 | Point Angle: 130° |
In stock
|
5+
£16.98
£14.15
£28.31
£23.59
|
|
|
| Diameter (mm): 11 | Shank (mm): 11 | Flute Length (mm): 128 | Overall Length (mm): 195 | Point Angle: 130° |
In stock
|
5+
£17.40
£14.50
£29.00
£24.17
|
|
|
| Diameter (mm): 11.5 | Shank (mm): 11.5 | Flute Length (mm): 128 | Overall Length (mm): 195 | Point Angle: 130° |
In stock
|
5+
£21.23
£17.69
£35.38
£29.48
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Flute Length (mm): 128 | Overall Length (mm): 195 | Point Angle: 130° |
In stock
|
5+
£21.23
£17.69
£35.38
£29.48
|
|
Product Information
Features & Benefits
The DL509 series YG-1 HSS 5 Percent cobalt jobber drills have a worm pattern geometry which feature a parabolic u-shaped flute for efficient chip evacuation. Excellent for soft or long chipping materials. Diameters range from 2-12mm.
- 10xD Long Length Drill.
- Made from a HSS substrate with a 5% cobalt content.
- Bright Finish.
- Suitable for machining Non Alloy Steels, Alloy Steels, Grey Cast Iron, Malleable Cast Iron, Special Aluminum or Magnesium Alloys.
- Worm pattern drills feature a parabolic u-shaped flute for efficient chip evacuation.
- Bright finish prevents built up edge and deep flute pockets prevent chip clogging.
- Excellent for soft or long chipping materials.
Specification
| Category | Hole Making |
|---|---|
| Sub Category | HSS & PM Drills |
| Sub Category 2 | Economy HSS Drills |
| Tolerance | h8 |
| Substrate | HSS |
| Surface Treatment | Uncoated |
| Drill Type | Long |
| Depth | 10xD |
| Performance | 2 |
| Coating Description | Bright Finish |
| Through Coolant | No |
| Substrate Description | HSS 5% Cobalt |
| Self Centring | No |
| Helix Angle | 42° |
| Brand Range | Worm Pattern |
| Brand | YG-1 |
Service & Delivery
What time are we open?
We are open Monday to Friday and able to dispatch orders between 8am and 6pm (up to 5.30 pm on Fridays).
What delivery services do we offer?
To mainland UK we offer FREE UK next day delivery on all orders above £59 ex vat*. For orders under £59 ex vat we offer the following:
- 1st class post - £2.49
- DPD Standard Next Day Delivery - £6.50
- DPD Next Day Pre-12pm - £9.50 or (£5.00 on orders over £59*)
- DPD Next Day Pre-10.30am - £17.00
- Fluid Orders - FREE UK next day delivery on all orders above £79 ex vat*. For orders under £79 - £8
We also offer Saturday delivery for those that require it. If you order before 5.30 pm on a Friday we offer a range of options including all day Saturday, pre12pm and pre10.30am. Please see our delivery page for more information.
*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).
How do I return an order/item?
Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.
