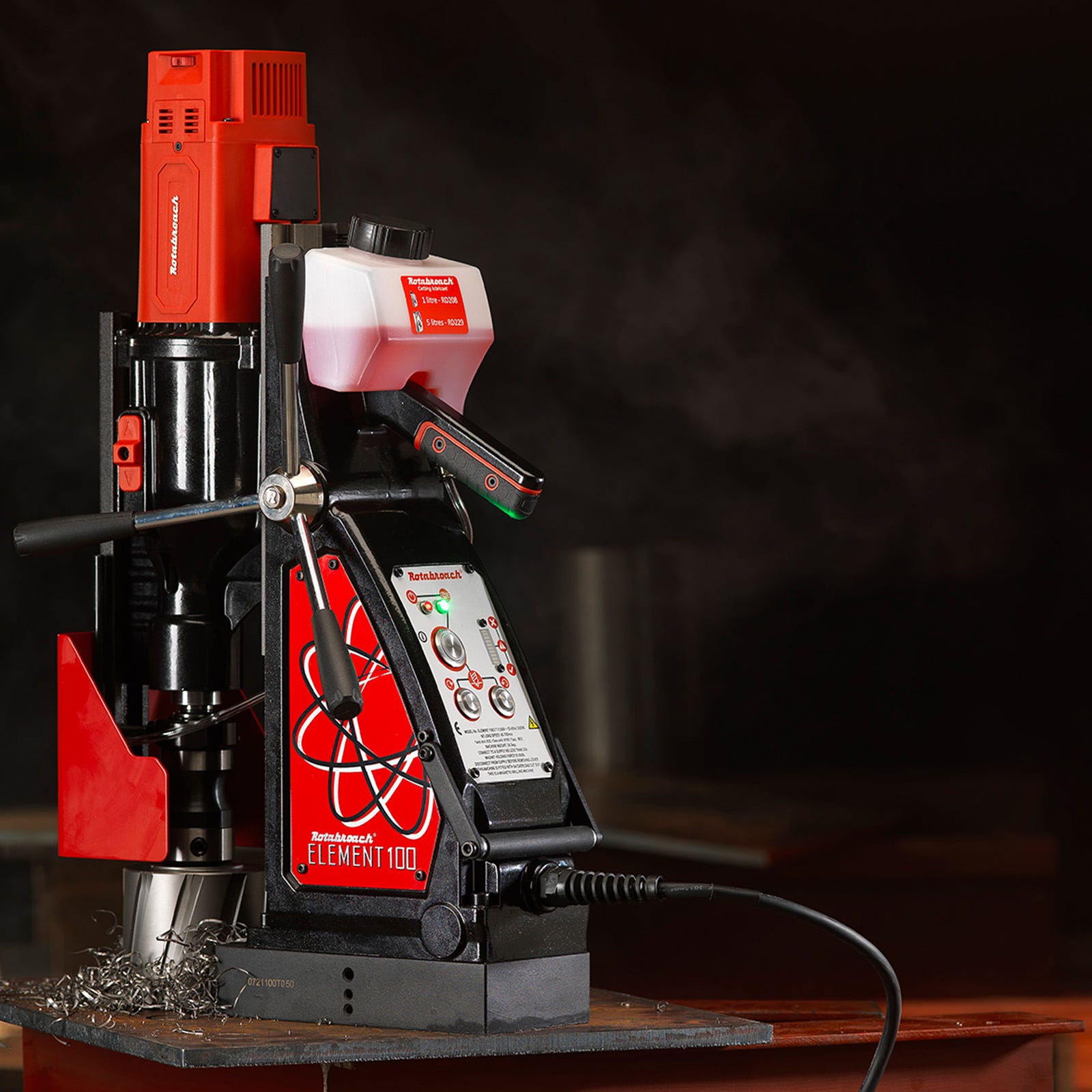

The Element 100 Mag Drill is designed for larger-diameter drilling. It has 4 gears and 24 forward and reverse speeds, the gearing is optimised for drilling holes up to 100mm in diameter. The Element 100 is equipped with CutSmart technology to enhance tool life, speed of cut and user safety. Swivel base as standard. The Element 100 comes supplied with an internal coolant system, 16mm chuck, arbor assembly (6mm hexagonal spanner included), safety glasses, arbor shank, drift, safety strap, 3mm hexagonal spanner, stationary rings and a pilot pin. Features a quick release interchangeable handle. The 230V version is available upon request. For further information please contact our technical team on 01924 869 615.
Designed for larger-diameter drilling.
It has 4 gears and 24 forward and reverse speeds.
The gearing is optimised for drilling holes up to 100mm in diameter.
Equipped with CutSmart technology to enhance tool life, speed of cut and user safety.
Swivel base as standard.
Supplied with an internal coolant system, 16mm chuck, arbor assembly (6mm hexagonal spanner included), safety glasses, arbor shank, drift, safety strap, 3mm hexagonal spanner, stationary rings and a pilot pin.
Features a quick release interchangeable handle.
The 230V version is available upon request.
For further information please contact our technical team on 01924 869 615.
Specification
Category
Hole Making
Sub Category
Mag Drills
Overall Length (mm)
370
Depth of Cut
100
Morse Taper
MT3
Height
733
Weight
25
Voltage
110v (Please enquire for 230V)
Magnet Size
228x114mm
Stroke
200
Cutter Capacity
100
Twist Drill Capacity
32
Drill Chuck Capacity
16
Tapping
M30
No Load Speed
45-700RPM
Motor
2000W
Countersink
40
Brand Range
Element 100 Mag Drill
Brand
Rotabroach
Application
