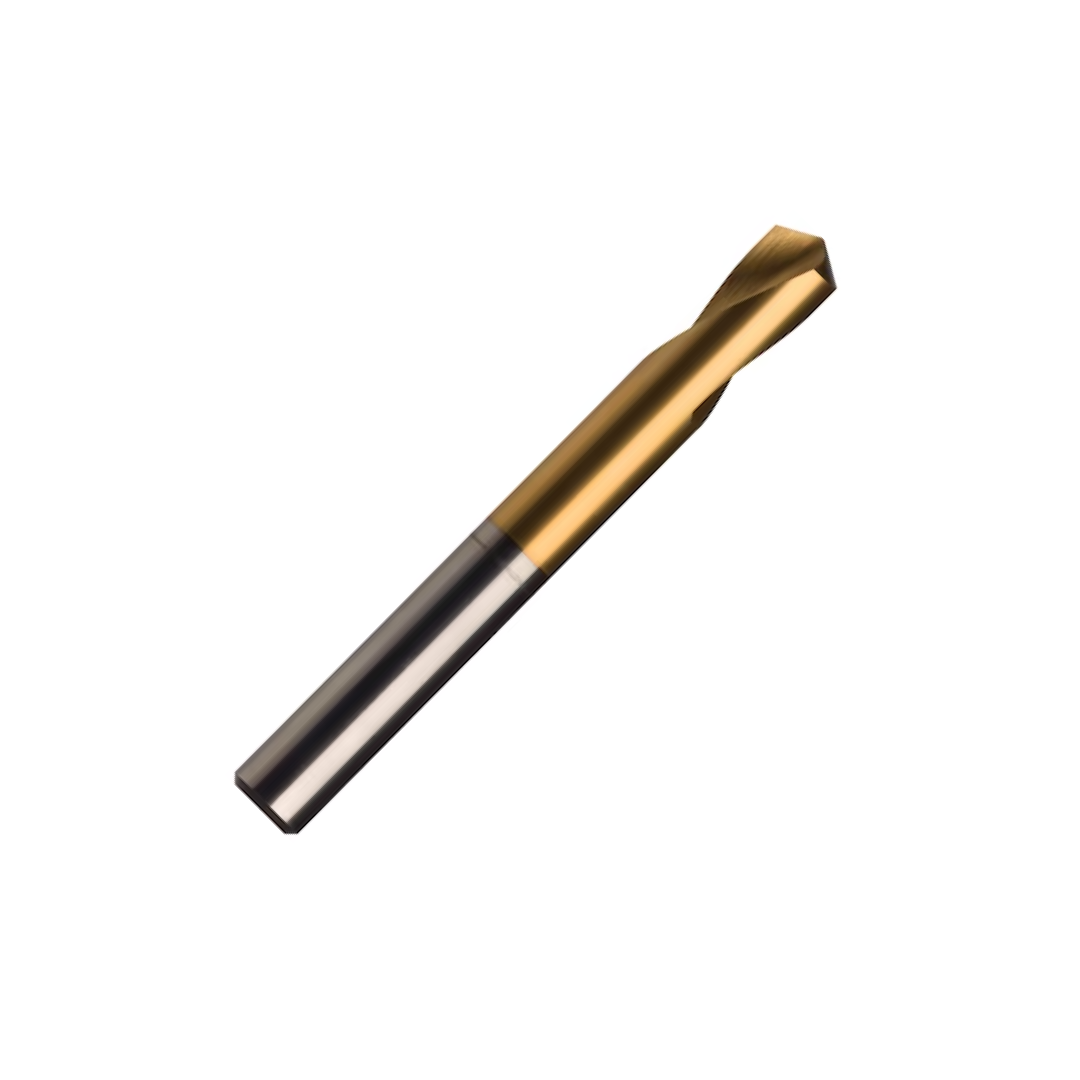

120 Degree HSSE TiN Coated Spot Drill, Plain Shank - 11019 Series (Atorn)

120 Degree HSSE TiN Coated Spot Drill, Plain Shank - 11019 Series (Atorn)

The 11019 series TiN Coated HSSE spot drills features a 120-degree angle suitable for machining pilot holes. They...
Read more
View Products

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm
Filter Items arrow

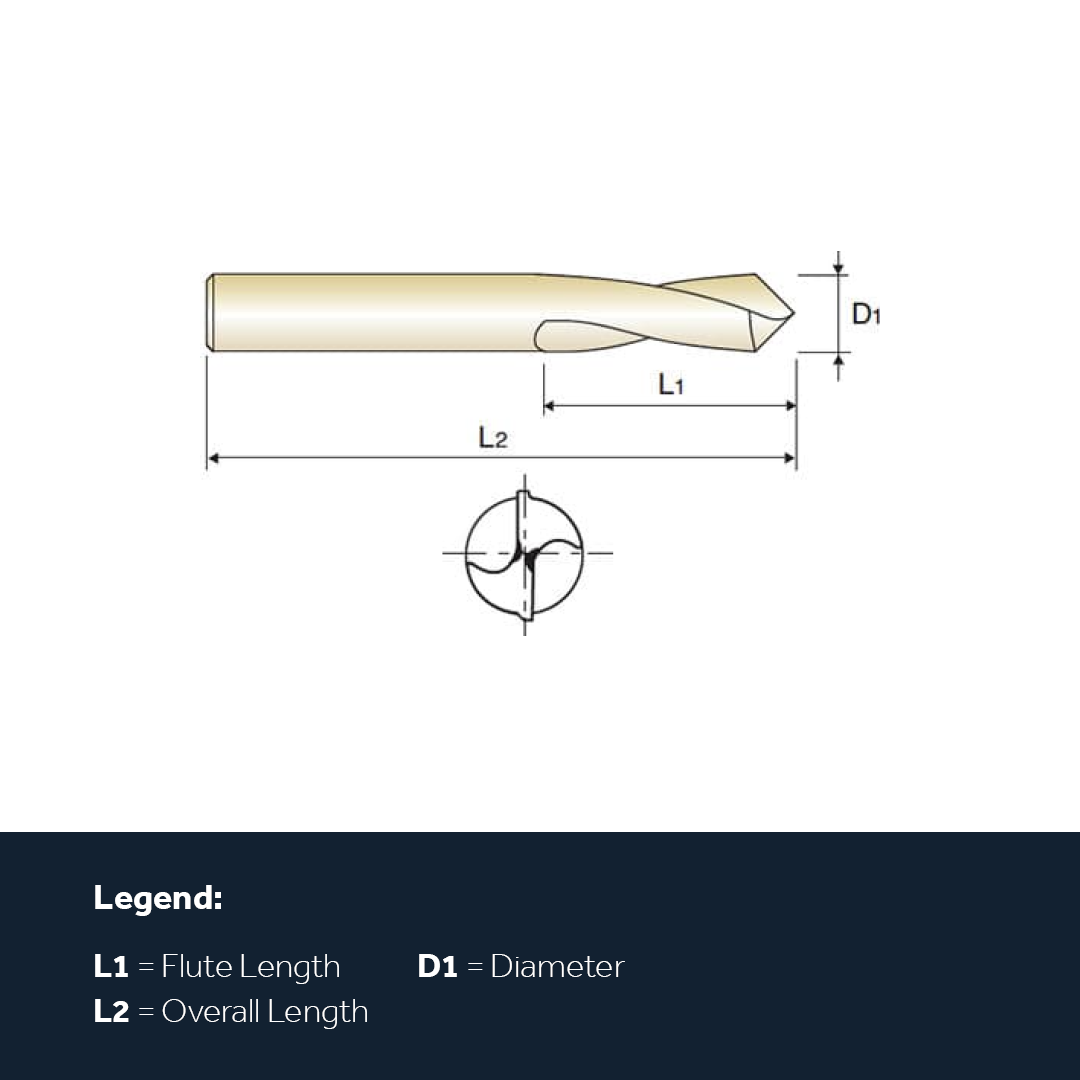

Code Diameter (mm) Shank (mm) Flute Length (mm) Overall Length (mm) Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Diameter (mm)
carrat-down
Shank (mm)
carrat-down
Flute Length (mm)
carrat-down
Overall Length (mm)
carrat-down
Diameter (mm): 3 Shank (mm): 3 Flute Length (mm): 10 Overall Length (mm): 50
unavailable 5 days*
£13.86 £11.55
minus plus
Diameter (mm): 4 Shank (mm): 4 Flute Length (mm): 12 Overall Length (mm): 52
unavailable 5 days*
£13.86 £11.55
minus plus
Diameter (mm): 5 Shank (mm): 5 Flute Length (mm): 15 Overall Length (mm): 60
unavailable 5 days*
£16.63 £13.86
minus plus
Diameter (mm): 6 Shank (mm): 6 Flute Length (mm): 20 Overall Length (mm): 66
unavailable 5 days*
£16.63 £13.86
minus plus
Diameter (mm): 8 Shank (mm): 8 Flute Length (mm): 25 Overall Length (mm): 79
unavailable 5 days*
£22.18 £18.48
minus plus
Diameter (mm): 10 Shank (mm): 10 Flute Length (mm): 25 Overall Length (mm): 89
unavailable 5 days*
£27.72 £23.10
minus plus
Diameter (mm): 12 Shank (mm): 12 Flute Length (mm): 30 Overall Length (mm): 102
unavailable 5 days*
£38.81 £32.34
minus plus
Diameter (mm): 16 Shank (mm): 16 Flute Length (mm): 35 Overall Length (mm): 115
unavailable 5 days*
£58.21 £48.51
minus plus

*Estimated lead time, subject to availability

Product Information

Features & Benefits

The 11019 series TiN Coated HSSE spot drills features a 120-degree angle suitable for machining pilot holes. They are supplied with a plain shank, most suitable for being clamped in an ER collet chuck. HSSE spot drills offer longer tool life than standard HSS. The TiN coating finish is suitable for Steel, Stainless Steel, Cast iron, Exotics and Non-Ferrous materials.
  • Ideal for general purpose 120 degree spotting applications.
  • HSSE substrate with added cobalt for increased hardness and heat resistance.
  • TiN coating finish is suitable for Steel, Stainless Steel, Cast iron, Exotics and Non-Ferrous materials.

Specification

Category Hole Making
Sub Category Spot Drills
Substrate HSS
Surface Treatment Coated (PVD/CVD)
Shank Type Plain
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics
Substrate Description HSSE
Angle 120°
Brand Atorn
