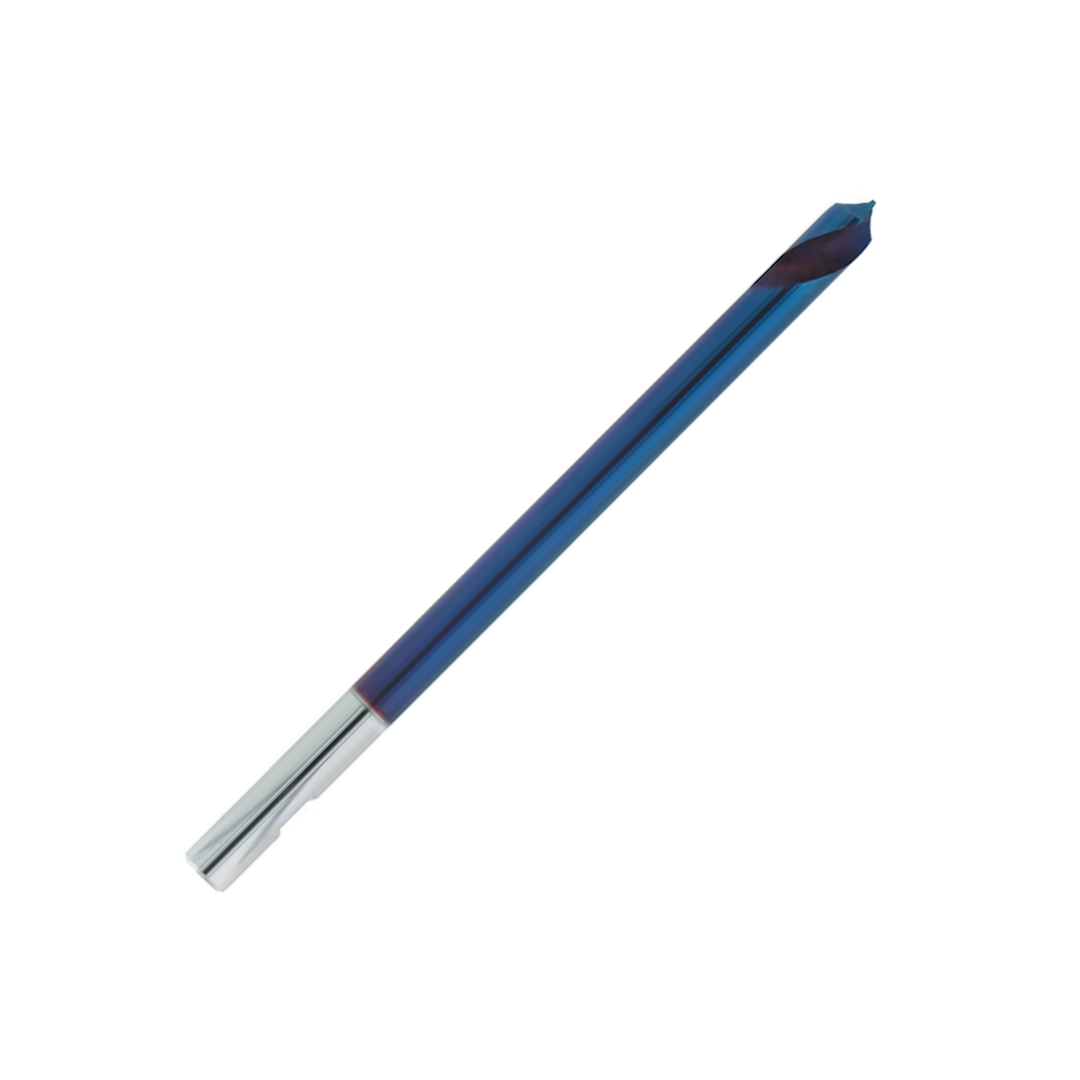

90 Degree TiAlSiN Coated Carbide Spot Drill, Long Length, Weldon Shank - 11077 Series (Atorn)
90 Degree TiAlSiN Coated Carbide Spot Drill, Long Length, Weldon Shank - 11077 Series (Atorn)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
||||
|---|---|---|---|---|---|---|---|
| Diameter (mm): 2 | Shank (mm): 2 | Flute Length (mm): 6 | Overall Length (mm): 75 |
5 days*
|
£32.18
£26.82
|
|
|
| Diameter (mm): 3 | Shank (mm): 3 | Flute Length (mm): 12 | Overall Length (mm): 80 |
5 days*
|
£32.18
£26.82
|
|
|
| Diameter (mm): 4 | Shank (mm): 4 | Flute Length (mm): 12 | Overall Length (mm): 100 |
5 days*
|
£41.58
£34.65
|
|
|
| Diameter (mm): 5 | Shank (mm): 5 | Flute Length (mm): 14 | Overall Length (mm): 120 |
5 days*
|
£47.12
£39.27
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 20 | Overall Length (mm): 140 |
5 days*
|
£49.90
£41.58
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 25 | Overall Length (mm): 140 |
5 days*
|
£69.30
£57.75
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 25 | Overall Length (mm): 170 |
5 days*
|
£83.16
£69.30
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Flute Length (mm): 30 | Overall Length (mm): 170 |
5 days*
|
£113.65
£94.71
|
|
|
| Diameter (mm): 16 | Shank (mm): 16 | Flute Length (mm): 35 | Overall Length (mm): 200 |
5 days*
|
£177.41
£147.84
|
|
|
| Diameter (mm): 20 | Shank (mm): 20 | Flute Length (mm): 40 | Overall Length (mm): 200 |
5 days*
|
£318.78
£265.65
|
|
Product Information
Features & Benefits
- Ideal for general purpose 90 degree spotting applications.
- Excellent value solid carbide substrate for longer tool life and higher performance compared to HSS.
- Long length allows for better alignment and more precise positioning.
- TiAlSiN Coated finish provides superior wear resistance, making it suitable for Steel, Stainless Steel, Exotics, Cast Iron and Non-Ferrous materials.
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Spot Drills |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Shank Type | Weldon |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Angle | 90° |
| Brand | Atorn |
