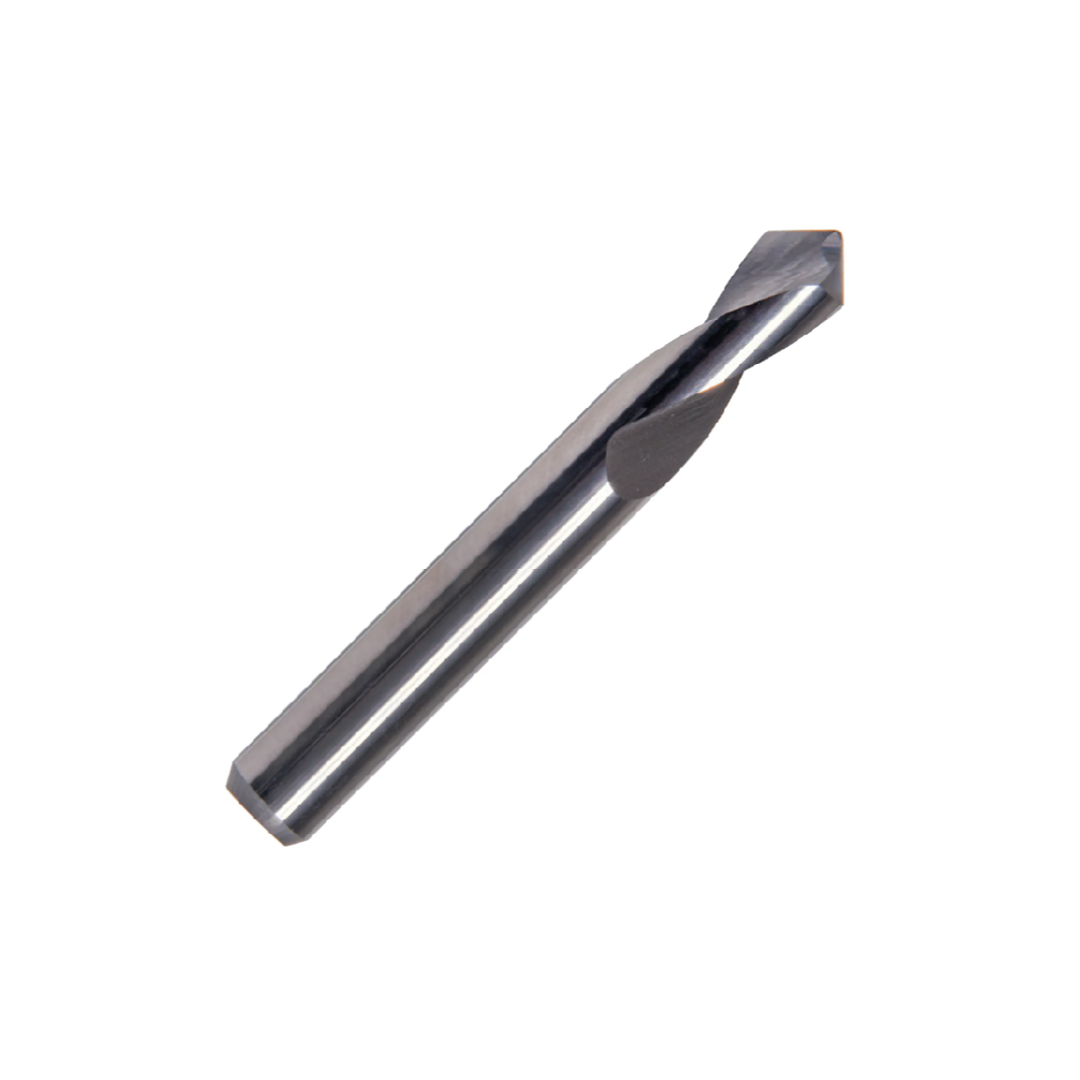

90 Degree Uncoated Carbide Spot Drill, Plain Shank - D8306 Series (Cutwel Pro)
90 Degree Uncoated Carbide Spot Drill, Plain Shank - D8306 Series (Cutwel Pro)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

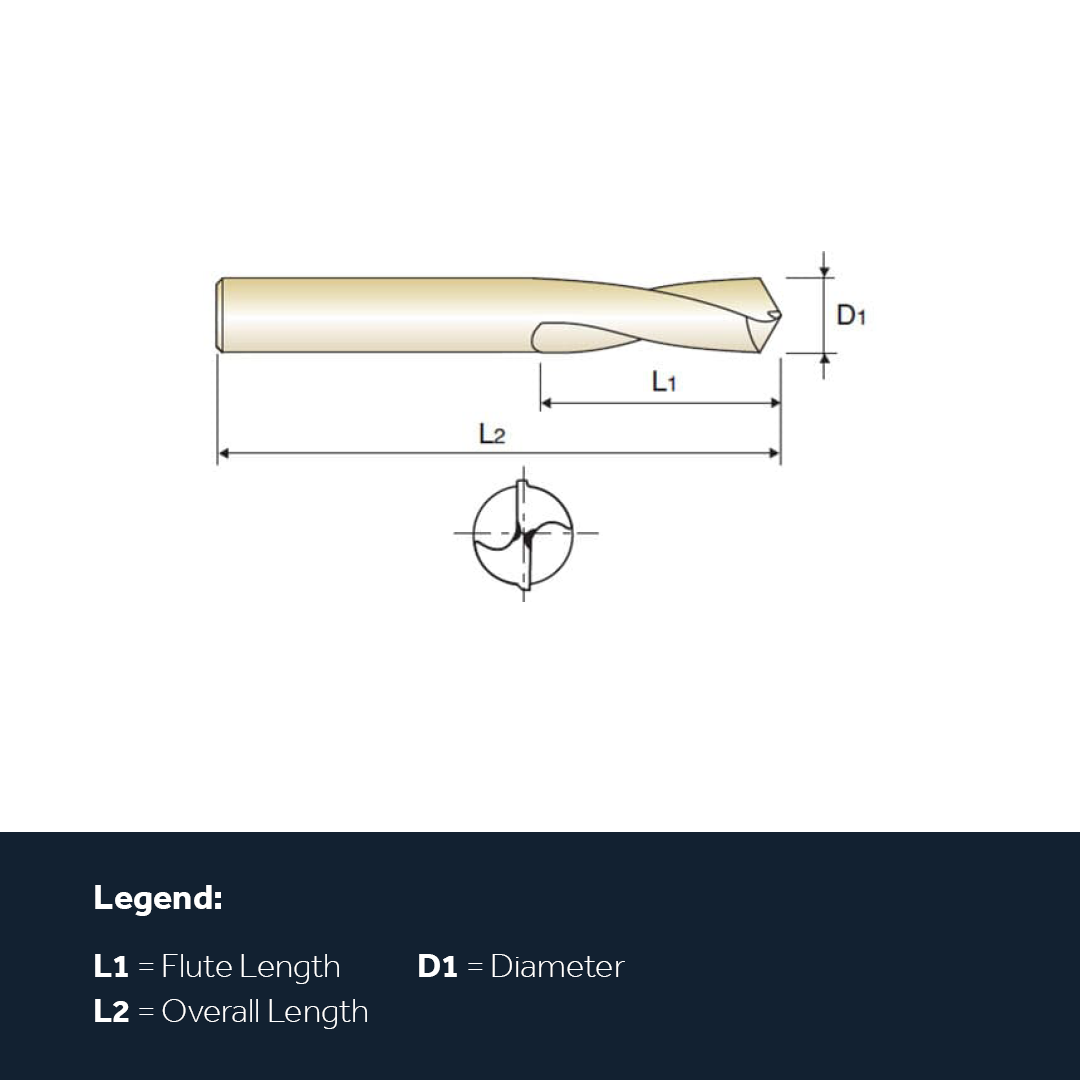

Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
||||
|---|---|---|---|---|---|---|---|
| Diameter (mm): 3 | Shank (mm): 3 | Flute Length (mm): 12 | Overall Length (mm): 40 |
In stock
|
£15.00
£12.50
|
|
|
| Diameter (mm): 4 | Shank (mm): 4 | Flute Length (mm): 12 | Overall Length (mm): 40 |
In stock
|
£17.77
£14.81
|
|
|
| Diameter (mm): 5 | Shank (mm): 5 | Flute Length (mm): 16 | Overall Length (mm): 50 |
In stock
|
£20.62
£17.18
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 16 | Overall Length (mm): 50 |
In stock
|
£21.49
£17.91
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 20 | Overall Length (mm): 60 |
In stock
|
£37.45
£31.21
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 22 | Overall Length (mm): 70 |
In stock
|
£42.12
£35.10
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Flute Length (mm): 22 | Overall Length (mm): 70 |
In stock
|
£71.72
£59.77
|
|
|
| Diameter (mm): 16 | Shank (mm): 16 | Flute Length (mm): 28 | Overall Length (mm): 80 |
In stock
|
£81.04
£67.53
|
|
|
| Diameter (mm): 20 | Shank (mm): 20 | Flute Length (mm): 40 | Overall Length (mm): 100 |
5 days*
|
£147.18
£122.65
|
|
Product Information
Features & Benefits
- Ideal for low cost 90 degree spotting applications.
- Excellent value solid carbide substrate for longer tool life and higher performance compared to HSS.
- Uncoated finish for general purpose machining of Steel Stainless, Exotics, Cast Iron and Non-Ferrous.
- Made by Cutwel Pro offering excellent value and cost efficiency.
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Spot Drills |
| Substrate | Carbide |
| Surface Treatment | Uncoated |
| Shank Type | Plain |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Angle | 90° |
| Brand | Cutwel Pro |
