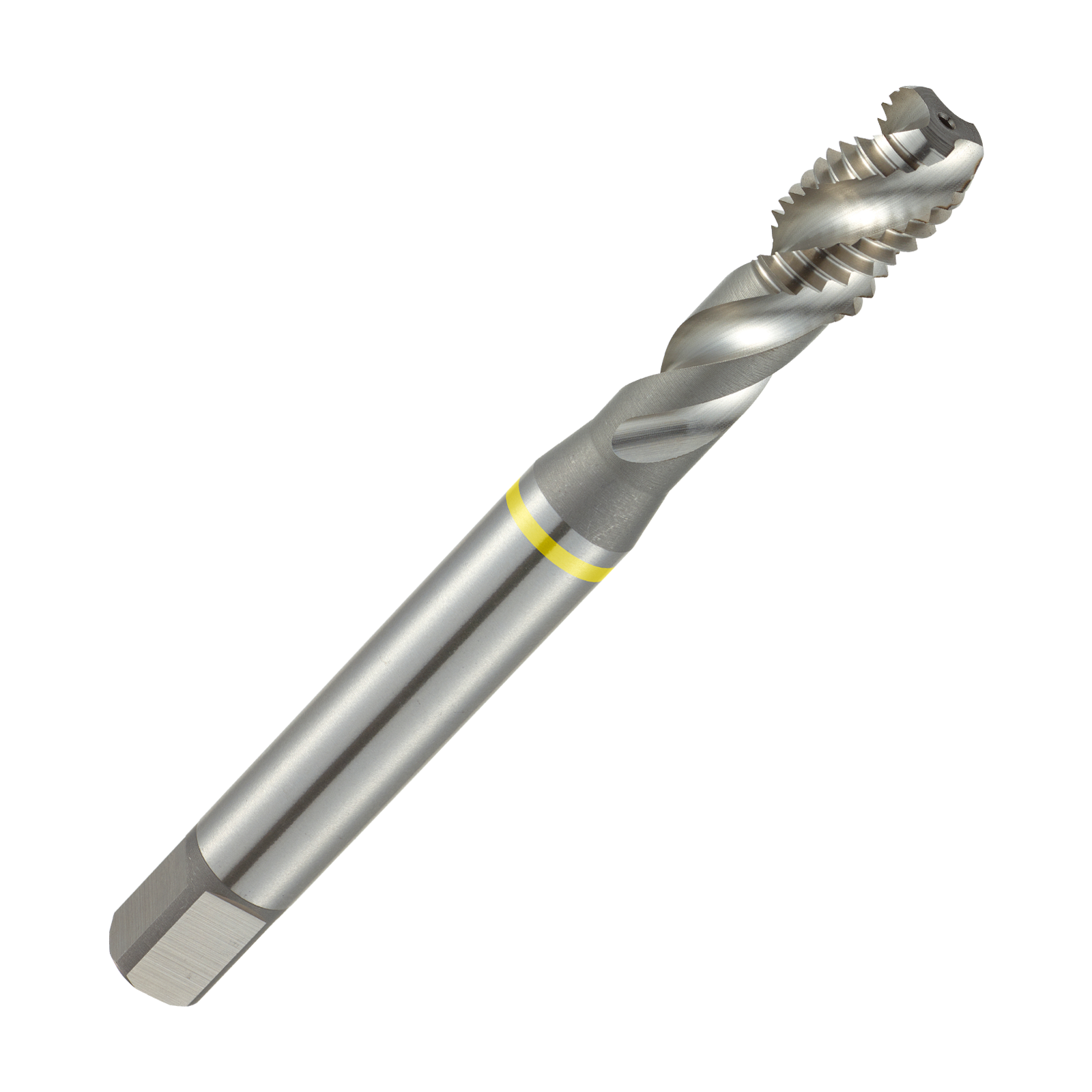

M16 x 2 Metric Coarse HSSE Spiral Flute Bright Finish Tap-Star Non-Ferrous/Aluminium Machine Tap (6H Tolerance) - SVQOM Series (Korloy)
M16 x 2 Metric Coarse HSSE Spiral Flute Bright Finish Tap-Star Non-Ferrous/Aluminium Machine Tap (6H Tolerance) - SVQOM Series (Korloy)

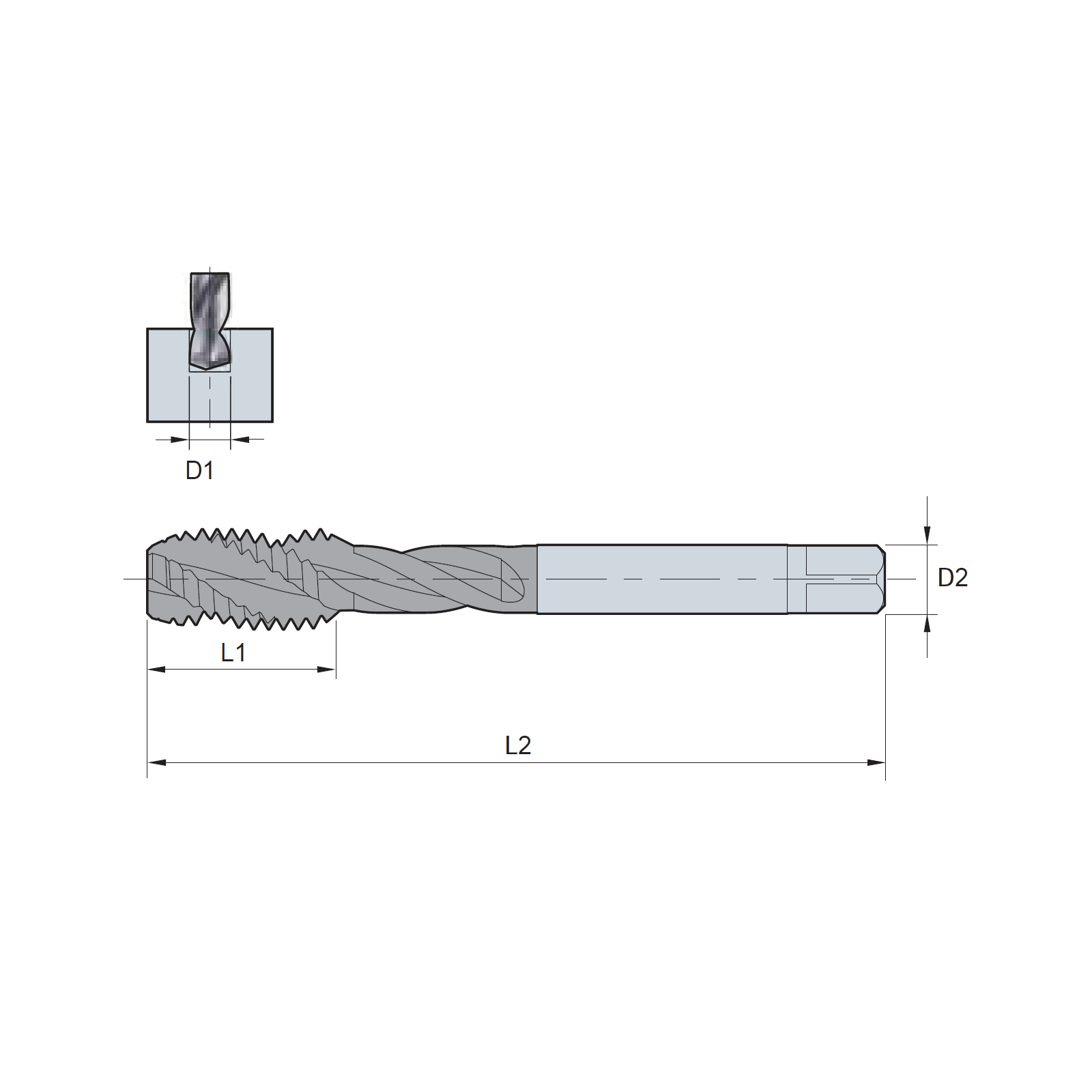

| Overall Length (mm) | 110 |
|---|---|
| Flute Length (mm) | 20 |
| Shank (mm) | 12 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Reduced chipping due to improved HSSE substrate
- Special chamfer edge treatment
- Bright finish with high temperature oxidation resistance
- Optimal flute shape for smooth chip evacuation
- Designed with optimal relief angle for high chipping resistance
- Providing the best performance and quality
- Suitable for machining non-ferrous materials
- Increases productivity with long tool life and high efficient machining
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M16 |
| Sub Category 2 | Aluminium & Non-Ferrous Machine Taps |
| Shank (mm) | 12 |
| Pitch | 2 |
| Flute Length (mm) | 20 |
| Overall Length (mm) | 110 |
| Alternative Part Number | SVQOM1620025 |
| Drill Diameter | 14 |
| Square | 9 |
| Substrate | HSS |
| Surface Treatment | Coated (PVD/CVD) |
| Applicable Materials | Non-Ferrous |
| Flute Geometry | Spiral Flute |
| Performance | 4 |
| Coating Description | Bright Finish |
| Substrate Description | HSSE |
| Helix Angle | 38° |
| Type | Tap Star |
| Thread Form | Metric ISO |
| Chamfer Lead | Form C (Chamfer Lead 2-3 Thread) |
| Brand | Korloy |
