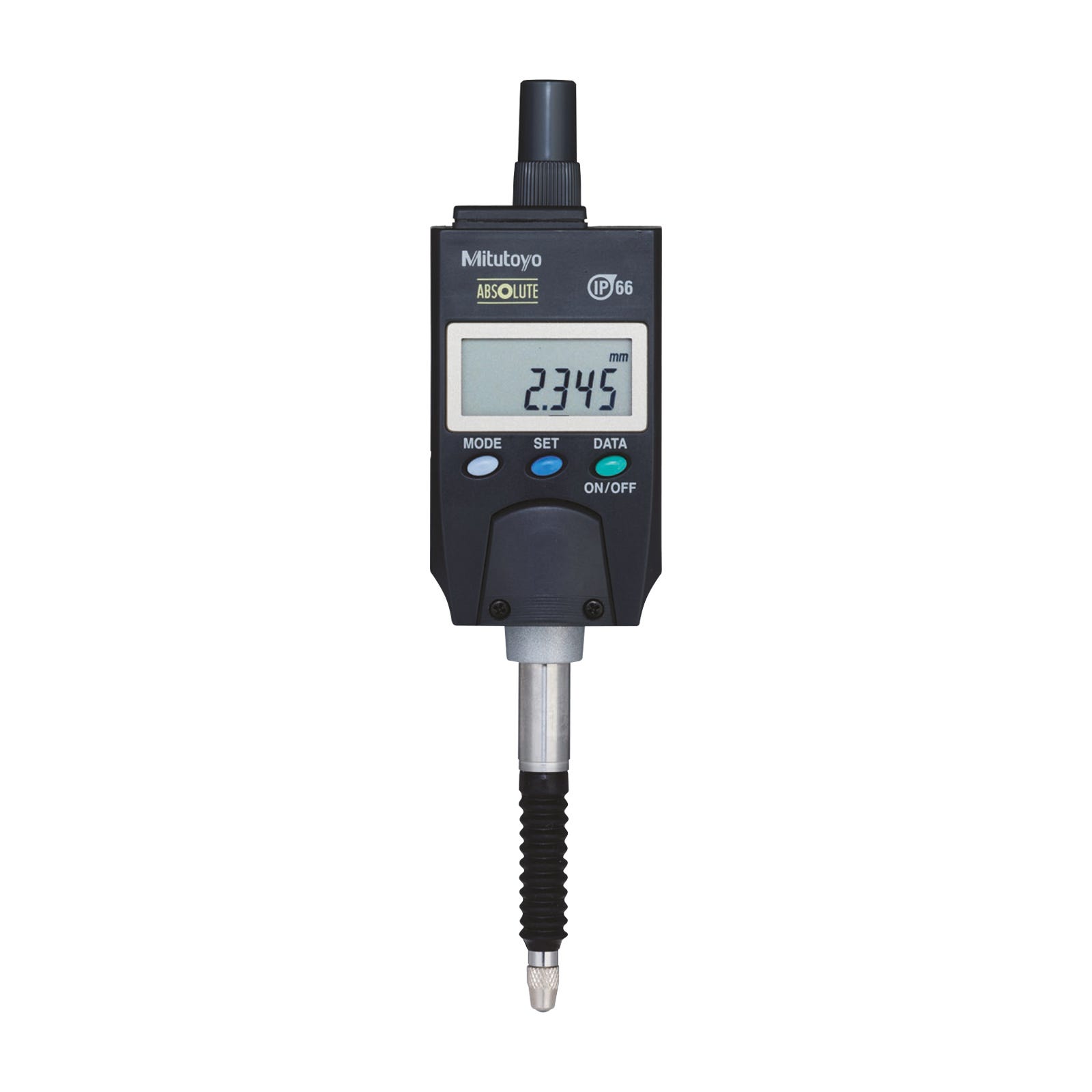

5mm / 0.2" Back Plunger ABSOLUTE Digimatic IP66 Digital Indicator ID-N/B - 543 Series (Mitutoyo)
5mm / 0.2" Back Plunger ABSOLUTE Digimatic IP66 Digital Indicator ID-N/B - 543 Series (Mitutoyo)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Range: .5" / 12.7mm or .2" / 5mm.
- Resolution: .00005" / 0.001mm or .0005" / 0.01mm.
- Slim or back plunger type.
- Made by Mitutoyo - Market leader in the engineering measuring tool sector.
- Our unique ABSOLUTE sensor restores the last origin position automatically when the indicator is turned on.
- Rated to IP66: can be used satisfactorily even in adverse environments where the indicator is subject to splashing by cutting fluid or coolant.
- Slim body design (body width: only 35 mm) is advantageous in multipoint measurement situations where space is restricted.
- Succeeded in digitalization of the Back Plunger type popular in dial indicators. A 5mm stroke plunger with a higher degree of accuracy has been implemented by adopting a direct reading scale for plunger displacement.
- The chance of overspeed errors has been eliminated thanks to the ABSOLUTE sensor.
- Built-in tolerance judgement function provides OK, +NG, or –NG judgement of measurement with respect to the preset upper and lower limit values, indicating the status of a measurement with the appropriate symbol. The symbols can be displayed much larger.
- Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
- There is a choice of convenient Interface Input Tools which enable the conversion of measurement data to keyboard signals and direct input to cells in off-the-shelf spreadsheet software such as Excel.
Specification
| Category | Measuring |
|---|---|
| Sub Category | Indicators |
| Sub Category 2 | Digital Indicators |
| Range | 5mm / 0.2" |
| Accuracy | 0.003mm / 0.00012" |
| Resolution | 0.001mm / 0.00005" |
| Read Out | Digital |
| Brand | Mitutoyo |
