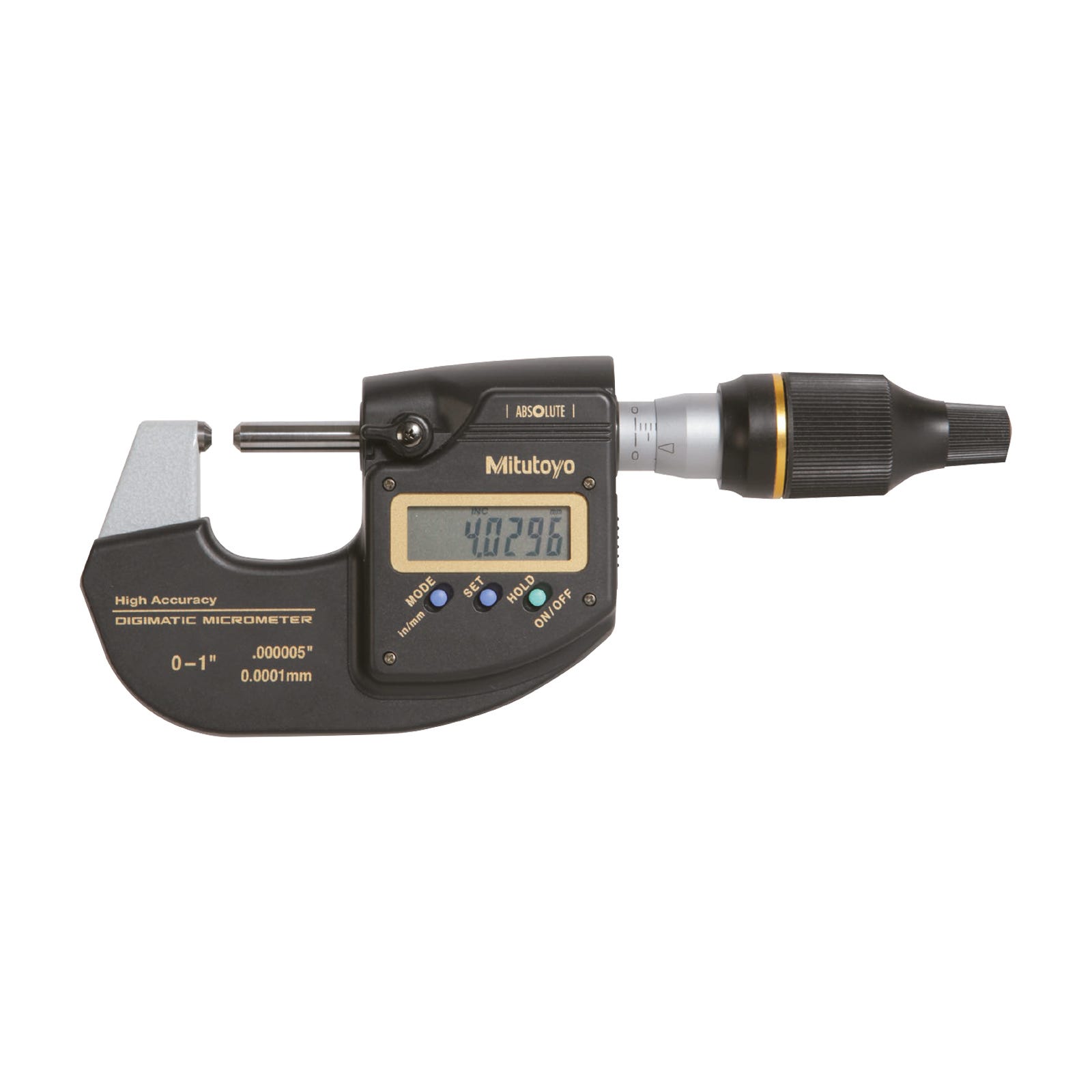

0-1" ABSOLUTE Digimatic High Accuracy Digital Micrometer - 293 Series (Mitutoyo)
0-1" ABSOLUTE Digimatic High Accuracy Digital Micrometer - 293 Series (Mitutoyo)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Range: 0-1" (0-25.4mm)
- Resolution: .000005" / .00002" (0.0001 / 0.0005mm) switchable
- Accuracy:±.00002" (±0.5µm)
- A world-leading 0.1 μm resolution makes this micrometer ideal for customers who need to make highly accurate measurements with a hand-held tool.
- The High-Accuracy Digimatic Micrometer utilizes Mitutoyo’s innovative 0.1 μm resolution ABS (absolute) rotary sensor*1 and high-accuracy screw machining technology to reduce the instrumental error to ±0.5 μm, delivering higher accuracy without sacrificing operability.
- A highly rigid frame and high-performance constant-force mechanism*1 enable more stable measurement, while the clicks emitted while the workpiece is being measured assure the operator that measurement is proceeding normally.
- Transfer of body heat to the instrument is reduced by a (removable) heat shield, minimizing error caused by thermal expansion of the frame when performing handheld measurements.
- The ABS sensor also eliminates the need to perform origin setting each time the power is turned on, letting you start measuring straight away. With no possibility of overspeed errors, this micrometer also delivers a higher level of reliability.
- A range of features enables flexible measurement, including switchable resolution (0.0001/0.0005 mm), function lock and preset.
Specification
| Category | Measuring |
|---|---|
| Sub Category | Outside Micrometers |
| Sub Category 2 | Digital Micrometers |
| Range (mm) | 0-25.4 |
| Range (inch) | 0-1" |
| Setting Ring | 200mm |
| Extension Rod | 150mm |
| Measuring Surface | Ø3.2mm |
| Accuracy | ±0.5μm |
| Resolution | .000005" / .00002" (0.0001 / 0.0005mm switchable) |
| Read Out | Digital |
| Data Output | No |
| Brand | Mitutoyo |
