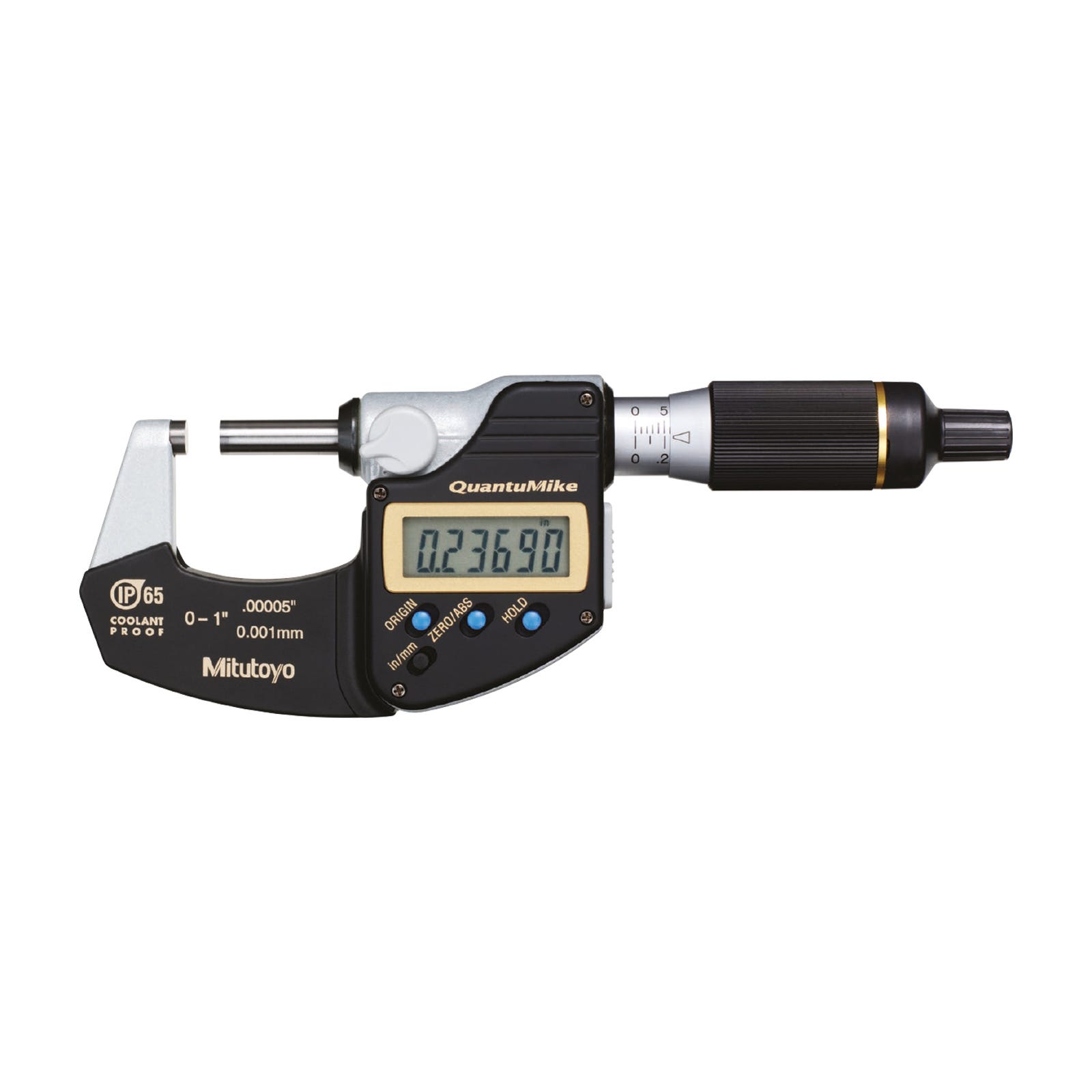

1-2" ABSOLUTE QuantuMike Digimatic IP65 Digital Micrometer With Data Output - 293 Series (Mitutoyo)
1-2" ABSOLUTE QuantuMike Digimatic IP65 Digital Micrometer With Data Output - 293 Series (Mitutoyo)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Range: up to 2" (50.8mm)
- Resolution: .00005" (0.001mm)
- Accuracy: ±.00005" (±1µm)
- Faster measurement is achieved by using a coarser thread which feeds the spindle by 2mm per revolution of the thimble.
- This increase in thread lead has been made possible thanks to new high precision thread-cutting and testing techniques.
- Data output allow easy incorporation of this instrument into a statistical process control or measurement system.
- A graduated scale is provided on the sleeve for use with a reference mark on the thimble so that every millimetre displacement can be checked to provide extra confidence.
- Excellent resistance against oil, water and dust (IP65 protection level) enables this product to be used in machining situations that include splashing coolant fluid.
- QuantuMike is equipped with a function lock feature to prevent the origin point being moved by mistake during measurement.
- Measuring faces: Carbide.
Specification
| Category | Measuring |
|---|---|
| Sub Category | Outside Micrometers |
| Sub Category 2 | Digital Micrometers |
| Range (mm) | 25.4-50.8 |
| Range (inch) | 1-2" |
| Setting Ring | 200mm |
| Extension Rod | 150mm |
| Accuracy | ±1μm |
| Resolution | .00005" (0.001mm) |
| Read Out | Digital |
| IP Rating | IP65 |
| Data Output | Yes |
| Brand | Mitutoyo |
