Blade Micrometer - 122 Series (Mitutoyo)
Scroll back
Scroll back

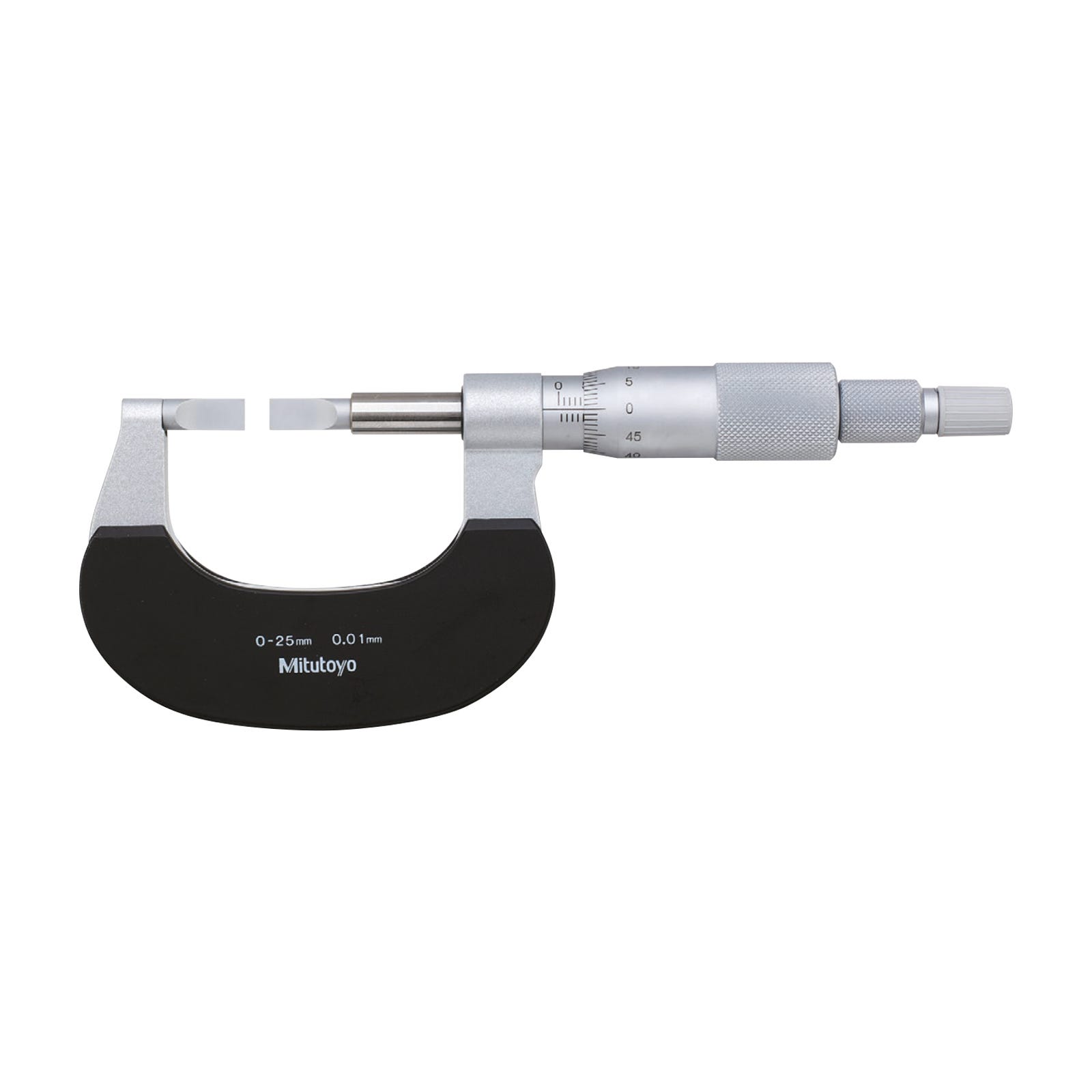

Blade Micrometer - 122 Series (Mitutoyo)
This vernier blade micrometer has blade-shaped anvils and spindles for measuring the groove diameter of shafts,...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Range (mm)
|
Range (inch)
|
Setting Ring
|
Extension Rod
|
Carbide Tip
|
Type
|
Accuracy
|
Graduation
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Range (mm): 0-25 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±3µm | Graduation: 0.01mm |
9 days*
|
£278.57
£232.14
|
|
|
| Range (mm): 50-75 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±3µm | Graduation: 0.01mm |
9 days*
|
£342.17
£285.14
|
|
|
| Range (mm): 75-100 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±4μm | Graduation: 0.01mm |
9 days*
|
Special Price
£295.10
£245.92
Was
£368.88
£307.40
|
|
|
| Range (mm): 100-125 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±4μm | Graduation: 0.01mm |
9 days*
|
£469.37
£391.14
|
|
|
| Range (mm): 150-175 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±6μm | Graduation: 0.01mm |
9 days*
|
Special Price
£445.70
£371.42
Was
£557.14
£464.28
|
|
|
| Range (mm): 175-200 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±6μm | Graduation: 0.01mm |
9 days*
|
£615.65
£513.04
|
|
|
| Range (mm): 200-225 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±6μm | Graduation: 0.01mm |
9 days*
|
£702.14
£585.12
|
|
|
| Range (mm): 225-250 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±6μm | Graduation: 0.01mm |
9 days*
|
£747.94
£623.28
|
|
|
| Range (mm): 250-275 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±6μm | Graduation: 0.01mm |
9 days*
|
£881.50
£734.58
|
|
|
| Range (mm): 275-300 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±6μm | Graduation: 0.01mm |
9 days*
|
£937.46
£781.22
|
|
|
| Range (mm): 0-25 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: B | Accuracy: ±3µm | Graduation: 0.01mm |
9 days*
|
£298.92
£249.10
|
|
|
| Range (mm): 25-50 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: B | Accuracy: ±3µm | Graduation: 0.01mm |
9 days*
|
£306.55
£255.46
|
|
|
| Range (mm): 0-25 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: Yes | Type: C | Accuracy: ±3µm | Graduation: 0.01mm |
9 days*
|
£352.34
£293.62
|
|
|
| Range (mm): 25-50 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: Yes | Type: C | Accuracy: ±3µm | Graduation: 0.01mm |
9 days*
|
£418.49
£348.74
|
|
|
| Range (mm): 0-25 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: Yes | Type: D | Accuracy: ±3µm | Graduation: 0.01mm |
9 days*
|
£352.34
£293.62
|
|
|
| Range (mm): 25-50 | Range (inch): | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: Yes | Type: D | Accuracy: ±3µm | Graduation: 0.01mm |
9 days*
|
£418.49
£348.74
|
|
|
| Range (mm): | Range (inch): 0-1" | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±.00015" | Graduation: .0001" |
9 days*
|
Special Price
£222.85
£185.71
Was
£278.57
£232.14
|
|
|
| Range (mm): | Range (inch): 2-3" | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±.00015" | Graduation: .0001" |
9 days*
|
£342.17
£285.14
|
|
|
| Range (mm): | Range (inch): 3-4" | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: A | Accuracy: ±.0002" | Graduation: .0001" |
9 days*
|
£368.88
£307.40
|
|
|
| Range (mm): | Range (inch): 0-1" | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: B | Accuracy: ±.00015" | Graduation: .0001" |
9 days*
|
£298.92
£249.10
|
|
|
| Range (mm): | Range (inch): 0-1" | Setting Ring: 200mm | Extension Rod: 150mm | Carbide Tip: No | Type: D | Accuracy: ±.00015" | Graduation: .0001" |
9 days*
|
£352.34
£293.62
|
|
Product Information
Features & Benefits
This vernier blade micrometer has blade-shaped anvils and spindles for measuring the groove diameter of shafts, keyways and other hard-to-reach features. It is equippd with a ratchet stop to provide a constant measuring force. Mitutoyo are a market leader in the measuring sector, providing the highest quality measuring tools for a range of applications.
- Range: up to 300mm/4"
- Suited to the measurement of low-volume manufactured parts.
- Easy to use when operating one-handed due to retractable anvil.
- In the 25 mm measuring range, models are available that offer left or right positioning of the anvil-retraction button.
- Water resistant to protection level IP54.
- Greatly improved accuracy: indication error and graduation of 1 μm.
- Hard-coated crystal: enhanced oil and scratch resistance.
- Indicator scale is large and easy-to-read.
- Easily set zero position and adjustable limit markers for GO/±NG testing.
- Measuring faces: Carbide.
Specification
| Category | Measuring & Inspection |
|---|---|
| Sub Category | Outside Micrometers |
| Read Out | Analogue |
