Left Hand Spiral Flute Carbide NC Machine Reamer - K4111 (YG-1)
Scroll back
Scroll back

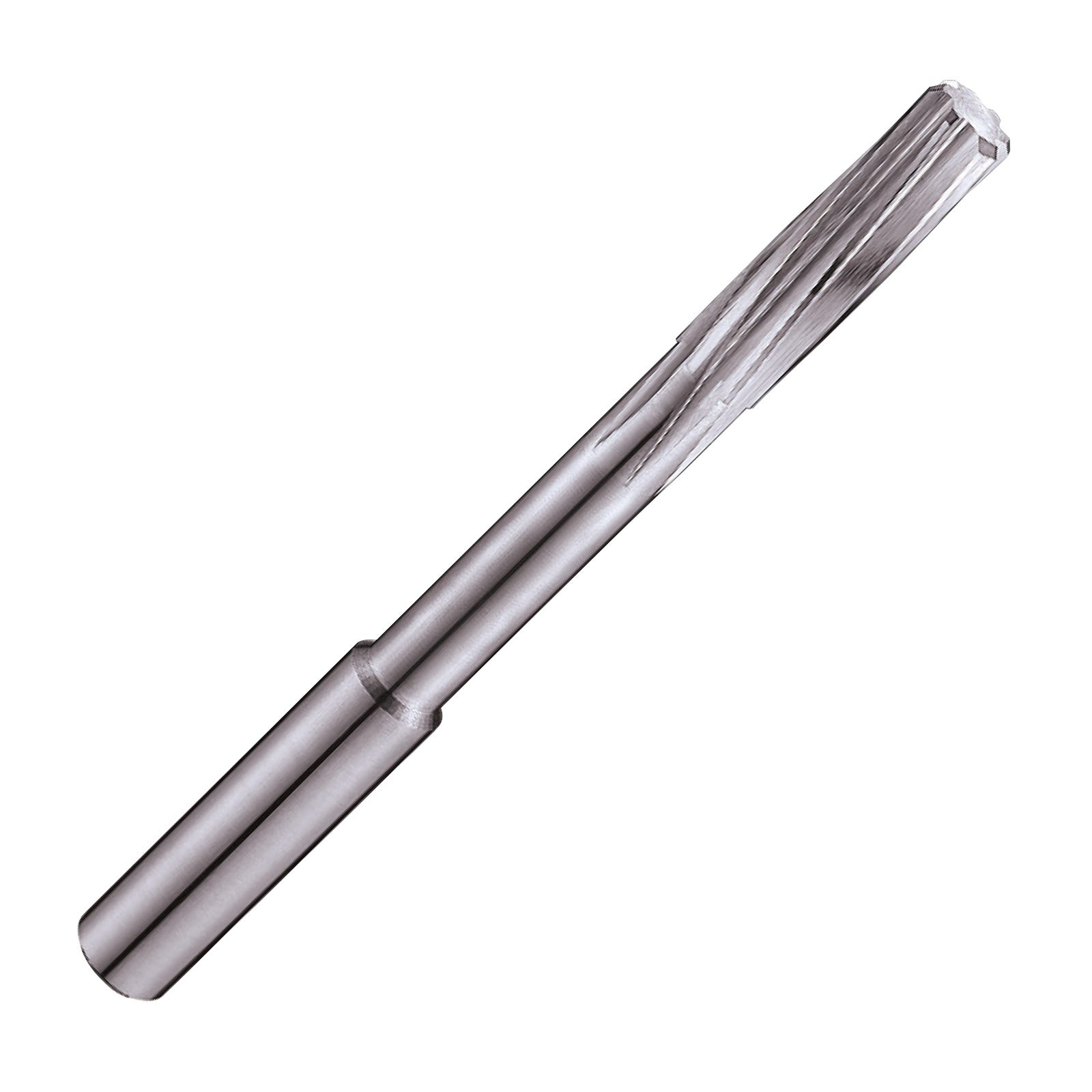

Left Hand Spiral Flute Carbide NC Machine Reamer - K4111 (YG-1)
The YG-1 K4111 series Reamer has a solid micrograin carbide substrate with sizes ranging from 2-20mm diameter....
Read more
View Products
Related Products

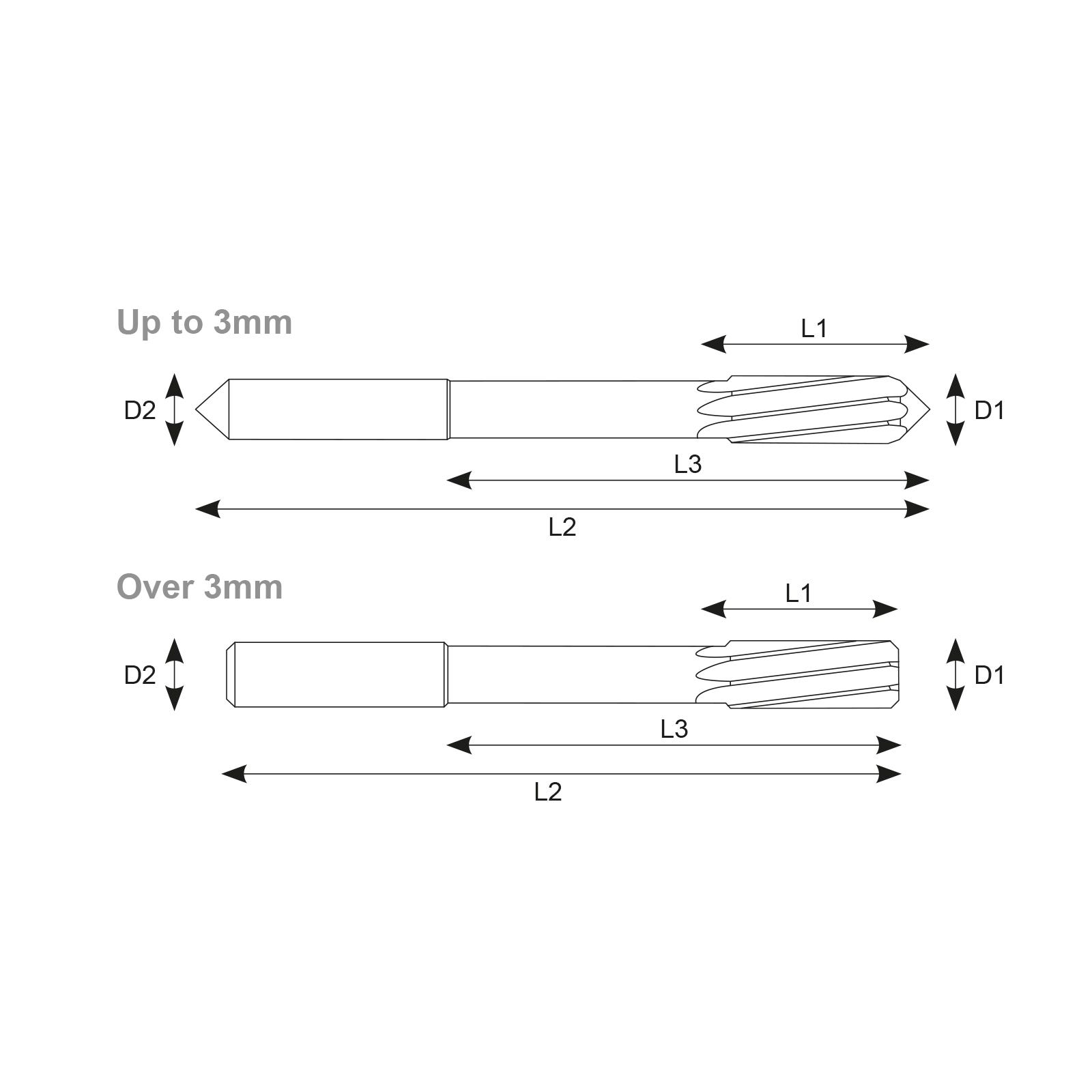

| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Reach (mm)
|
Chamfer Angle
|
||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 2 | Shank (mm): 4 | Flute Length (mm): 11 | Overall Length (mm): 50 | Reach (mm): 20 | Chamfer Angle: 15° |
5 days*
|
£53.40
£44.50
|
|
|
| Diameter (mm): 2.5 | Shank (mm): 4 | Flute Length (mm): 14 | Overall Length (mm): 57 | Reach (mm): 26 | Chamfer Angle: 15° |
In stock
|
£53.40
£44.50
|
|
|
| Diameter (mm): 3 | Shank (mm): 4 | Flute Length (mm): 15 | Overall Length (mm): 61 | Reach (mm): 31 | Chamfer Angle: 15° |
In stock
|
£53.40
£44.50
|
|
|
| Diameter (mm): 3.5 | Shank (mm): 4 | Flute Length (mm): 18 | Overall Length (mm): 70 | Reach (mm): 36 | Chamfer Angle: 45° |
In stock
|
£53.40
£44.50
|
|
|
| Diameter (mm): 4 | Shank (mm): 4 | Flute Length (mm): 19 | Overall Length (mm): 75 | Reach (mm): 42 | Chamfer Angle: 45° |
In stock
|
£53.40
£44.50
|
|
|
| Diameter (mm): 4.5 | Shank (mm): 6 | Flute Length (mm): 21 | Overall Length (mm): 80 | Reach (mm): 46 | Chamfer Angle: 45° |
In stock
|
£66.44
£55.37
|
|
|
| Diameter (mm): 5 | Shank (mm): 6 | Flute Length (mm): 23 | Overall Length (mm): 86 | Reach (mm): 51 | Chamfer Angle: 45° |
In stock
|
£66.44
£55.37
|
|
|
| Diameter (mm): 5.5 | Shank (mm): 6 | Flute Length (mm): 26 | Overall Length (mm): 93 | Reach (mm): 56 | Chamfer Angle: 45° |
In stock
|
£66.44
£55.37
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 26 | Overall Length (mm): 93 | Reach (mm): 56 | Chamfer Angle: 45° |
In stock
|
£66.44
£55.37
|
|
|
| Diameter (mm): 6.5 | Shank (mm): 8 | Flute Length (mm): 28 | Overall Length (mm): 101 | Reach (mm): 62 | Chamfer Angle: 45° |
In stock
|
£102.74
£85.62
|
|
|
| Diameter (mm): 7 | Shank (mm): 8 | Flute Length (mm): 31 | Overall Length (mm): 109 | Reach (mm): 68 | Chamfer Angle: 45° |
5 days*
|
£102.74
£85.62
|
|
|
| Diameter (mm): 7.5 | Shank (mm): 8 | Flute Length (mm): 31 | Overall Length (mm): 109 | Reach (mm): 68 | Chamfer Angle: 45° |
5 days*
|
£102.74
£85.62
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 33 | Overall Length (mm): 117 | Reach (mm): 74 | Chamfer Angle: 45° |
In stock
|
£102.74
£85.62
|
|
|
| Diameter (mm): 8.5 | Shank (mm): 10 | Flute Length (mm): 33 | Overall Length (mm): 117 | Reach (mm): 74 | Chamfer Angle: 45° |
In stock
|
£135.52
£112.93
|
|
|
| Diameter (mm): 9 | Shank (mm): 10 | Flute Length (mm): 36 | Overall Length (mm): 125 | Reach (mm): 80 | Chamfer Angle: 45° |
In stock
|
£135.52
£112.93
|
|
|
| Diameter (mm): 9.5 | Shank (mm): 10 | Flute Length (mm): 36 | Overall Length (mm): 125 | Reach (mm): 80 | Chamfer Angle: 45° |
5 days*
|
£135.52
£112.93
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 38 | Overall Length (mm): 133 | Reach (mm): 86 | Chamfer Angle: 45° |
In stock
|
£135.52
£112.93
|
|
|
| Diameter (mm): 10.5 | Shank (mm): 12 | Flute Length (mm): 38 | Overall Length (mm): 133 | Reach (mm): 86 | Chamfer Angle: 45° |
5 days*
|
£138.04
£115.03
|
|
|
| Diameter (mm): 11 | Shank (mm): 12 | Flute Length (mm): 41 | Overall Length (mm): 142 | Reach (mm): 95 | Chamfer Angle: 45° |
In stock
|
£138.04
£115.03
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Flute Length (mm): 44 | Overall Length (mm): 151 | Reach (mm): 104 | Chamfer Angle: 45° |
In stock
|
£138.04
£115.03
|
|
|
| Diameter (mm): 13 | Shank (mm): 16 | Flute Length (mm): 44 | Overall Length (mm): 151 | Reach (mm): 104 | Chamfer Angle: 45° |
5 days*
|
£151.66
£126.38
|
|
|
| Diameter (mm): 14 | Shank (mm): 16 | Flute Length (mm): 47 | Overall Length (mm): 160 | Reach (mm): 108 | Chamfer Angle: 45° |
5 days*
|
£151.66
£126.38
|
|
|
| Diameter (mm): 15 | Shank (mm): 16 | Flute Length (mm): 50 | Overall Length (mm): 162 | Reach (mm): 110 | Chamfer Angle: 45° |
5 days*
|
£151.66
£126.38
|
|
|
| Diameter (mm): 16 | Shank (mm): 16 | Flute Length (mm): 52 | Overall Length (mm): 170 | Reach (mm): 118 | Chamfer Angle: 45° |
5 days*
|
£151.63
£126.36
|
|
|
| Diameter (mm): 18 | Shank (mm): 20 | Flute Length (mm): 56 | Overall Length (mm): 182 | Reach (mm): 128 | Chamfer Angle: 45° |
5 days*
|
£180.66
£150.55
|
|
|
| Diameter (mm): 19 | Shank (mm): 20 | Flute Length (mm): 58 | Overall Length (mm): 189 | Reach (mm): 129 | Chamfer Angle: 45° |
5 days*
|
£219.83
£183.19
|
|
|
| Diameter (mm): 20 | Shank (mm): 20 | Flute Length (mm): 60 | Overall Length (mm): 195 | Reach (mm): 135 | Chamfer Angle: 45° |
5 days*
|
£219.83
£183.19
|
|
Product Information
Features & Benefits
The YG-1 K4111 series Reamer has a solid micrograin carbide substrate with sizes ranging from 2-20mm diameter. These come with whole number shanks making them ideal for clamping within hydraulic chucks and ideal for high performance machining of Steel, Stainless Steel, Titanium, Cast Iron and Non-Ferrous materials.
- Solid Micrograin Carbide
- NC Machine Reamer
- For Machining Steel, Stainless Steel, Titanium, Cast Iron & Non-Ferrous
- O.D. Tolerance DIN1420 for H7
- Whole Number Shank
- Ideal for Hydraulic Chucks
- Plain Shank (DIN6535HA Tolerance)
- Left Hand Spiral Flutes, Right Hand Cut
- For Machining Through & Blind Holes
- Unequal Flute Spacing
- Chamfer Angle - Up to 3mm: 15 degree, Over 3mm: 45 degree
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Reamers |
| Sub Category 2 | Solid Reamers |
| Tolerance | H7 |
| Shank Tolerance | DIN 6535HA |
| Substrate | Carbide |
| Flute Type | LH Spiral Flute |
| Shank Type | Plain |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous |
| Performance | 4 |
| Substrate Description | Micrograin Carbide |
| Helix Angle | LH7° |
| Type | NC Machine Reamer |
| Brand | YG-1 |
