Straight Flute HSS 5 Percent Cobalt Taper Shank Chucking Reamer - K2102 (YG-1)
Scroll back
Scroll back
Straight Flute HSS 5 Percent Cobalt Taper Shank Chucking Reamer - K2102 (YG-1)
The YG-1 K2102 series Reamer has a HSS 5 Percent Cobalt substrate with sizes ranging from 10-50mm diameter. These...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

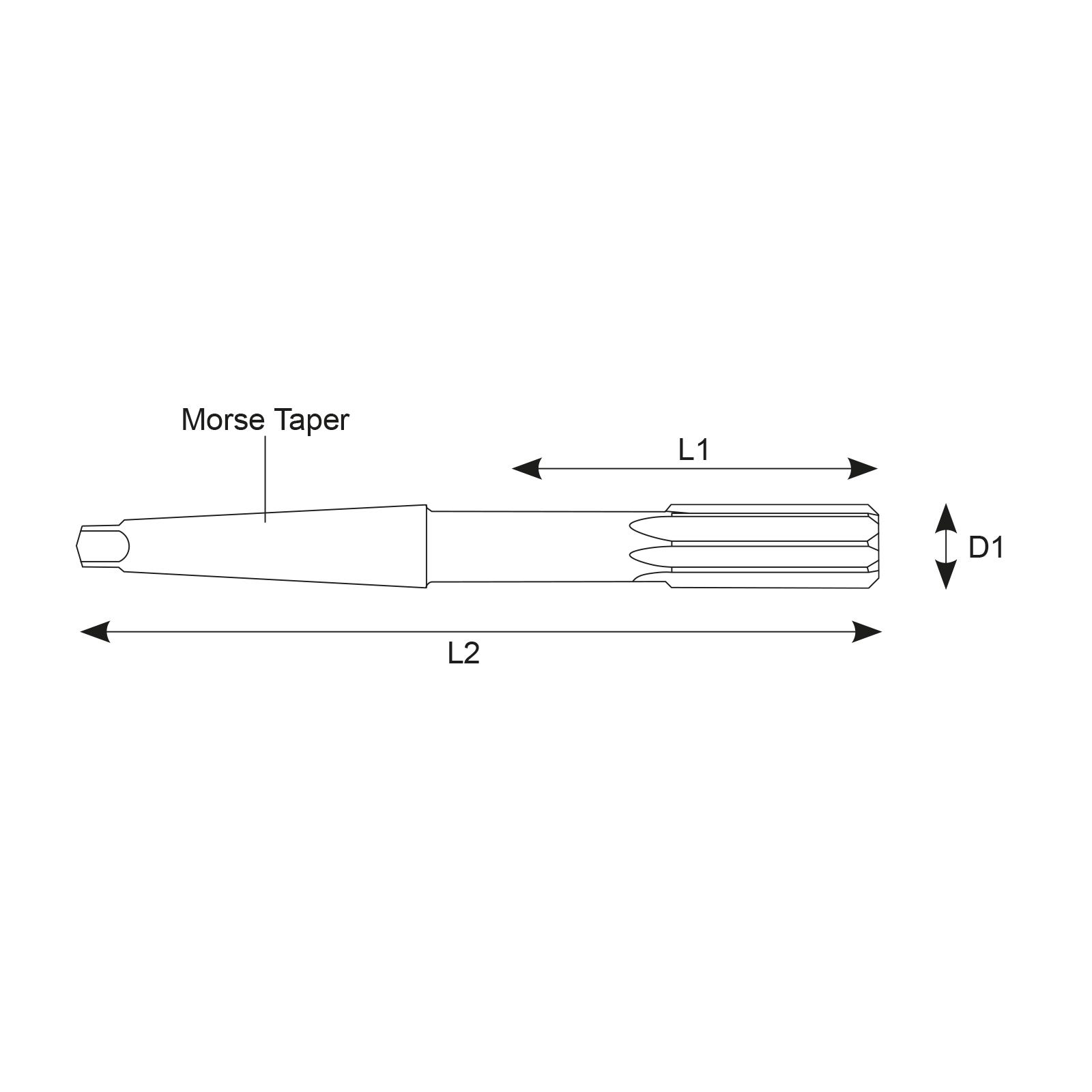

Diameter (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Morse Taper
|
Chamfer Angle
|
||||
|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 10 | Flute Length (mm): 38 | Overall Length (mm): 168 | Morse Taper: MT1 | Chamfer Angle: 45° |
In stock
|
£33.35
£27.79
|
|
|
| Diameter (mm): 11 | Flute Length (mm): 41 | Overall Length (mm): 175 | Morse Taper: MT1 | Chamfer Angle: 45° |
In stock
|
£36.04
£30.03
|
|
|
| Diameter (mm): 12 | Flute Length (mm): 44 | Overall Length (mm): 182 | Morse Taper: MT1 | Chamfer Angle: 45° |
In stock
|
£36.04
£30.03
|
|
|
| Diameter (mm): 13 | Flute Length (mm): 44 | Overall Length (mm): 182 | Morse Taper: MT1 | Chamfer Angle: 45° |
5 days*
|
£37.76
£31.47
|
|
|
| Diameter (mm): 14 | Flute Length (mm): 47 | Overall Length (mm): 189 | Morse Taper: MT1 | Chamfer Angle: 45° |
In stock
|
£37.76
£31.47
|
|
|
| Diameter (mm): 15 | Flute Length (mm): 50 | Overall Length (mm): 204 | Morse Taper: MT2 | Chamfer Angle: 45° |
In stock
|
£46.52
£38.77
|
|
|
| Diameter (mm): 16 | Flute Length (mm): 52 | Overall Length (mm): 210 | Morse Taper: MT2 | Chamfer Angle: 45° |
In stock
|
£47.35
£39.46
|
|
|
| Diameter (mm): 17 | Flute Length (mm): 54 | Overall Length (mm): 214 | Morse Taper: MT2 | Chamfer Angle: 45° |
In stock
|
£50.05
£41.71
|
|
|
| Diameter (mm): 18 | Flute Length (mm): 56 | Overall Length (mm): 219 | Morse Taper: MT2 | Chamfer Angle: 45° |
In stock
|
£50.05
£41.71
|
|
|
| Diameter (mm): 19 | Flute Length (mm): 58 | Overall Length (mm): 223 | Morse Taper: MT2 | Chamfer Angle: 45° |
5 days*
|
£55.28
£46.07
|
|
|
| Diameter (mm): 20 | Flute Length (mm): 60 | Overall Length (mm): 228 | Morse Taper: MT2 | Chamfer Angle: 45° |
In stock
|
£55.28
£46.07
|
|
|
| Diameter (mm): 21 | Flute Length (mm): 62 | Overall Length (mm): 232 | Morse Taper: MT2 | Chamfer Angle: 45° |
In stock
|
£62.23
£51.86
|
|
|
| Diameter (mm): 22 | Flute Length (mm): 64 | Overall Length (mm): 237 | Morse Taper: MT2 | Chamfer Angle: 45° |
In stock
|
£62.23
£51.86
|
|
|
| Diameter (mm): 23 | Flute Length (mm): 66 | Overall Length (mm): 241 | Morse Taper: MT2 | Chamfer Angle: 45° |
In stock
|
£73.74
£61.45
|
|
|
| Diameter (mm): 24 | Flute Length (mm): 68 | Overall Length (mm): 268 | Morse Taper: MT3 | Chamfer Angle: 45° |
In stock
|
£75.48
£62.90
|
|
|
| Diameter (mm): 25 | Flute Length (mm): 68 | Overall Length (mm): 268 | Morse Taper: MT3 | Chamfer Angle: 45° |
In stock
|
£75.48
£62.90
|
|
|
| Diameter (mm): 26 | Flute Length (mm): 70 | Overall Length (mm): 273 | Morse Taper: MT3 | Chamfer Angle: 45° |
In stock
|
£93.90
£78.25
|
|
|
| Diameter (mm): 27 | Flute Length (mm): 71 | Overall Length (mm): 277 | Morse Taper: MT3 | Chamfer Angle: 45° |
5 days*
|
£104.41
£87.01
|
|
|
| Diameter (mm): 28 | Flute Length (mm): 71 | Overall Length (mm): 277 | Morse Taper: MT3 | Chamfer Angle: 45° |
5 days*
|
£104.41
£87.01
|
|
|
| Diameter (mm): 29 | Flute Length (mm): 73 | Overall Length (mm): 281 | Morse Taper: MT3 | Chamfer Angle: 45° |
In stock
|
£116.77
£97.31
|
|
|
| Diameter (mm): 30 | Flute Length (mm): 73 | Overall Length (mm): 281 | Morse Taper: MT3 | Chamfer Angle: 45° |
In stock
|
£116.77
£97.31
|
|
|
| Diameter (mm): 31 | Flute Length (mm): 75 | Overall Length (mm): 285 | Morse Taper: MT3 | Chamfer Angle: 45° |
In stock
|
£117.13
£97.61
|
|
|
| Diameter (mm): 32 | Flute Length (mm): 77 | Overall Length (mm): 317 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£137.76
£114.80
|
|
|
| Diameter (mm): 34 | Flute Length (mm): 78 | Overall Length (mm): 321 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£146.12
£121.77
|
|
|
| Diameter (mm): 35 | Flute Length (mm): 78 | Overall Length (mm): 321 | Morse Taper: MT4 | Chamfer Angle: 45° |
In stock
|
£146.12
£121.77
|
|
|
| Diameter (mm): 36 | Flute Length (mm): 79 | Overall Length (mm): 325 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£183.20
£152.67
|
|
|
| Diameter (mm): 38 | Flute Length (mm): 81 | Overall Length (mm): 329 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£203.14
£169.28
|
|
|
| Diameter (mm): 40 | Flute Length (mm): 81 | Overall Length (mm): 329 | Morse Taper: MT4 | Chamfer Angle: 45° |
In stock
|
£203.14
£169.28
|
|
|
| Diameter (mm): 41 | Flute Length (mm): 82 | Overall Length (mm): 333 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£285.66
£238.05
|
|
|
| Diameter (mm): 42 | Flute Length (mm): 82 | Overall Length (mm): 333 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£285.66
£238.05
|
|
|
| Diameter (mm): 43 | Flute Length (mm): 83 | Overall Length (mm): 336 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£296.27
£246.89
|
|
|
| Diameter (mm): 44 | Flute Length (mm): 83 | Overall Length (mm): 336 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£296.27
£246.89
|
|
|
| Diameter (mm): 45 | Flute Length (mm): 83 | Overall Length (mm): 336 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£296.27
£246.89
|
|
|
| Diameter (mm): 46 | Flute Length (mm): 84 | Overall Length (mm): 340 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£370.19
£308.49
|
|
|
| Diameter (mm): 47 | Flute Length (mm): 84 | Overall Length (mm): 340 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£370.19
£308.49
|
|
|
| Diameter (mm): 48 | Flute Length (mm): 86 | Overall Length (mm): 344 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£370.19
£308.49
|
|
|
| Diameter (mm): 50 | Flute Length (mm): 86 | Overall Length (mm): 344 | Morse Taper: MT4 | Chamfer Angle: 45° |
5 days*
|
£370.19
£308.49
|
|
Product Information
Features & Benefits
The YG-1 K2102 series Reamer has a HSS 5 Percent Cobalt substrate with sizes ranging from 10-50mm diameter. These come with morse taper shank and are suitable for machining Steel, Stainless Steel, Cast Iron and Non-Ferrous materials.
- HSS 5% Cobalt
- Chucking Reamers
- O.D. Tolerance DIN1420 for H7
- For Machining Steel, Stainless Steel, Cast Iron & Non-Ferrous
- Morse Taper Shank
- Straight Flutes, Right Hand Cut
- For Machining Blind & Through Holes
- Chamfer Angle 45 degree
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Reamers |
| Sub Category 2 | Solid Reamers |
| Tolerance | H7 |
| Substrate | HSS |
| Flute Type | Straight Flute |
| Shank Type | Morse Taper |
| Applicable Materials | Steel, Hardened Steel, Cast Iron, Non-Ferrous |
| Performance | 3 |
| Substrate Description | HSS 5% Cobalt |
| Type | Taper Shank Chucking Reamer |
| Brand | YG-1 |
