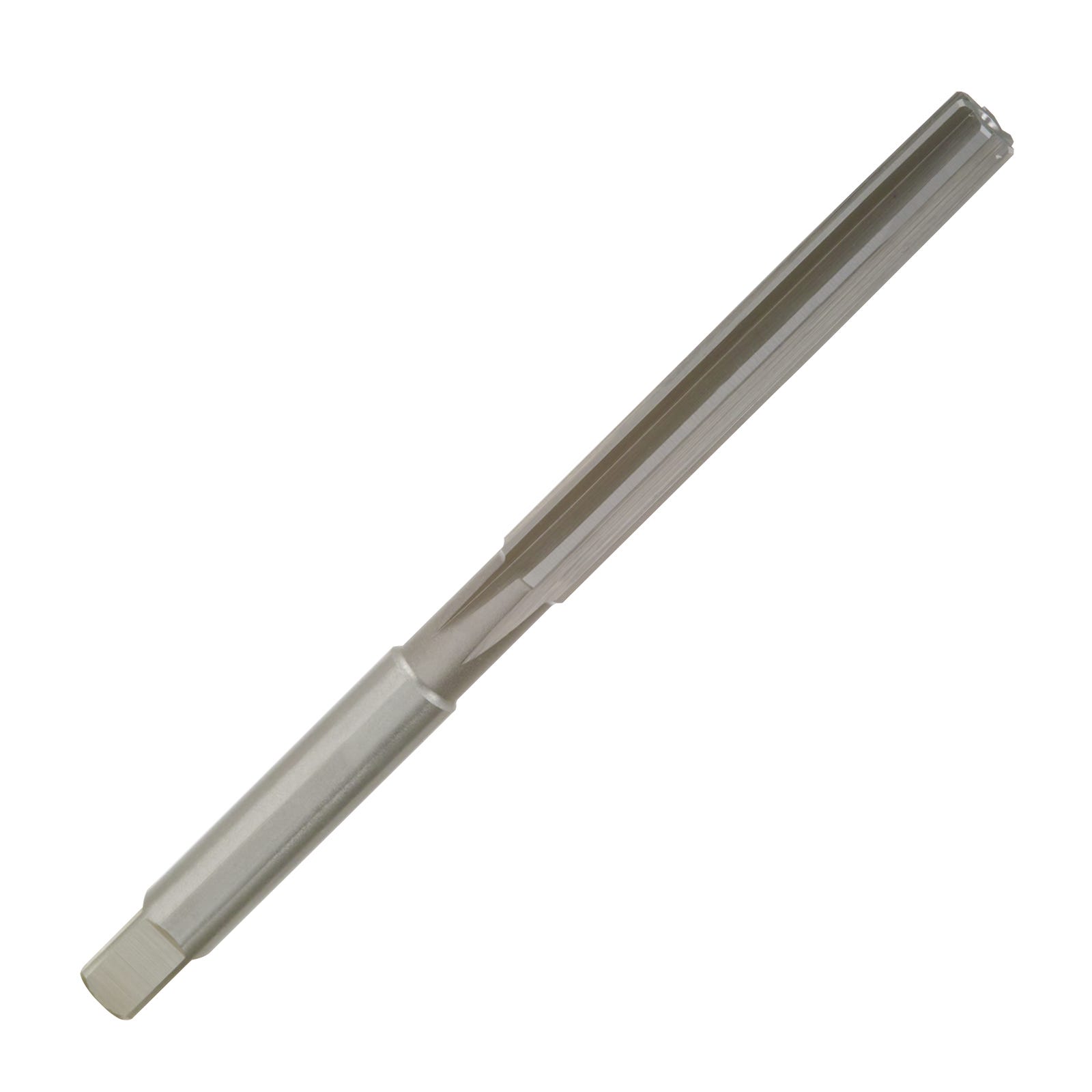

Straight Flute HSS Hand Reamer - K1143 (YG-1)
Scroll back
Scroll back
Straight Flute HSS Hand Reamer - K1143 (YG-1)
The YG-1 K1143 series Reamer has a HSS substrate with sizes ranging from 2-60mm diameter. These come with a square...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

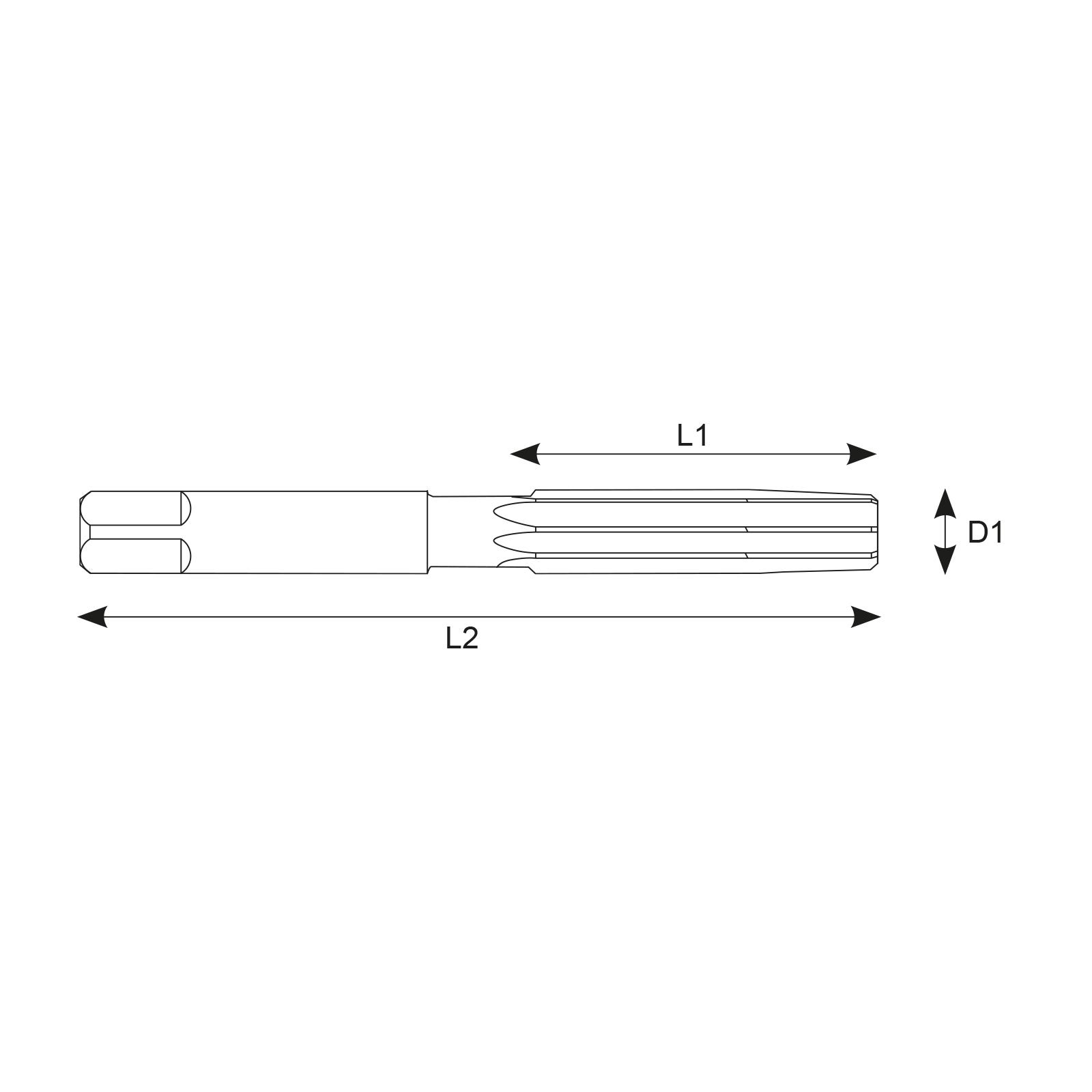

Diameter (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
||||
|---|---|---|---|---|---|---|
| Diameter (mm): 2 | Flute Length (mm): 25 | Overall Length (mm): 50 |
In stock
|
£13.51
£11.26
|
|
|
| Diameter (mm): 2.2 | Flute Length (mm): 27 | Overall Length (mm): 54 |
5 days*
|
£13.51
£11.26
|
|
|
| Diameter (mm): 2.5 | Flute Length (mm): 29 | Overall Length (mm): 58 |
In stock
|
£13.51
£11.26
|
|
|
| Diameter (mm): 2.8 | Flute Length (mm): 31 | Overall Length (mm): 62 |
In stock
|
£14.54
£12.12
|
|
|
| Diameter (mm): 3 | Flute Length (mm): 31 | Overall Length (mm): 62 |
In stock
|
£14.54
£12.12
|
|
|
| Diameter (mm): 3.2 | Flute Length (mm): 33 | Overall Length (mm): 66 |
In stock
|
£14.54
£12.12
|
|
|
| Diameter (mm): 3.5 | Flute Length (mm): 35 | Overall Length (mm): 71 |
In stock
|
£14.54
£12.12
|
|
|
| Diameter (mm): 4 | Flute Length (mm): 38 | Overall Length (mm): 76 |
In stock
|
£14.30
£11.92
|
|
|
| Diameter (mm): 4.5 | Flute Length (mm): 41 | Overall Length (mm): 81 |
In stock
|
£14.30
£11.92
|
|
|
| Diameter (mm): 5 | Flute Length (mm): 44 | Overall Length (mm): 87 |
In stock
|
£13.94
£11.62
|
|
|
| Diameter (mm): 5.5 | Flute Length (mm): 47 | Overall Length (mm): 93 |
In stock
|
£16.92
£14.10
|
|
|
| Diameter (mm): 6 | Flute Length (mm): 47 | Overall Length (mm): 93 |
In stock
|
£15.61
£13.01
|
|
|
| Diameter (mm): 7 | Flute Length (mm): 54 | Overall Length (mm): 107 |
5 days*
|
£16.45
£13.71
|
|
|
| Diameter (mm): 8 | Flute Length (mm): 58 | Overall Length (mm): 115 |
In stock
|
£17.09
£14.24
|
|
|
| Diameter (mm): 9 | Flute Length (mm): 62 | Overall Length (mm): 124 |
5 days*
|
£22.42
£18.68
|
|
|
| Diameter (mm): 10 | Flute Length (mm): 66 | Overall Length (mm): 133 |
In stock
|
£22.44
£18.70
|
|
|
| Diameter (mm): 11 | Flute Length (mm): 71 | Overall Length (mm): 142 |
In stock
|
£22.58
£18.82
|
|
|
| Diameter (mm): 12 | Flute Length (mm): 76 | Overall Length (mm): 152 |
In stock
|
£25.04
£20.87
|
|
|
| Diameter (mm): 13 | Flute Length (mm): 76 | Overall Length (mm): 152 |
In stock
|
£37.04
£30.87
|
|
|
| Diameter (mm): 14 | Flute Length (mm): 81 | Overall Length (mm): 163 |
In stock
|
£41.92
£34.93
|
|
|
| Diameter (mm): 15 | Flute Length (mm): 81 | Overall Length (mm): 163 |
5 days*
|
£46.50
£38.75
|
|
|
| Diameter (mm): 16 | Flute Length (mm): 87 | Overall Length (mm): 175 |
5 days*
|
£47.96
£39.97
|
|
|
| Diameter (mm): 17 | Flute Length (mm): 87 | Overall Length (mm): 175 |
In stock
|
£50.69
£42.24
|
|
|
| Diameter (mm): 18 | Flute Length (mm): 93 | Overall Length (mm): 188 |
In stock
|
£57.05
£47.54
|
|
|
| Diameter (mm): 19 | Flute Length (mm): 93 | Overall Length (mm): 188 |
In stock
|
£57.11
£47.59
|
|
|
| Diameter (mm): 20 | Flute Length (mm): 100 | Overall Length (mm): 201 |
In stock
|
£61.82
£51.52
|
|
|
| Diameter (mm): 22 | Flute Length (mm): 107 | Overall Length (mm): 215 |
In stock
|
£68.00
£56.67
|
|
|
| Diameter (mm): 24 | Flute Length (mm): 115 | Overall Length (mm): 231 |
5 days*
|
£82.61
£68.84
|
|
|
| Diameter (mm): 25 | Flute Length (mm): 115 | Overall Length (mm): 231 |
In stock
|
£85.22
£71.02
|
|
|
| Diameter (mm): 26 | Flute Length (mm): 115 | Overall Length (mm): 231 |
In stock
|
£88.75
£73.96
|
|
|
| Diameter (mm): 27 | Flute Length (mm): 124 | Overall Length (mm): 247 |
5 days*
|
£89.00
£74.17
|
|
|
| Diameter (mm): 28 | Flute Length (mm): 124 | Overall Length (mm): 247 |
In stock
|
£89.26
£74.38
|
|
|
| Diameter (mm): 29 | Flute Length (mm): 124 | Overall Length (mm): 247 |
5 days*
|
£93.49
£77.91
|
|
|
| Diameter (mm): 30 | Flute Length (mm): 124 | Overall Length (mm): 247 |
In stock
|
£93.72
£78.10
|
|
|
| Diameter (mm): 32 | Flute Length (mm): 133 | Overall Length (mm): 265 |
5 days*
|
£103.70
£86.42
|
|
|
| Diameter (mm): 33 | Flute Length (mm): 133 | Overall Length (mm): 265 |
5 days*
|
£105.44
£87.87
|
|
|
| Diameter (mm): 34 | Flute Length (mm): 142 | Overall Length (mm): 284 |
In stock
|
£106.01
£88.34
|
|
|
| Diameter (mm): 35 | Flute Length (mm): 142 | Overall Length (mm): 284 |
5 days*
|
£126.13
£105.11
|
|
|
| Diameter (mm): 36 | Flute Length (mm): 142 | Overall Length (mm): 284 |
5 days*
|
£126.40
£105.33
|
|
|
| Diameter (mm): 37 | Flute Length (mm): 142 | Overall Length (mm): 284 |
5 days*
|
£127.34
£106.12
|
|
|
| Diameter (mm): 38 | Flute Length (mm): 152 | Overall Length (mm): 305 |
5 days*
|
£131.94
£109.95
|
|
|
| Diameter (mm): 38.1 | Flute Length (mm): 152 | Overall Length (mm): 305 |
In stock
|
£133.81
£111.51
|
|
|
| Diameter (mm): 39 | Flute Length (mm): 152 | Overall Length (mm): 305 |
5 days*
|
£138.48
£115.40
|
|
|
| Diameter (mm): 40 | Flute Length (mm): 152 | Overall Length (mm): 305 |
In stock
|
£141.47
£117.89
|
|
|
| Diameter (mm): 41 | Flute Length (mm): 152 | Overall Length (mm): 305 |
5 days*
|
£150.55
£125.46
|
|
|
| Diameter (mm): 42 | Flute Length (mm): 152 | Overall Length (mm): 305 |
5 days*
|
£157.16
£130.97
|
|
|
| Diameter (mm): 43 | Flute Length (mm): 163 | Overall Length (mm): 326 |
In stock
|
£163.87
£136.56
|
|
|
| Diameter (mm): 44 | Flute Length (mm): 163 | Overall Length (mm): 326 |
5 days*
|
£172.64
£143.87
|
|
|
| Diameter (mm): 45 | Flute Length (mm): 163 | Overall Length (mm): 326 |
5 days*
|
£183.02
£152.52
|
|
|
| Diameter (mm): 46 | Flute Length (mm): 163 | Overall Length (mm): 326 |
5 days*
|
£189.42
£157.85
|
|
|
| Diameter (mm): 47 | Flute Length (mm): 163 | Overall Length (mm): 326 |
5 days*
|
£201.17
£167.64
|
|
|
| Diameter (mm): 48 | Flute Length (mm): 174 | Overall Length (mm): 347 |
5 days*
|
£211.10
£175.92
|
|
|
| Diameter (mm): 49 | Flute Length (mm): 174 | Overall Length (mm): 347 |
In stock
|
£217.74
£181.45
|
|
|
| Diameter (mm): 52 | Flute Length (mm): 174 | Overall Length (mm): 347 |
5 days*
|
£253.03
£210.86
|
|
|
| Diameter (mm): 60 | Flute Length (mm): 184 | Overall Length (mm): 367 |
5 days*
|
£356.12
£296.77
|
|
Product Information
Features & Benefits
The YG-1 K1143 series Reamer has a HSS substrate with sizes ranging from 2-60mm diameter. These come with a square drive shank in order to be used with a wrench. Suitable for reaming Steel, Stainless Steel, Cast Iron and Non-Ferrous materials.
- HSS 5% Cobalt
- Hand Reamer with Square Drive Shank
- O.D. Tolerance DIN1420 for H7
- For Machining Steel, Stainless Steel, Cast Iron & Non-Ferrous
- Straight Flutes, Right Hand Cut
- For Blind & Through Holes
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Reamers |
| Sub Category 2 | Solid Reamers |
| Tolerance | H7 |
| Substrate | HSS |
| Flute Type | Straight Flute |
| Shank Type | Square Drive |
| Applicable Materials | Steel, Hardened Steel, Cast Iron, Non-Ferrous |
| Performance | 2 |
| Substrate Description | HSS |
| Type | Hand Reamer |
| Brand | YG-1 |
