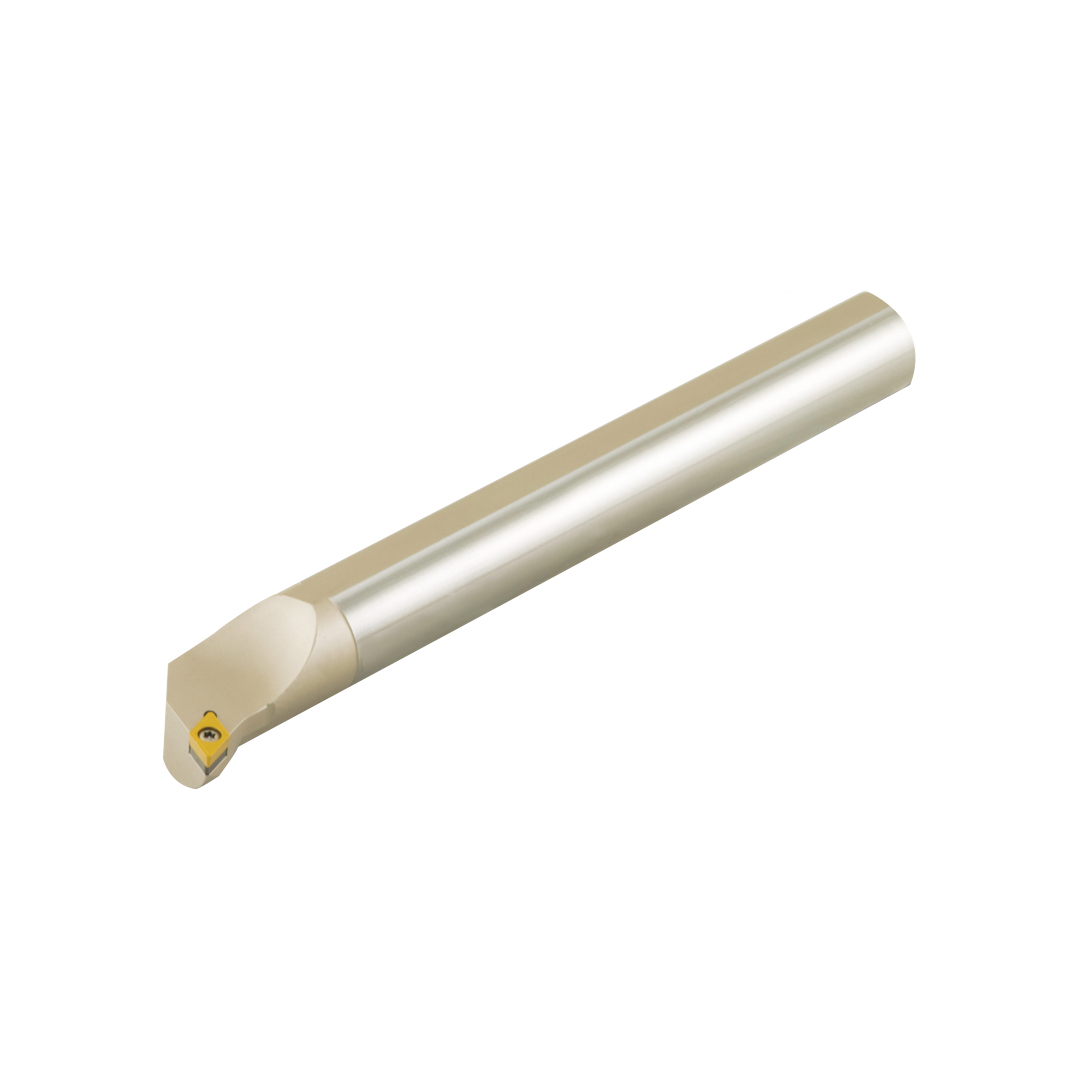

SDQCR/L Steel Shank Boring Bar, for DCMT Inserts, 107.5° Approach, Screw On Clamp (YG-1)
SDQCR/L Steel Shank Boring Bar, for DCMT Inserts, 107.5° Approach, Screw On Clamp (YG-1)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

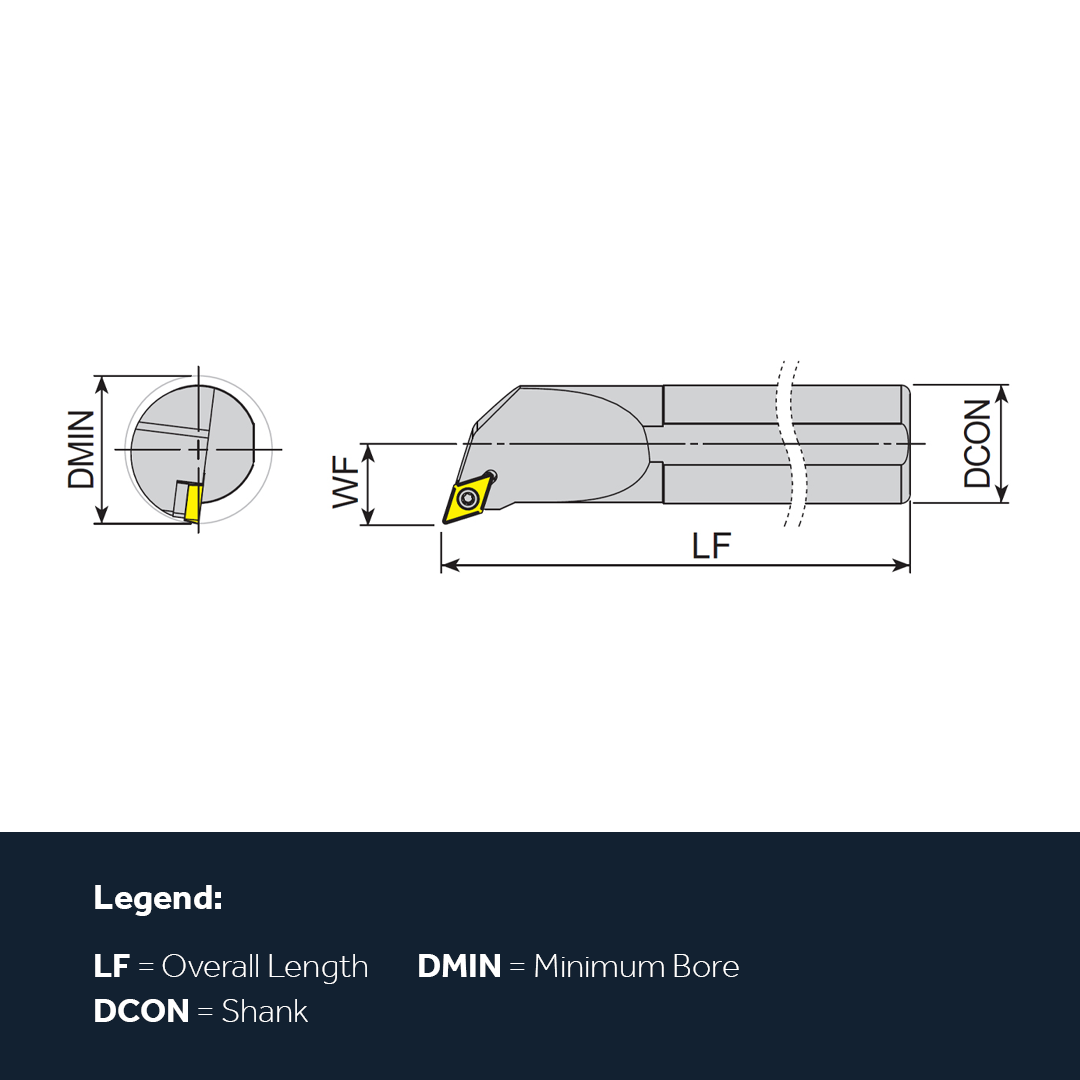

Shank (mm)
|
Overall Length (mm)
|
Inserts
|
ISO Code
|
Min Bore
|
Hand
|
||||
|---|---|---|---|---|---|---|---|---|---|
| Shank (mm): 10 | Overall Length (mm): 125 | Inserts: DC**07 | ISO Code: S10K-SDQCR07 | Min Bore: 13 | Hand: Right |
In stock
|
£27.72
£23.10
|
|
|
| Shank (mm): 12 | Overall Length (mm): 125 | Inserts: DC**07 | ISO Code: S12K-SDQCR07 | Min Bore: 16 | Hand: Right |
In stock
|
£33.26
£27.72
|
|
|
| Shank (mm): 16 | Overall Length (mm): 170 | Inserts: DC**07 | ISO Code: S16P-SDQCR07 | Min Bore: 20 | Hand: Right |
In stock
|
£41.58
£34.65
|
|
|
| Shank (mm): 20 | Overall Length (mm): 150 | Inserts: DC**07 | ISO Code: S20R-SDQCR07 | Min Bore: 25 | Hand: Right |
21 days*
|
Special Price
£4.44
£3.70
Was
£44.35
£36.96
|
|
|
| Shank (mm): 16 | Overall Length (mm): 200 | Inserts: DC**11 | ISO Code: S16P-SDQCR11 | Min Bore: 20 | Hand: Right |
In stock
|
£41.58
£34.65
|
|
|
| Shank (mm): 20 | Overall Length (mm): 150 | Inserts: DC**11 | ISO Code: S20R-SDQCR11 | Min Bore: 25 | Hand: Right |
In stock
|
Special Price
£31.04
£25.87
Was
£44.35
£36.96
|
|
|
| Shank (mm): 25 | Overall Length (mm): 250 | Inserts: DC**11 | ISO Code: S25S-SDQCR11 | Min Bore: 32 | Hand: Right |
5 days*
|
£48.52
£40.43
|
|
|
| Shank (mm): 32 | Overall Length (mm): 300 | Inserts: DC**11 | ISO Code: S32T-SDQCR11 | Min Bore: 40 | Hand: Right |
5 days*
|
£83.16
£69.30
|
|
|
| Shank (mm): 40 | Overall Length (mm): 350 | Inserts: DC**11 | ISO Code: S40U-SDQCR11 | Min Bore: 50 | Hand: Right |
In stock
|
£103.96
£86.63
|
|
|
| Shank (mm): 10 | Overall Length (mm): 125 | Inserts: DC**07 | ISO Code: S10K-SDQCL07 | Min Bore: 13 | Hand: Left |
5 days*
|
£27.72
£23.10
|
|
|
| Shank (mm): 12 | Overall Length (mm): 125 | Inserts: DC**07 | ISO Code: S12K-SDQCL07 | Min Bore: 16 | Hand: Left |
In stock
|
£33.26
£27.72
|
|
|
| Shank (mm): 16 | Overall Length (mm): 170 | Inserts: DC**07 | ISO Code: S16P-SDQCL07 | Min Bore: 20 | Hand: Left |
In stock
|
£41.58
£34.65
|
|
|
| Shank (mm): 20 | Overall Length (mm): 150 | Inserts: DC**07 | ISO Code: S20R-SDQCL07 | Min Bore: 25 | Hand: Left |
In stock
|
Special Price
£4.44
£3.70
Was
£44.35
£36.96
|
|
|
| Shank (mm): 16 | Overall Length (mm): 200 | Inserts: DC**11 | ISO Code: S16P-SDQCL11 | Min Bore: 20 | Hand: Left |
In stock
|
£41.58
£34.65
|
|
|
| Shank (mm): 20 | Overall Length (mm): 150 | Inserts: DC**11 | ISO Code: S20R-SDQCL11 | Min Bore: 25 | Hand: Left |
In stock
|
£44.35
£36.96
|
|
|
| Shank (mm): 25 | Overall Length (mm): 250 | Inserts: DC**11 | ISO Code: S25S-SDQCL11 | Min Bore: 32 | Hand: Left |
In stock
|
£48.52
£40.43
|
|
|
| Shank (mm): 32 | Overall Length (mm): 300 | Inserts: DC**11 | ISO Code: S32T-SDQCL11 | Min Bore: 40 | Hand: Left |
In stock
|
Special Price
£8.32
£6.93
Was
£83.16
£69.30
|
|
|
| Shank (mm): 40 | Overall Length (mm): 350 | Inserts: DC**11 | ISO Code: S40U-SDQCL11 | Min Bore: 50 | Hand: Left |
In stock
|
£103.96
£86.63
|
|
Product Information
Features & Benefits

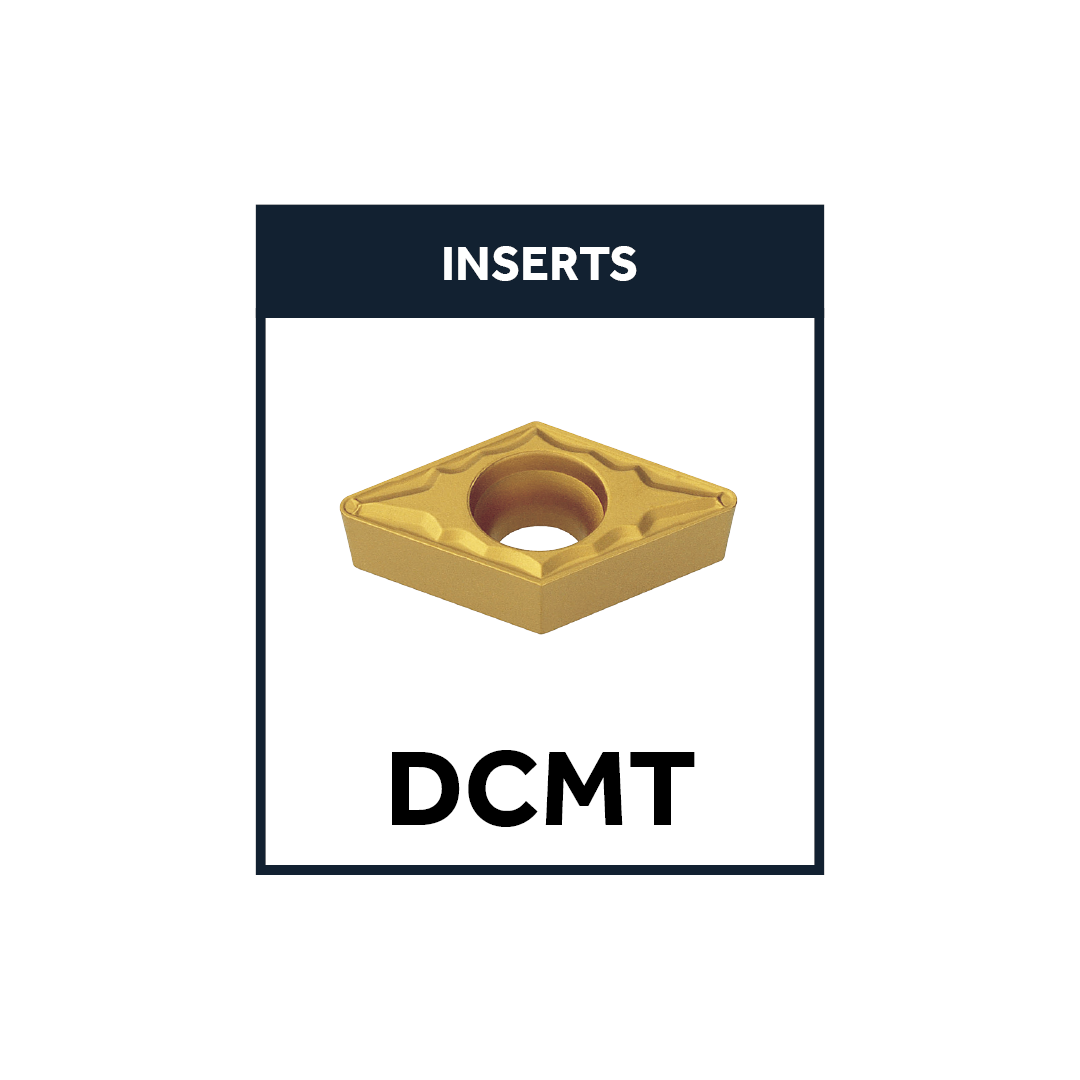

- Suitable for use with DCMT style turning inserts (also suitable for DCGT, DCGW, DCET, DCHT etc

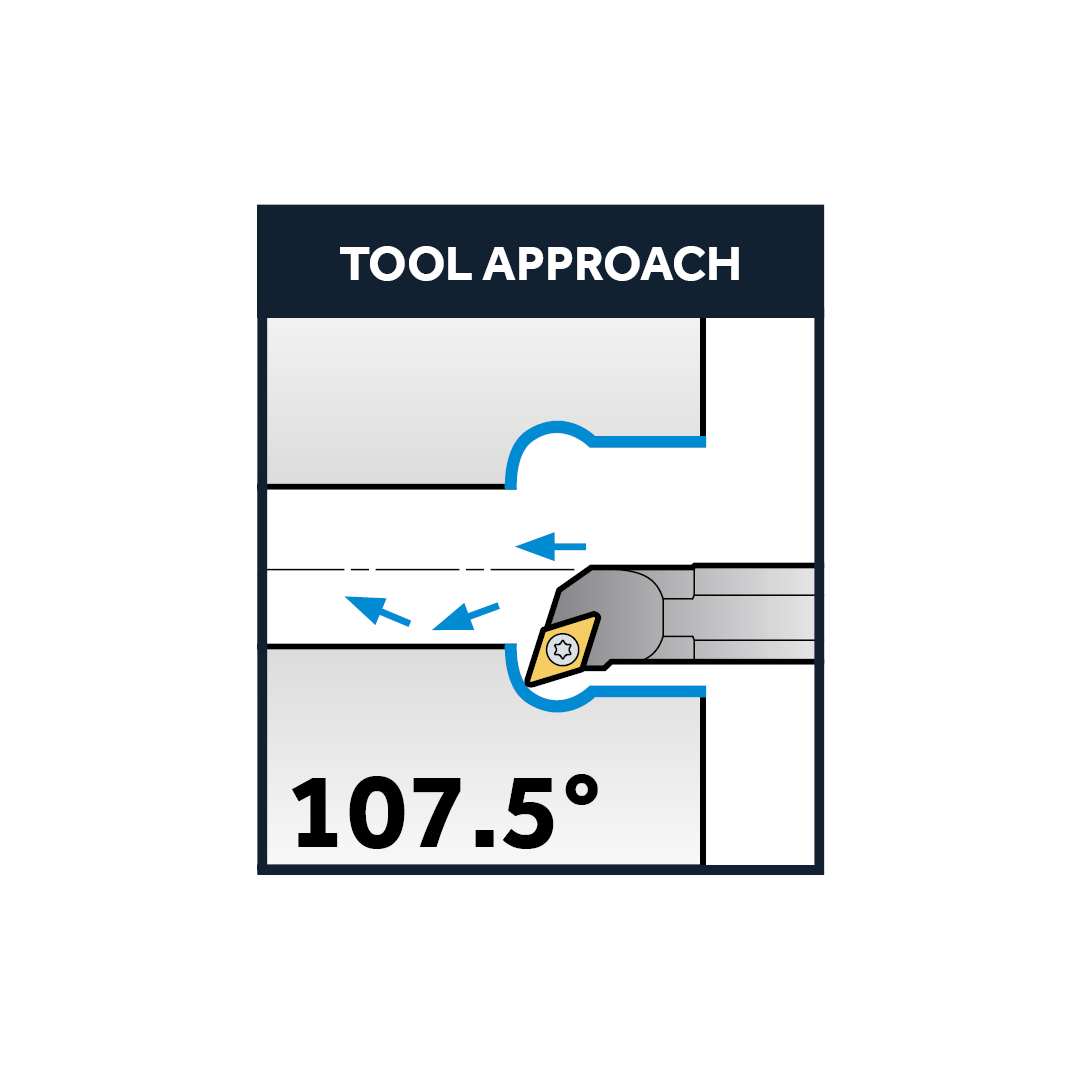

- General purpose solid steel shank boring bars with boring bar with 108 degree approach angle
- Screw on clamping system for simple changeover with wrench and screw
- For the best performance it is recommended to clamp on a 1/3 of the bar's length, as a minimum.
- Made by YG-1, global marketing leading manufacturer of cutting tools
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Boring Bars |
| Through Coolant | No |
| Angle | 107.5° |
| Holder Material | Steel |
| Holder Style | SDQCR/L |
| Brand | YG-1 |
