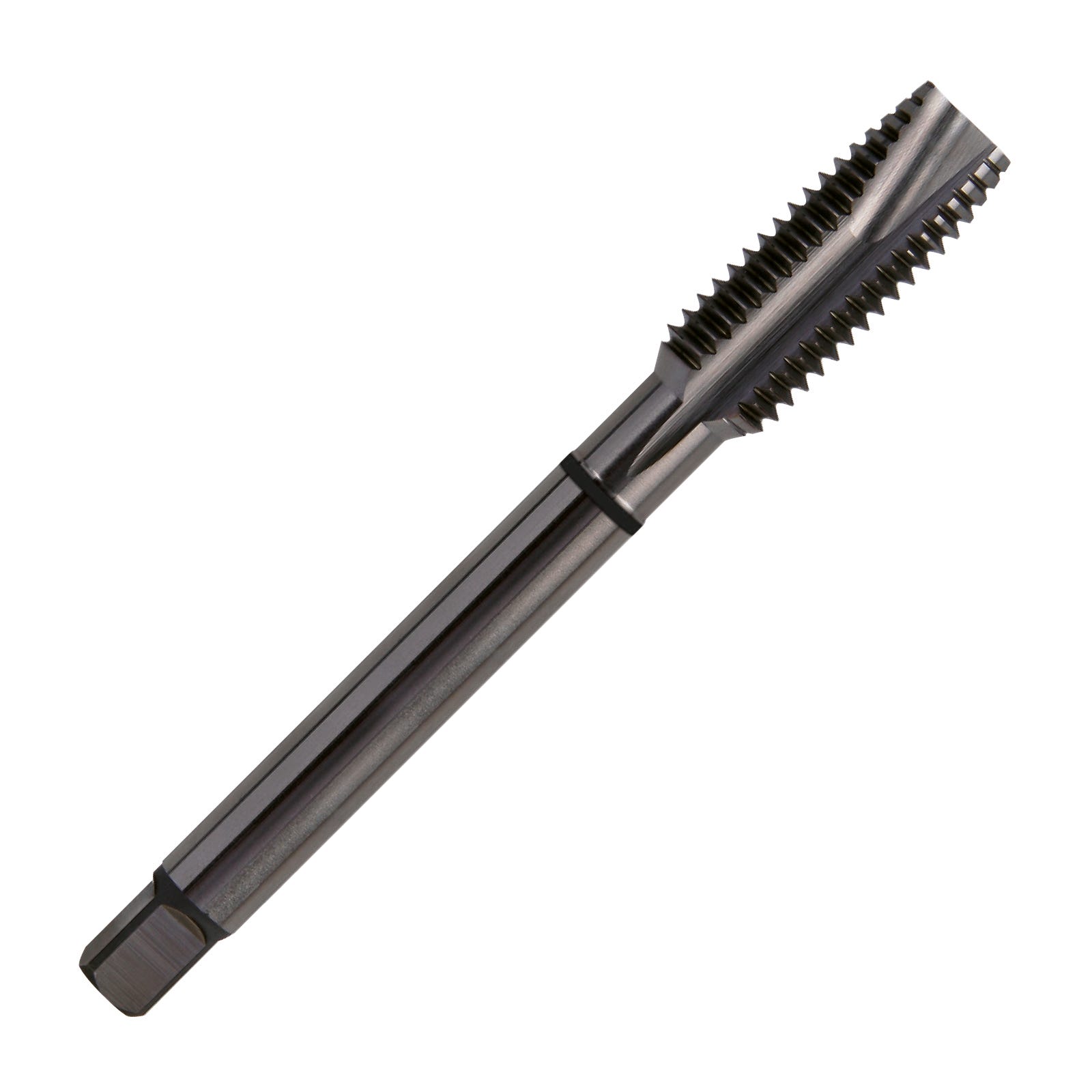

M2.3 x 0.4mm Nitrided Uncoated Metric Coarse HSS 5% Cobalt Spiral Point Universal Machine Tap (6H Tolerance) - TB814 Series (YG-1)
M2.3 x 0.4mm Nitrided Uncoated Metric Coarse HSS 5% Cobalt Spiral Point Universal Machine Tap (6H Tolerance) - TB814 Series (YG-1)

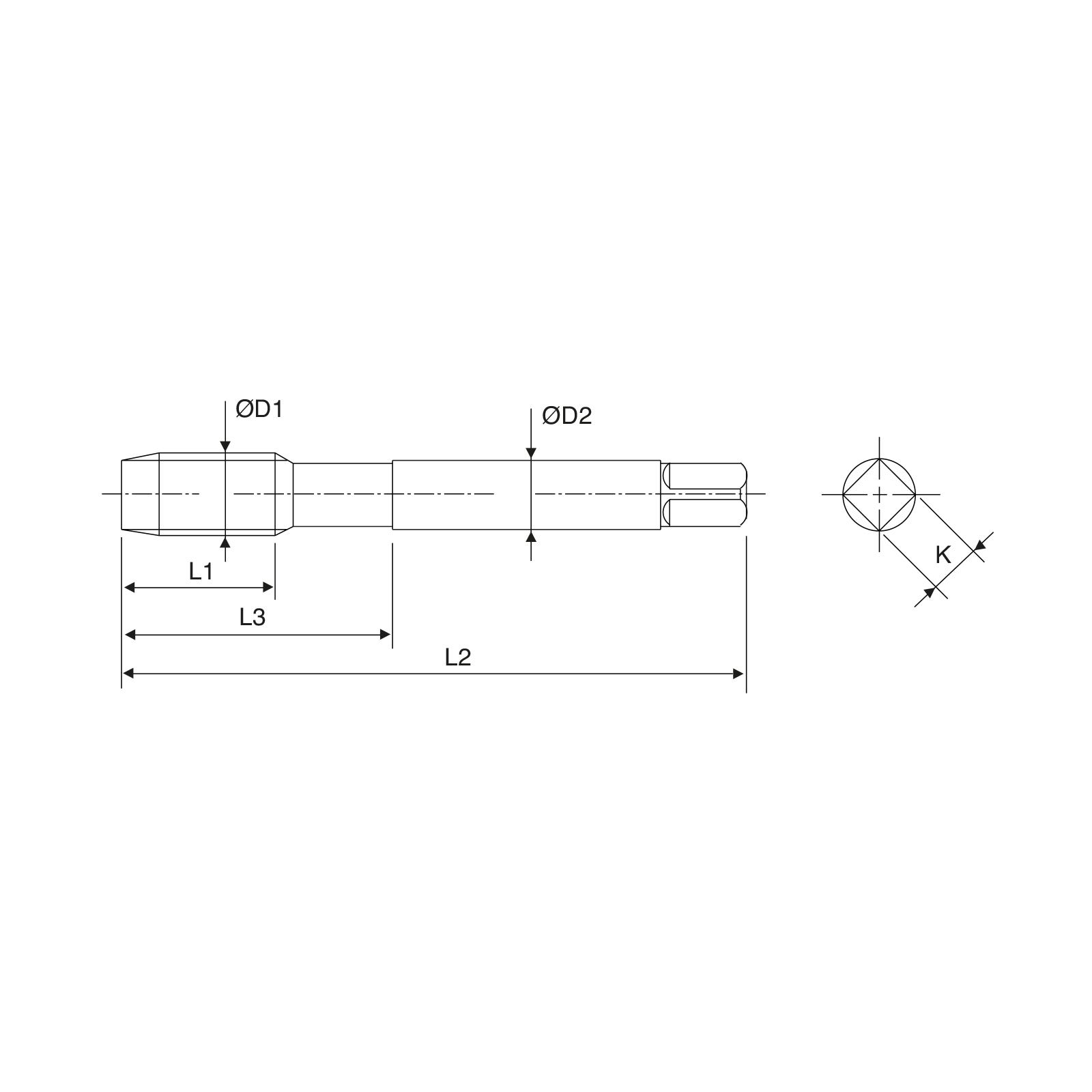

| Overall Length (mm) | 45 |
|---|---|
| Flute Length (mm) | 8 |
| Shank (mm) | 2.8 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Metric Coarse Universal Machine Tap
- HSS 5% Cobalt Substrate
- For General Purpose Tapping of Steel, Stainless Steel, Cast Iron, Aluminium & Non-Ferrous
- Patented design to prevent over feeding and premature tap failure
- VAP surface treatment for stickier materials such as 316 stainless or soft steels
- Spiral point geometry for through holes
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M2.3 |
| Sub Category 2 | High Performance Universal Machine Taps |
| Shank (mm) | 2.8 |
| Pitch | 0.4 |
| Flute Length (mm) | 8 |
| Overall Length (mm) | 45 |
| Flutes | 3 |
| L3 | 13 |
| Drill Diameter | 1.9 |
| Square | 2.1 |
| Substrate | HSS |
| Oil Grooves | No |
| Surface Treatment | Uncoated |
| Depth | 3xD |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Flute Geometry | Spiral Point |
| Performance | 3 |
| Coating Description | VAP finish |
| Substrate Description | HSS 5% Cobalt |
| Helix Angle | 60° |
| Brand Range | Combo Tap |
| Thread Form | Metric ISO |
| Brand | YG-1 |
