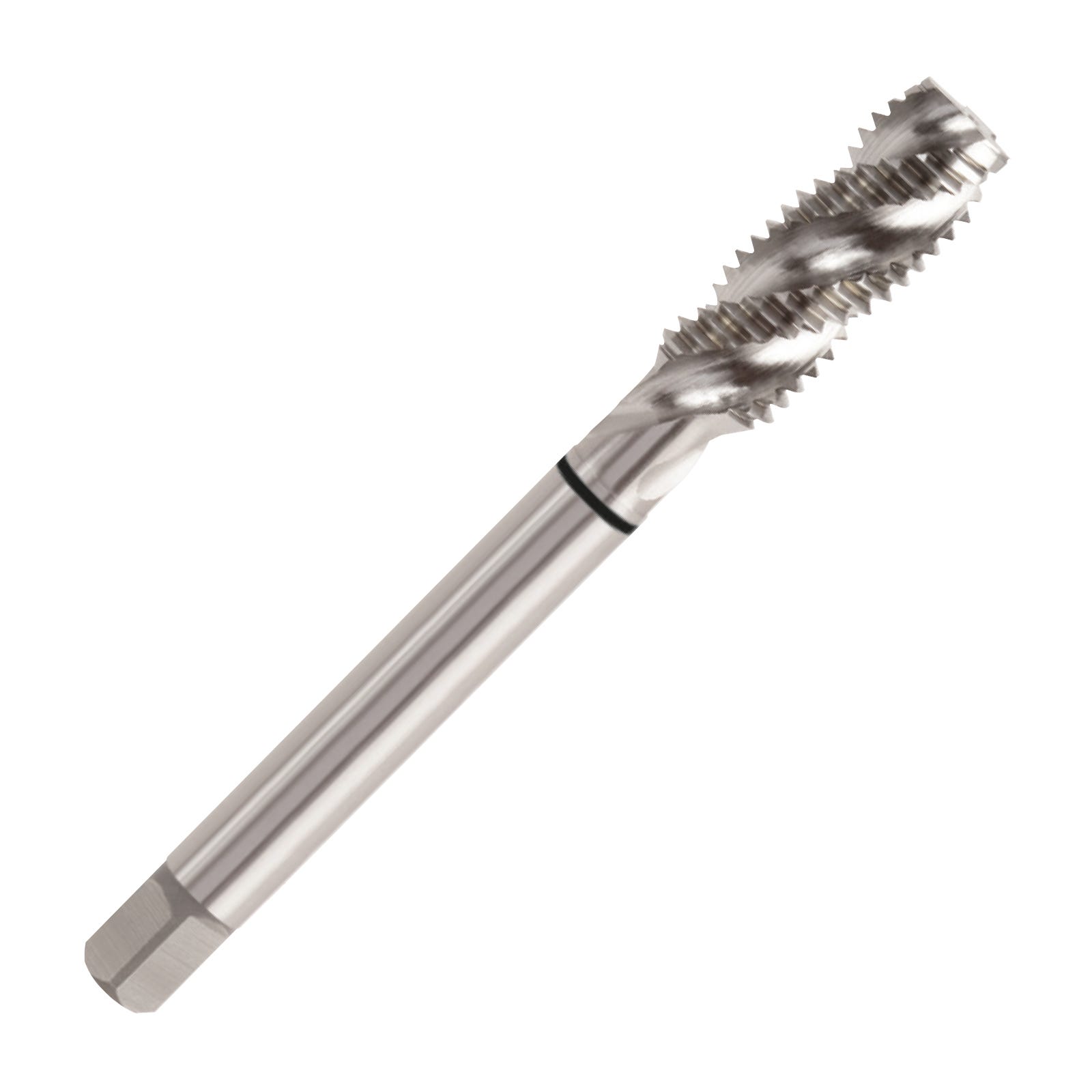

M6 x 1mm Metric Coarse HSS 5% Cobalt Spiral Flute Universal Machine Tap (4H Tolerance) - TCE05 Series (YG-1)
M6 x 1mm Metric Coarse HSS 5% Cobalt Spiral Flute Universal Machine Tap (4H Tolerance) - TCE05 Series (YG-1)
| Overall Length (mm) | 80 |
|---|---|
| Flute Length (mm) | 10 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Metric Coarse Universal Machine Tap
- HSS 5% Cobalt Substrate
- For General Purpose Tapping of Steel, Stainless Steel, Cast Iron, Aluminium & Non-Ferrous
- Patented design to prevent over feeding and premature tap failure
- Bright finish prevents swarf sticking to the tap flutes
- Spiral Flute geometry for Blind holes
- 4H tolerance for a tight fit thread
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M6 |
| Sub Category 2 | High Performance Universal Machine Taps |
| Shank (mm) | 6 |
| Pitch | 1 |
| Flute Length (mm) | 10 |
| Overall Length (mm) | 80 |
| Flutes | 3 |
| L3 | 30 |
| Drill Diameter | 5 |
| Square | 4.9 |
| Substrate | HSS |
| Oil Grooves | No |
| Surface Treatment | Uncoated |
| Depth | 2.5xD |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Flute Geometry | Spiral Flute |
| Performance | 3 |
| Coating Description | Bright finish |
| Substrate Description | HSS 5% Cobalt |
| Helix Angle | 60° |
| Brand Range | Combo Tap |
| Thread Form | Metric ISO |
| Brand | YG-1 |
