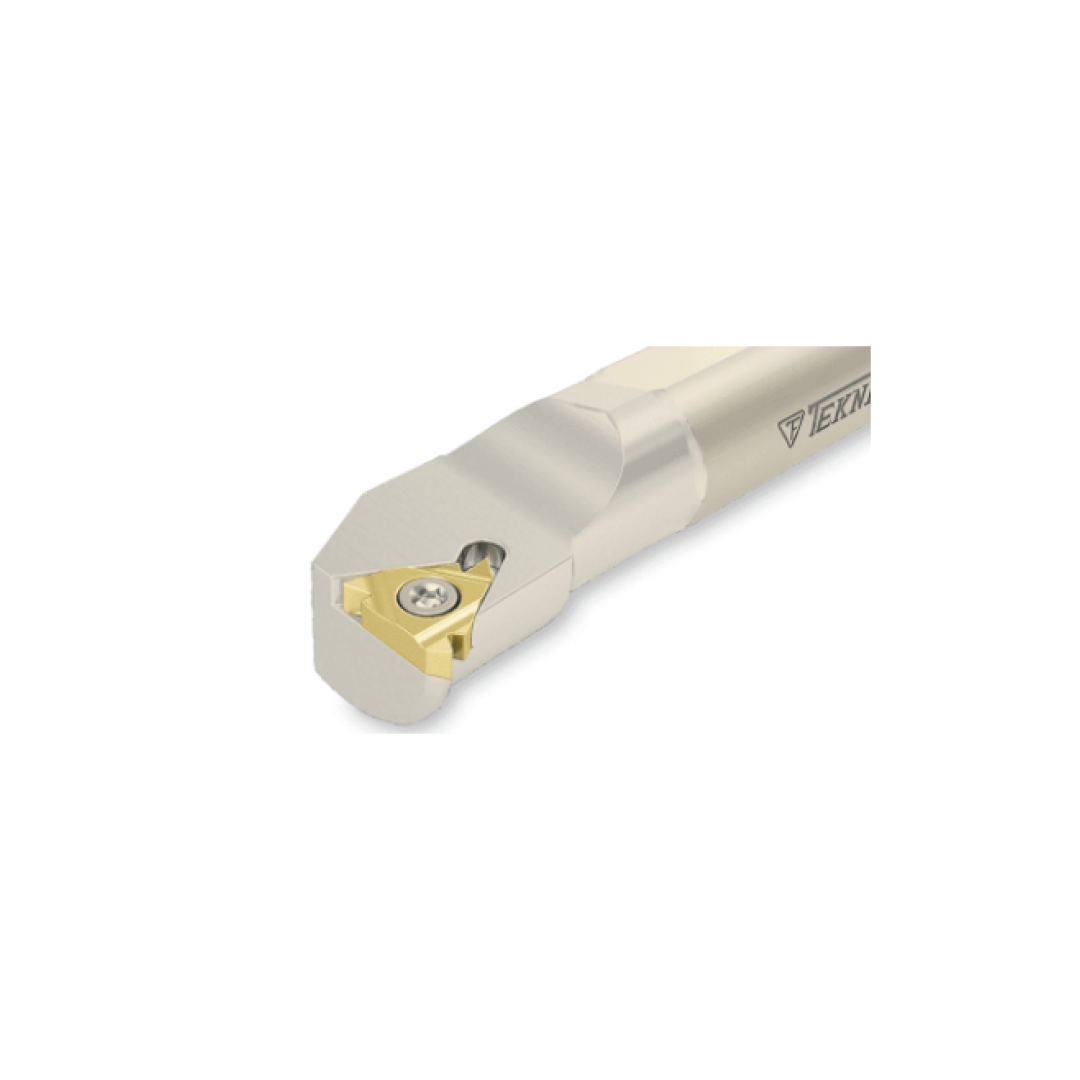

25mm Shank Internal Right Hand Screw Clamp Standard Thread Turning Holder, for 16IR Inserts (Teknik) - S25R STIR- IR16
25mm Shank Internal Right Hand Screw Clamp Standard Thread Turning Holder, for 16IR Inserts (Teknik) - S25R STIR- IR16
| Overall Length (mm) | 200 |
|---|---|
| Shank (mm) | 25 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

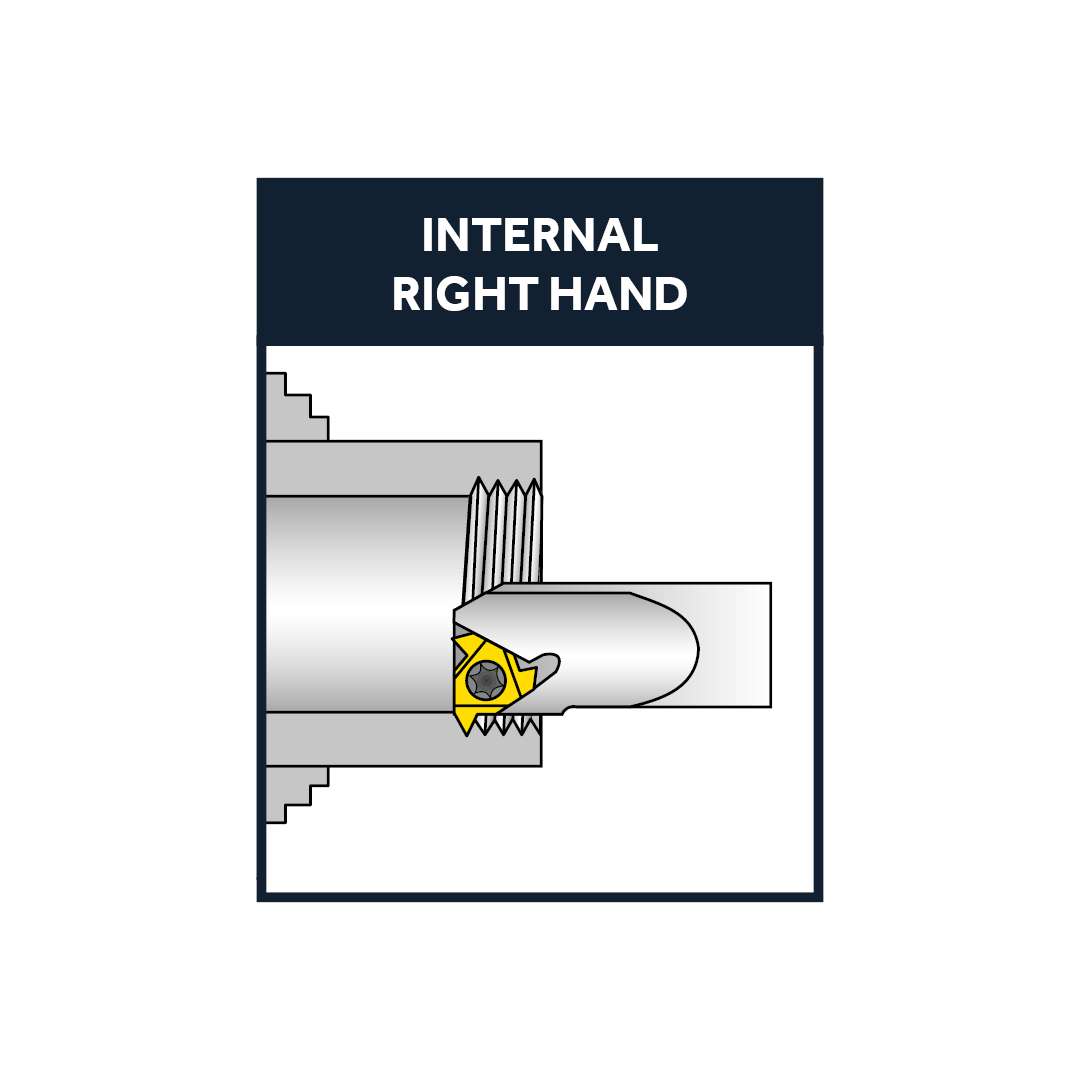

- Internal right hand thread turning holder
- Screw type insert clamping
- Compatible with all ISO standard threading inserts
- Made by Teknik, offering excellent value and cost efficiency
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Turning Tools |
| Sub Category 2 | Thread Turning Holders |
| Shank (mm) | 25 |
| Overall Length (mm) | 200 |
| Inserts | 16IR |

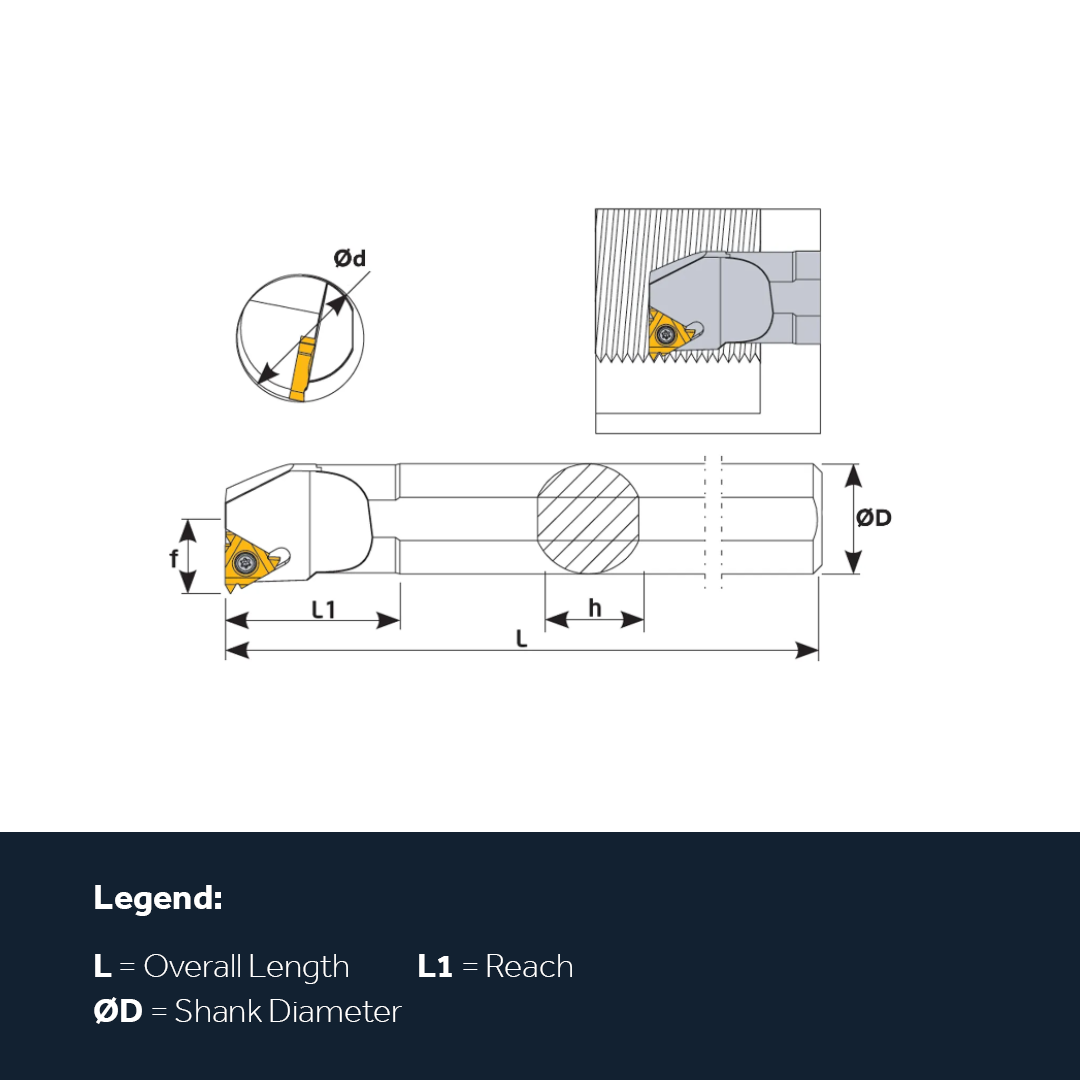

| L1 | 40 |
| Alternative Part Number | S25R STIR- IR16 |
| Screw | TC069 M3.5x8.5 |
| Wrench | T10 |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Through Coolant | No |
| Hand | Right Hand |
| Clamp Type | Screw Clamping |
| Brand | Teknik |
