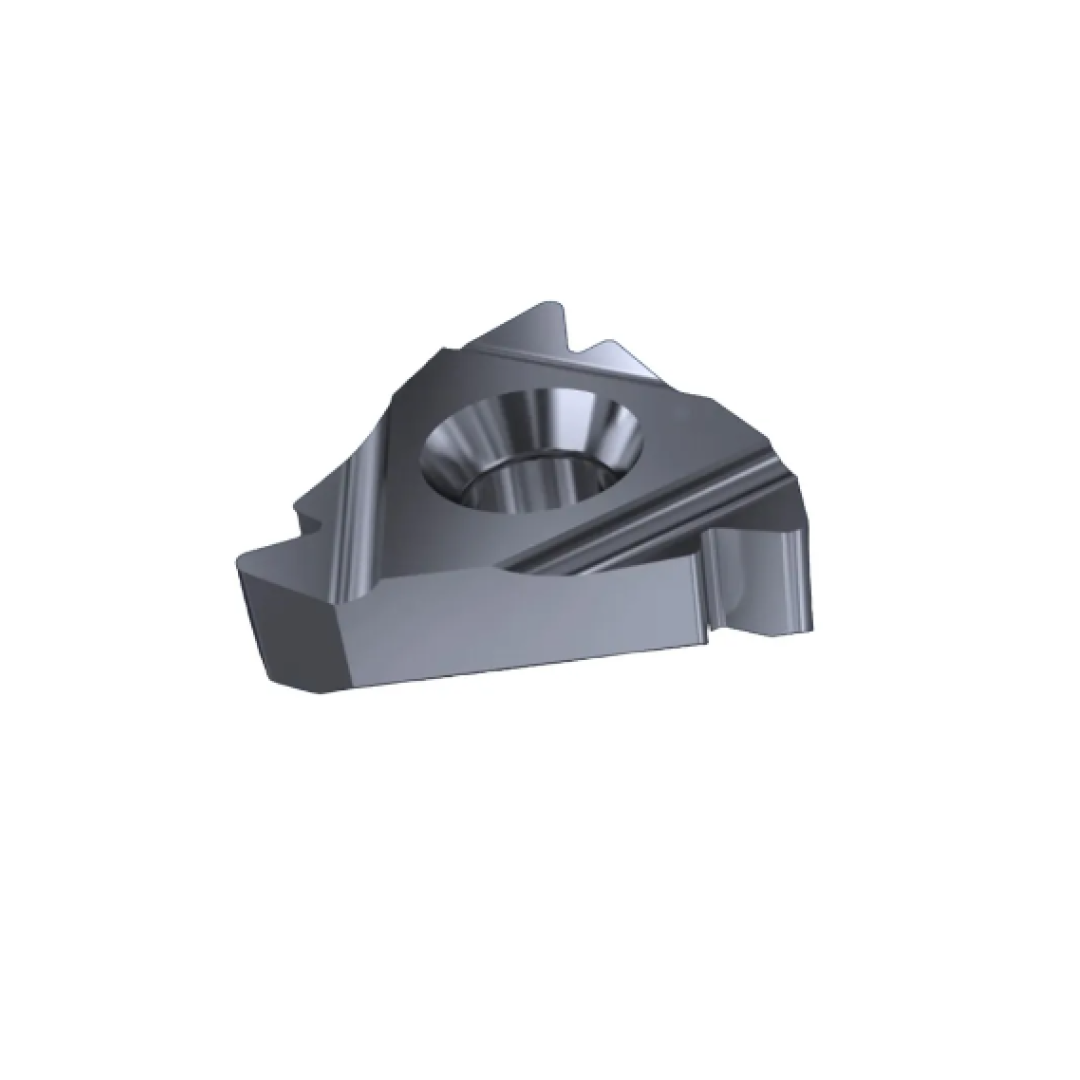

16ER1.5ISOVT10 Metric ISO External Right Hand Vardex Thread Turning Insert, 16mm x 1.5mm Pitch, Multipurpose VT10 Grade, Enhanced Coating (Vargus) - Ref: 3ER1.5ISOVT10
16ER1.5ISOVT10 Metric ISO External Right Hand Vardex Thread Turning Insert, 16mm x 1.5mm Pitch, Multipurpose VT10 Grade, Enhanced Coating (Vargus) - Ref: 3ER1.5ISOVT10
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Multi-purpose VT10 grade for Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics & Hardened Steel
- VT10 grade - New surface treatment increases tool life by 30%

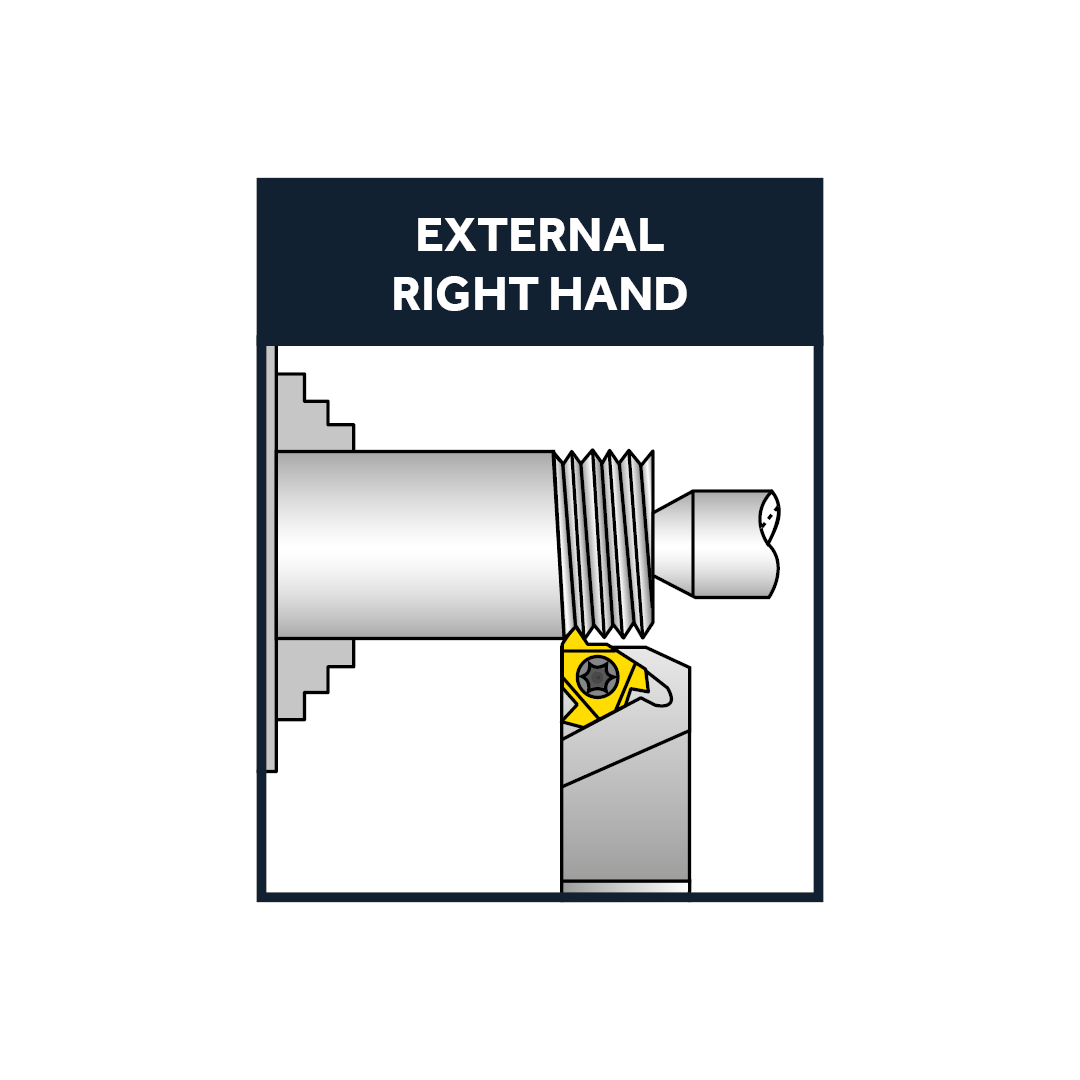

- Metric ISO Insert for External Right Hand Threads
- Vardex are the global number 1 thread turning tool manufacturer

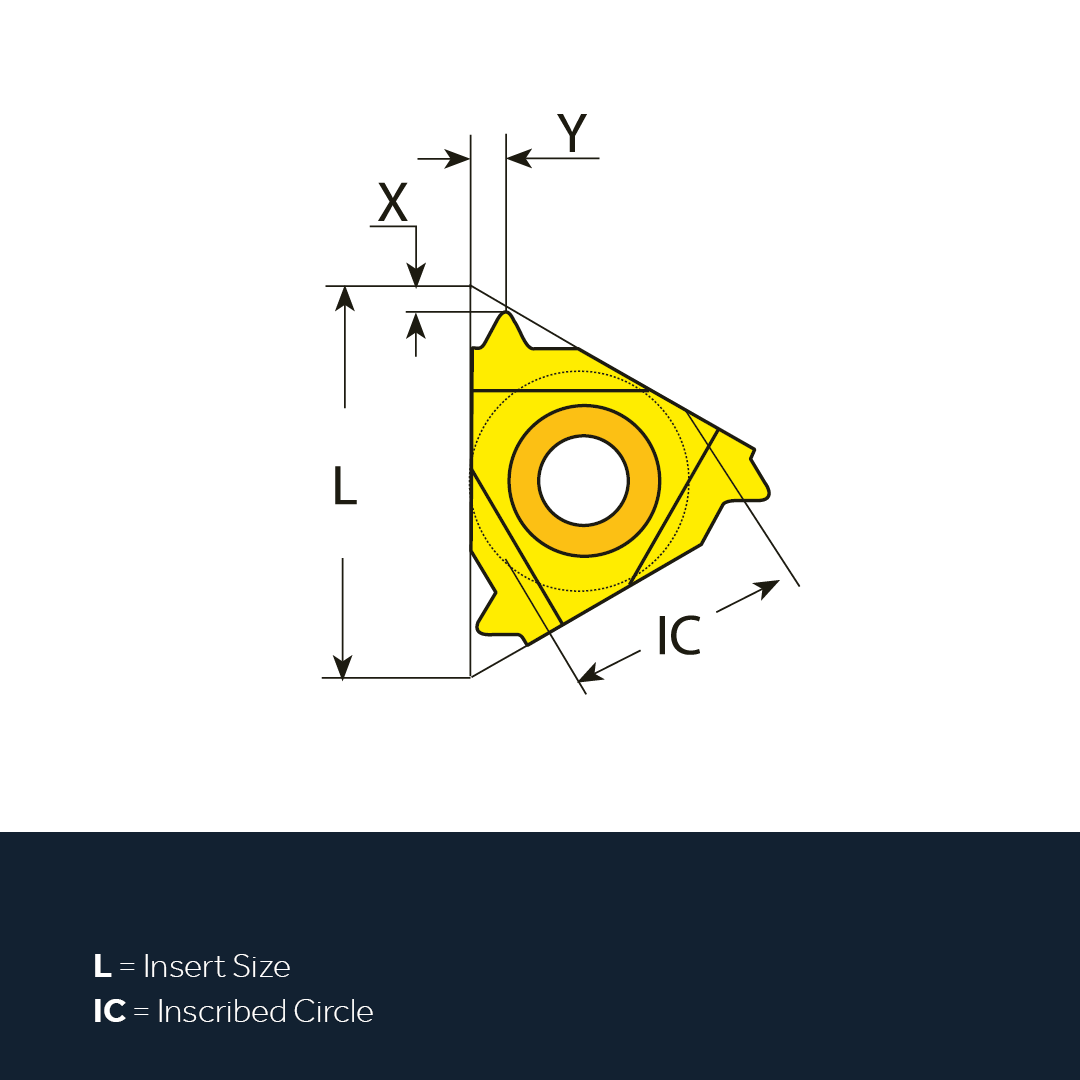

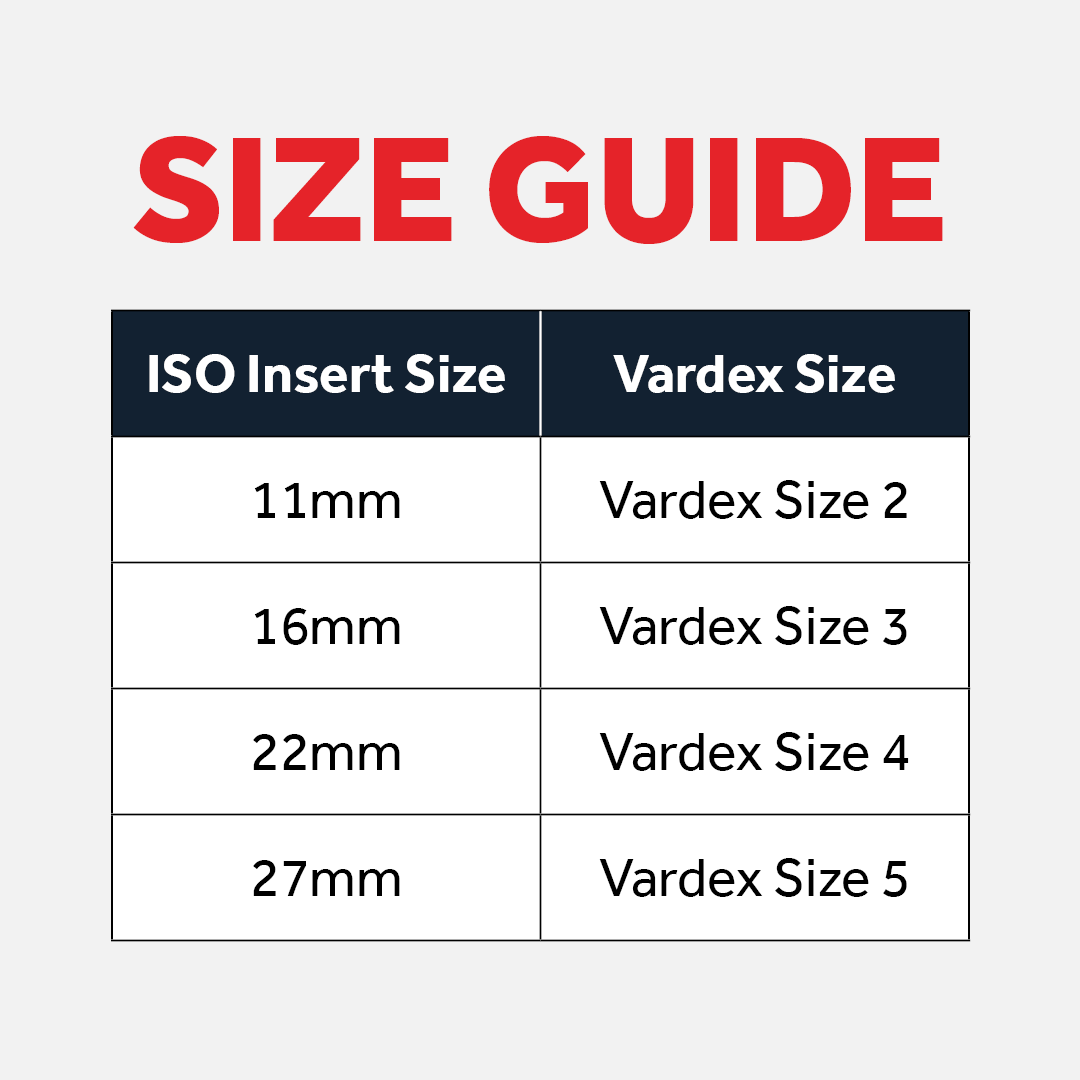

- Insert size reference - Size 2 = 11mm, Size 3 = 16mm, Size 4 = 22mm, Size 5 = 27mm
- Vardex inserts are compatible with other manufacturers holders
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Turning Tools |
| Sub Category 2 | Thread Turning Inserts |
| Pitch | 1.5 |
| Grade | VT10 (Multipurpose Grade) |
| Insert Size | 16 (Vardex Size 3) |
| Alternative Part Number | 3ER1.5ISOVT10 |
| Surface Treatment | Coated (PVD/CVD) |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Coating Description | VT10 Enhanced Coating |

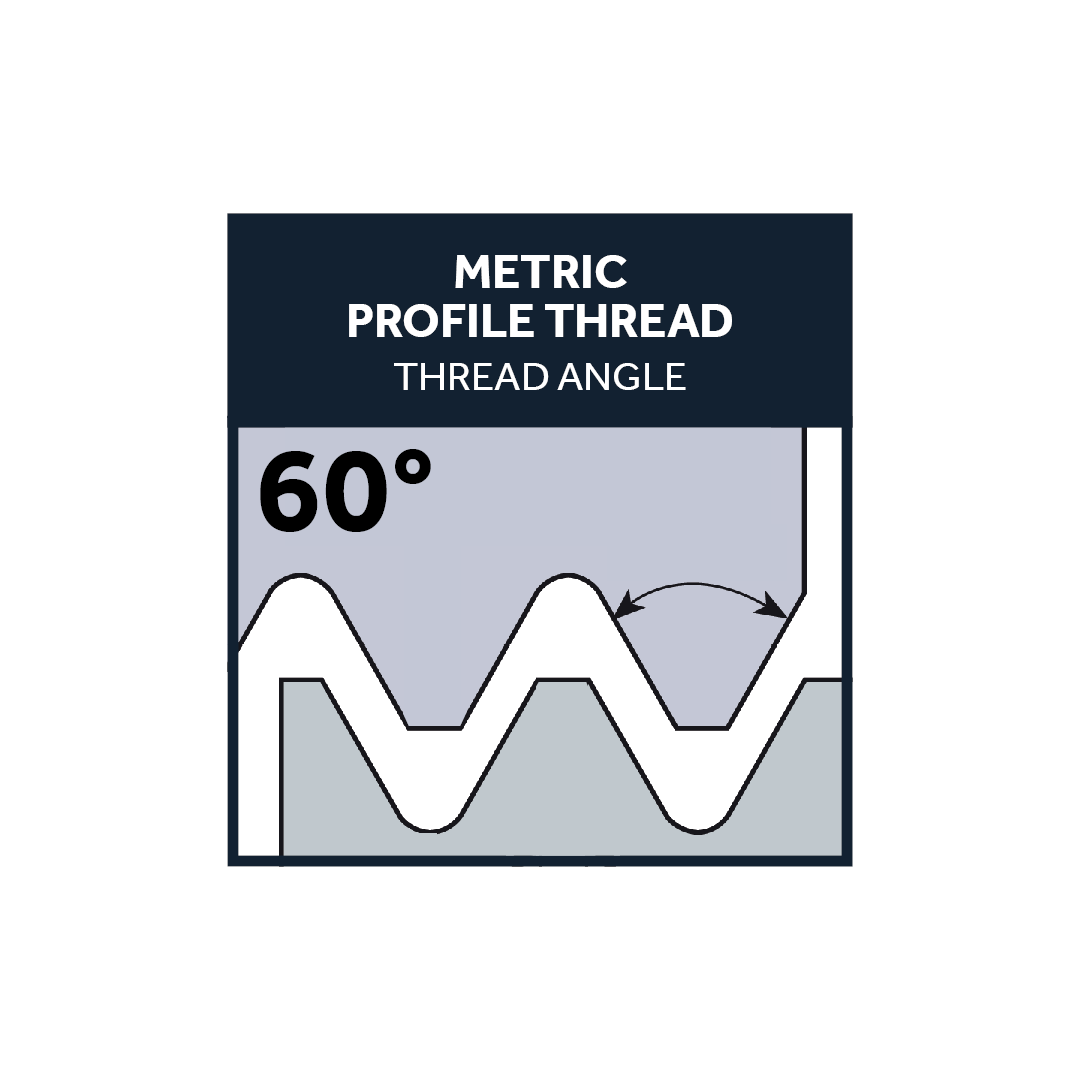

| Thread Form | Metric ISO |
| Hand | Right Hand |
| Brand | Vardex |
