16NRM3.0ISO Unocated Metric ISO Internal Right Hand Sintered Thread Turning Inserts, 16mm x 3mm Pitch, AG3000 General Purpose Grade (Cutwel Pro) - Ref: 3NRM2.0ISO
16NRM3.0ISO Unocated Metric ISO Internal Right Hand Sintered Thread Turning Inserts, 16mm x 3mm Pitch, AG3000 General Purpose Grade (Cutwel Pro) - Ref: 3NRM2.0ISO
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- General Purpose AG3000 grade for Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics & Hardened Steel

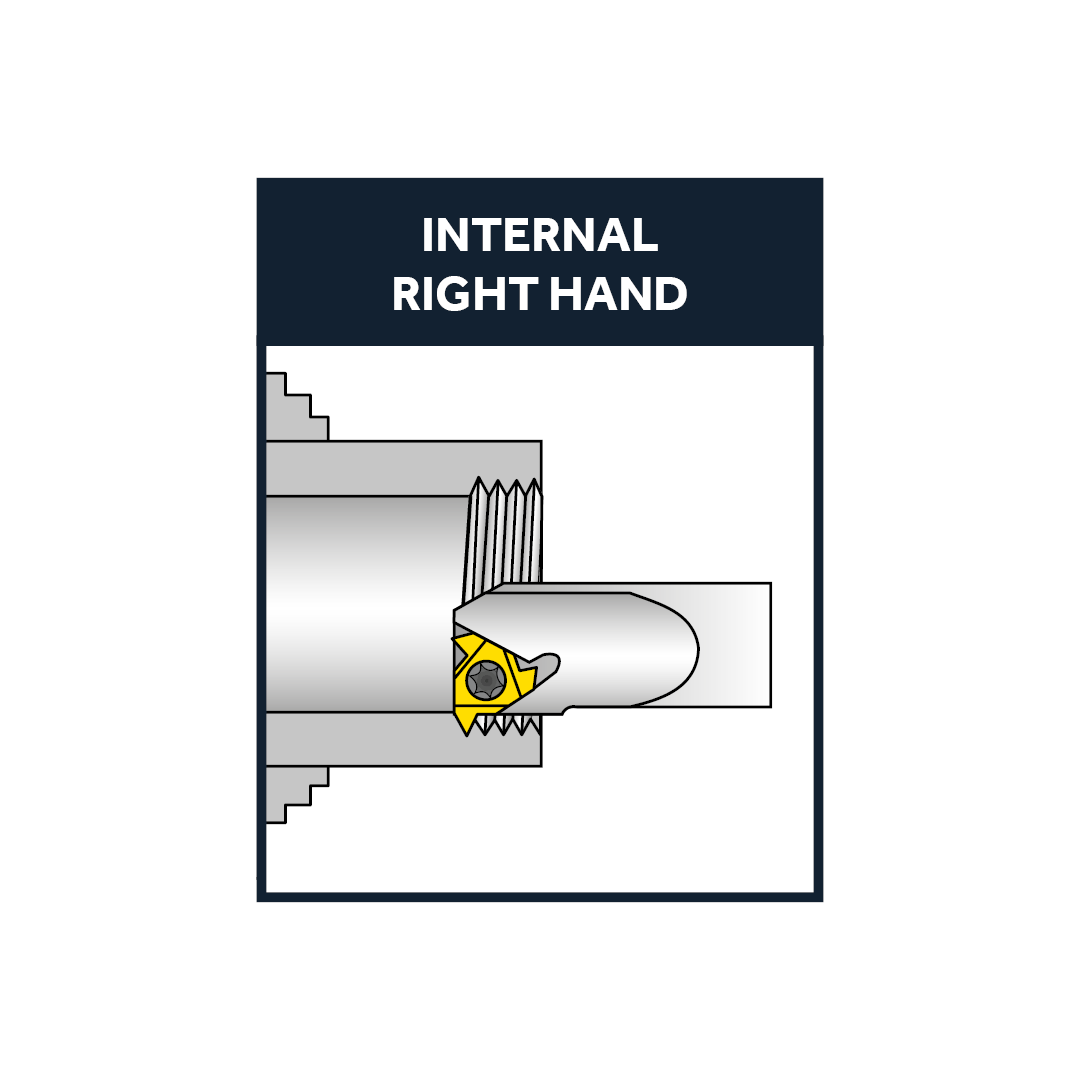

- Metric ISO Insert for Internal Right Hand Threads
- Cutwel Pro inserts are compatible with other manufacturers holders.

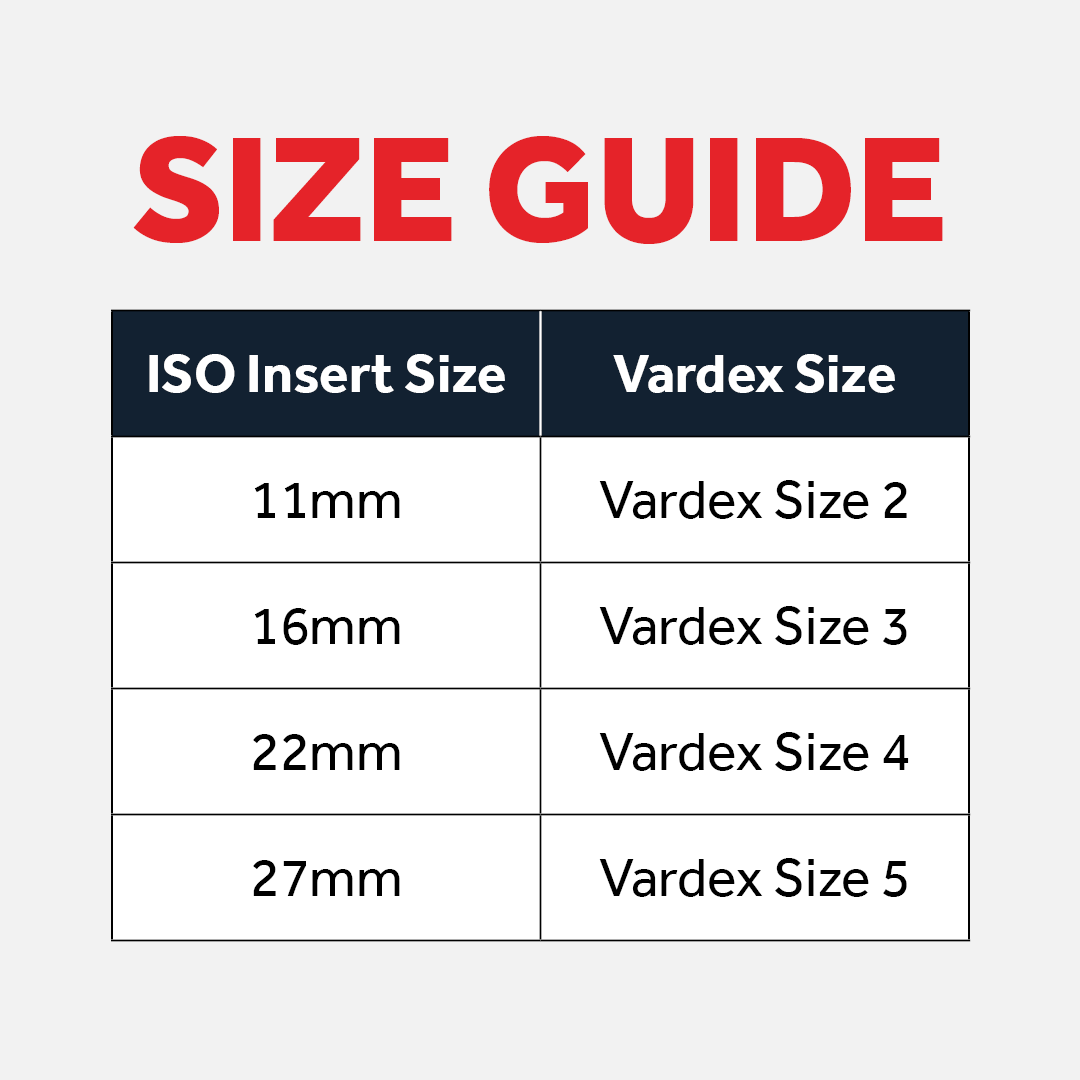

- Insert size reference - Size 2 = 11mm, Size 3 = 16mm, Size 4 = 22mm, Size 5 = 27mm
- Made by Cutwel Pro offering excellent value and cost efficiency.
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Turning Tools |
| Sub Category 2 | Thread Turning Inserts |
| Pitch | 3 |
| Grade | AG3000 (General Purpose) |

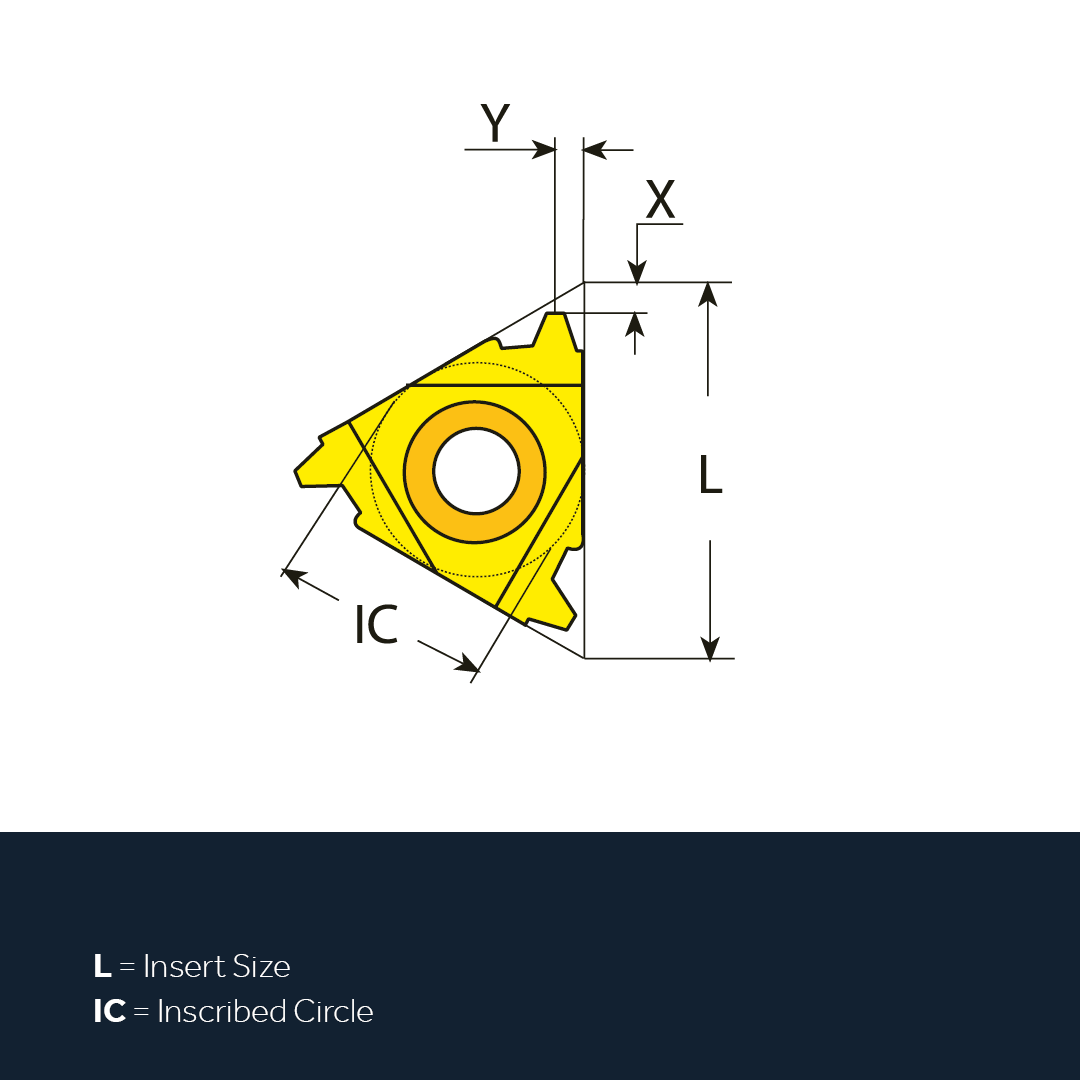

| Insert Size | 16 (Vardex Size 3) |
| Alternative Part Number | 16NRM3.0ISO |
| Surface Treatment | Uncoated |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |

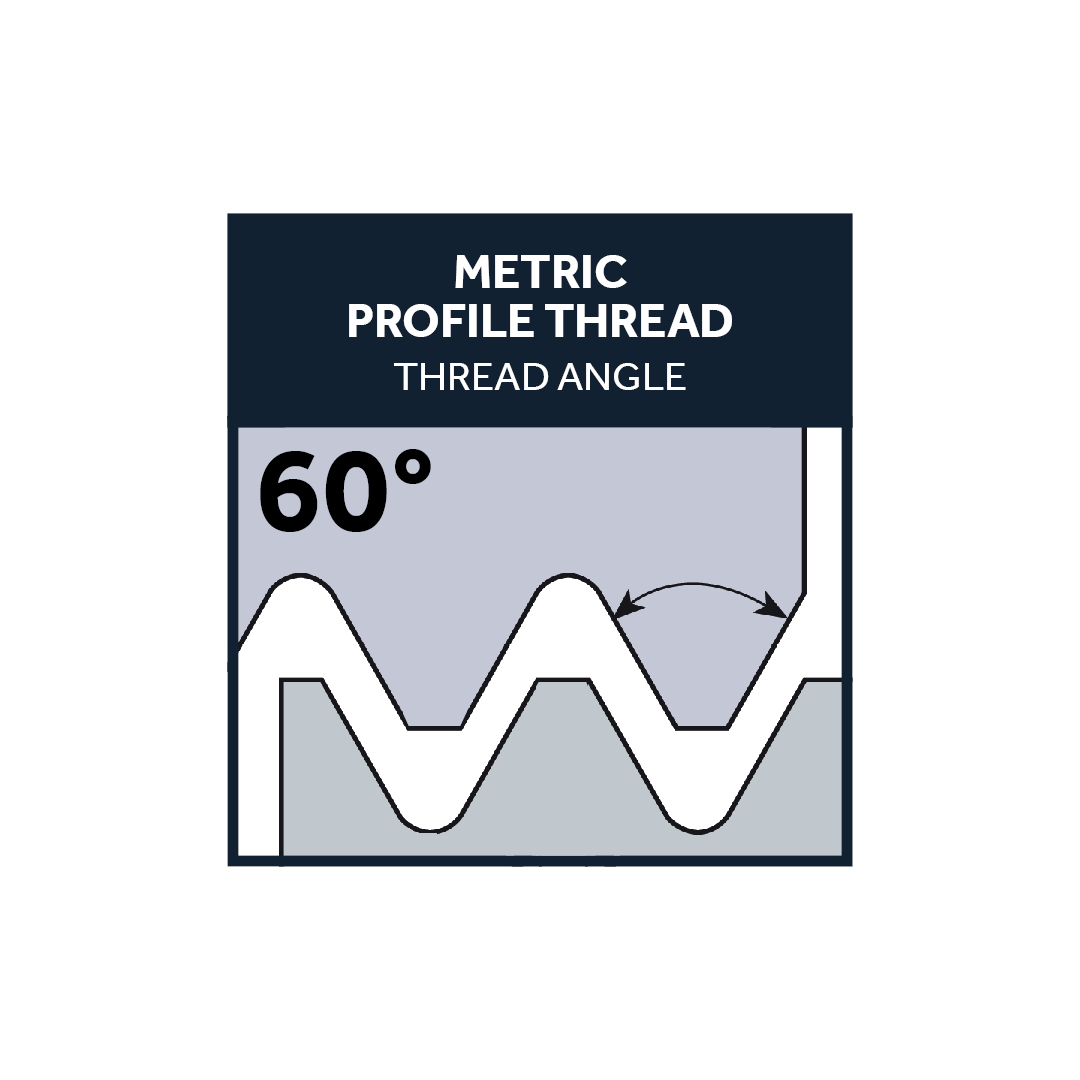

| Thread Form | Metric ISO |
| Hand | Right Hand |
| Brand | Cutwel Pro |
