Unocated Metric ISO External Right Hand Sintered Thread Turning Inserts, AG3000 General Purpose Grade (Cutwel Pro)

Unocated Metric ISO External Right Hand Sintered Thread Turning Inserts, AG3000 General Purpose Grade (Cutwel Pro)

Single point threading inserts (also known as screw cutting inserts) for external right hand thread turning of...
Read more
View Products

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm
Filter Items arrow
Code Pitch Grade Insert Size Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Pitch
carrat-down
Grade
carrat-down
Insert Size
carrat-down
Pitch: 1 Grade: AG3000 (General Purpose) Insert Size: 16 (Vardex Size 3)
available In stock
£13.08 £10.90
minus plus
Pitch: 1.25 Grade: AG3000 (General Purpose) Insert Size: 16 (Vardex Size 3)
available In stock
£13.08 £10.90
minus plus
Pitch: 1.5 Grade: AG3000 (General Purpose) Insert Size: 16 (Vardex Size 3)
available In stock
£13.08 £10.90
minus plus
Pitch: 2 Grade: AG3000 (General Purpose) Insert Size: 16 (Vardex Size 3)
available In stock
£13.08 £10.90
minus plus
Pitch: 2.5 Grade: AG3000 (General Purpose) Insert Size: 16 (Vardex Size 3)
available In stock
£13.08 £10.90
minus plus
Pitch: 3 Grade: AG3000 (General Purpose) Insert Size: 16 (Vardex Size 3)
available In stock
£13.08 £10.90
minus plus

*Estimated lead time, subject to availability

Product Information

Features & Benefits

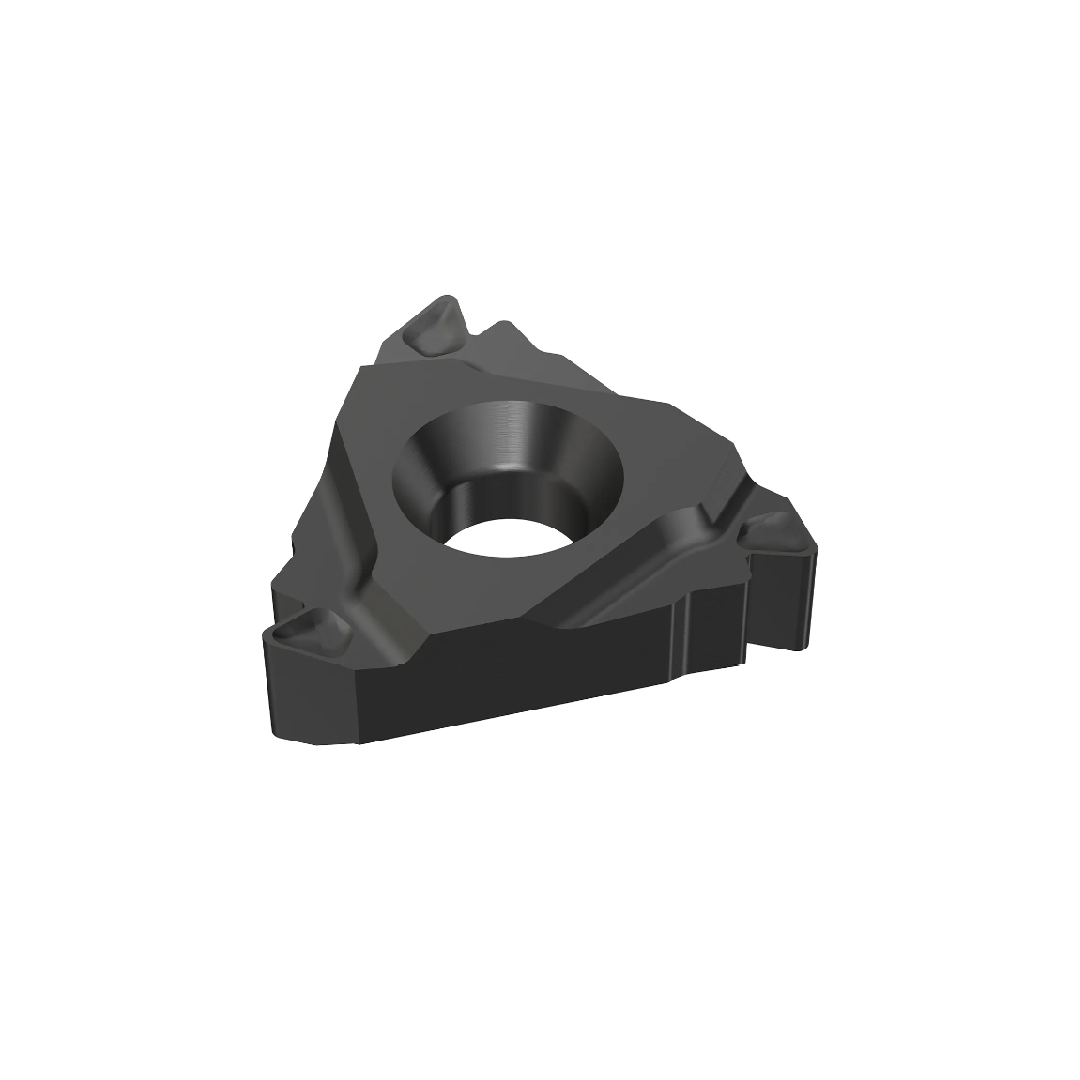

Single point threading inserts (also known as screw cutting inserts) for external right hand thread turning of Metric ISO threads. These inserts are available in the AG3000 grade, a superb option for general-purpose threading across a variety of materials, including Steel, Stainless Steel, Cast Iron, Non-Ferrous metals and Exotics. They are provided with a sintered chipbreaker ensure efficient chip evacuation and improved precision. They are made by Cutwel Pro and the threading inserts are fully compatible with other manufacturers holders.
  • General Purpose AG3000 grade for Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics & Hardened Steel

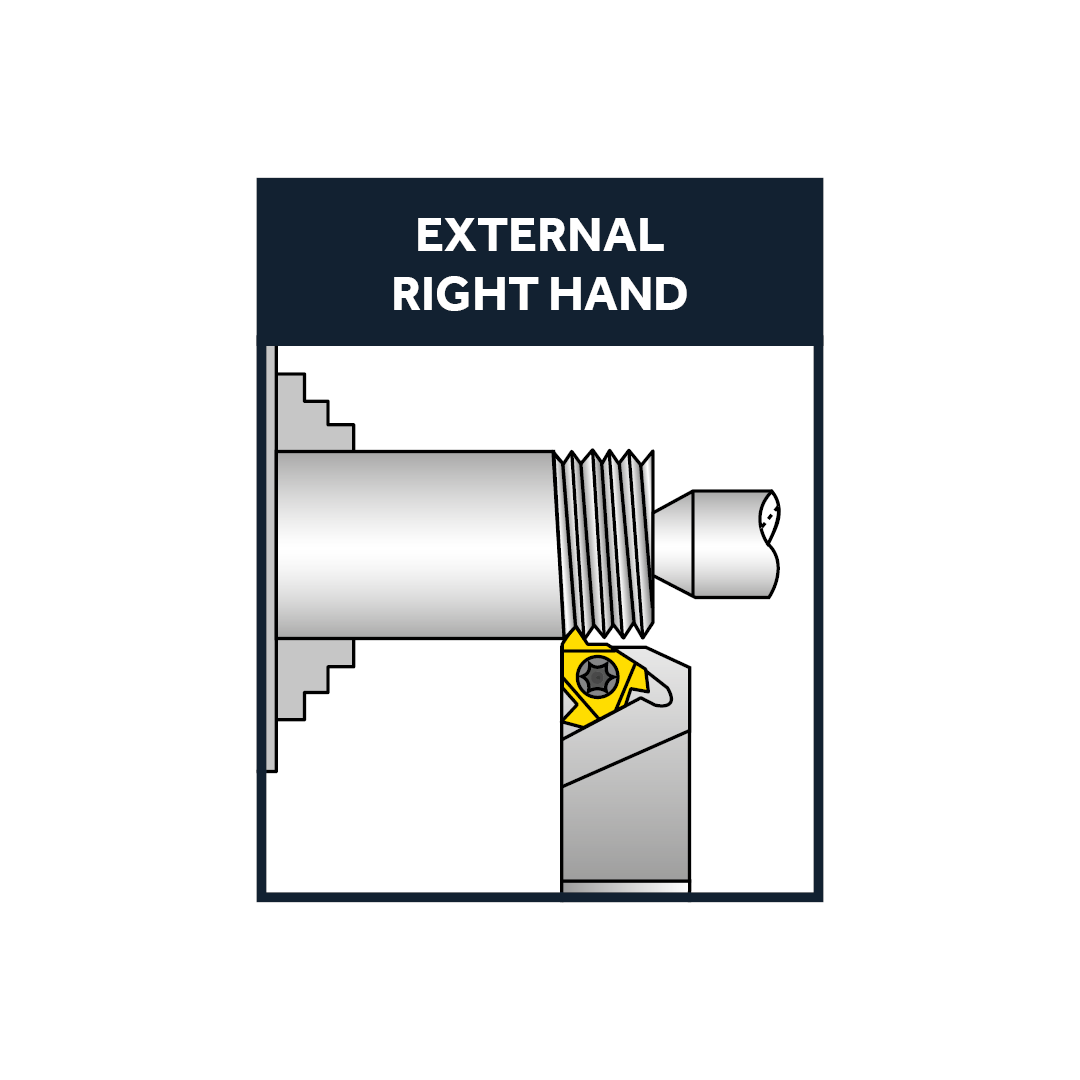

  • Metric ISO Insert for External Right Hand Threads
  • Cutwel Pro inserts are compatible with other manufacturers holders.

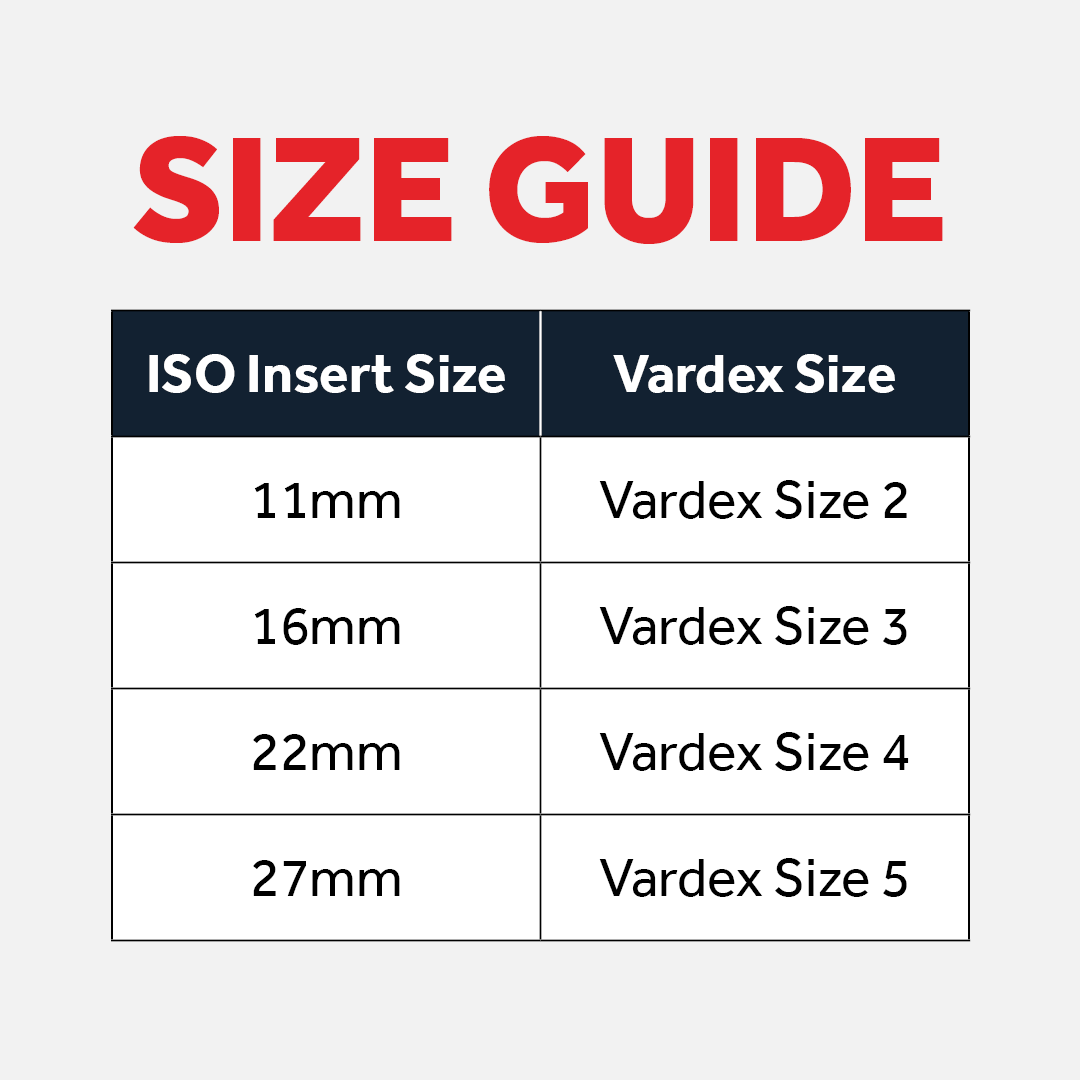

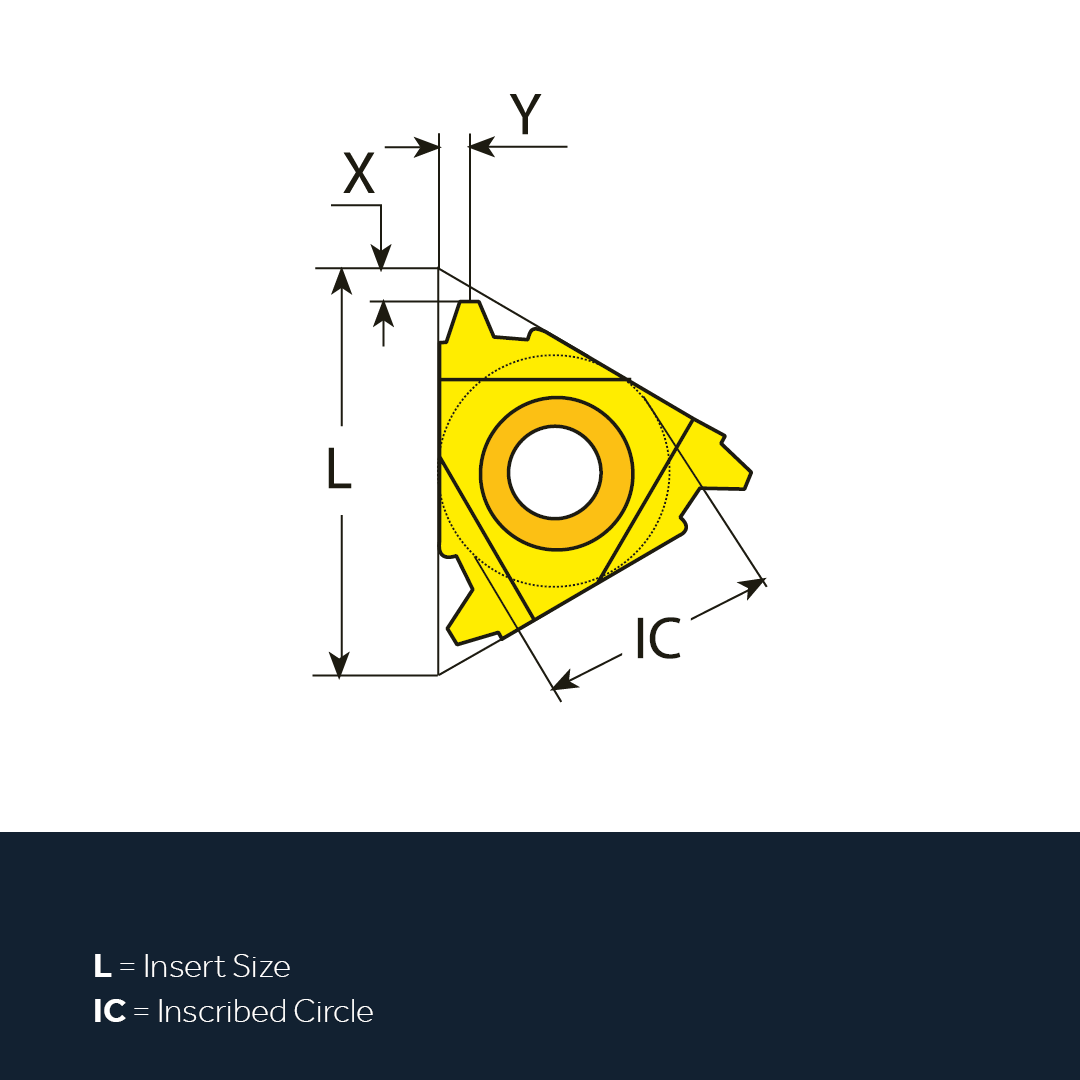

  • Insert size reference - Size 2 = 11mm, Size 3 = 16mm, Size 4 = 22mm, Size 5 = 27mm
  • Made by Cutwel Pro offering excellent value and cost efficiency.

Specification

Category Threading
Sub Category Thread Turning Tools
Sub Category 2 Thread Turning Inserts
Grade AG3000 (General Purpose)
Surface Treatment Uncoated
Applicable Materials Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics

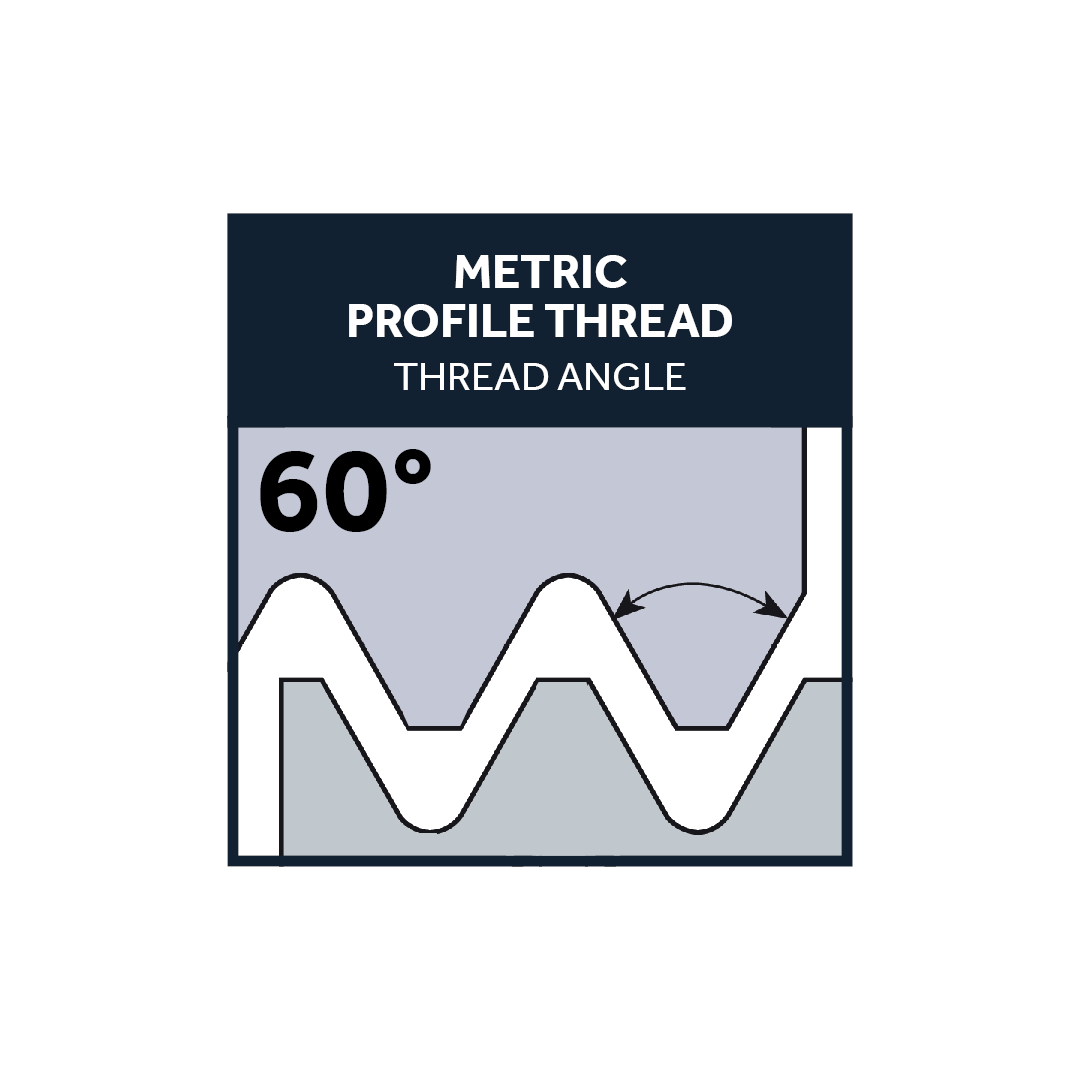

Thread Form Metric ISO
Hand Right Hand
Brand Cutwel Pro
