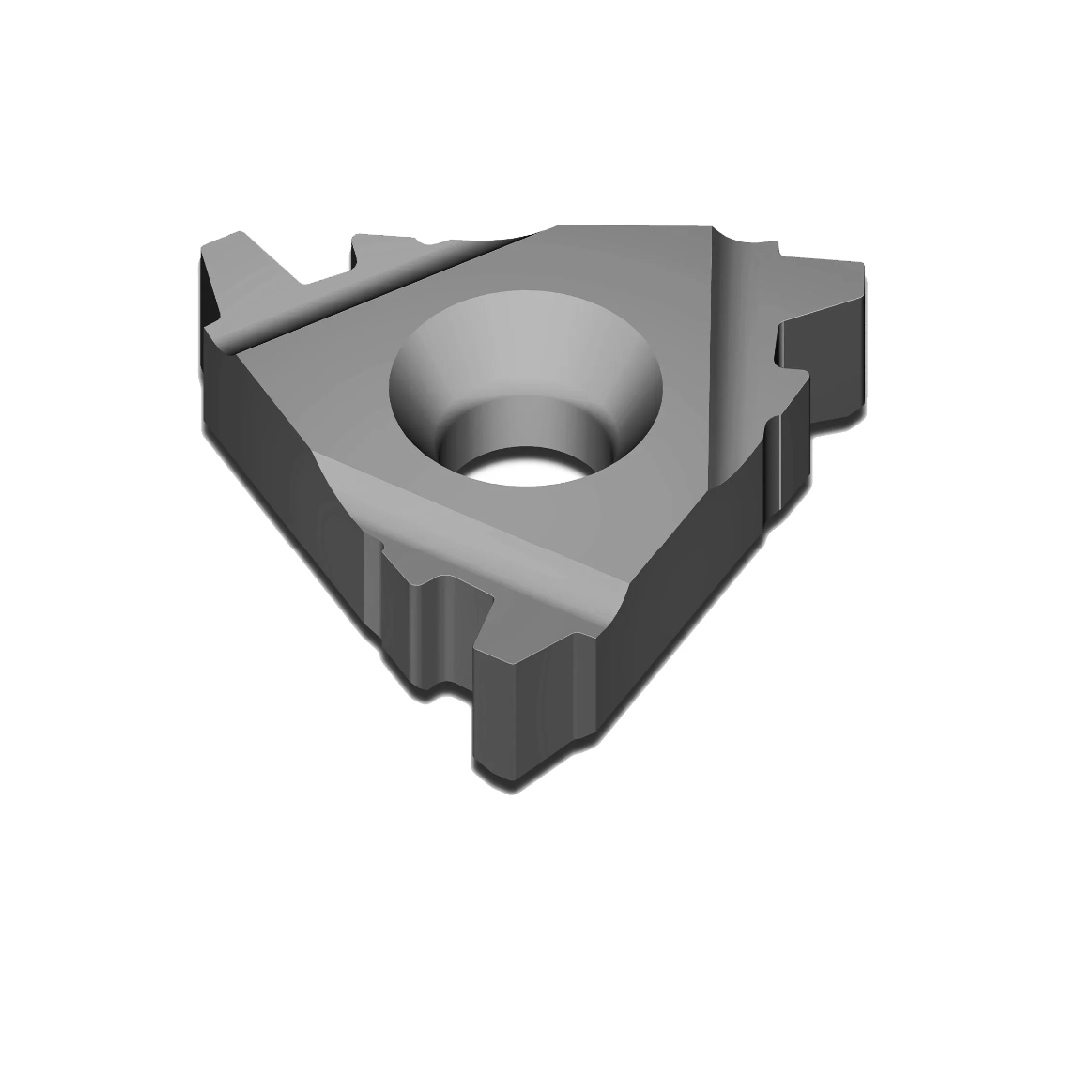

16IL44UNVTX Unified Internal Left Hand Vardex Thread Turning Insert, 16mm x 44mm TPI, Multi-Purpose Ground VTX Grade, TiAlN Coated (Vargus) - Ref: 3IL44UNVTX
16IL44UNVTX Unified Internal Left Hand Vardex Thread Turning Insert, 16mm x 44mm TPI, Multi-Purpose Ground VTX Grade, TiAlN Coated (Vargus) - Ref: 3IL44UNVTX
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Multi-purpose VTX grade for Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics & Hardened Steel
- High quality ground substrate with TiAlN coating

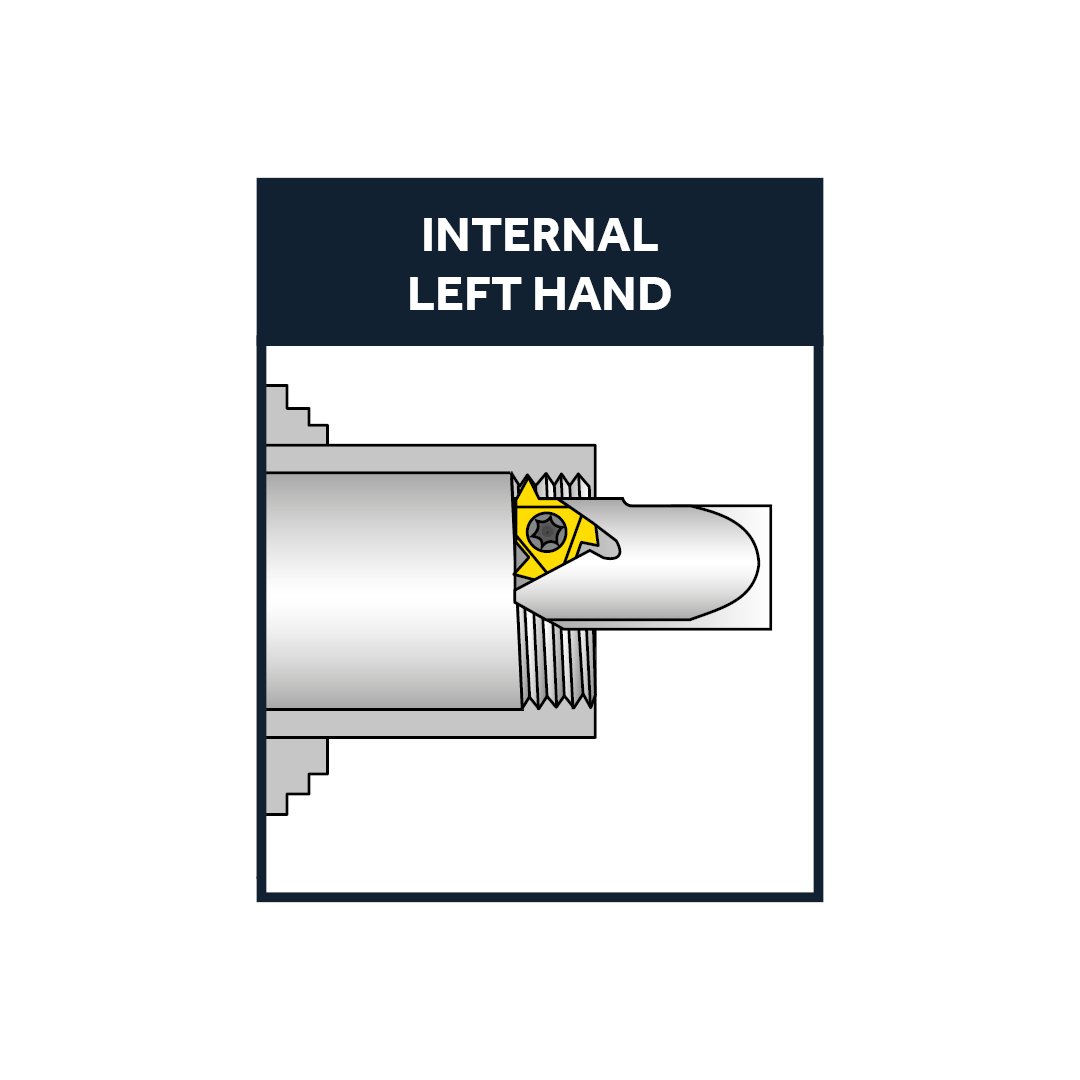

- Unified Insert for Internal Left Hand Threads
- Vardex inserts are compatible with other manufacturers holders.
- Vardex are the global number 1 thread turning tool manufacturer

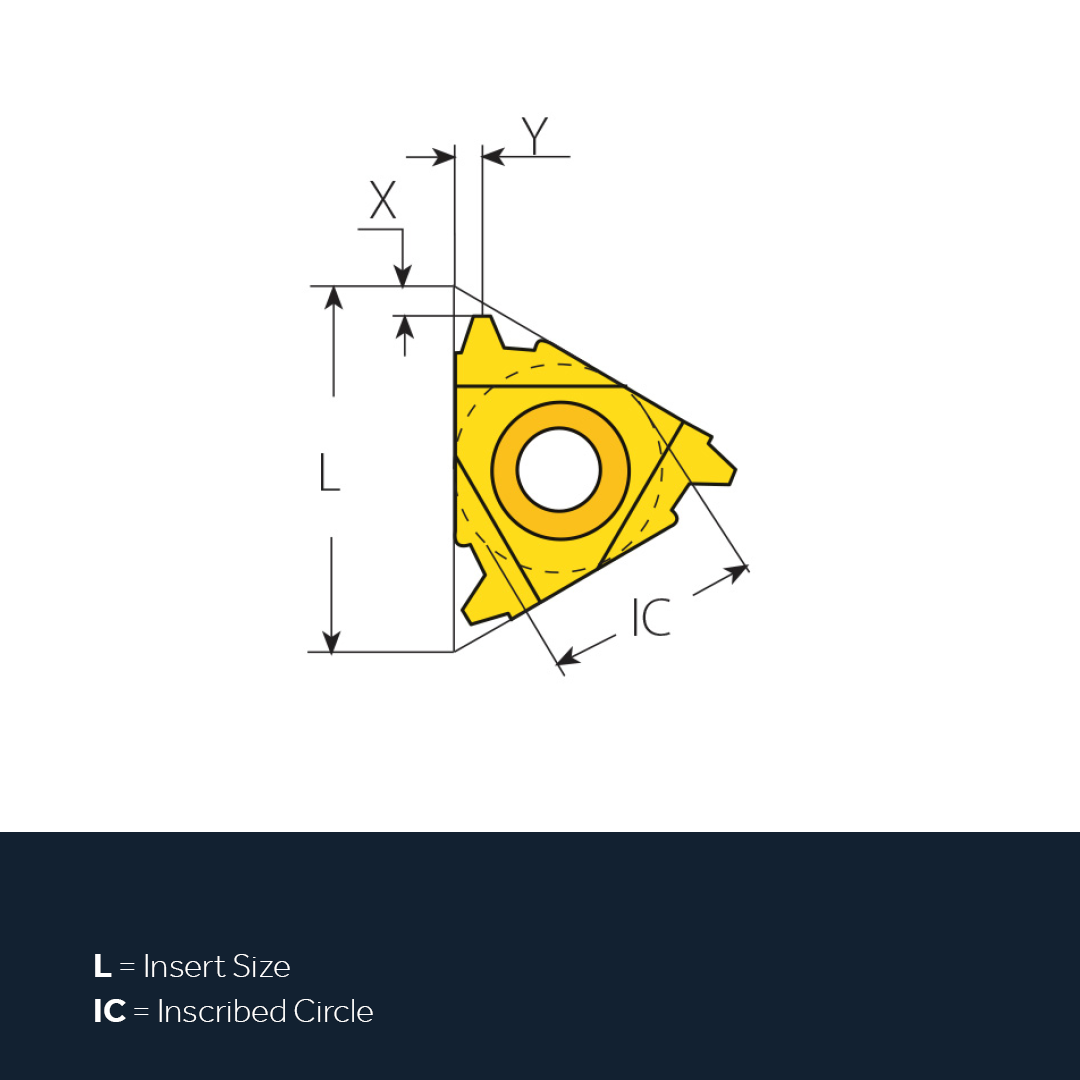

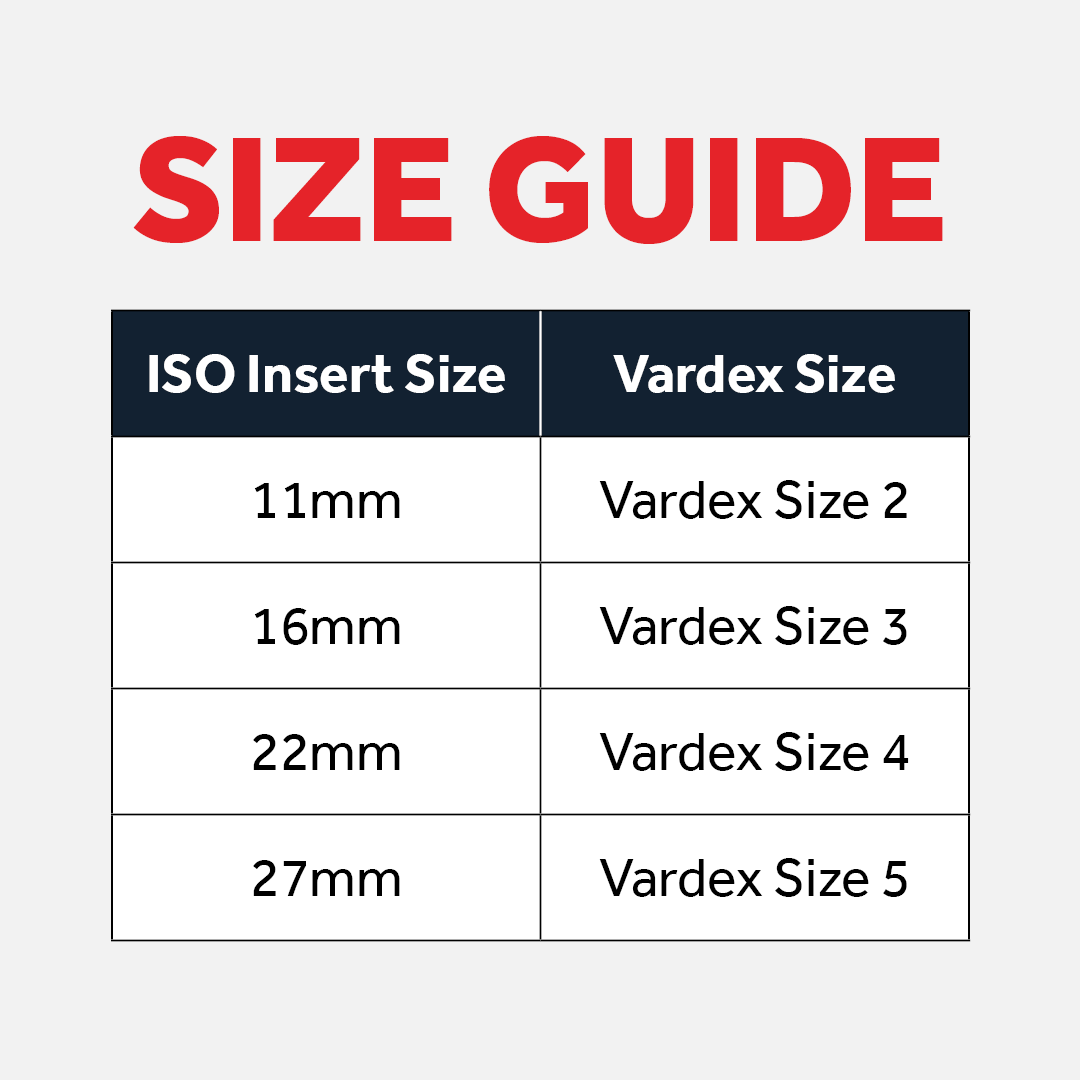

- Insert size reference - Size 2 = 11mm, Size 3 = 16mm, Size 4 = 22mm, Size 5 = 27mm
- Vardex inserts are compatible with other manufacturers holders
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Turning Tools |
| Sub Category 2 | Thread Turning Inserts |
| TPI | 44 |
| Grade | VTX (General Purpose) |
| Insert Size | 16 (Vardex Size 3) |
| Alternative Part Number | 3IL44UNVTX |
| Surface Treatment | Coated (PVD/CVD) |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Coating Description | TiAlN Coated |

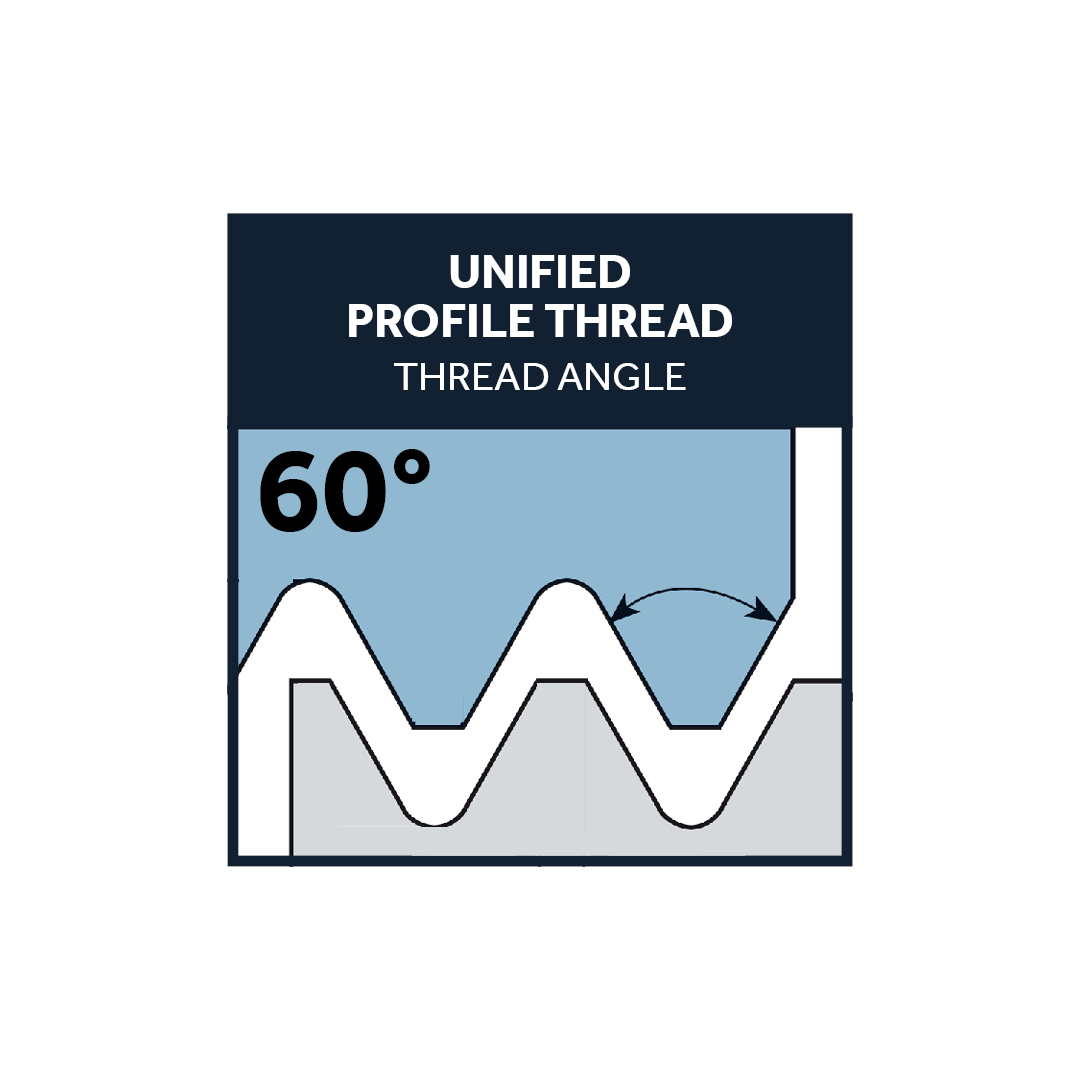

| Thread Form | UN (Unified) |
| Hand | Left Hand |
| Brand | Vardex |
