Scroll Chucks Buying Guide

When it comes to machining, choosing the right lathe chuck is essential for precision and efficiency. Here, we’ll explore the various types of scroll lathe chucks, including scroll chucks, independent chucks, 5C collet chucks, and oil country chucks.

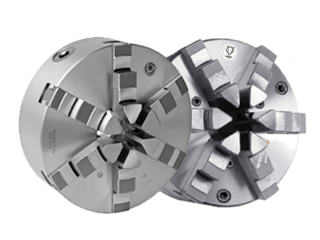

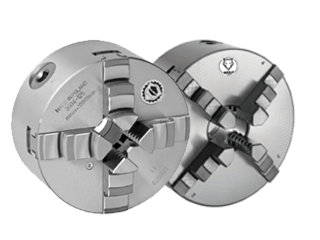

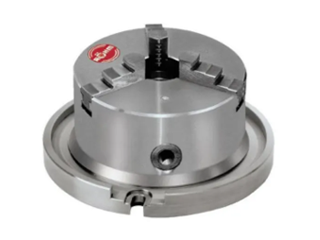

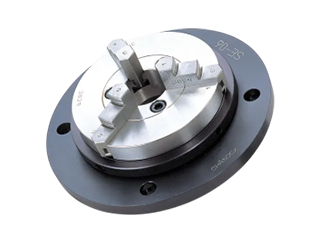

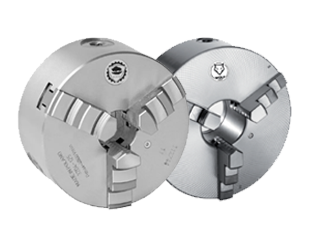

1. Scroll Chucks

Overview: Scroll chucks are the most common type of lathe chuck used in workshops. They feature a single scroll mechanism that operates multiple jaws simultaneously.

• Key Features:
  • Self-centering: Automatically centres the workpiece for quick setup.
  • Versatility: Suitable for various shapes, including round and hexagonal parts.
  • Ease of Use: Simple to operate, making it ideal for both beginners and experienced machinists.
  • Applications: Perfect for general turning operations and repetitive tasks in metalworking and woodworking.

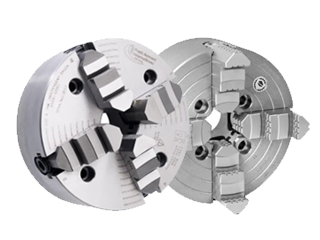

2. Independent Chucks

Overview: Independent chucks allow each jaw to be adjusted separately, providing flexibility in holding irregularly shaped or non-standard workpieces.

• Key Features:
  • Customisation: Each jaw can be positioned independently, accommodating odd shapes and sizes.
  • Stability: Provides a strong grip on large or heavy components.
  • Versatile Application: Ideal for holding items where precision is less critical.
  • Applications: Commonly used in jobs that require holding irregularly shaped parts or when a precise centre is not necessary.

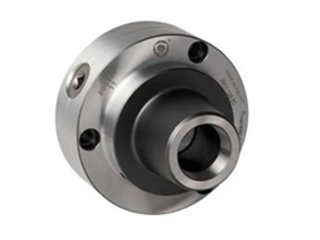

3. 5C Collet Chucks

Overview: 5C collet chucks are designed for quick and precise clamping of cylindrical workpieces using collets.

• Key Features:
  • High Precision: Offers excellent accuracy and repeatability for small to medium-sized parts.
  • Quick Change: Collets can be swapped out quickly, minimising downtime between setups.
  • Variety of Sizes: Available in numerous sizes to accommodate different workpiece diameters.
  • Applications: Widely used in production runs and for precision machining tasks, particularly in the manufacturing of small parts.

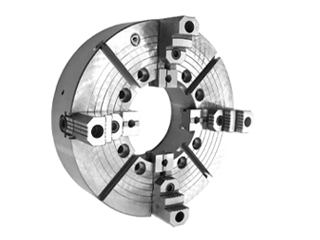

4. Oil Country Chucks

Overview: Oil country chucks are specialised chucks designed for holding large, heavy workpieces typically found in the oil and gas industry.

• Key Features:
  • Robust Design: Built to handle the demands of large-diameter and heavy components.
  • High Load Capacity: Capable of securing parts with substantial weight and size.
  • Enhanced Grip: Features a unique jaw design that maximises gripping strength.
  • Applications: Commonly used for machining large pipe fittings, drill collars, and other oilfield equipment.

Choosing the right manual lathe chuck is crucial for achieving optimal performance in your machining projects. Whether you need the versatility of scroll chucks, the customisation of independent chucks, the precision of 5C collet chucks, or the robustness of oil country chucks, understanding their unique features will help you make an informed decision for your specific application. Our knowledgeable team of experts can help you find the right manual workholding chuck to suit your requirements. So why wait? Browse through and buy from our range of Manual Workholding Chucks & Accessories online or alternatively please call 01924 869 610 or email sales@cutwel.net for any advice or queries.
