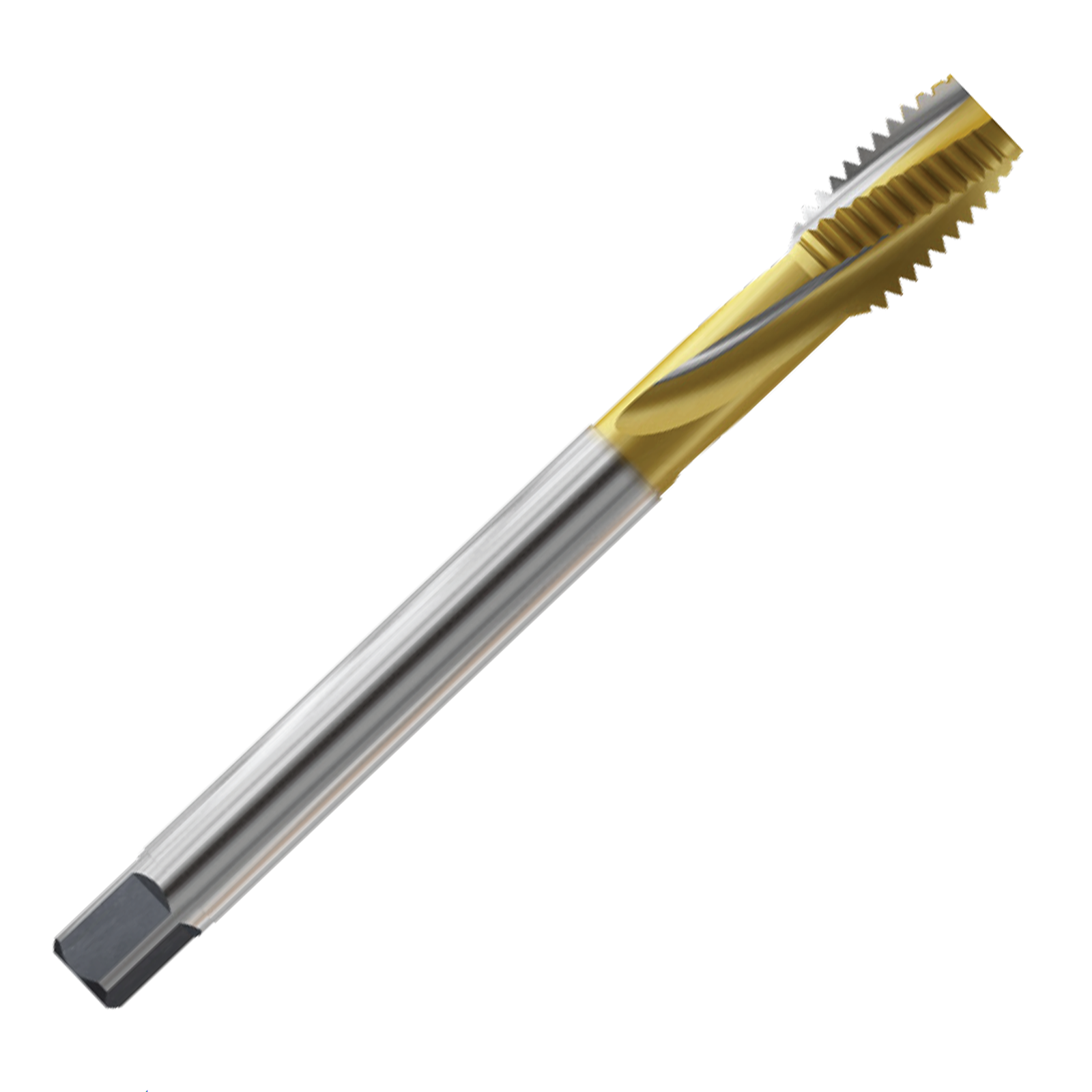

M10 x 1mm Metric Fine TiN Coated HSS-E Spiral Flute Machine Tap (6H Tolerance) with Chip Breaker, Short Chamfer - TDE27 Series (YG-1)
M10 x 1mm Metric Fine TiN Coated HSS-E Spiral Flute Machine Tap (6H Tolerance) with Chip Breaker, Short Chamfer - TDE27 Series (YG-1)
| Overall Length (mm) | 90 |
|---|---|
| Flute Length (mm) | 10 |
| Shank (mm) | 7 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Chipbreaker technology helps increase swarf evacuation
- The unique chip breaker solves any problems caused by long chips or bird nesting
- Suitable for non-alloy steel, low alloy steel, high alloy steel, and tool steel
- TiN coating to increase tool life
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M10 |
| Sub Category 2 | Chip Breaker Machine Taps |
| Shank (mm) | 7 |
| Pitch | 1 |
| Flute Length (mm) | 10 |
| Overall Length (mm) | 90 |
| Flutes | 3 |
| Drill Diameter | 9 |
| Square | 5.5 |
| Substrate | HSS |
| Surface Treatment | Coated (PVD/CVD) |
| Applicable Materials | Steel |
| Flute Geometry | Spiral Flute |
| Performance | 5 |
| Coating Description | TiN Coating |
| Substrate Description | HSS-E |
| Helix Angle | 15° |
| Thread Form | Metric ISO |
| Brand | YG-1 |
