M20 x 1mm Metric Fine Prime-X Coated Machine Tap for Universal High Performance, HSS-PM, Spiral Point for Through Holes, 6HX Tolerance - TRJ16 Series (YG-1)
M20 x 1mm Metric Fine Prime-X Coated Machine Tap for Universal High Performance, HSS-PM, Spiral Point for Through Holes, 6HX Tolerance - TRJ16 Series (YG-1)

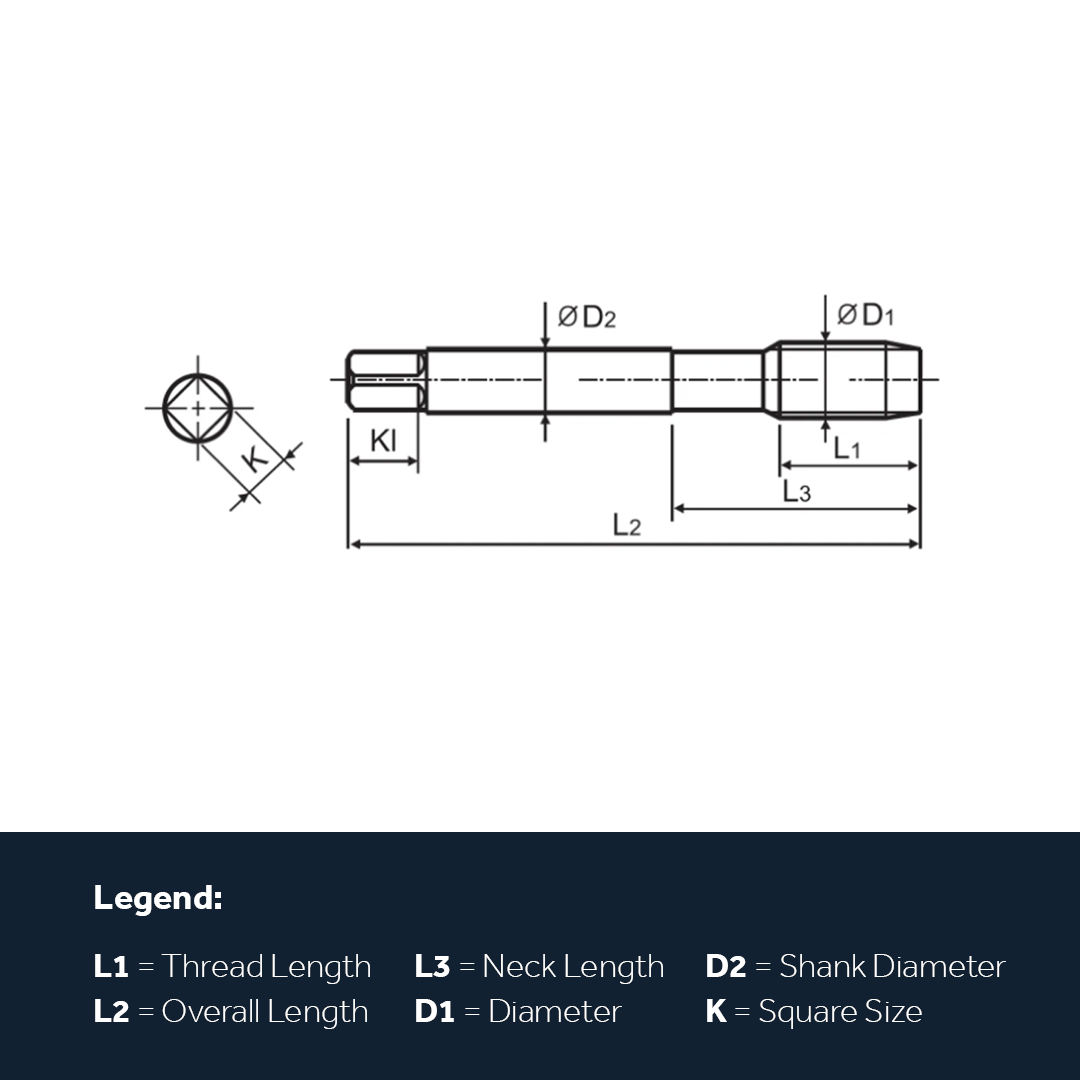

| Overall Length (mm) | 125 |
|---|---|
| Flute Length (mm) | 20 |
| Shank (mm) | 16 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Number 1 for all round high performance machine tapping a wide range of materials.

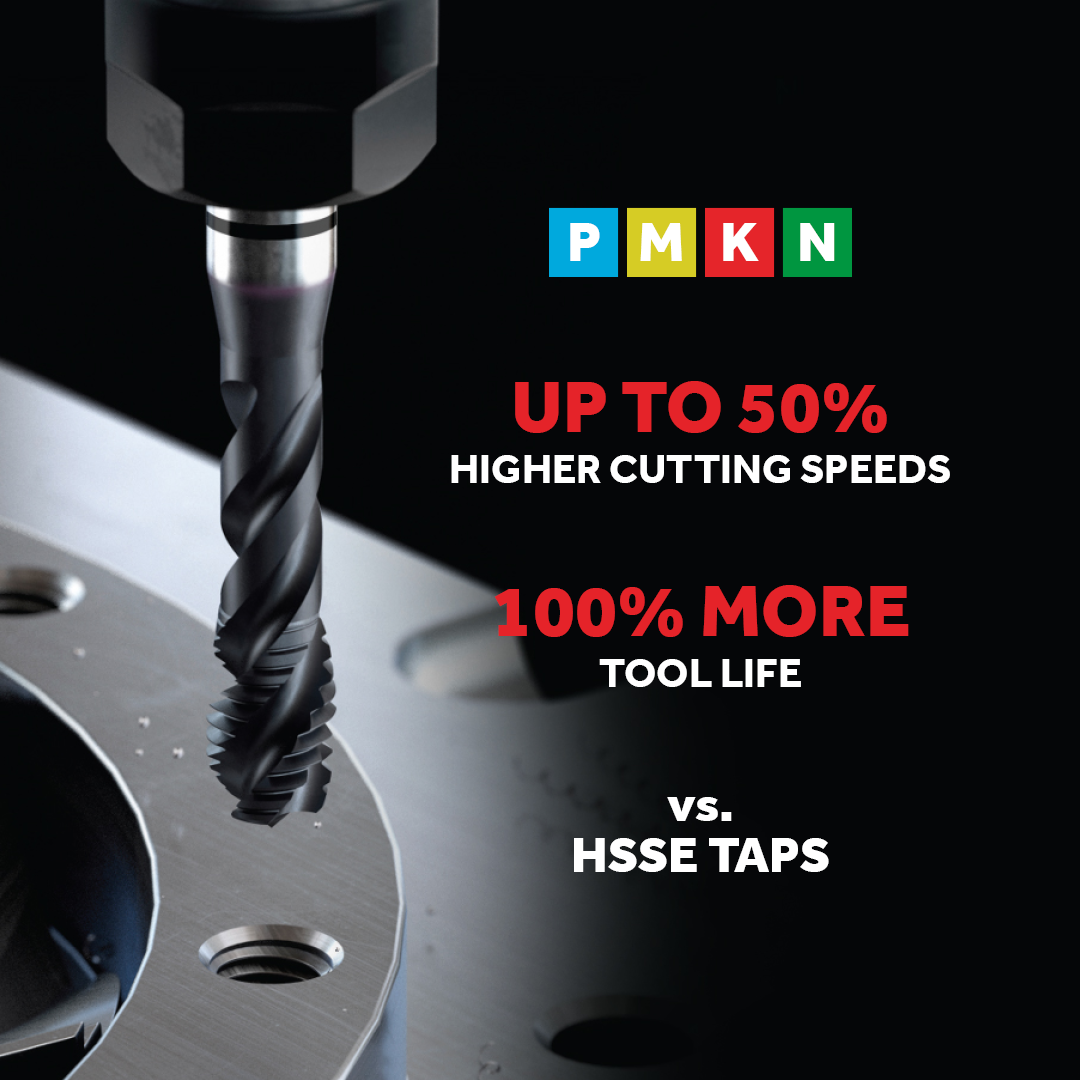

- Up to 50% higher cutting speeds and 100% more tool life than HSSE taps.
- Spiral point geometry for through holes.
- Ultra reliable due to the patented design which prevents over feeding & premature tap failure.
- Premium powder metal substrate provides a tough chip resistant cutting edge.
- YG-1’s unique X-coating ensures heat and wear resistance in performance tapping.
- Ideal for steel, stainless steel, cast iron, exotics and non-ferrous.
- Made by YG-1 from South Korea, the global market leading manufacturer of cutting tools.
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M20 |
| Sub Category 2 | High Performance Universal Machine Taps |
| Shank (mm) | 16 |
| Pitch | 1 |
| Flute Length (mm) | 20 |
| Overall Length (mm) | 125 |
| Flutes | 3 |
| L3 | 50 |
| Drill Diameter | 19 |
| Square | 12 |
| Substrate | HSS-PM |
| Oil Grooves | No |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 3xD |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous |
| Flute Geometry | Spiral Point |
| Performance | 5 |
| Coating Description | X Coated |
| Through Coolant | No |
| Substrate Description | HSS Powder Metal |
| Helix Angle | 60° |
| Brand Range | Prime-X |
| Thread Form | Metric ISO |
| Chamfer Lead | Form B (with Spiral Point and Chamfer Lead 4-5 Thread) |
| Brand | YG-1 |
