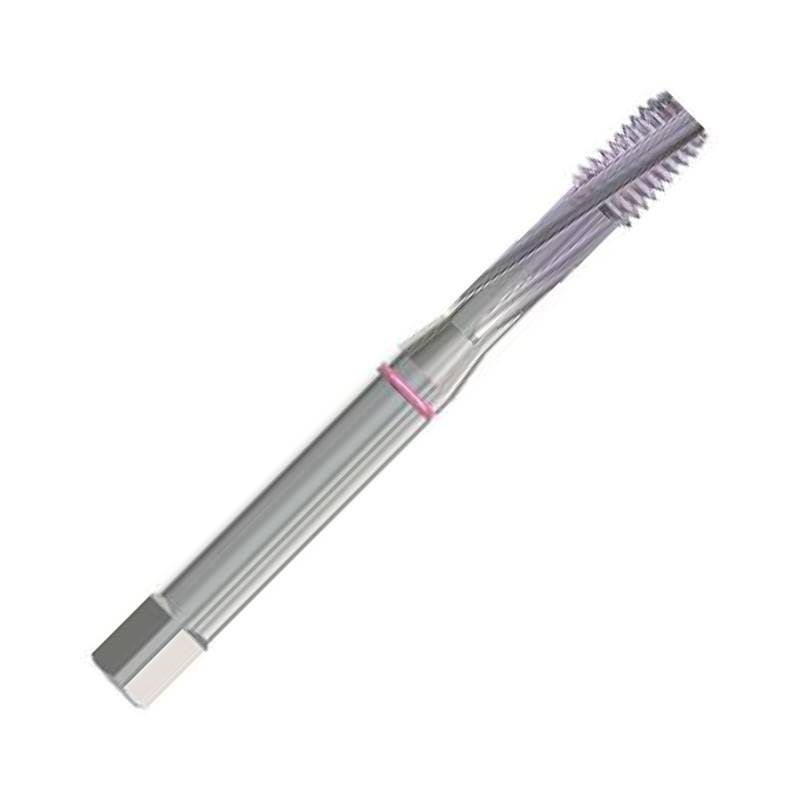

M8 x 1.25mm Metric Coarse Powder Metal Spiral Point TiCN Coated Machine Taps (6HX Tolerance) for Titanium & Titanium Alloys - K42/43M-CT Series (UFS)
M8 x 1.25mm Metric Coarse Powder Metal Spiral Point TiCN Coated Machine Taps (6HX Tolerance) for Titanium & Titanium Alloys - K42/43M-CT Series (UFS)

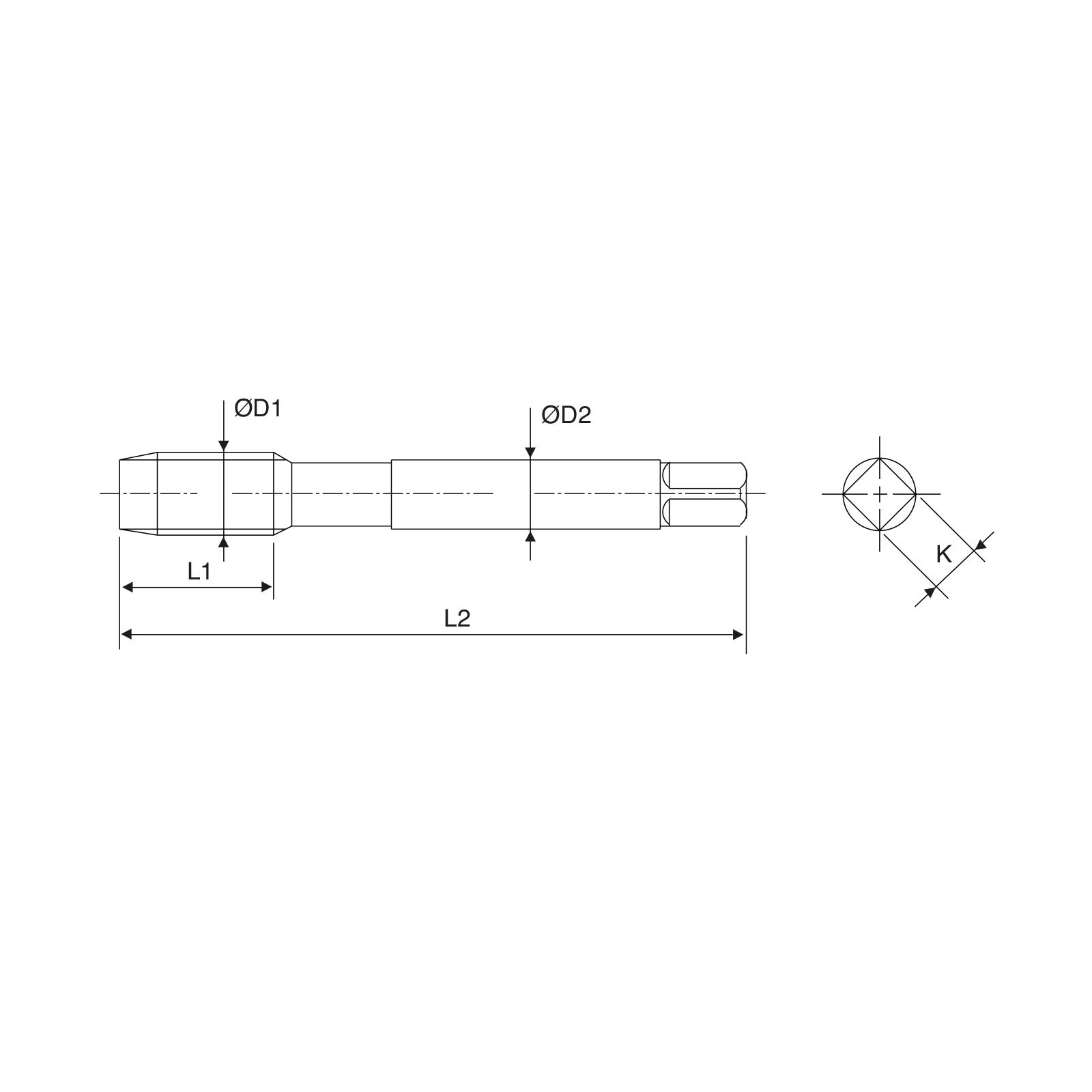

| Overall Length (mm) | 90 |
|---|---|
| Flute Length (mm) | 18 |
| Shank (mm) | 8 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Metric Coarse Machine Tap
- Powder Metal Subtrate
- Specially designed for Titanium & Titanium Alloys
- TiCN coating for titanium alloys, high chrome stainless steel, cast iron & Nickel Alloys
- Left Hand 15° helix provides additional strength
- Spiral point geometry for through holes
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M8 |
| Sub Category 2 | Titanium & Nickel Alloy Machine Taps |
| Shank (mm) | 8 |
| Pitch | 1.25 |
| Flute Length (mm) | 18 |
| Overall Length (mm) | 90 |
| Flutes | 3 |
| Drill Diameter | 6.8 |
| Square | 6.2 |
| Substrate | HSS-PM |
| Oil Grooves | No |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 1.5xD |
| Applicable Materials | Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Flute Geometry | Spiral Flute |
| Performance | 5 |
| Coating Description | TiCN Coated |
| Substrate Description | Powder Metal 3 |
| Helix Angle | 60° |
| Brand Range | Top-line Tap |
| Thread Form | Metric ISO |
| Brand | UFS |
