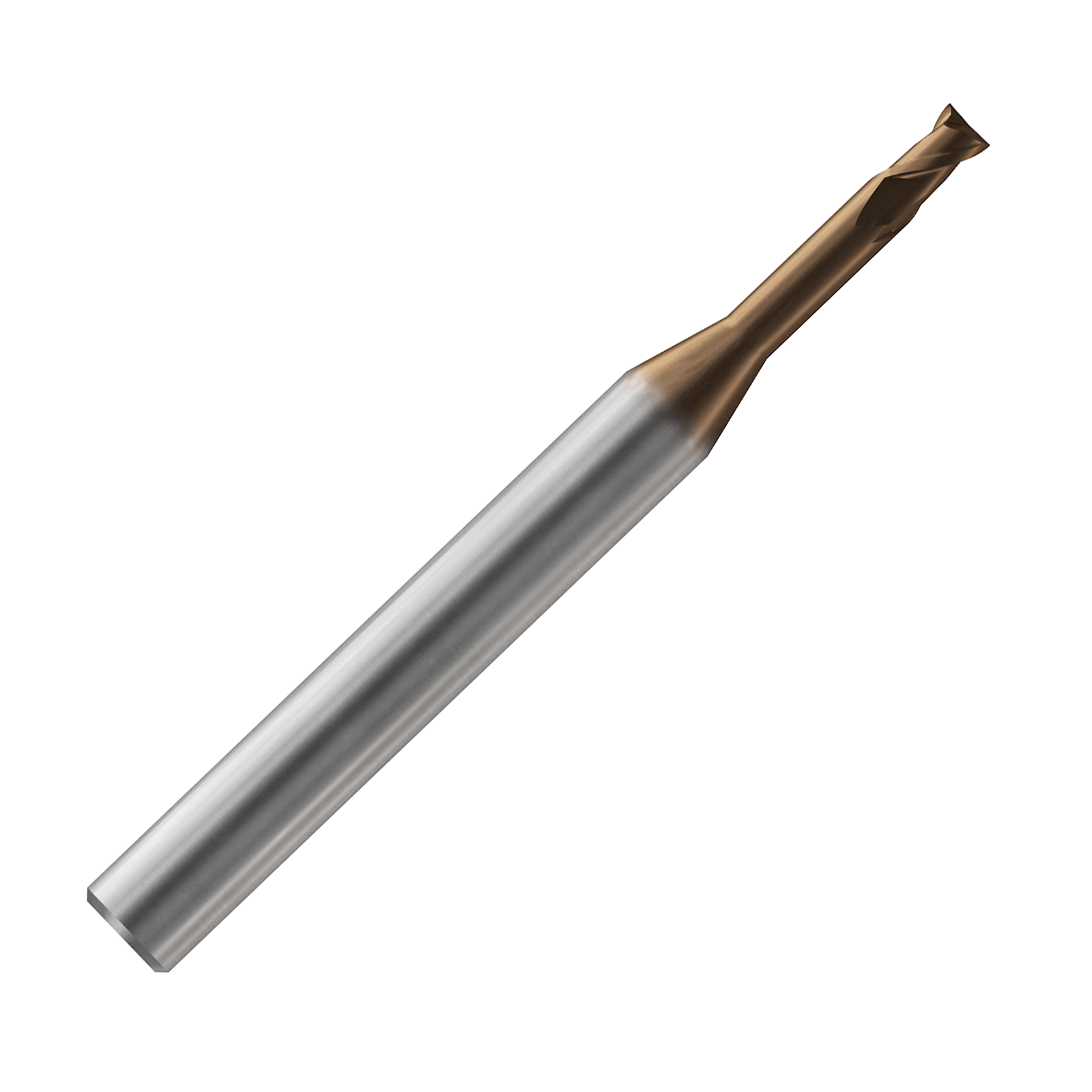

5mm 2 Flute X1-EH Milling Cutter, C-Coated Nanograin Carbide Slot Drill, for Hardened Steel up to 70HRc, Plain Shank, 5x6x7.5x80 - HPI88 Series (YG-1)
5mm 2 Flute X1-EH Milling Cutter, C-Coated Nanograin Carbide Slot Drill, for Hardened Steel up to 70HRc, Plain Shank, 5x6x7.5x80 - HPI88 Series (YG-1)
| Diameter (mm) | 5 |
|---|---|
| Overall Length (mm) | 80 |
| Flute Length (mm) | 7.5 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Offers outstanding machining accuracy due to its extremely tight tolerances
- With a C-coating providing excellent wear and heat resistance
- Superior surface finish with exceptional tool life
- Premium nanograin carbide for high hardened steels
- High runout accuracy and high feed rates for fine finishing applications
- Comes with a plain shank - square end for rib processing
- Manufactured by global leading supplier YG-1
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck)

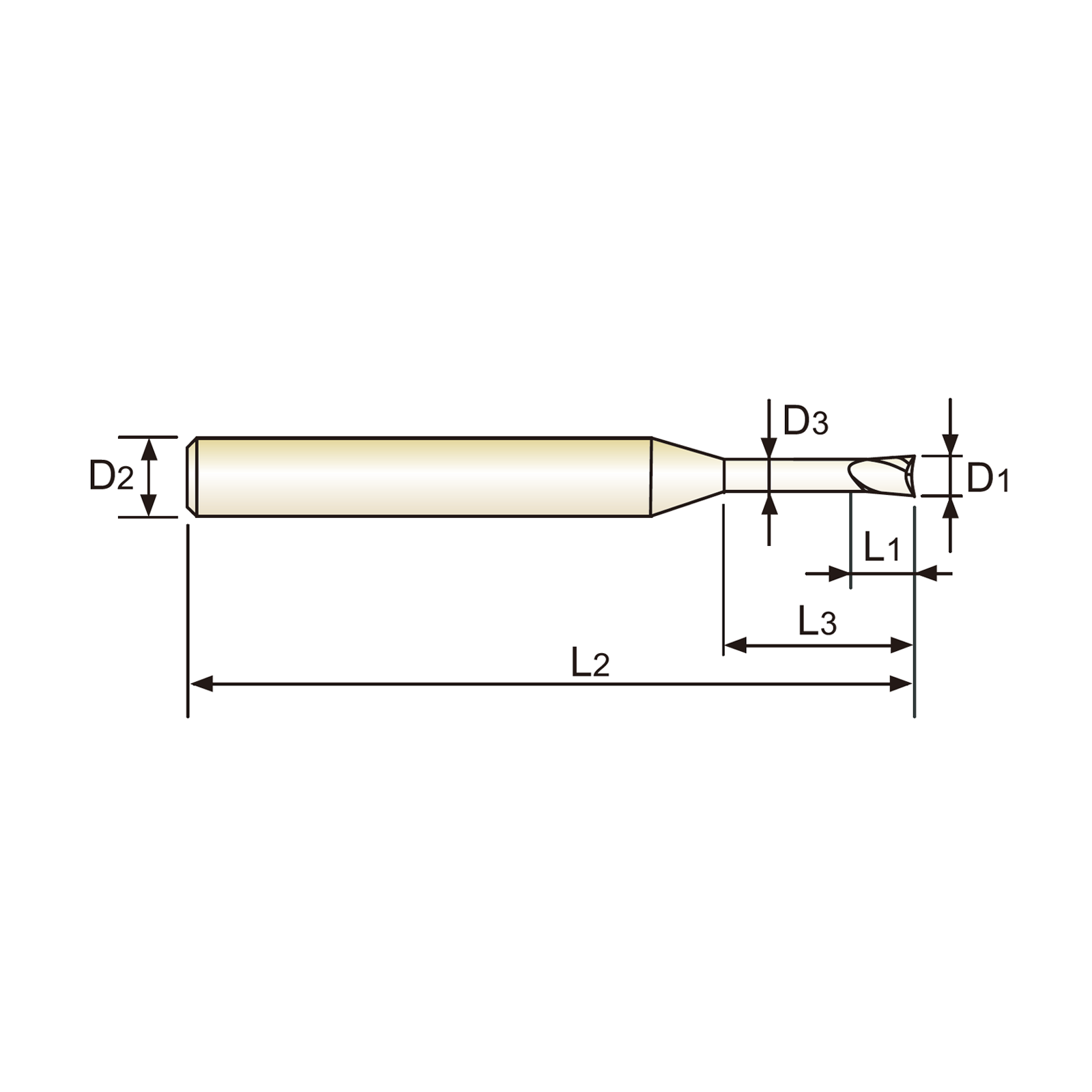

Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | X1-EH Milling Cutters |
| Diameter (mm) | 5 |
| Shank (mm) | 6 |
| Flute Length (mm) | 7.5 |
| Overall Length (mm) | 80 |

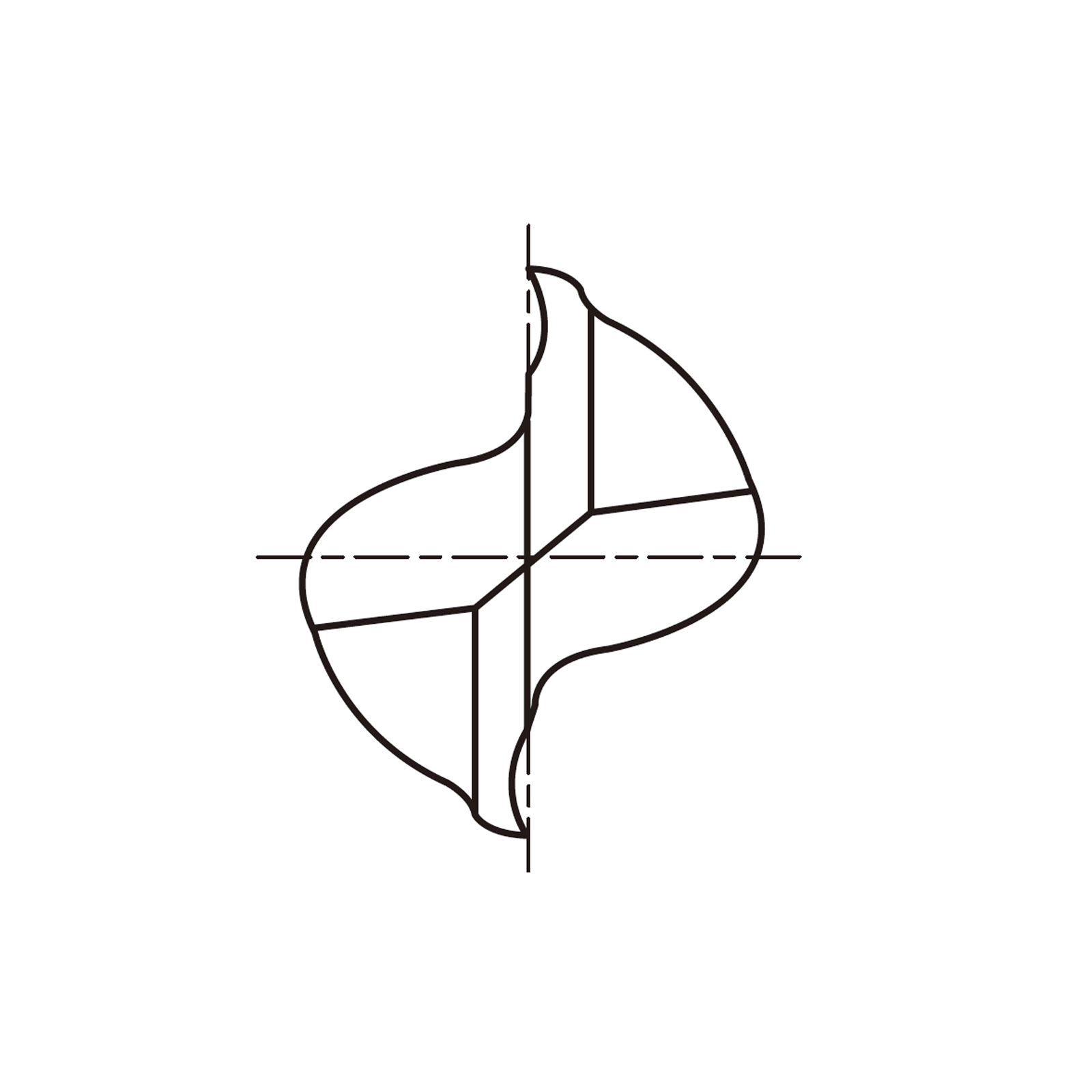

| Flutes | 2 |
| Neck Diameter (mm) | 4.85 |
| L3 | 30 |
| Substrate | Carbide |
| End Profile | Square |
| Shank Type | Plain |
| Applicable Materials | Steel, Hardened Steel |
| Performance | 5 |
| Coating Description | C Coating |
| Helix Angle | 35 Degree |
| Brand | YG-1 |
