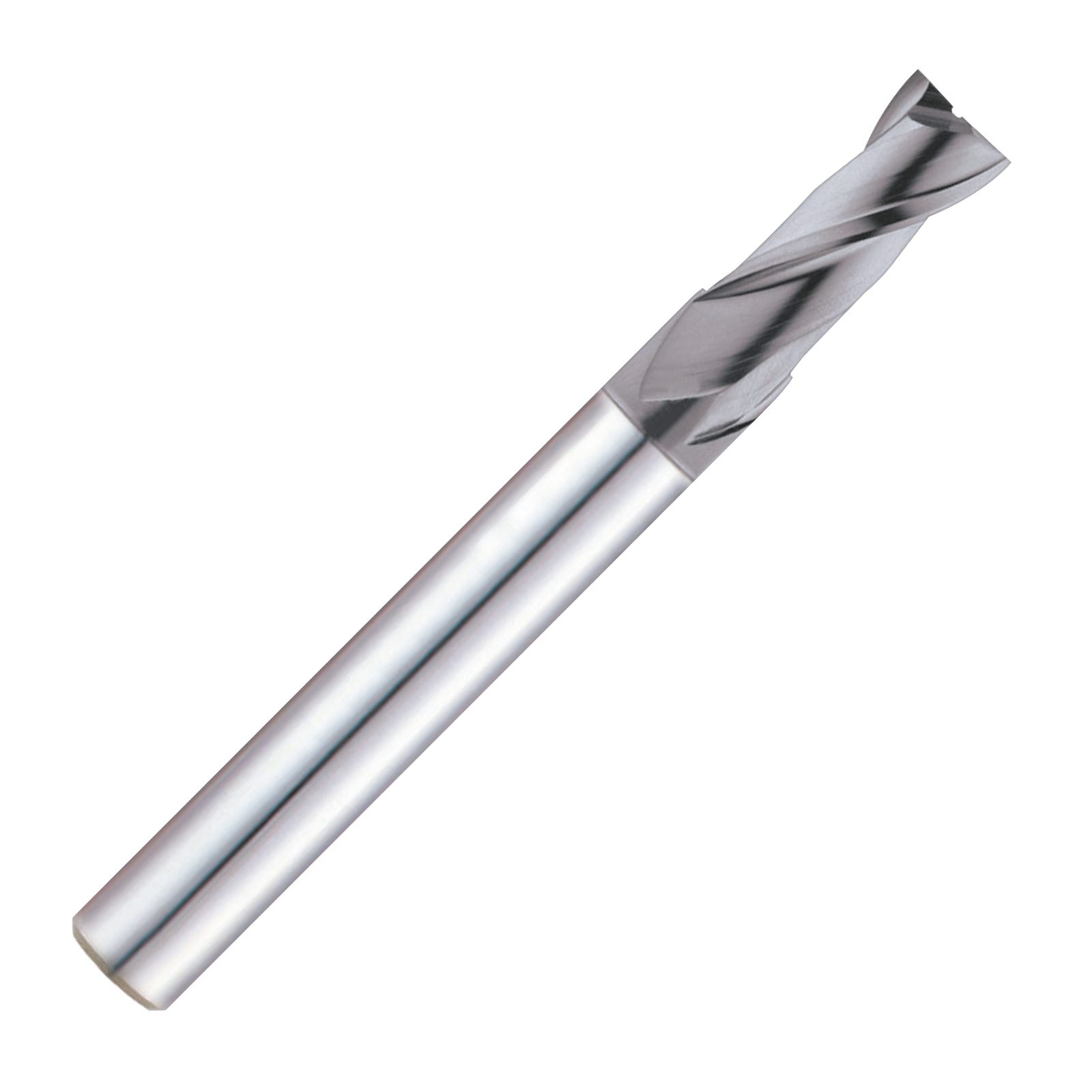

1mm 2 Flute CRX-S DLC Coated Nanograin Carbide Slot Drill - SGED31 (YG-1)
1mm 2 Flute CRX-S DLC Coated Nanograin Carbide Slot Drill - SGED31 (YG-1)

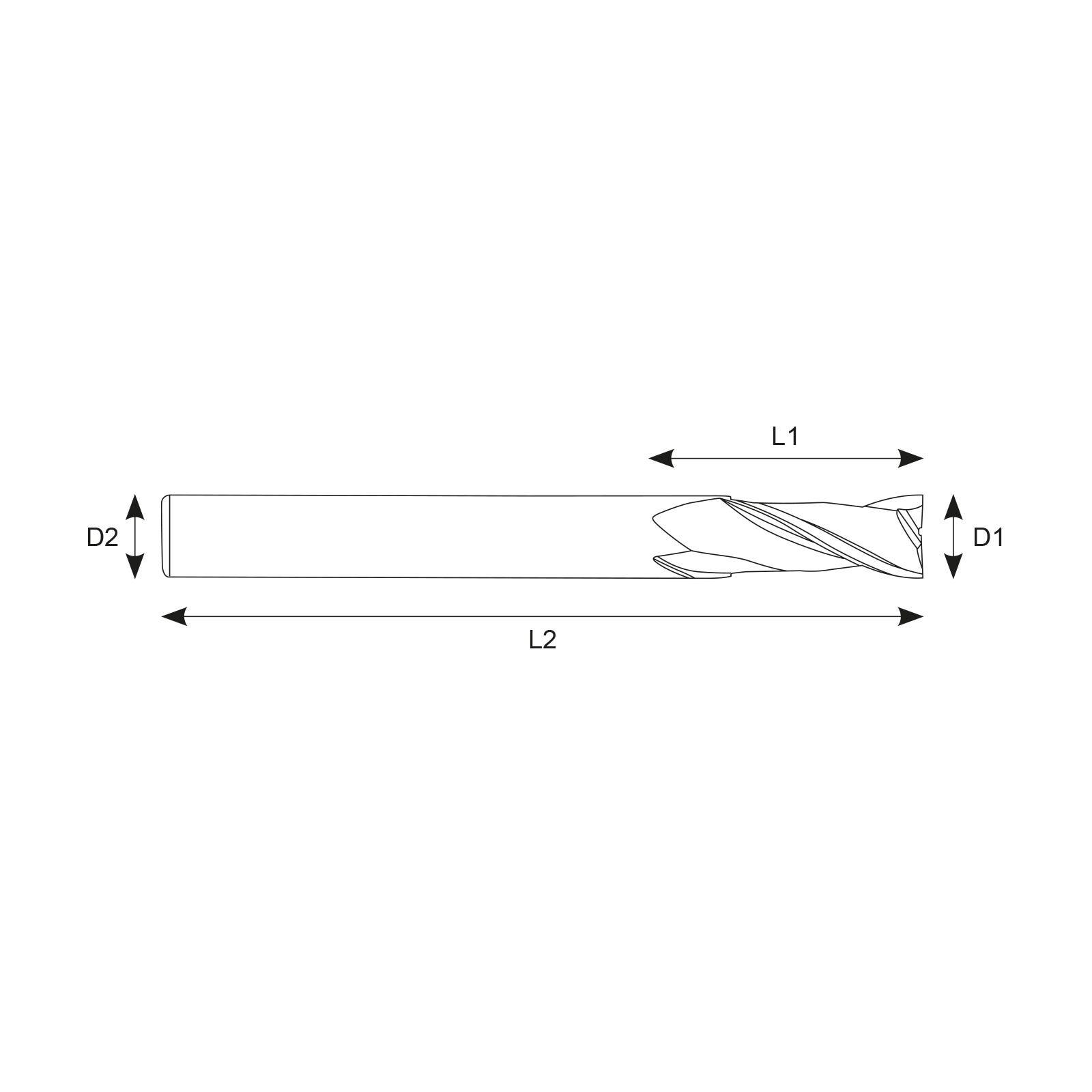

| Diameter (mm) | 1 |
|---|---|
| Overall Length (mm) | 50 |
| Flute Length (mm) | 2.5 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Nanograin Carbide Substrate
- Diamond-like Carbon coating with anti-adhesion properties
- Up to 4 times the tool life of TiAlN coated tools
- Excellent chip control on long chipping materials
- Self lubrication in dry wear conditions
- For high speed machining of copper, wrought aluminium, high silicon aluminium, abrasive plastics, soft graphite, carbon fibre and glass fibre
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | CRX-S Milling Cutters |
| Diameter (mm) | 1 |
| Shank (mm) | 6 |
| Flute Length (mm) | 2.5 |
| Overall Length (mm) | 50 |
| Flutes | 2 |
| Substrate | Carbide |
| Surface Treatment | Coated (DLC) |
| End Profile | Square |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Non-Ferrous |
| Helix Profile | Standard |
| Performance | 5 |
| Coating Description | Diamond-Like Carbon (DLC) Coated |
| Substrate Description | Nanograin Carbide |
| Helix Angle | 30° |
| Brand | YG-1 |
