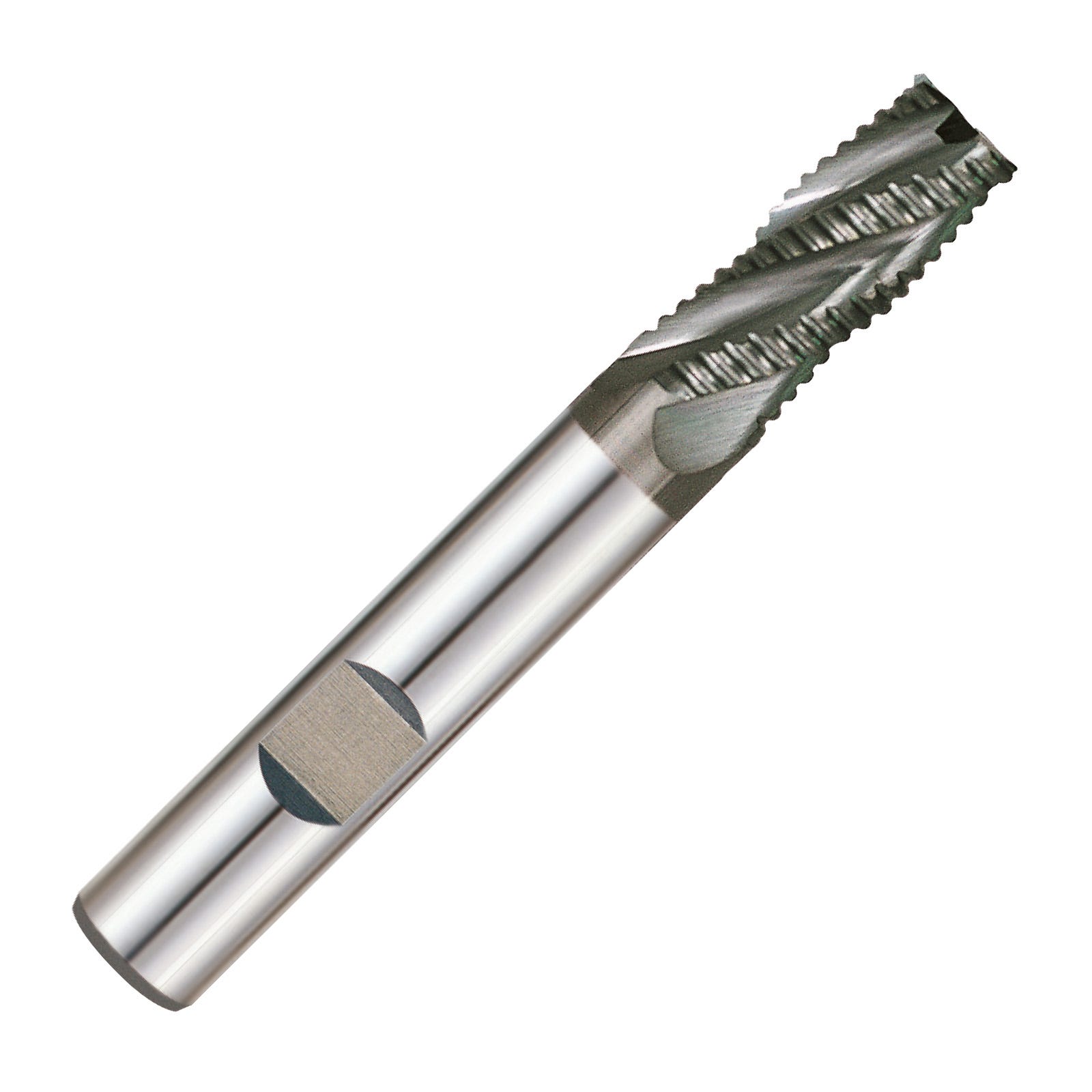

18mm 4 Flute K2 Coated Carbide Coarse Pitch Chamfer Prep Weldon Shank Ripper - G9A42 Series (YG-1)
18mm 4 Flute K2 Coated Carbide Coarse Pitch Chamfer Prep Weldon Shank Ripper - G9A42 Series (YG-1)

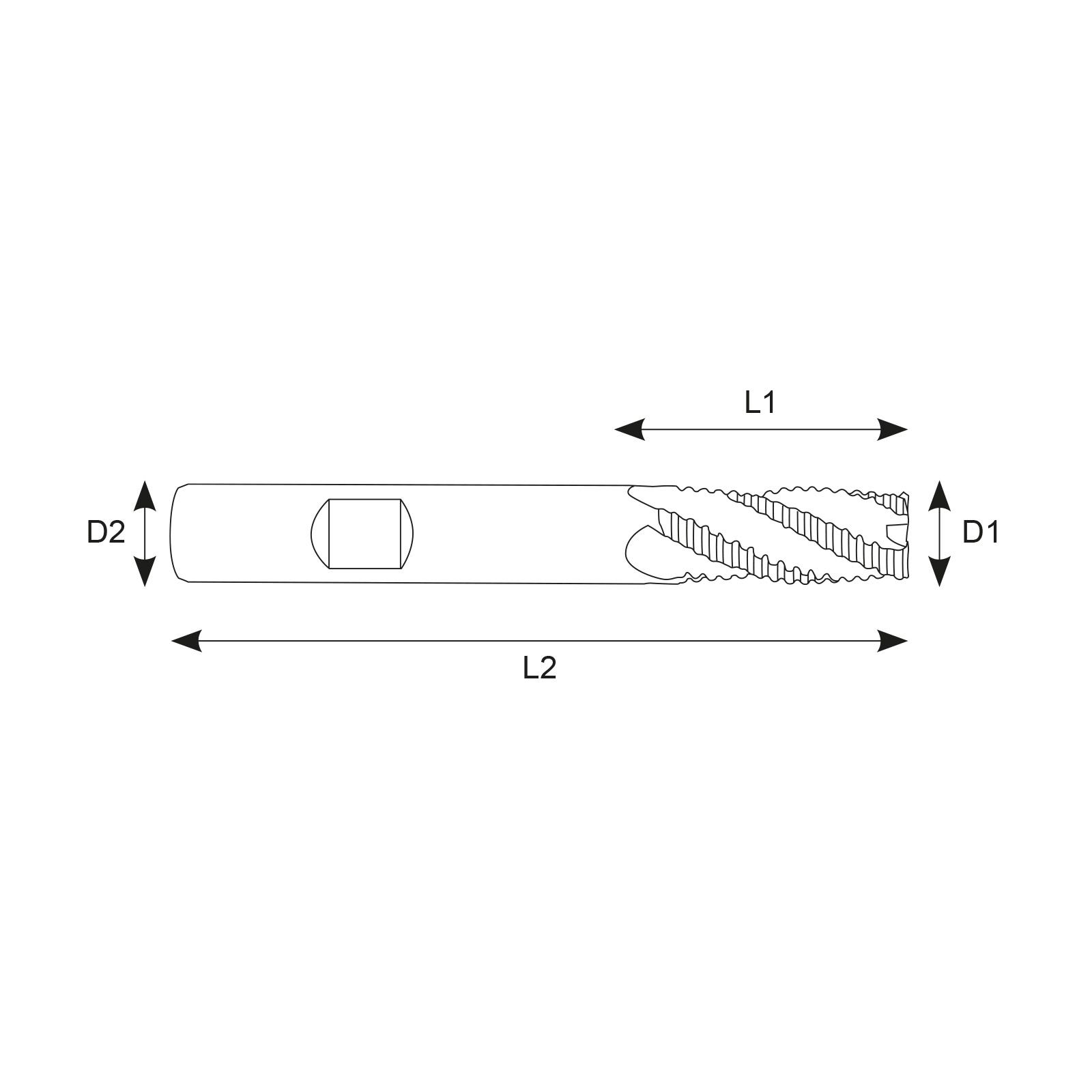

| Diameter (mm) | 18 |
|---|---|
| Overall Length (mm) | 92 |
| Flute Length (mm) | 32 |
| Shank (mm) | 18 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Ripper helix profile for high metal removal rates
- Chamfer prep for additional cutting edge protection
- Special K2 coating for longer tool life, high heat and wear resistance
- Dry cutting on steel can increase tool life up to 40%
- Also suitable for general milling of steel, stainless steel, cast iron & non-ferrous
- Consistent and reliable performance in general machining conditions
- Made from high-quality micrograin carbide.
- Manufactured by global market leader YG-1
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | K2 Carbide Milling Cutters |
| Diameter (mm) | 18 |
| Shank (mm) | 18 |
| Flute Length (mm) | 32 |
| Overall Length (mm) | 92 |
| Flutes | 4 |
| Chamfer Prep (mm) | 0.94 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Chamfer Prep |
| Flute Type | Standard |
| Shank Type | Weldon |
| Applicable Materials | Steel, Stainless Steel, Cast Iron |
| Helix Profile | Ripper (Coarse) |
| Performance | 3 |
| Coating Description | K2 Coated |
| Substrate Description | Micrograin Carbide |
| Helix Angle | 30° |
| Brand | YG-1 |
