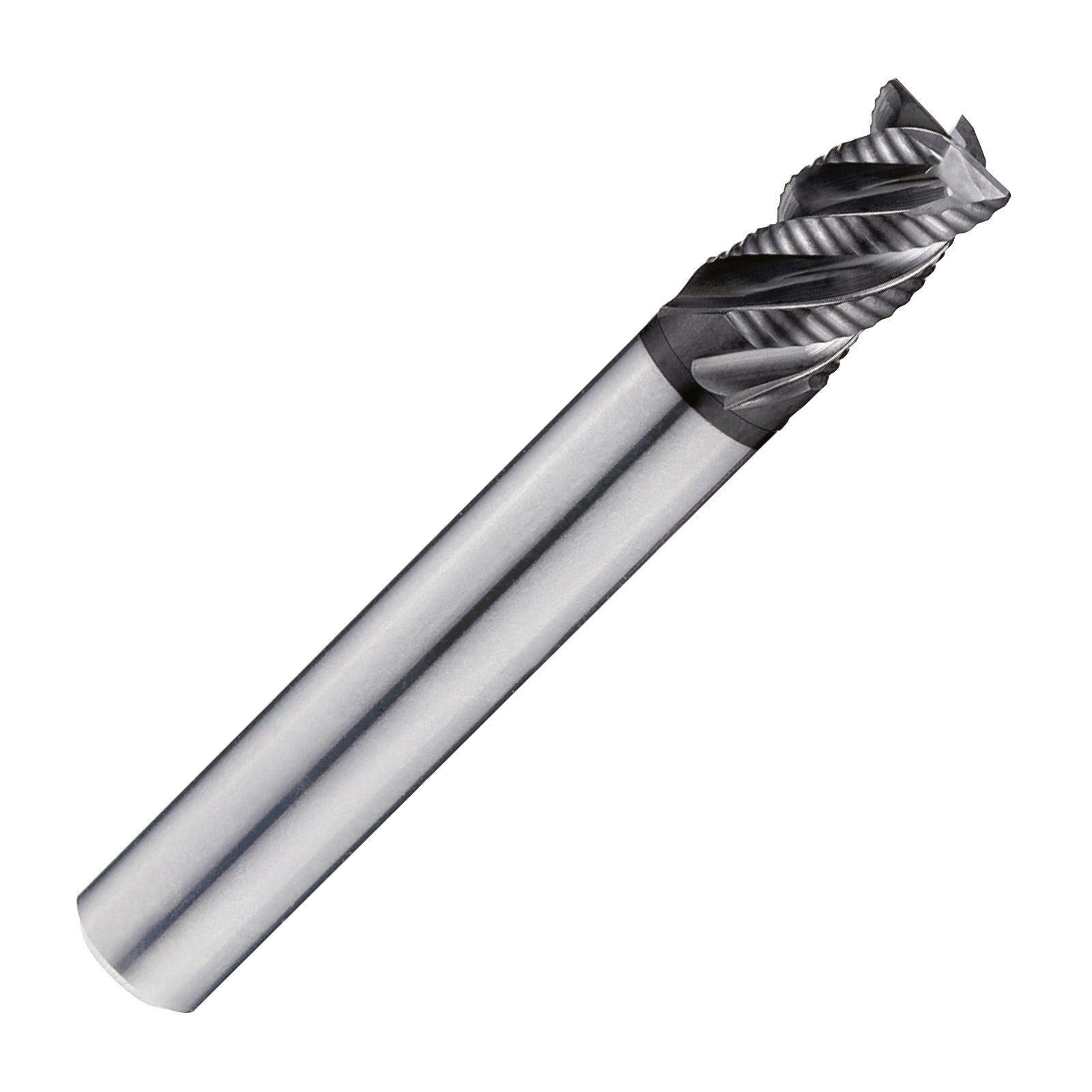

20mm x 1mm 5 Flute Long Length Coated Carbide Corner Radius Plain Shank X-Speed Rougher - Variable Pitch Ripper - G9D76 (YG-1)
20mm x 1mm 5 Flute Long Length Coated Carbide Corner Radius Plain Shank X-Speed Rougher - Variable Pitch Ripper - G9D76 (YG-1)

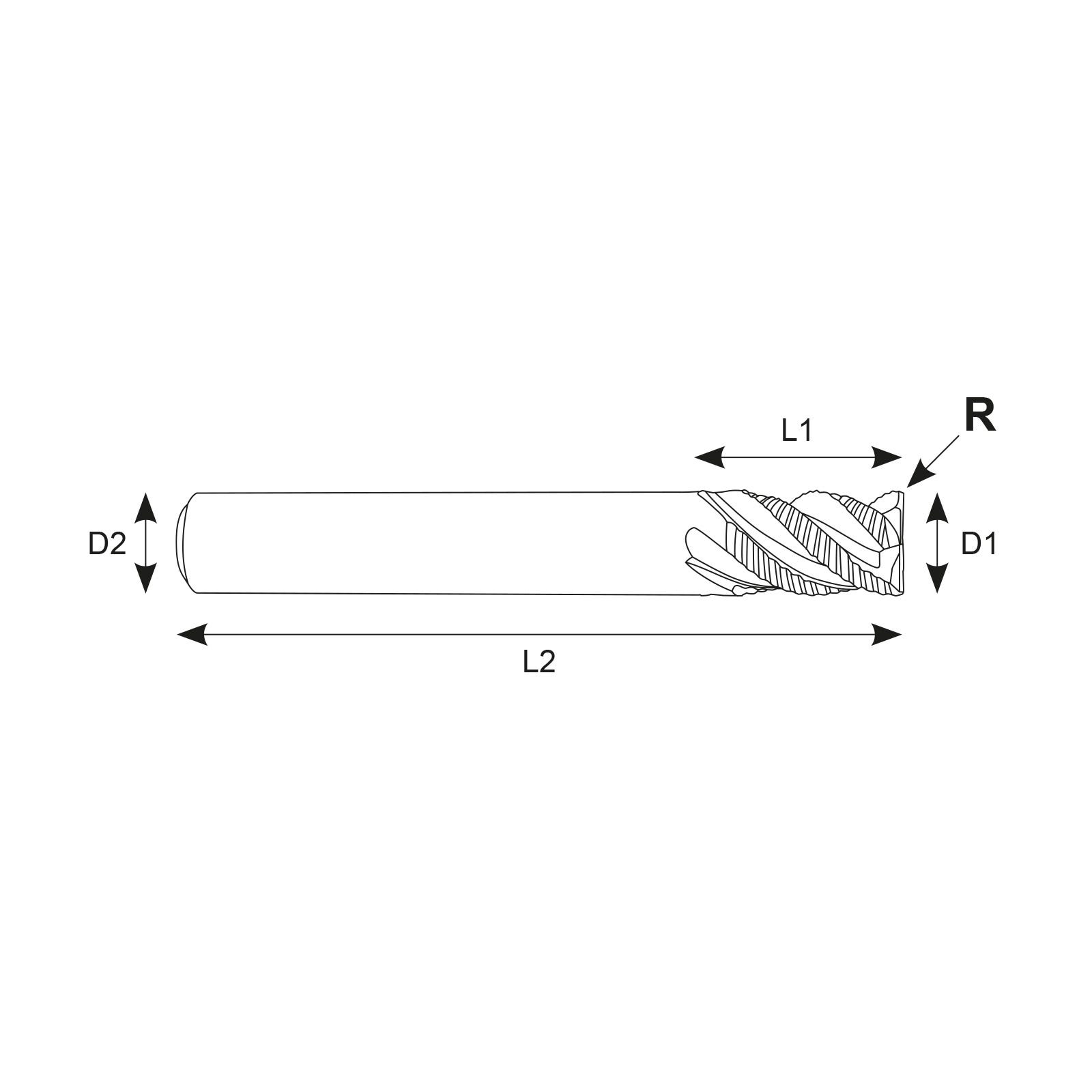

| Diameter (mm) | 20 |
|---|---|
| Overall Length (mm) | 104 |
| Flute Length (mm) | 40 |
| Shank (mm) | 20 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Micrograin carbide with special high heat resistant X1100 coating
- Carbide substrate: Number 1 for extreme heavy roughing of steels and pre-hardened steels
- HPC (High performance cutting)
- Special variable pitch profile reduces cutting force and stress on your machine spindle at high feed rates & large depth of cut
- Strong end tooth design for ramping and pocket milling
- Recommended for use with high performance holder for best tool life & rigidity
- Combination of variable helix and variable pitch eliminates vibration in the most aggressive machining applications
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | X-Speed Rougher Milling Cutters |
| Diameter (mm) | 20 |
| Shank (mm) | 20 |
| Radius | 1 |
| Flute Length (mm) | 40 |
| Overall Length (mm) | 104 |
| Flutes | 5 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Corner Radius |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Steel, Hardened Steel, Cast Iron |
| Helix Profile | Multiple Helix |
| Performance | 5 |
| Coating Description | X1100 Coated |
| Substrate Description | Micrograin Carbide |
| Helix Angle | Multiple Helix |
| Brand | YG-1 |
