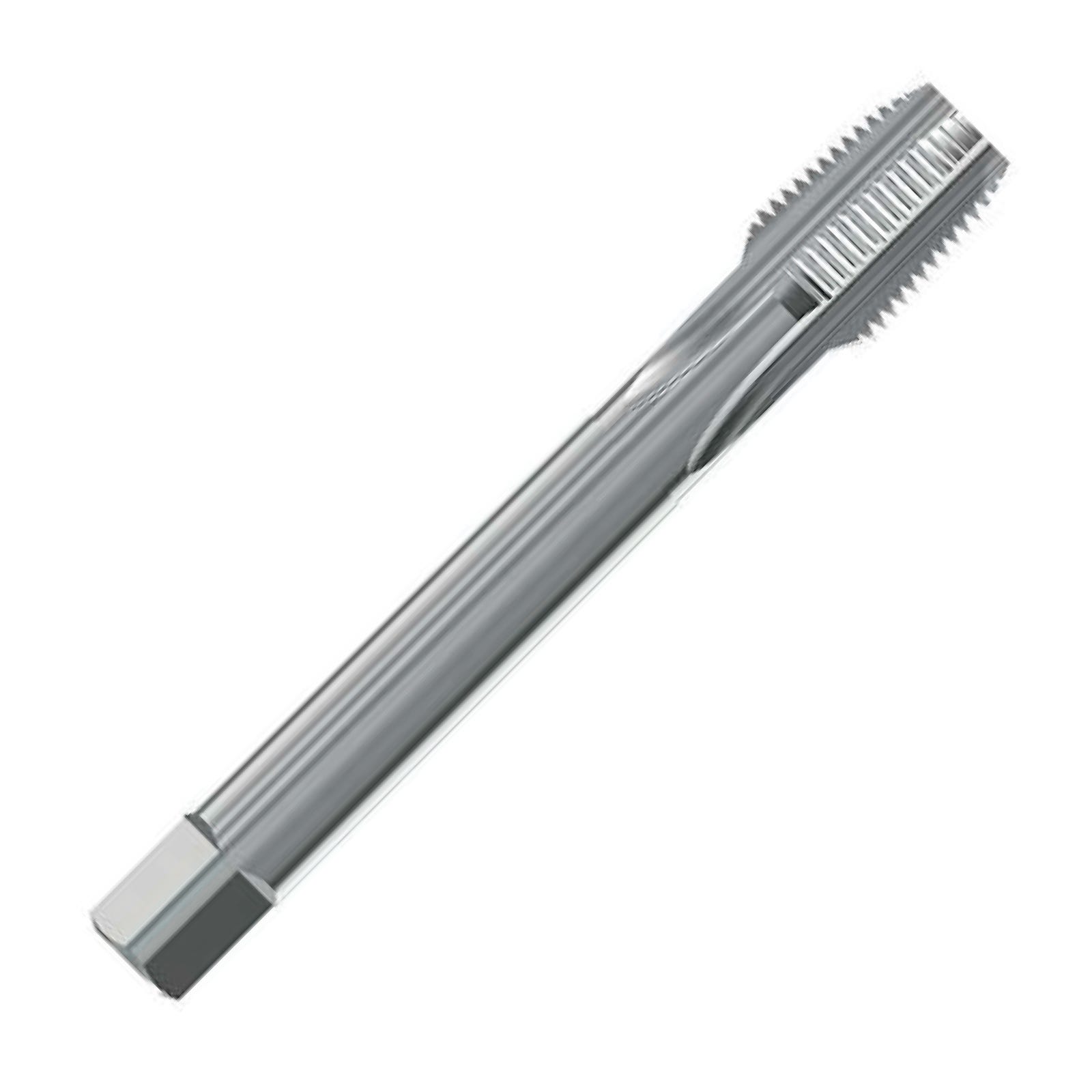

NPT HSS 5% Cobalt Universal Machine Tap - E21LNPT Series (UFS)
NPT HSS 5% Cobalt Universal Machine Tap - E21LNPT Series (UFS)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
TPI
|
Drill Diameter
|
Square
|
||||
|---|---|---|---|---|---|---|---|---|---|
| Shank (mm): 6 | Flute Length (mm): 13 | Overall Length (mm): 90 | TPI: 27 | Drill Diameter: 6.2 | Square: 4.9 |
In stock
|
£47.70
£39.75
|
|
|
| Shank (mm): 7 | Flute Length (mm): 13 | Overall Length (mm): 90 | TPI: 27 | Drill Diameter: 8.5 | Square: 5.5 |
10 days*
|
£47.70
£39.75
|
|
|
| Shank (mm): 11 | Flute Length (mm): 20 | Overall Length (mm): 100 | TPI: 18 | Drill Diameter: 11 | Square: 9 |
In stock
|
£54.83
£45.69
|
|
|
| Shank (mm): 12 | Flute Length (mm): 20 | Overall Length (mm): 110 | TPI: 18 | Drill Diameter: 14.5 | Square: 9 |
In stock
|
£68.51
£57.09
|
|
|
| Shank (mm): 16 | Flute Length (mm): 26 | Overall Length (mm): 125 | TPI: 14 | Drill Diameter: 17.9 | Square: 12 |
In stock
|
£88.28
£73.57
|
|
|
| Shank (mm): 20 | Flute Length (mm): 26 | Overall Length (mm): 140 | TPI: 14 | Drill Diameter: 23.2 | Square: 16 |
In stock
|
£139.10
£115.92
|
|
|
| Shank (mm): 25 | Flute Length (mm): 32 | Overall Length (mm): 160 | TPI: 11.5 | Drill Diameter: 29 | Square: 20 |
9 days*
|
£193.79
£161.49
|
|
|
| Shank (mm): 32 | Flute Length (mm): 32 | Overall Length (mm): 160 | TPI: 11.5 | Drill Diameter: 37.8 | Square: 24 |
9 days*
|
£327.35
£272.79
|
|
|
| Shank (mm): 36 | Flute Length (mm): 32 | Overall Length (mm): 190 | TPI: 11.5 | Drill Diameter: 44 | Square: 29 |
9 days*
|
£428.41
£357.01
|
|
|
| Shank (mm): 45 | Flute Length (mm): 36 | Overall Length (mm): 200 | TPI: 11.5 | Drill Diameter: 56 | Square: 35 |
9 days*
|
£581.52
£484.60
|
|
Product Information
Features & Benefits
- NPT Universal Machine Tap
- HSS 5% Cobalt Substrate
- For General Purpose Tapping of Low-Medium Hardness Steels, Cast Iron, Aluminium, Copper & Brass
- Bright finish prevents swarf sticking to the tap flutes
- geometry for blind & through holes
- Long shank design for reaching into deep holes
Specification
| Category | Threading |
|---|---|
| Substrate | HSS |
| Surface Treatment | Uncoated |
| Helix Angle | 60° |
| Coating Description | Bright finish |
| Substrate Description | HSS 5% Cobalt |
| Performance | 3 |
| Applicable Materials | Steel, Cast Iron, Non-Ferrous |
| Thread Form | NPT (National Pipe Taper) |
| Oil Grooves | No |
| Flute Geometry | Straight Flute |
