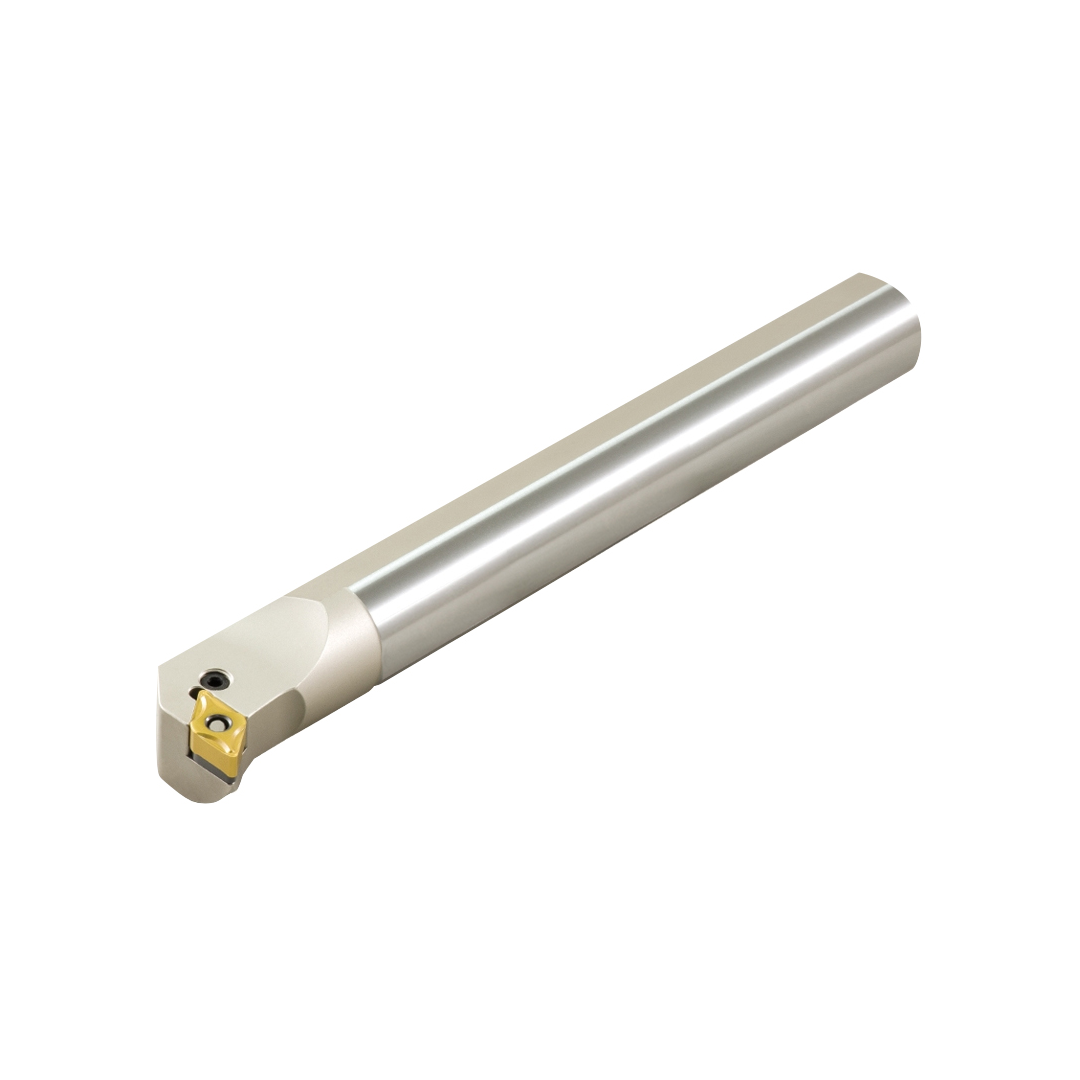

A50U-PDUNR15 50mm Steel Shank Boring Bar, Through Coolant, Right Hand, for DNMG1506 Inserts, 93 Degree Approach, Lever Lock (YG-1)
A50U-PDUNR15 50mm Steel Shank Boring Bar, Through Coolant, Right Hand, for DNMG1506 Inserts, 93 Degree Approach, Lever Lock (YG-1)
| Overall Length (mm) | 350 |
|---|---|
| Shank (mm) | 50 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Through coolant boring bar prolongs tool life by directing coolant right to the cutting edge whilst also assisting with swarf evacuation

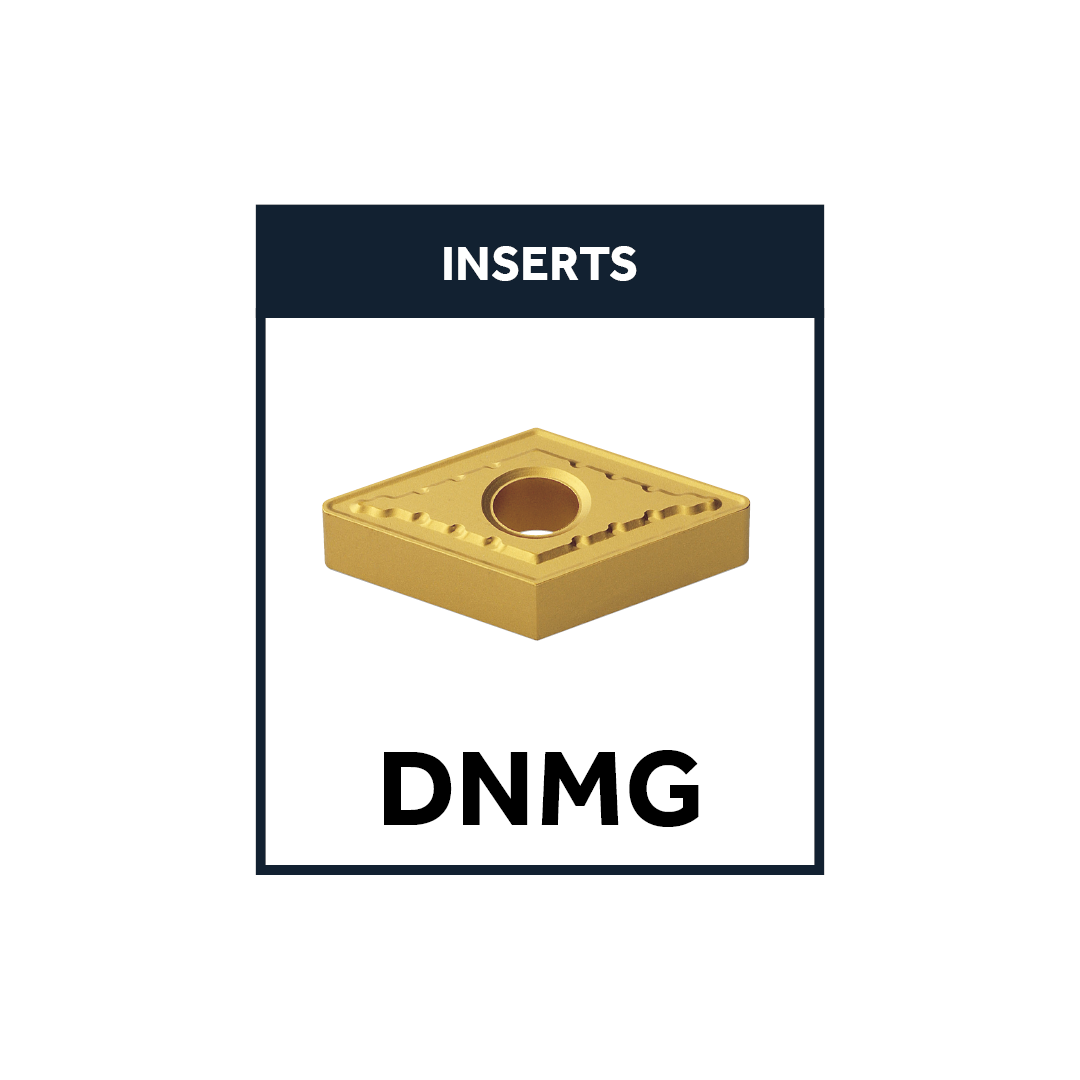

- Suitable for use with DNMG style turning inserts (also suitable for DNMA, DNMM, DNGA, DNGG etc)

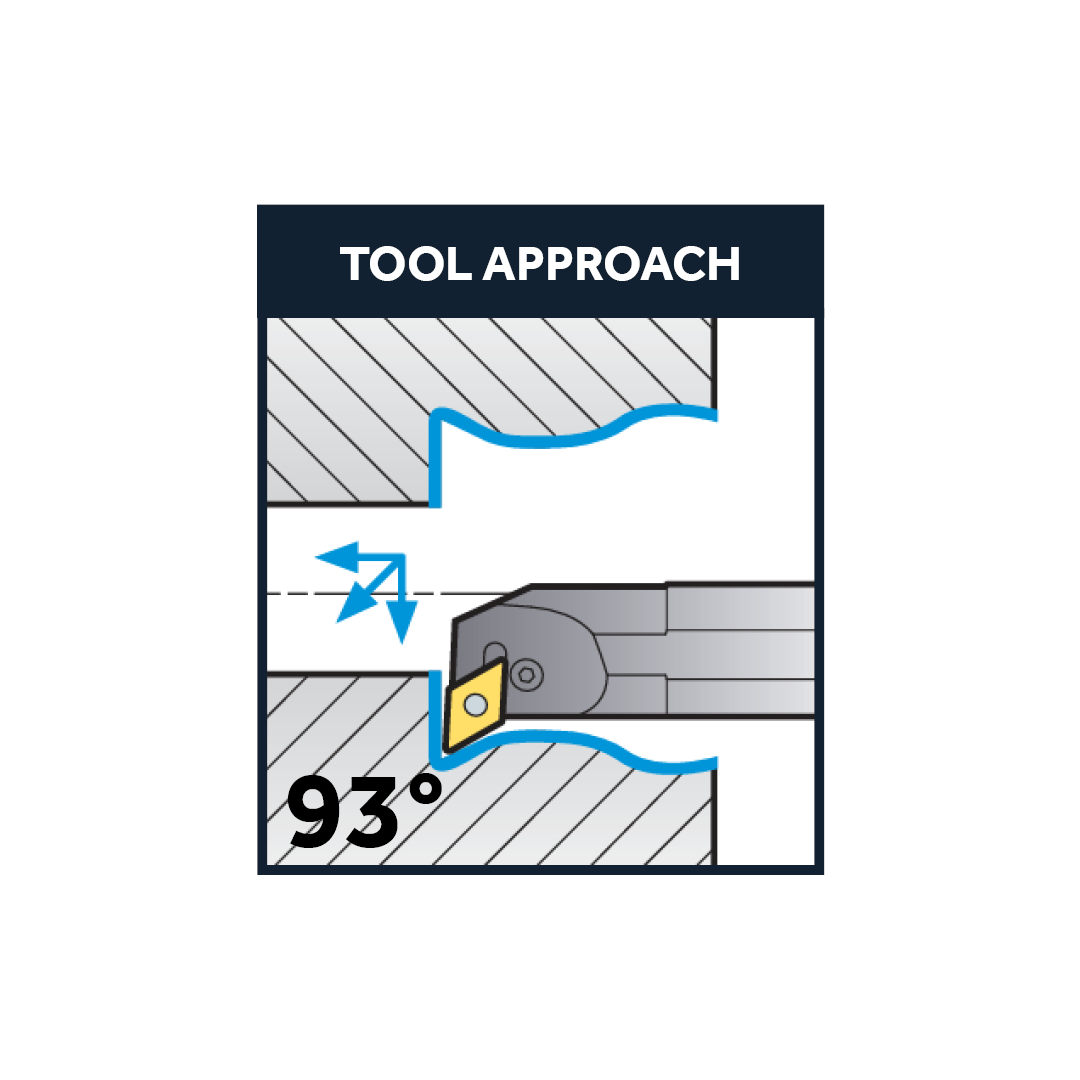

- General purpose through coolant steel shank boring bar with 93 degree approach angle
- Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
- For the best performance it is recommended to clamp on a 1/3 of the bar's length, as a minimum.
- Made by YG-1, a global market leading manufacturer of cutting tools
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Boring Bars |
| Sub Category 2 | Through Coolant Steel Shank Boring Bars |

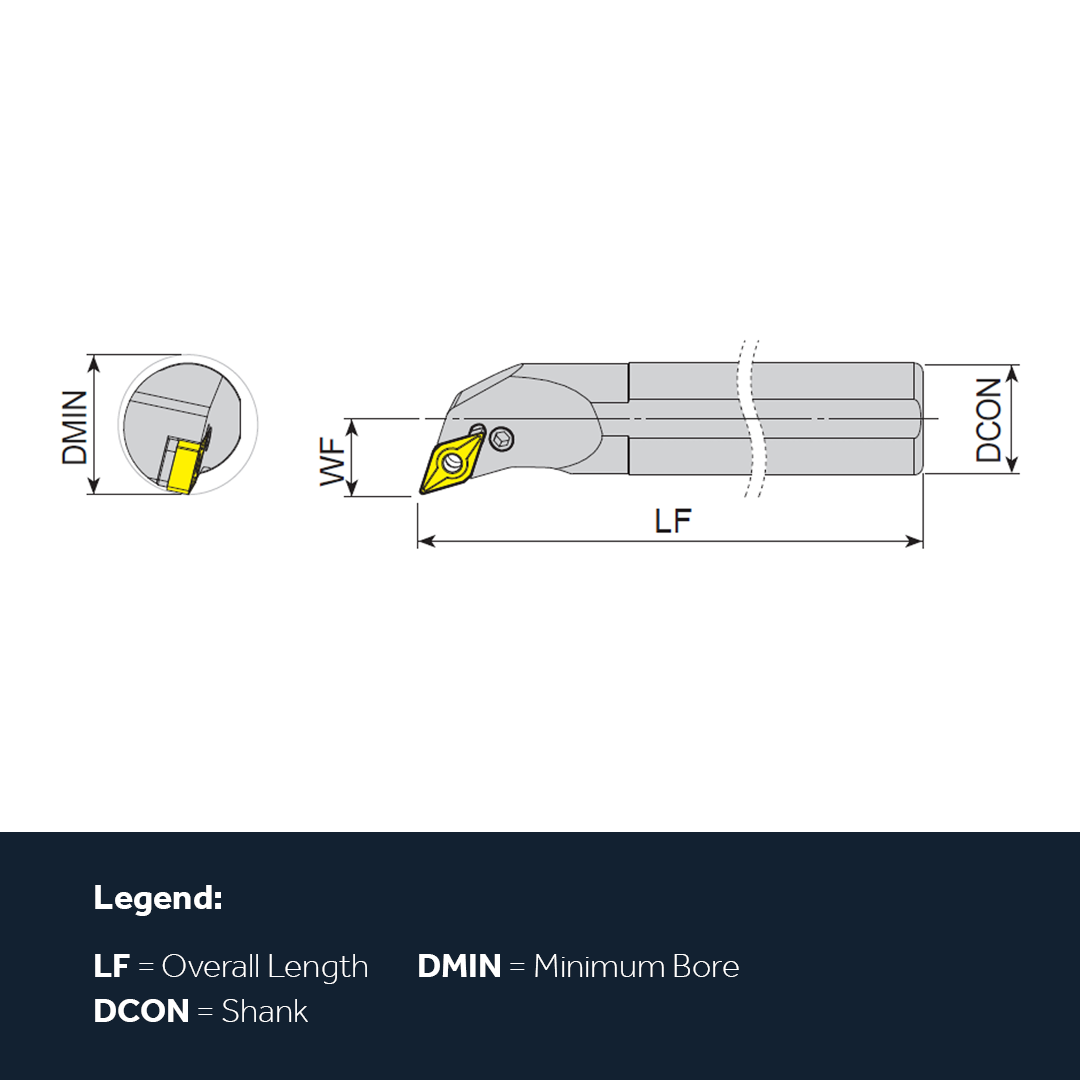

| Shank (mm) | 50 |
| Overall Length (mm) | 350 |
| Inserts | DN**1506 |
| ISO Code | A50U-PDUNR15 |
| Min Bore | 63 |
| Hand | Right |
| Alternative Part Number | A50U-PDUNR15 |
| Shim | YAADN-3-0001 |
| Lever | YAPL-03 |
| Insert Series | DNMG |
| Through Coolant | Yes |
| Angle | 93° |
| Holder Material | Steel |
| Holder Style | PDUNR/L |
| Clamp Type | Lever Lock |
| Brand | YG-1 |
