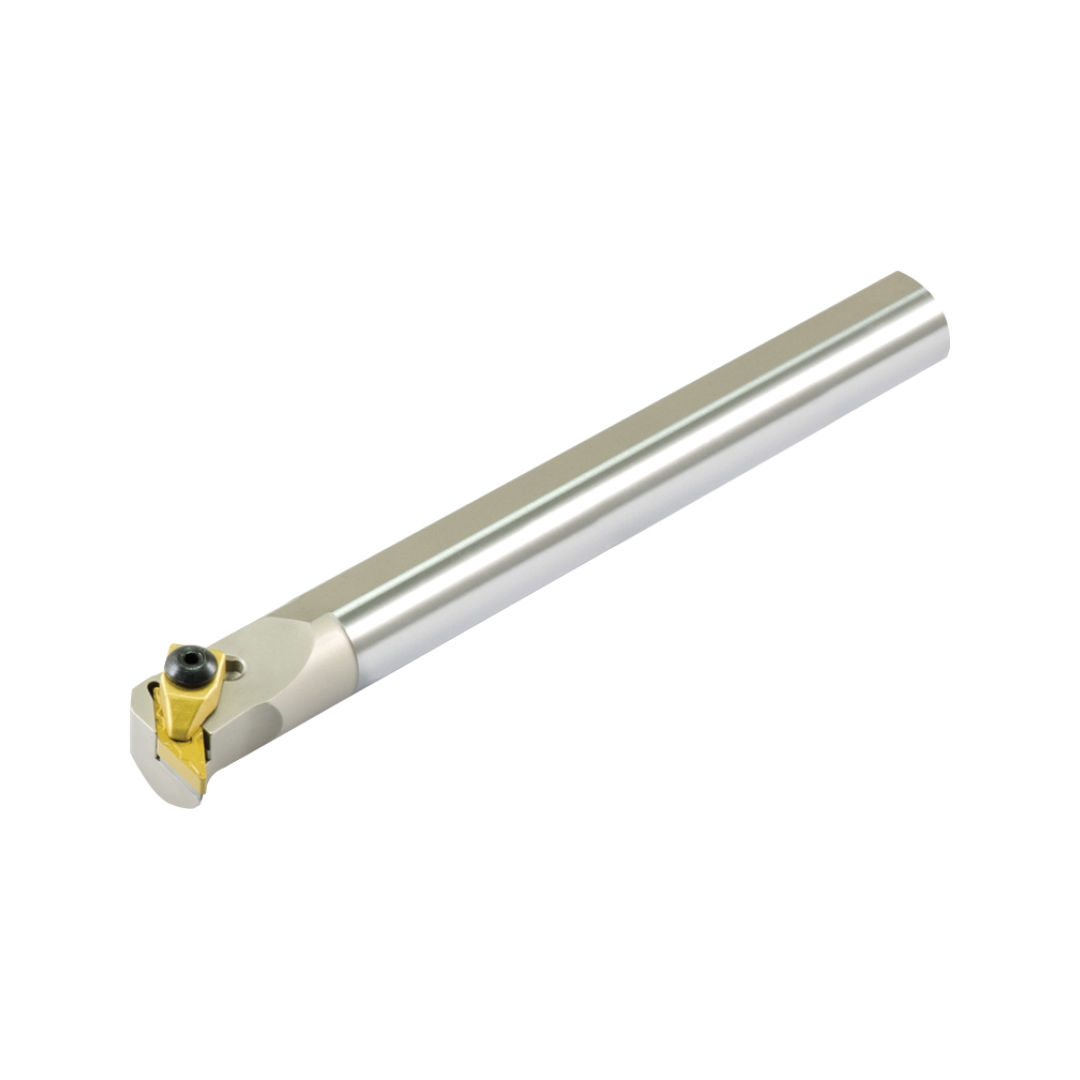

S25S-TVUNR16 25mm Steel Shank Boring Bar, Right Hand, for VNMG16 Inserts, 93 Degree Approach, Hole Clamp (YG-1)
S25S-TVUNR16 25mm Steel Shank Boring Bar, Right Hand, for VNMG16 Inserts, 93 Degree Approach, Hole Clamp (YG-1)
| Overall Length (mm) | 250 |
|---|---|
| Shank (mm) | 25 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

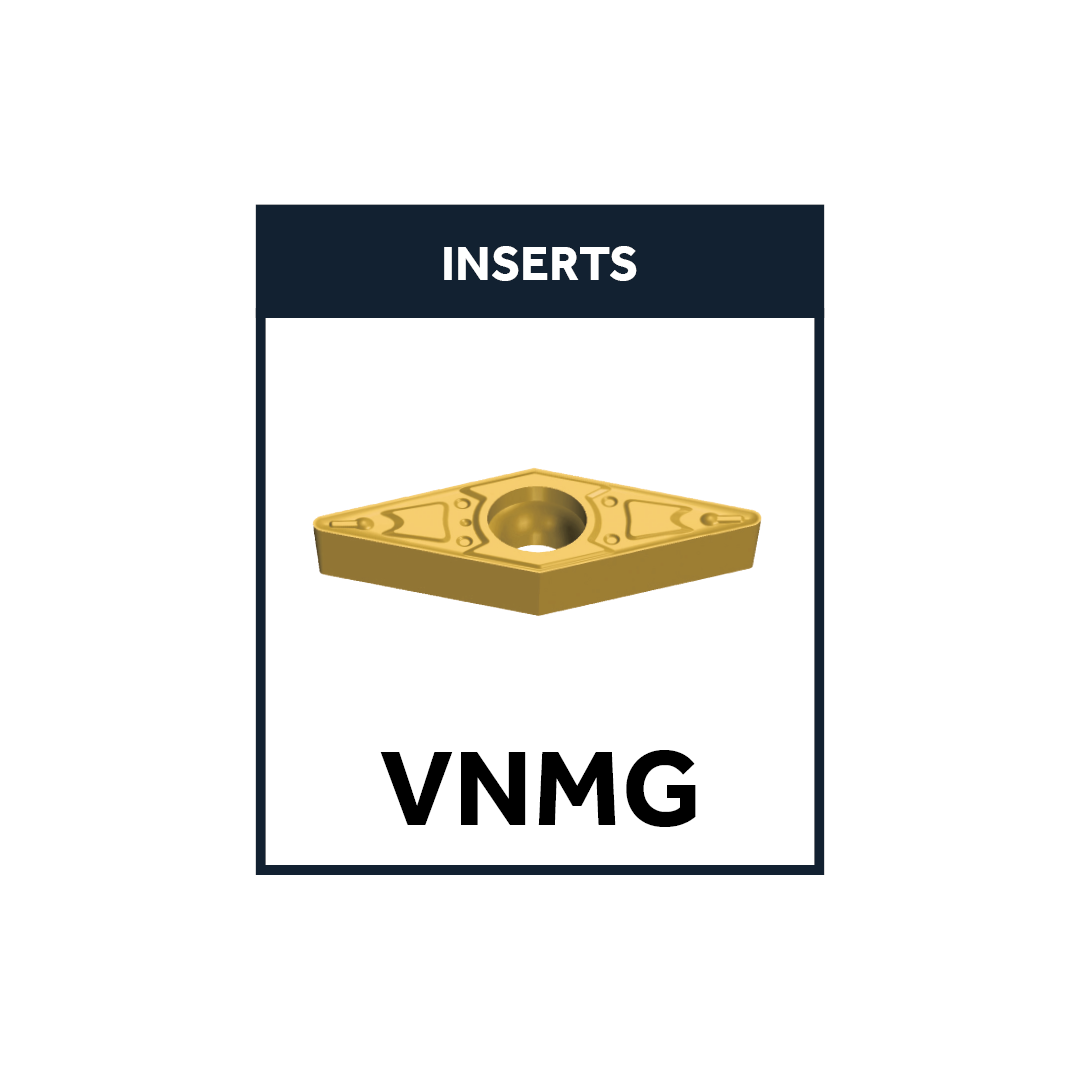

- Suitable for use with VNMG style turning inserts (also suitable for VNMA, VNMM, VNGA, VNGG etc)

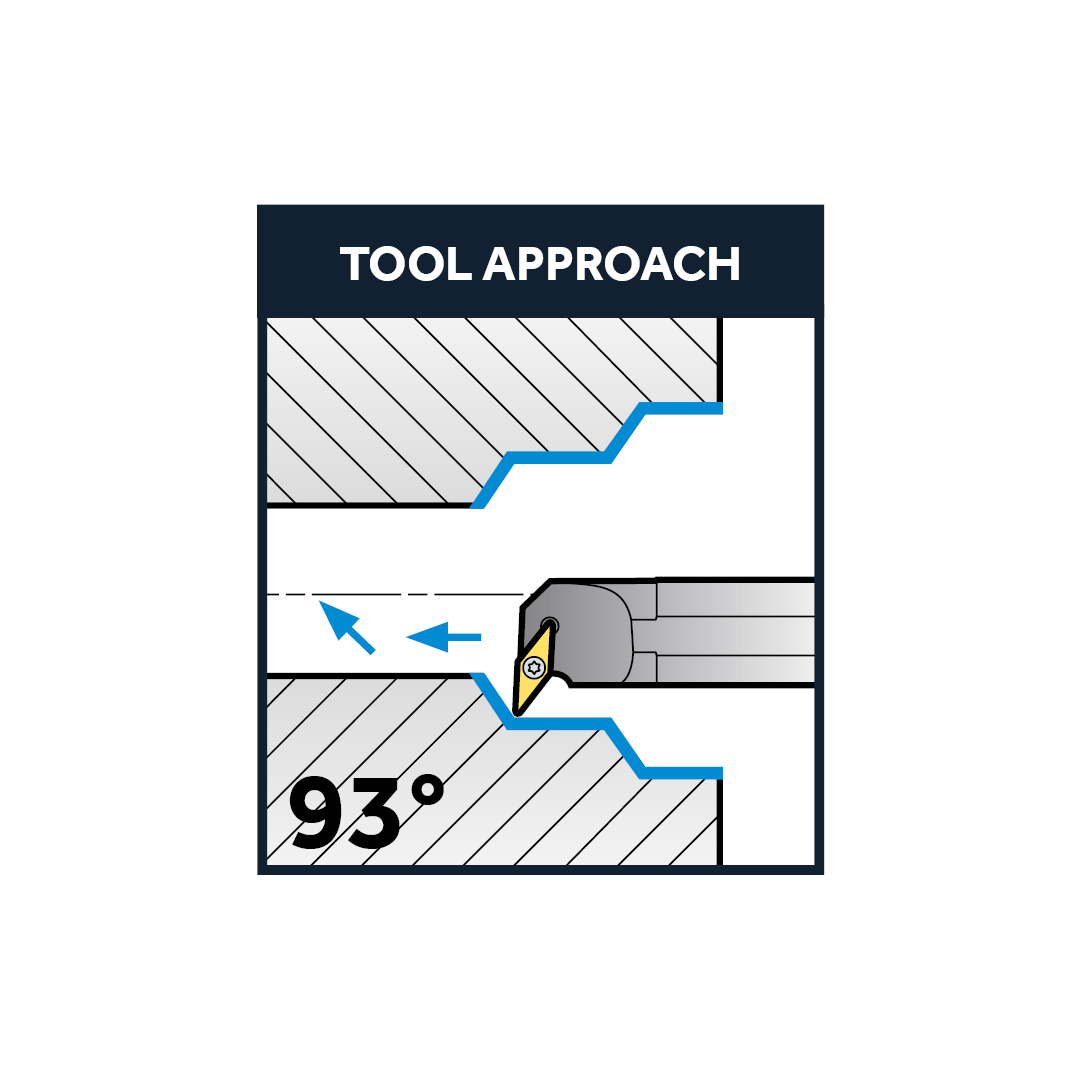

- General purpose solid steel shank boring bars with boring bar with 93 degree approach angle
- Hole clamp style clamping system
- For the best performance it is recommended to clamp on a 1/3 of the bar's length, as a minimum.
- Made by YG-1, a global market leading manufacturer of cutting tools
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Boring Bars |
| Sub Category 2 | Solid Steel Shank Boring Bars |
| Shank (mm) | 25 |
| Overall Length (mm) | 250 |
| Inserts | VN**16 |
| ISO Code | S25S-TVUNR16 |
| Min Bore | 32 |
| Hand | Right |
| Alternative Part Number | S25S-TVUNR16 |
| Shim | YAAVN-2-0002 |
| Shim Screw | YAAV-04-M5x12 |
| Clamp Screw | YAKV-01-M5x22 |
| Clamp | YATK-01 |
| Insert Series | VNMG |
| Through Coolant | No |
| Angle | 93° |
| Holder Material | Steel |
| Holder Style | TVUNR/L |
| Clamp Type | Hole Clamp |
| Brand | YG-1 |
Application
