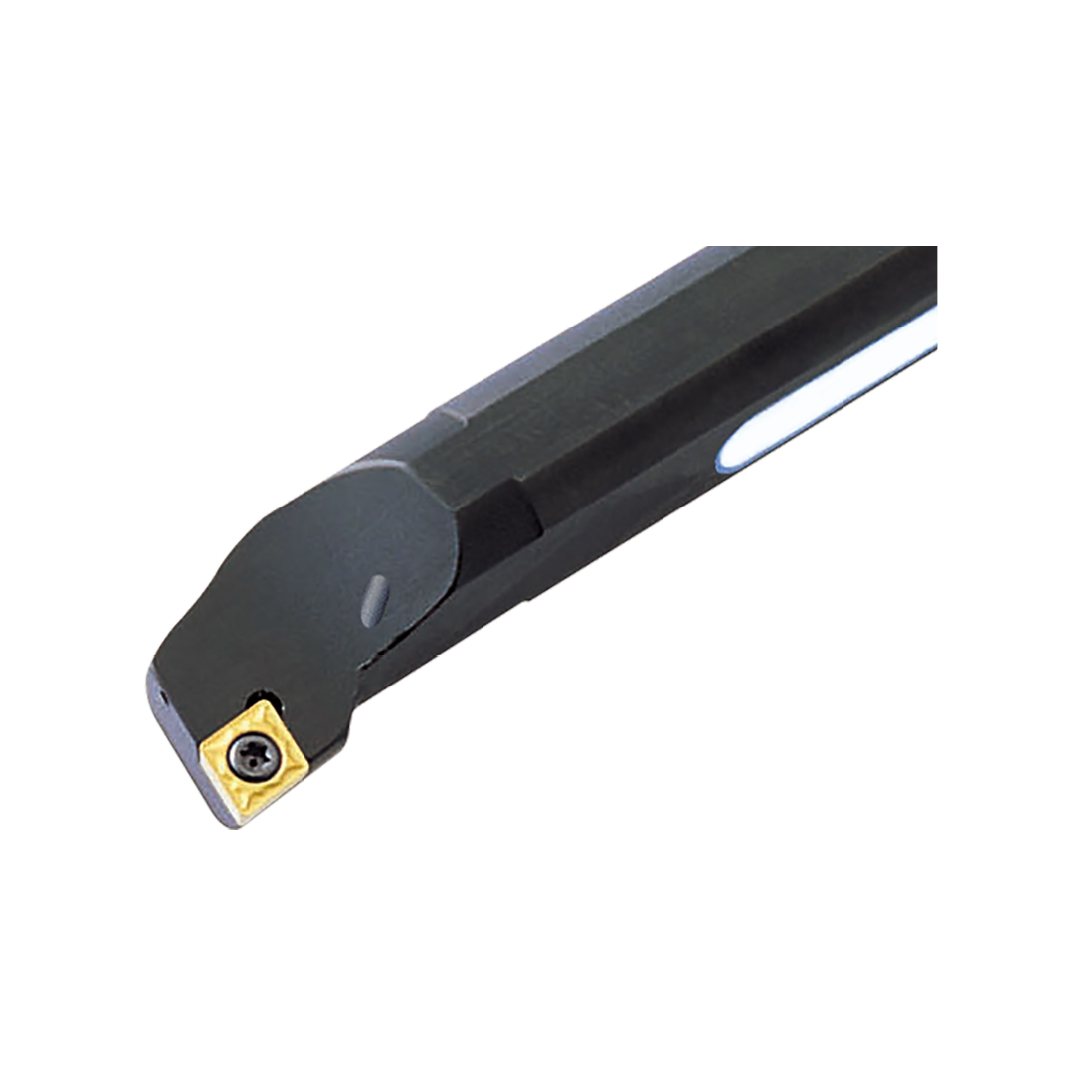

S10J-SCLCR-0408 10mm Steel Shank Compact Mini Boring Bar, Right Hand, for CCET04-R Inserts, 95 Degree Approach, Screw On Clamp (Korloy)
S10J-SCLCR-0408 10mm Steel Shank Compact Mini Boring Bar, Right Hand, for CCET04-R Inserts, 95 Degree Approach, Screw On Clamp (Korloy)
| Overall Length (mm) | 110 |
|---|---|
| Shank (mm) | 10 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Suitable for use with CCMT style turning inserts (also suitable for CCGT, CCGW, CCET, CCHT etc

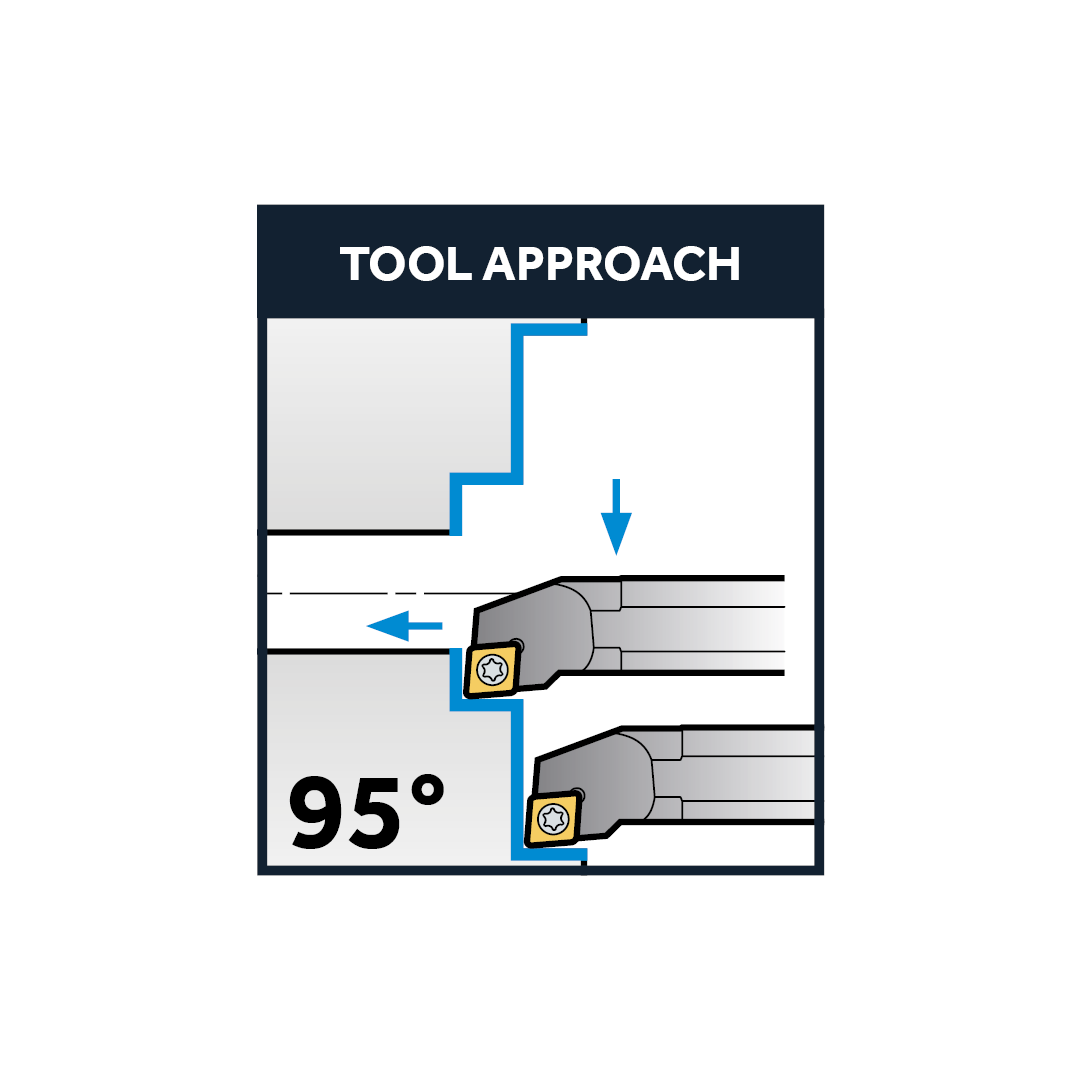

- High quality solid steel shank compact mini boring bar with 95 degree approach angle
- Screw on clamping system for simple changeover with wrench and screw
- Made by Korloy from a high grade steel for the highest accuracy and rigidity. For the best performance it is recommended to clamp on a 1/3 of the bar's length, as a minimum.
- Korloy are South Korea's leading manufacturer of high quality indexable tooling
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Boring Bars |
| Sub Category 2 | Solid Steel Shank Boring Bars |
| Shank (mm) | 10 |
| Overall Length (mm) | 110 |
| Reach (mm) | 30 |
| Inserts | CCET04 R |
| ISO Code | S10J-SCLCR-0408 |
| Min Bore | 8 |
| Hand | Right |
| Alternative Part Number | S10J-SCLCR-0408 |
| Screw | FTNA0238 |
| Insert Series | CCET |
| Through Coolant | No |
| Angle | 95° |
| Holder Material | Steel |
| Holder Style | SCLCR/L |
| Clamp Type | Screw On Clamp |
| Brand | Korloy |
