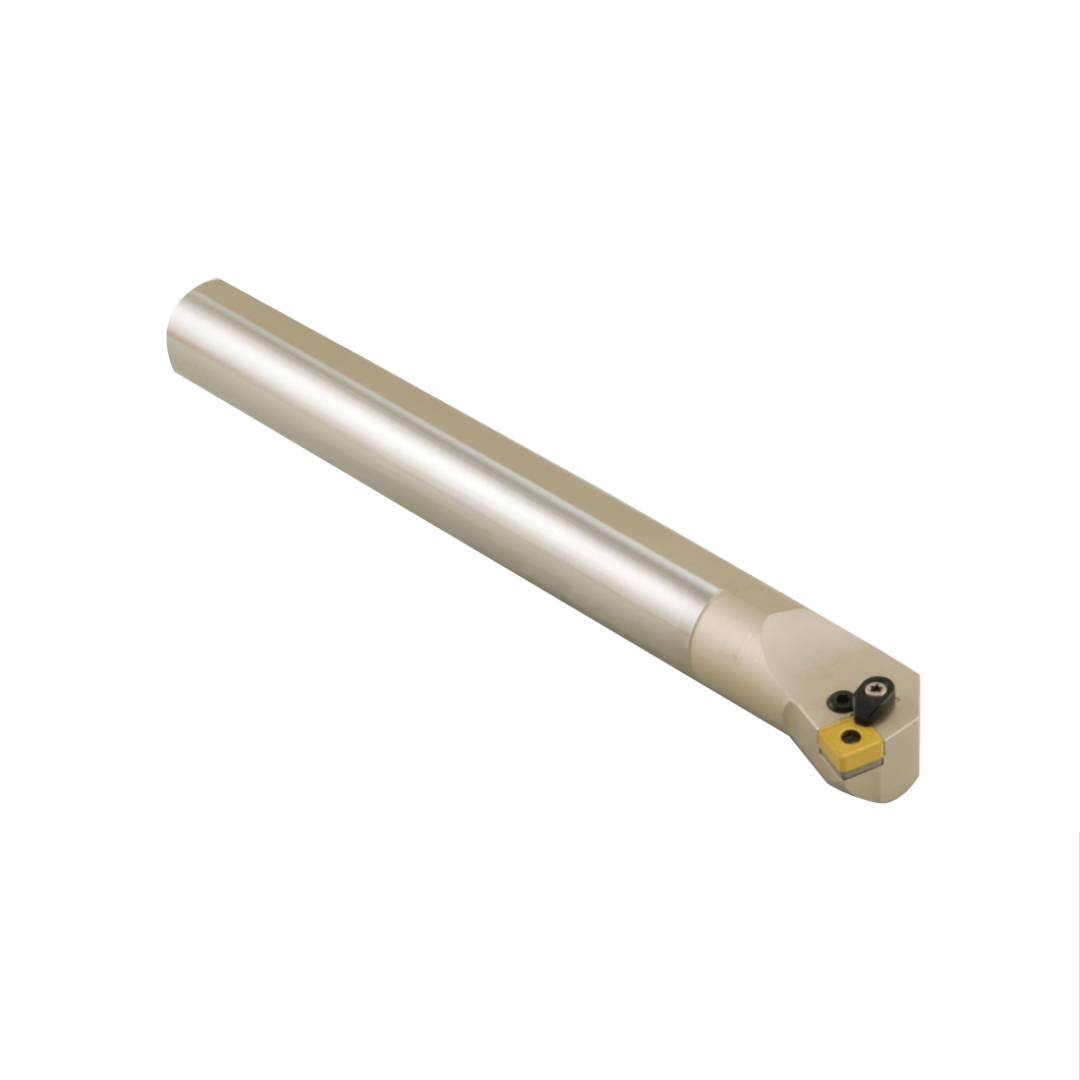

S25S-PSKNL12C 25mm Steel Shank Boring Bar, Left Hand, for SNMG12 Inserts, 75 Degree Approach, Lever Lock (YG-1)
S25S-PSKNL12C 25mm Steel Shank Boring Bar, Left Hand, for SNMG12 Inserts, 75 Degree Approach, Lever Lock (YG-1)
| Overall Length (mm) | 250 |
|---|---|
| Shank (mm) | 25 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

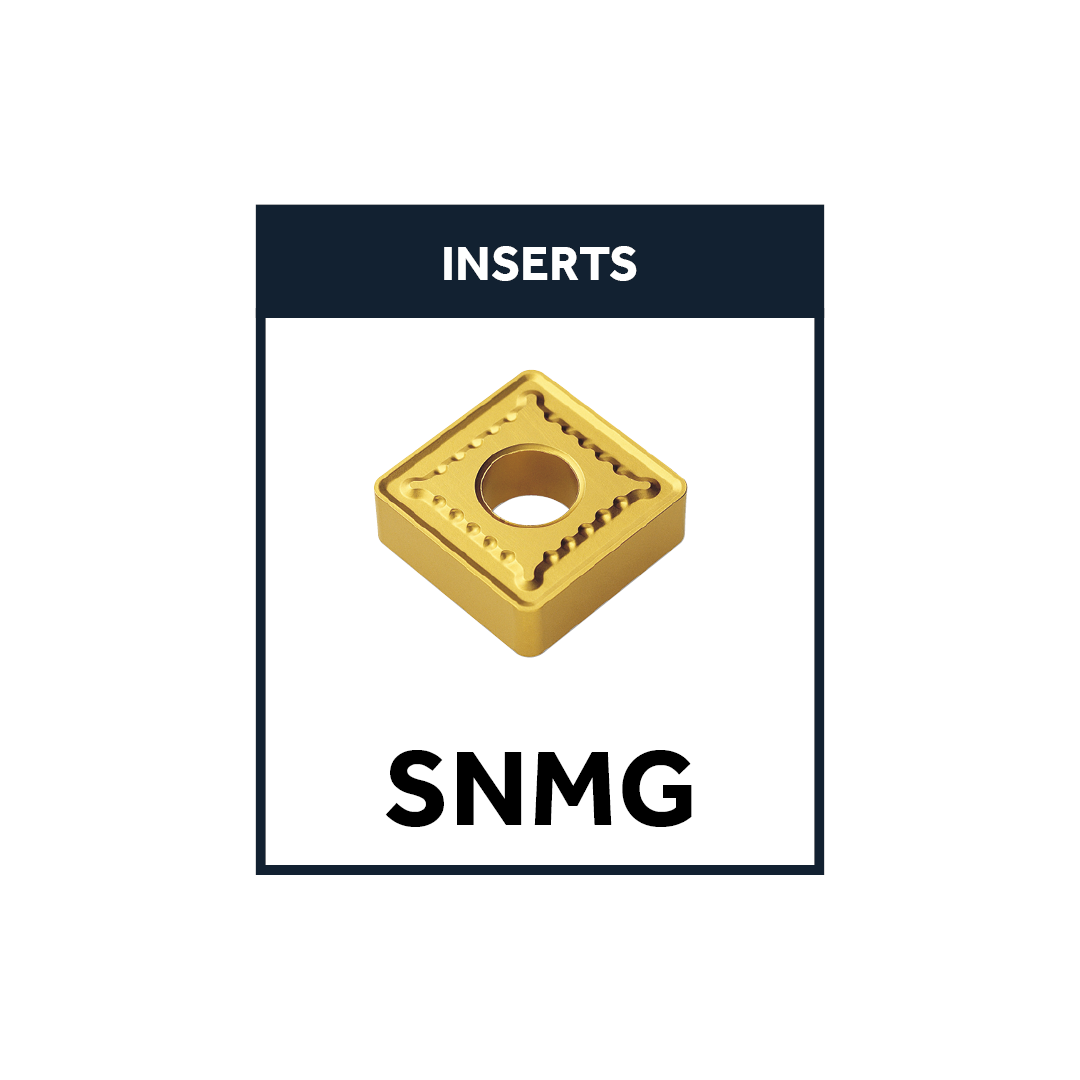

- Suitable for use with SNMG style turning inserts (also suitable for SNMA, SNMM, SNGA, SNGG etc)

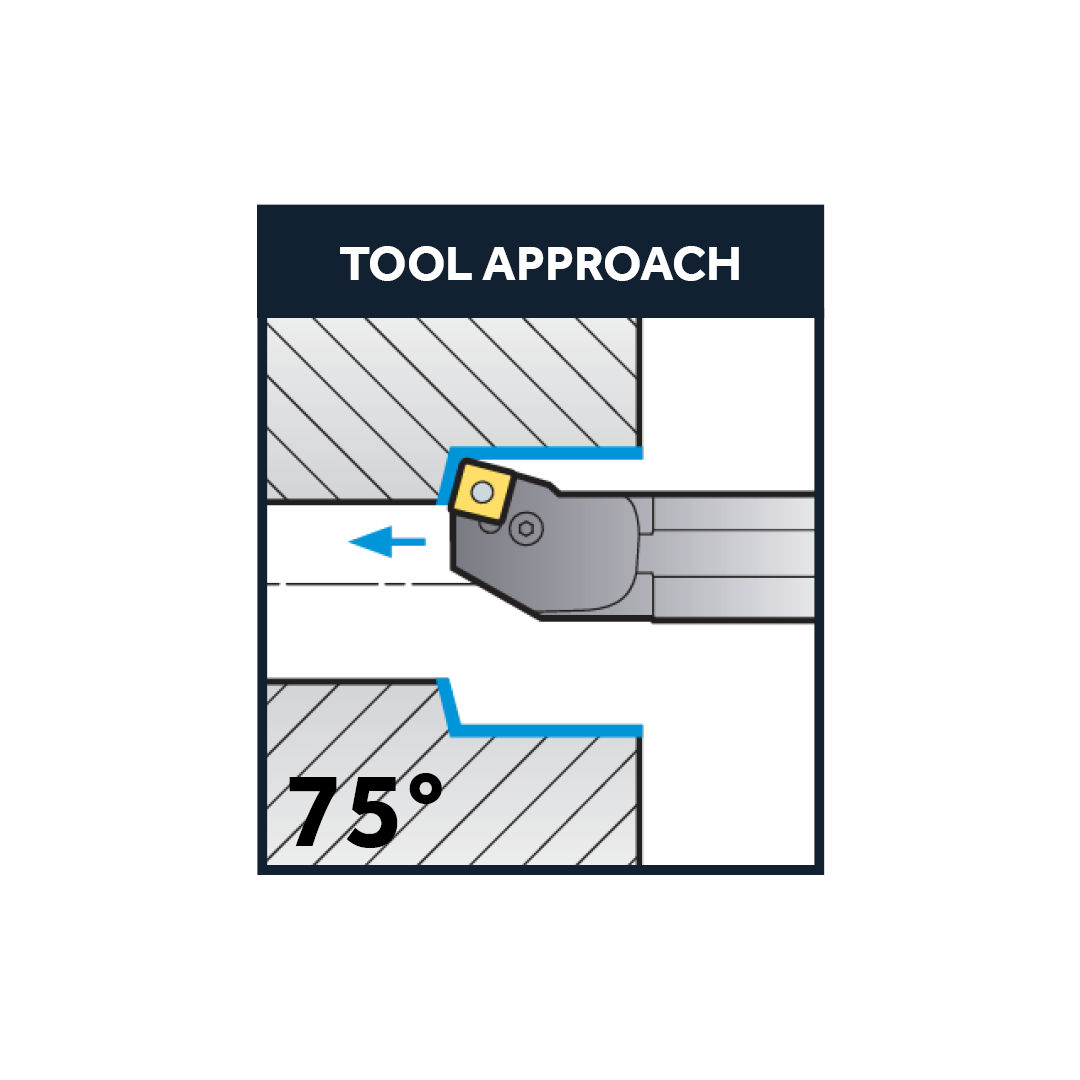

- General purpose solid steel shank boring bars with boring bar with 75 degree approach angle
- Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
- For the best performance it is recommended to clamp on a 1/3 of the bar's length, as a minimum.
- Made by YG-1, a global market leading manufacturer of cutting tools

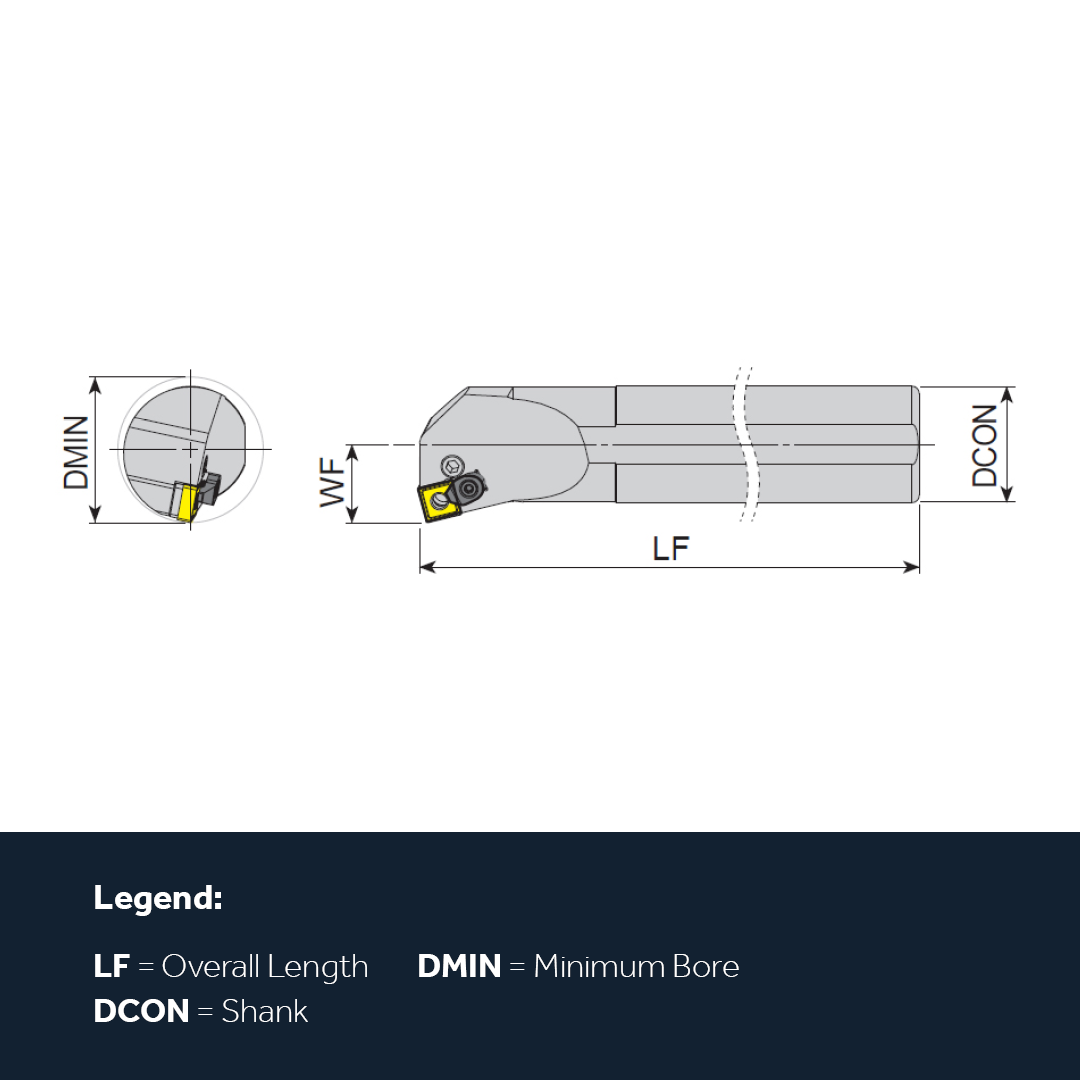

Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Boring Bars |
| Sub Category 2 | Solid Steel Shank Boring Bars |
| Shank (mm) | 25 |
| Overall Length (mm) | 250 |
| Inserts | SN**12 |
| ISO Code | S25S-PSKNL12C |
| Min Bore | 32 |
| Hand | Left |
| Alternative Part Number | S25S-PSKNL12C |
| Shim | YAASN-3-0004 |
| Clamp Screw | Y4015-M4x11 |
| Lever | YAPL-02 |
| Insert Series | SNMG |
| Through Coolant | No |
| Angle | 75° |
| Holder Material | Steel |
| Holder Style | PSKNR/L |
| Clamp Type | Lever Lock |
| Brand | YG-1 |
