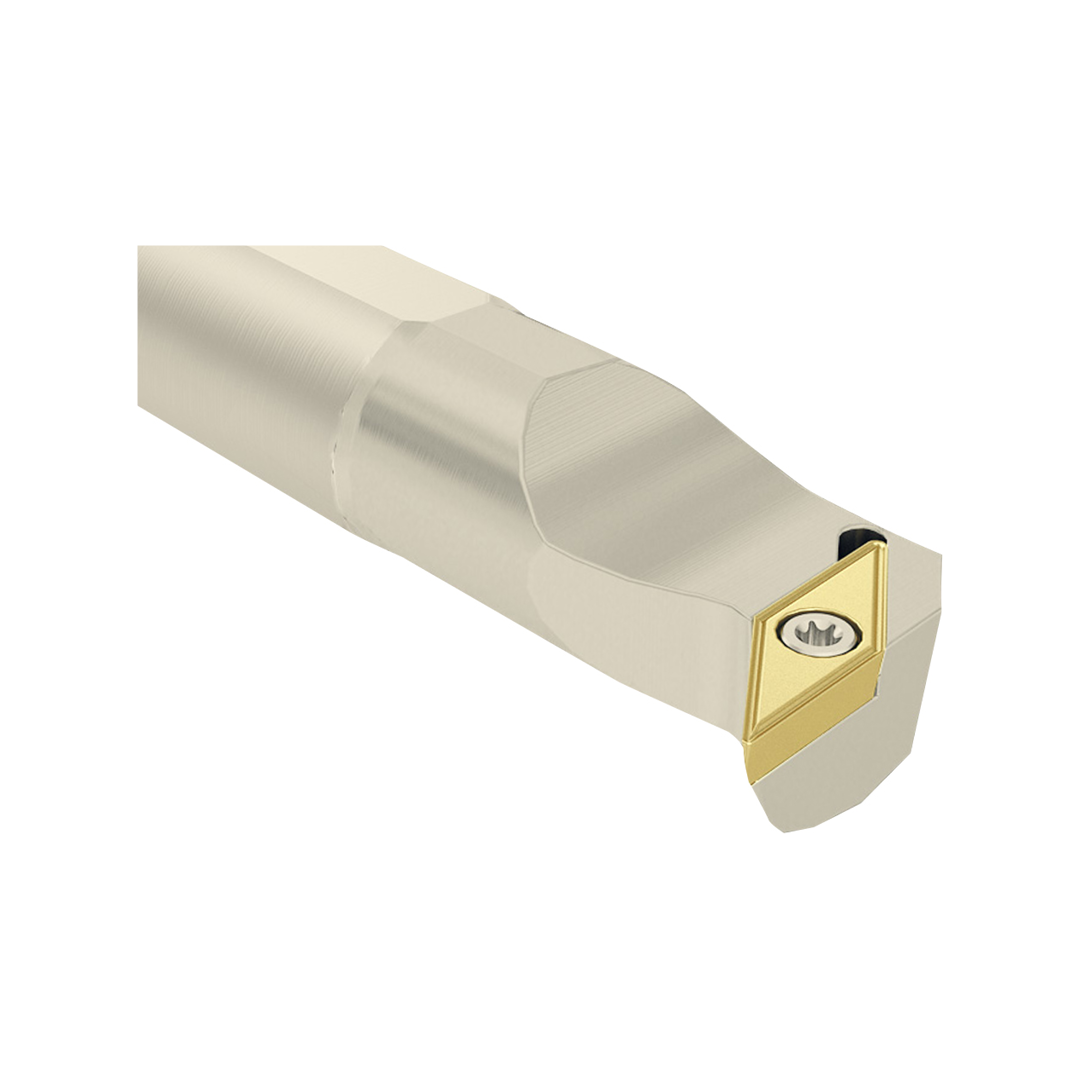

S25R-SVUCL-16 25mm Steel Shank Boring Bar, Left Hand, for VCMT16 Inserts, 93 Degree Approach, Screw On Clamp (Teknik)
S25R-SVUCL-16 25mm Steel Shank Boring Bar, Left Hand, for VCMT16 Inserts, 93 Degree Approach, Screw On Clamp (Teknik)
| Overall Length (mm) | 200 |
|---|---|
| Shank (mm) | 25 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

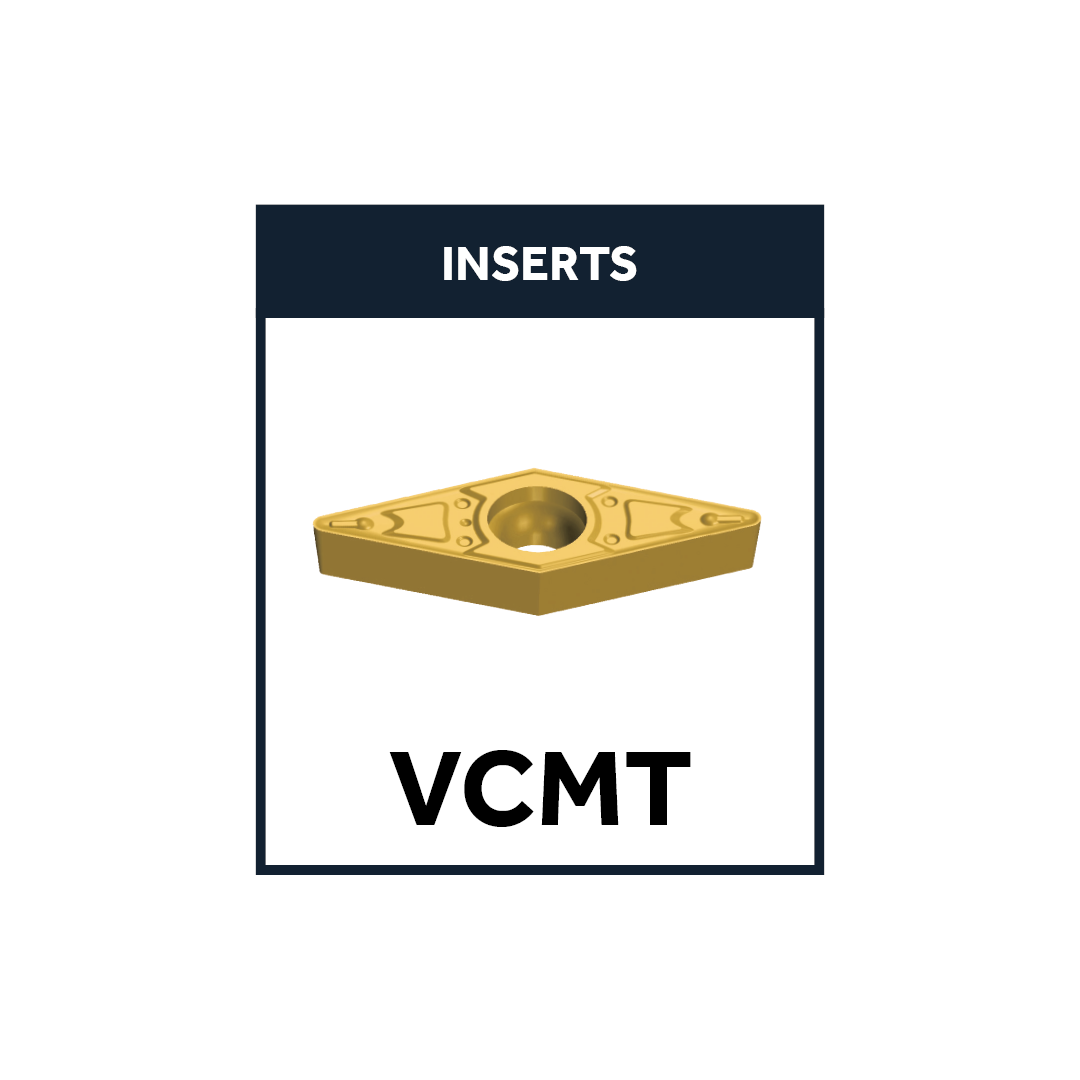

- Suitable for use with VCMT style turning inserts (also suitable for VCGT, VCGW, VCET, VCHT etc

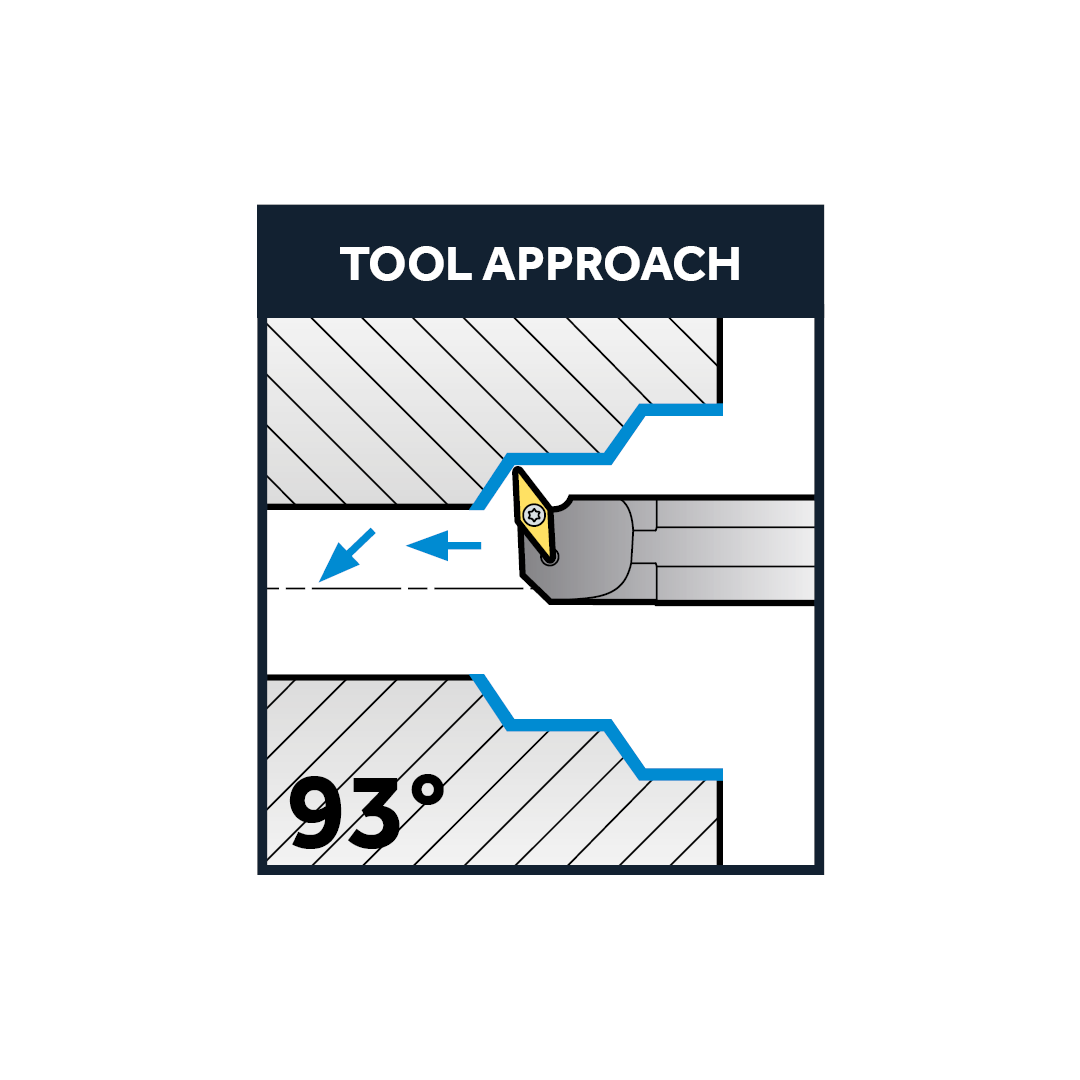

- Excellent value solid steel shank boring bar with 93 degree approach angle
- Screw on clamping system for simple changeover with wrench and screw
- For the best performance it is recommended to clamp on a 1/3 of the bar's length, as a minimum.
- Made by Teknik, offering excellent value and cost efficiency

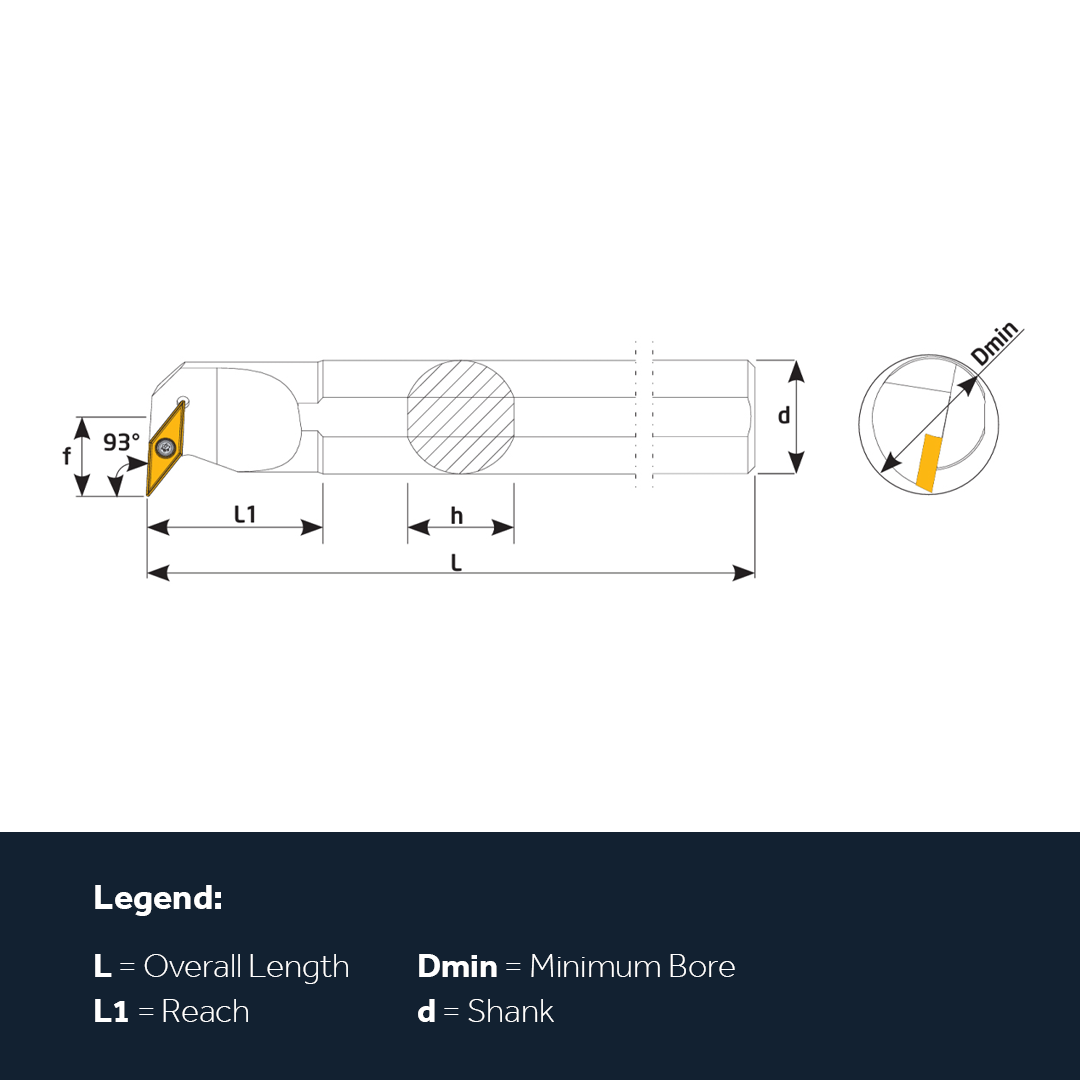

Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Boring Bars |
| Sub Category 2 | Solid Steel Shank Boring Bars |
| Shank (mm) | 25 |
| Overall Length (mm) | 200 |
| Reach (mm) | 40 |
| Inserts | VC**16 |
| ISO Code | S25R-SVUCL-16 |
| Min Bore | 32 |
| Hand | Left |
| Alternative Part Number | S25R-SVUCL-16 |
| Torx Key | T15 |
| Clamp Screw | TC074 M4x10 |
| Insert Series | VCGT, VCMT |
| Through Coolant | No |
| Angle | 93° |
| Holder Material | Steel |
| Holder Style | SVUCR/L |
| Clamp Type | Screw On Clamp |
| Brand | Teknik |
