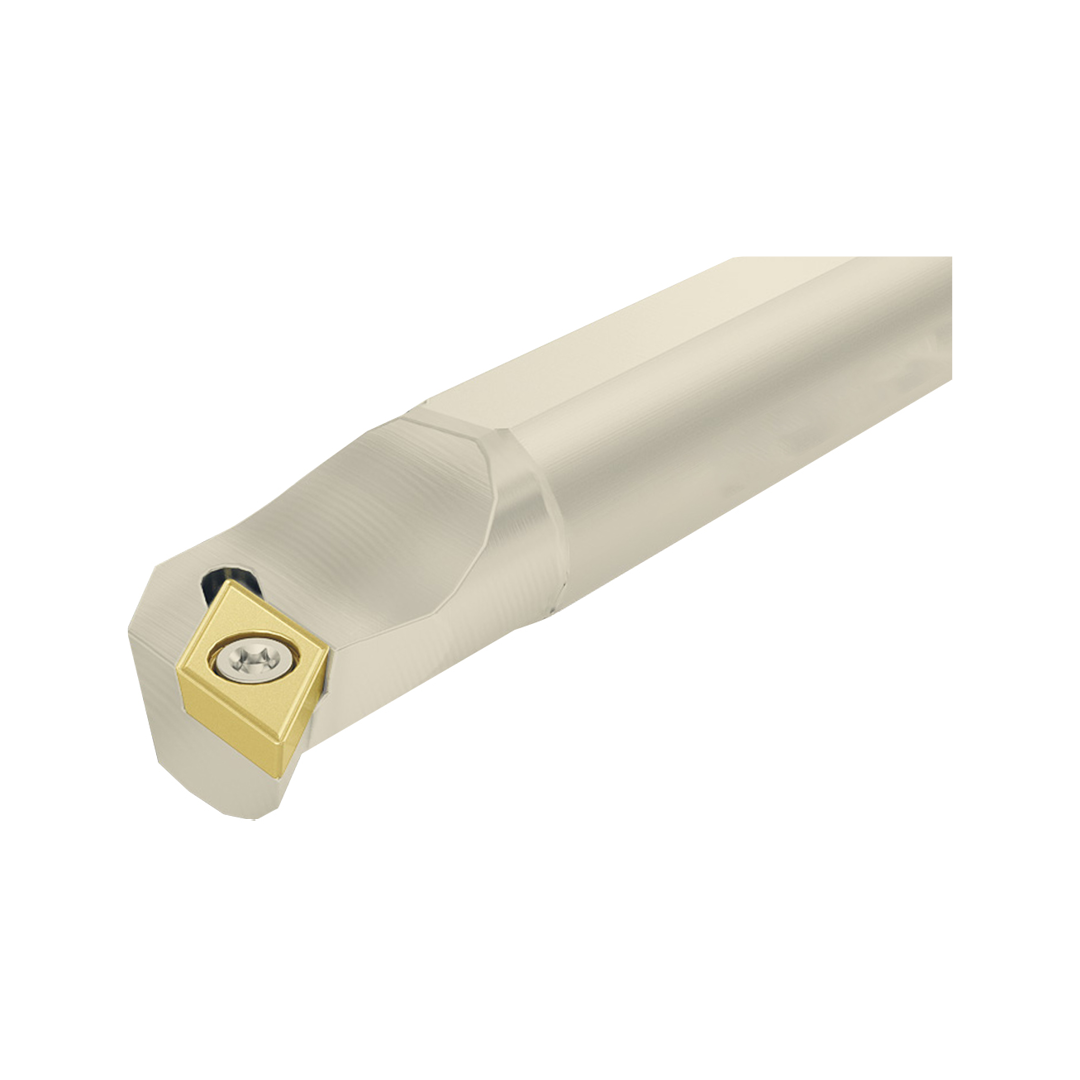

A16M-SDUCR-11 16mm Steel Shank Boring Bar, Right Hand, Through Coolant, for DCMT11 Inserts, 93 Degree Approach, Screw On Clamp (Teknik)
A16M-SDUCR-11 16mm Steel Shank Boring Bar, Right Hand, Through Coolant, for DCMT11 Inserts, 93 Degree Approach, Screw On Clamp (Teknik)
| Overall Length (mm) | 150 |
|---|---|
| Shank (mm) | 16 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Through coolant boring bar prolongs tool life by directing coolant right to the cutting edge whilst also assisting with swarf evacuation
- Suitable for use with DCMT style turning inserts (also suitable for DCGT, DCGW, DCET, DCHT etc)
- Excellent value through coolant steel shank boring bar with 93 degree approach angle
- Screw on clamping system for simple changeover with wrench and screws
- For the best performance it is recommended to clamp on a 1/3 of the bar's length, as a minimum.
- Made by Teknik, offering excellent value and cost efficiency

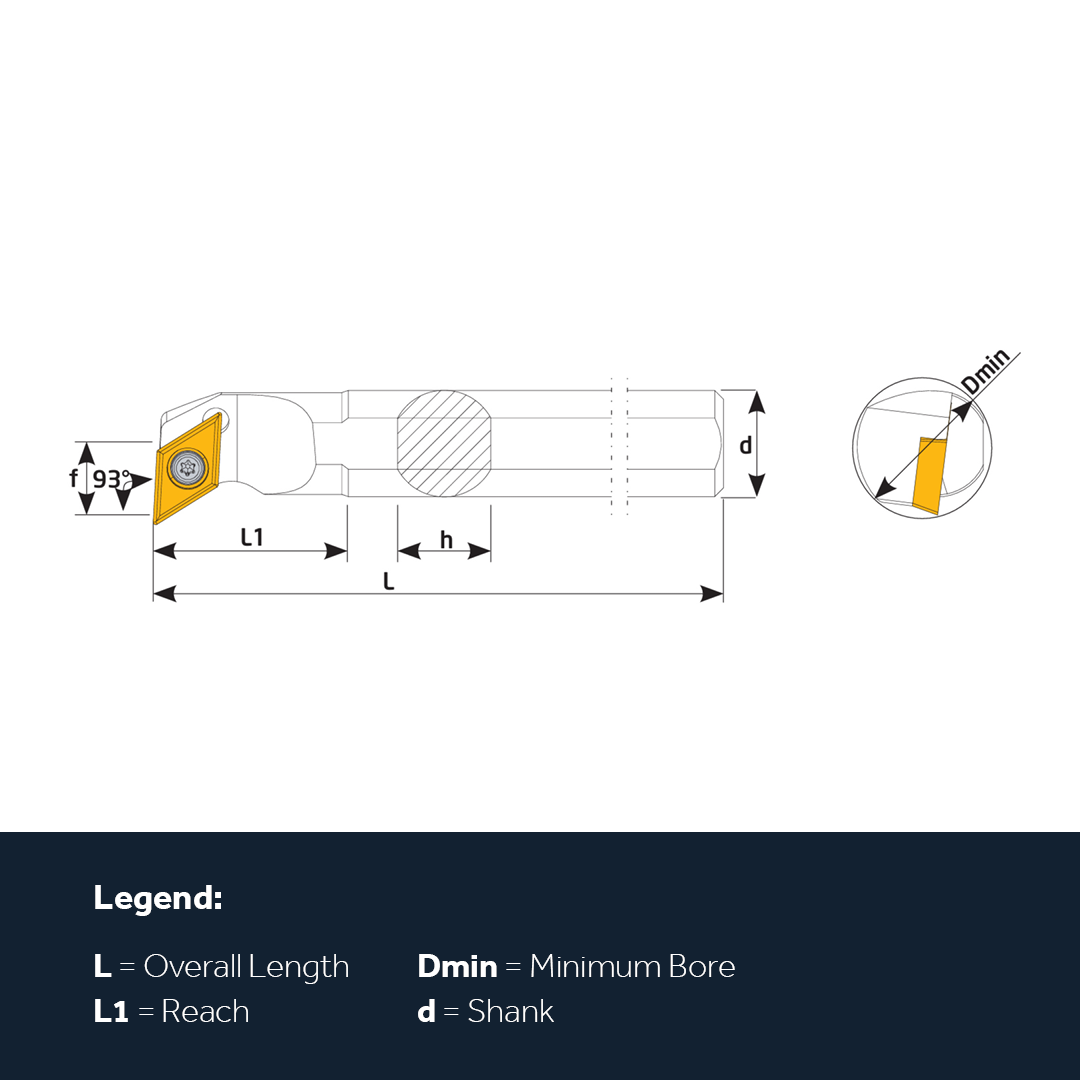

Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Boring Bars |
| Sub Category 2 | Through Coolant Steel Shank Boring Bars |
| Shank (mm) | 16 |
| Overall Length (mm) | 150 |
| Reach (mm) | 30 |
| Inserts | DC**11 |
| ISO Code | A16M-SDUCR-11 |
| Min Bore | 21 |
| Hand | Right |
| Alternative Part Number | A16M-SDUCR-11 |
| Torx Key | T15 |
| Clamp Screw | TC067 M3.5x9 |

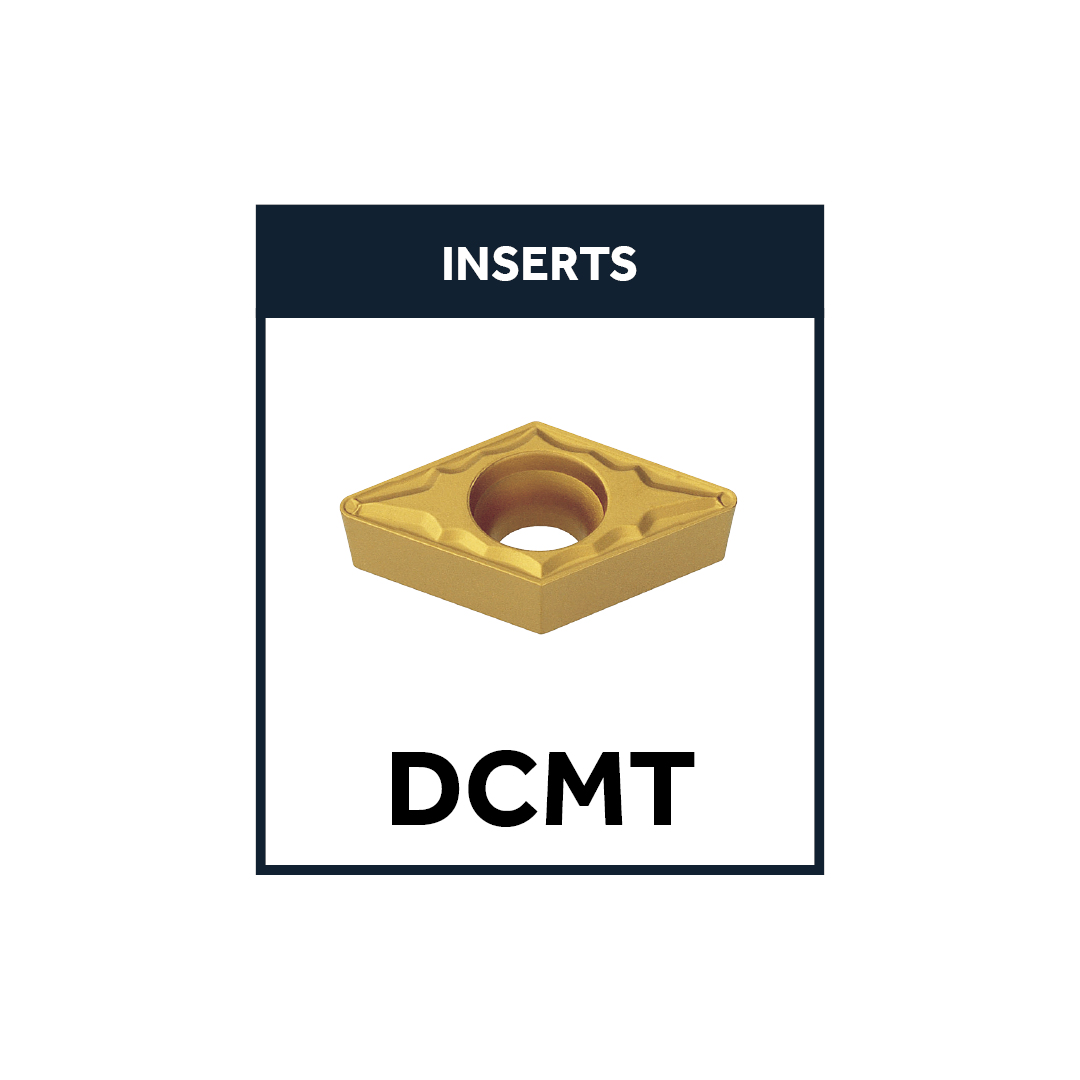

| Insert Series | DCGT, DCMT |
| Through Coolant | Yes |

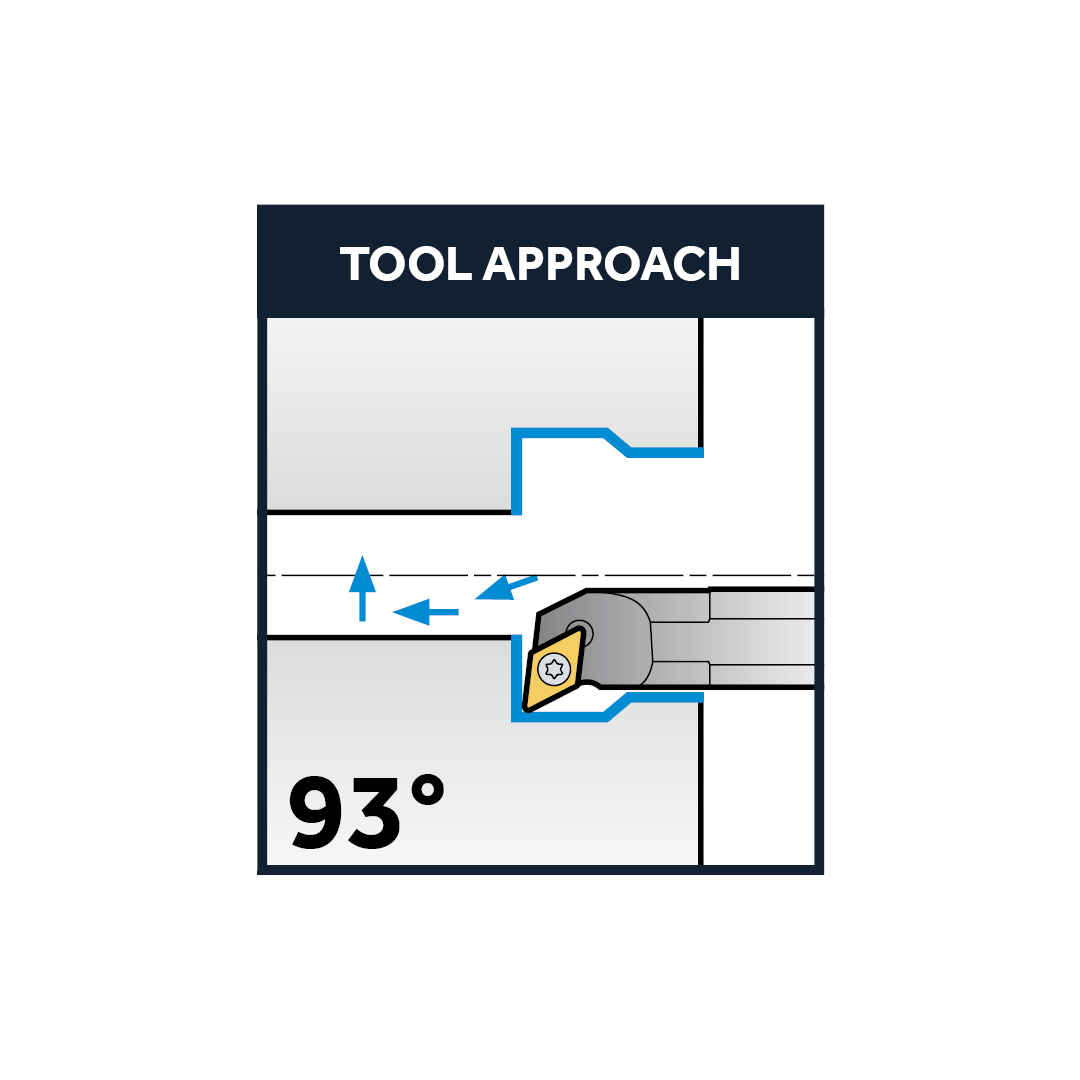

| Angle | 93° |
| Holder Material | Steel |
| Holder Style | SDUCR/L |
| Clamp Type | Screw On Clamp |
| Brand | Teknik |
