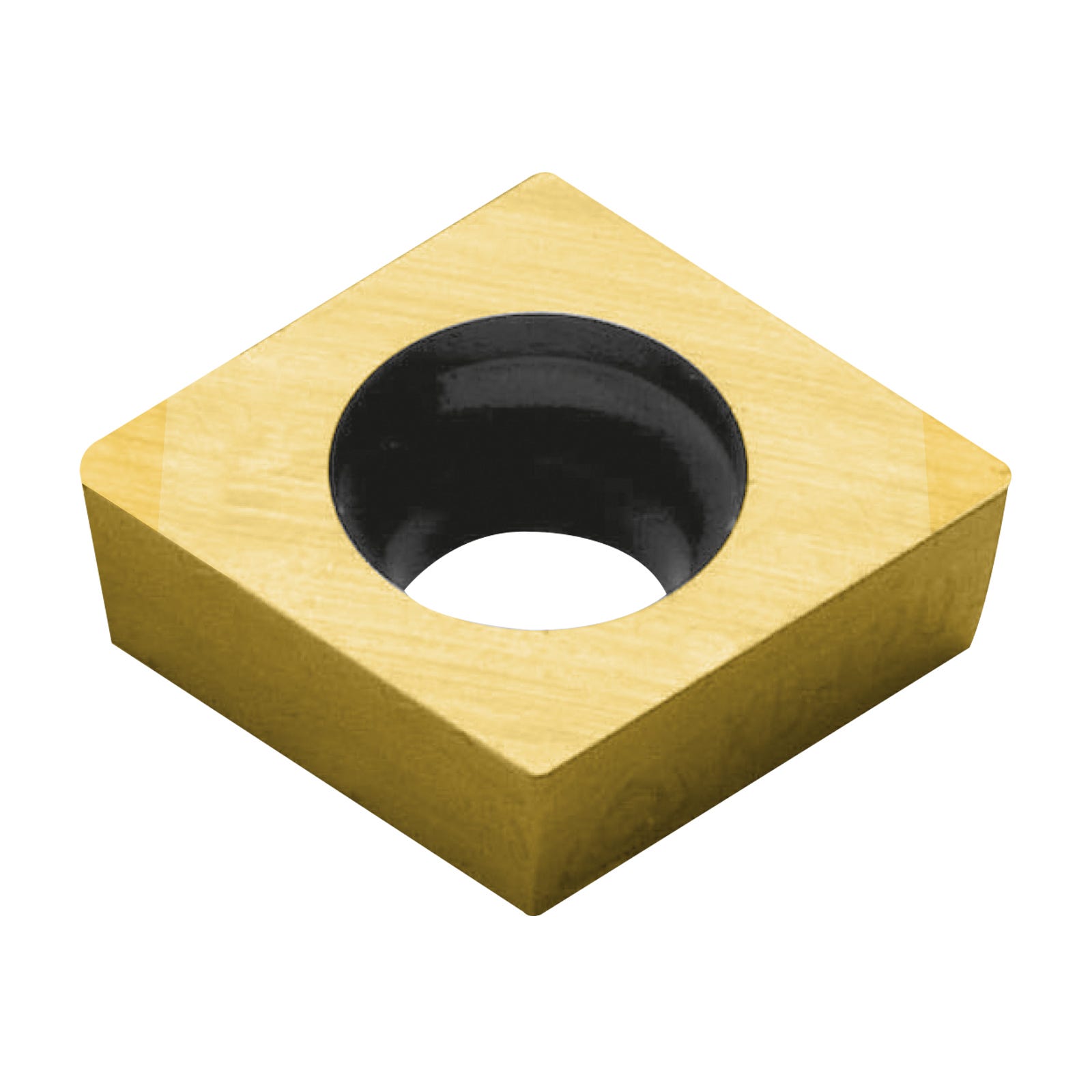

    CCGW060204 DNC250 CCGW Coated (Multi-Edge) CBN Turning Inserts for Hardened Steel (Korloy)

    (6-01-025097)
    £61.68 £51.40
    Coated (Multi-Edge) CCGW turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
    • H
    Approx. 4 days. Subject to availability
    View all variants
    Features & Benefits
    • CCGW style.
    • Rhomboid shape.
    • Non-Regrindable (multiple cutting edges).
    • DNC250 Grade - Designed for continuous high speed cutting of high hardened steels & cast iron.
    • CBN inserts can eliminate the need for additional grinding processes.
    • PVD Coated.
    • Excellent wear resistance.
    • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
    • Dry machining is also recommended.
    Specification
    Specification

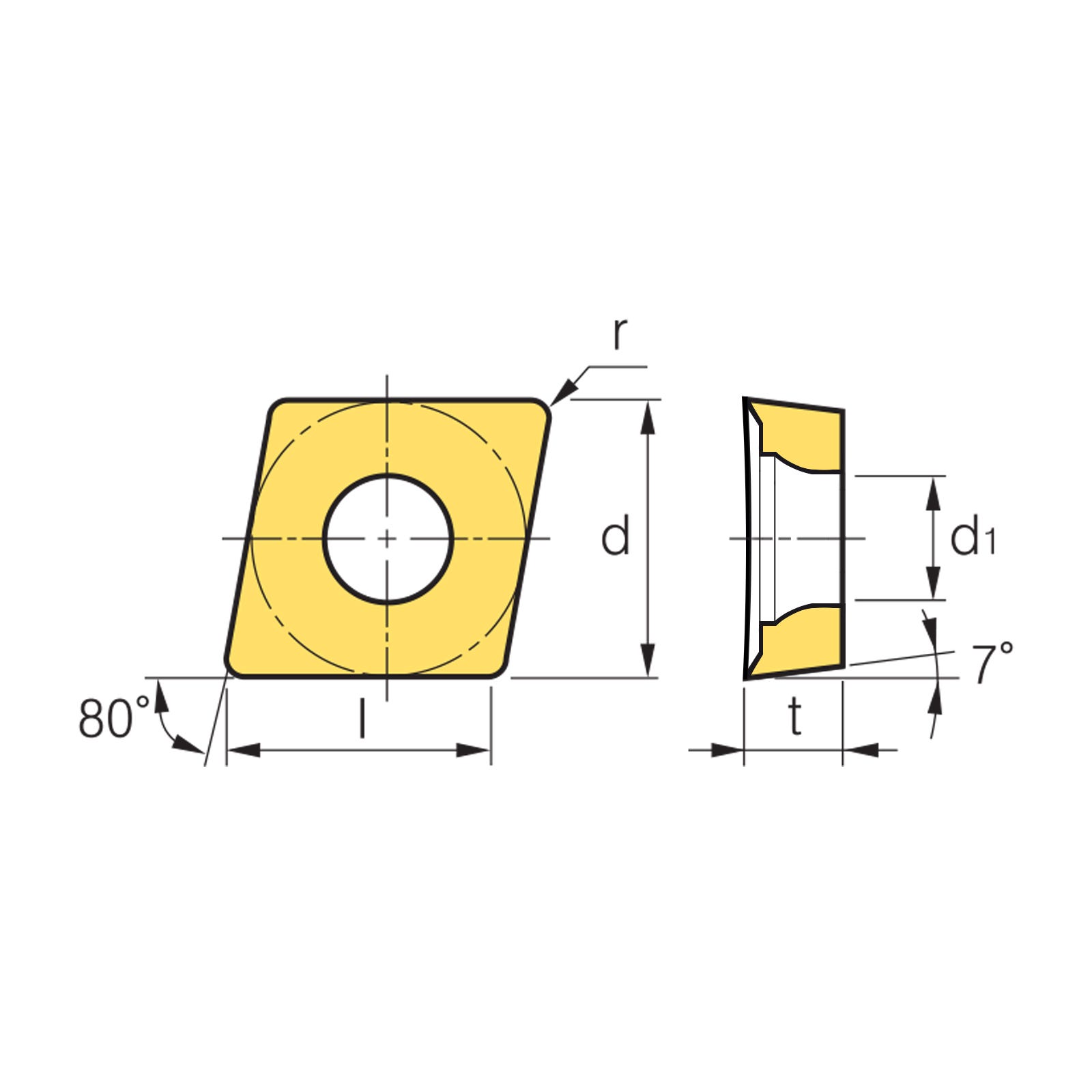

    l (Length) 6
    Applicable Materials Hardened Steel
    Brand Korloy
    Grade DNC250 (High Speed Continuous Cutting)
    Type Coated (Multi-Edge)
    Style CCGW
    Edge Prep Strong Edge (Roughing)
    No. Of Edges 2
    d1 2.8
    t 2.38
    ISO Code CCGW060204
    r (Radius) 0.4
    Product Range CBN Turning Inserts
    Cutwel Sku 6-01-025097
